Caterpillar

XQP30 - Diesel

Rating Prime

30 kVa

Frequency

50/60 Hz

Voltage

127 - 480 V

Overview

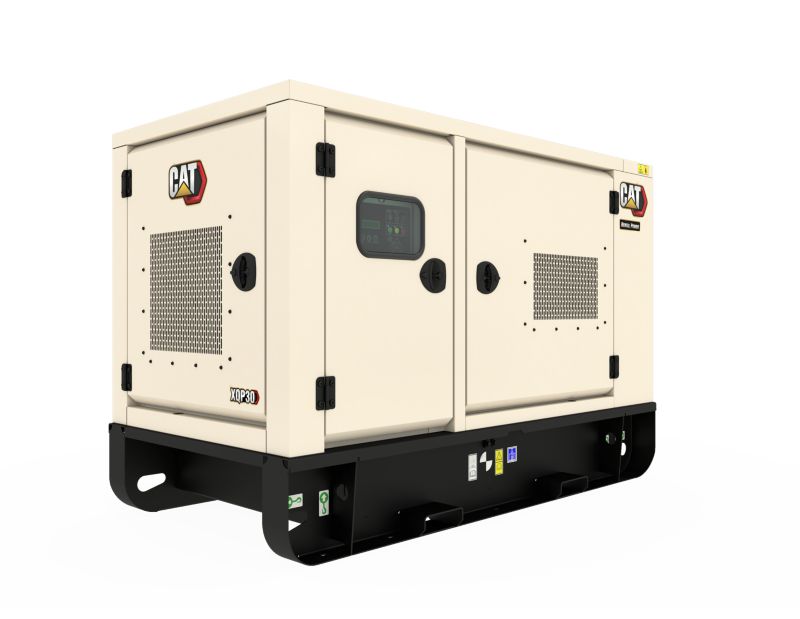

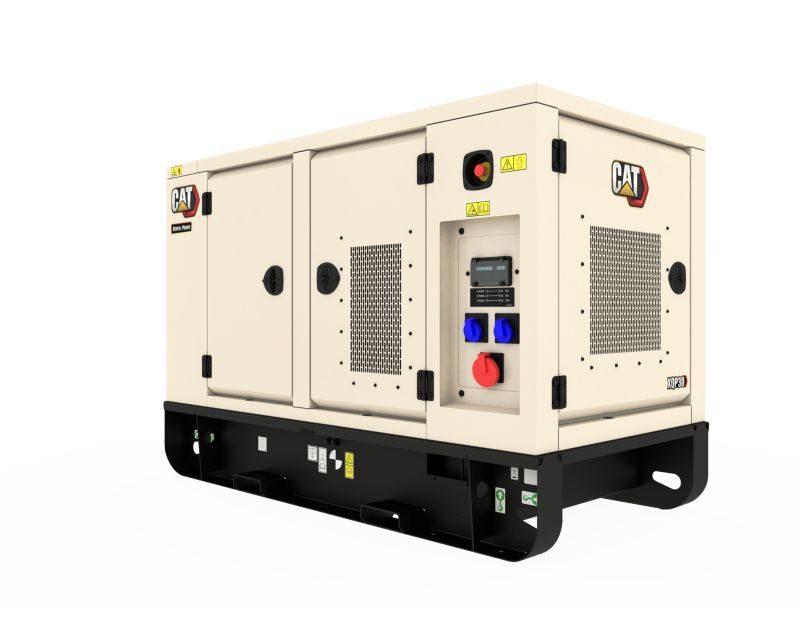

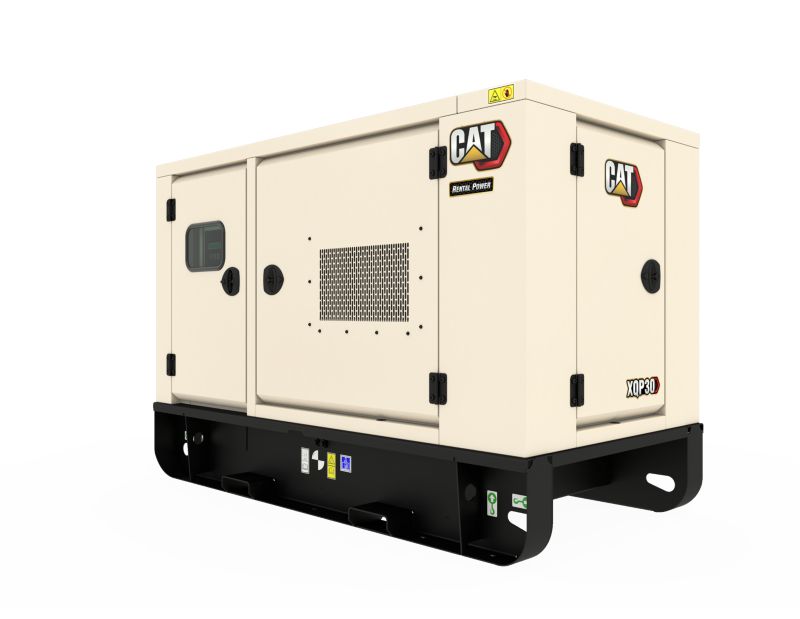

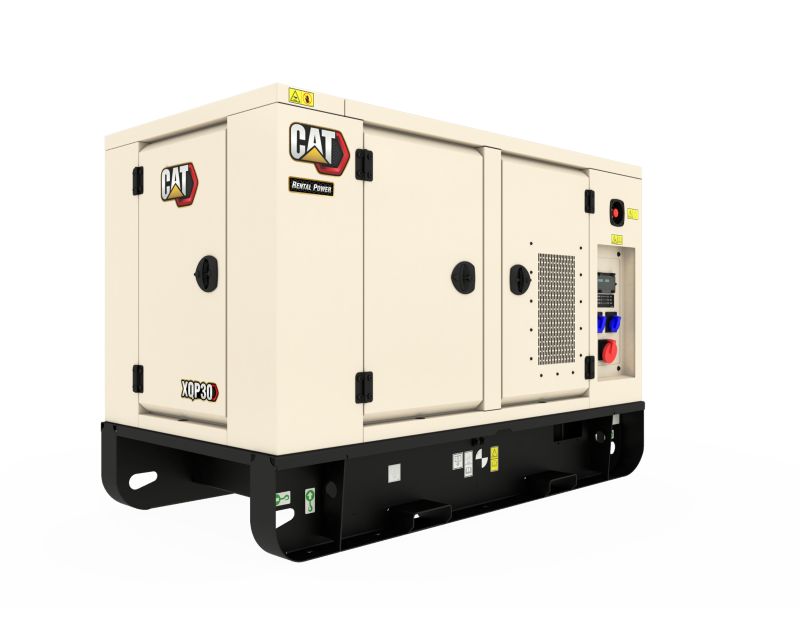

This XQP30 generator set is Fuel consumption optimized for customers in non-regulated territories. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

Photos

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

XQP30, Virtual Product Tour

Features

Specifications

  • Generator Set
    Spec Value
    Rating Prime 30 kVa
    Frequency 50/60 Hz
    Voltage 127 - 480 V
  • Engine
    Spec Value
    Engine Cat C3.3
    Emissions Low Fuel Consumption
    Fuel Diesel
  • Dimensions
    Spec Value
    Width 44.1 in
    Height 62.3 in
    Length 84.6 in
    Weight - With Lube Oil and Coolant 2712 lb
  • Fuel consumption Best Fuel Efficiency
    Spec Value
    100% Load 50Hz 1.9 gal/hr
    100% Load 60Hz 2.3 gal/hr
    75% Load 50Hz 1.5 gal/hr
    75% Load 60Hz 1.7 gal/hr
    50% Load 50Hz 1.1 gal/hr
    50% Load 60Hz 1.3 gal/hr
  • Noise rating (with enclosure) Best Fuel Efficiency
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 72 dB(A)
    Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 73 dB(A)

Standard Equipment

CAT C3.3 Diesel Engine

  • Naturally aspirated

Generator

  • LC1514F Frame

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Control Panel

  • Digital EMCP4.2B set mounted controller

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
