Caterpillar

XQP20 EU Stage V

Rating Prime

20 kVA

Frequency

50 Hz

Voltage

380 - 415 V

Overview

This XQP20 generator set is EU Stage V emission standard capable. It can handle varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

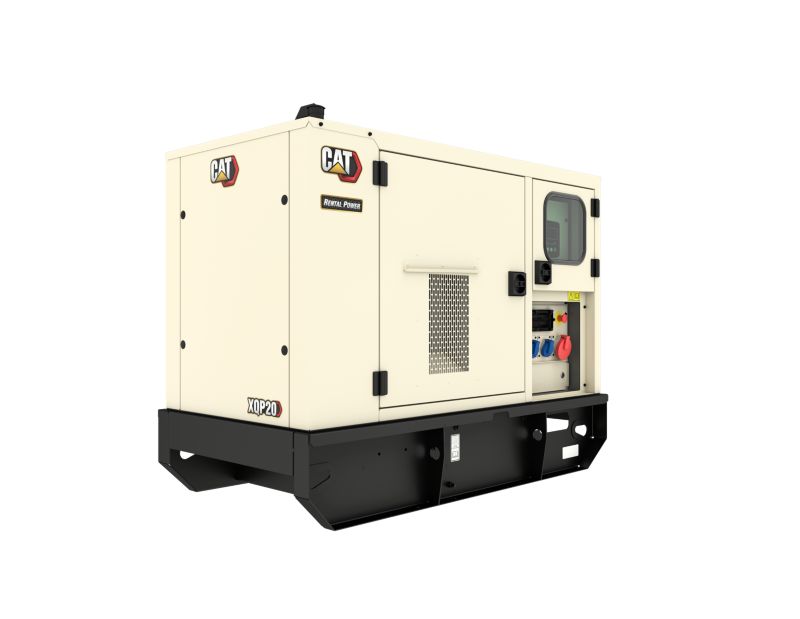

Photos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Features

Specifications

  • Generator Set
    Spec Value
    Rating Prime 20 kVA
    Frequency 50 Hz
    Voltage 380 - 415 V
    Fuel/Emissions Strategy EU Stage V
  • Engine
    Spec Value
    Engine Cat® C2.2
    Fuel Diesel
    Emissions EU Stage V
  • Dimensions
    Spec Value
    Width 39.1 in
    Height 50.1 in
    Length 67.1 in
    Weight - With Lube Oil and Coolant 1793 lb
  • Fuel Consumption
    Spec Value
    100% Load 50 Hz 1.45 gal/hr
    75% Load 50 Hz 1.05 gal/hr
  • Noise rating (with enclosure)
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 65 dB(A)

Standard Equipment

Cat® C2.2 Diesel Engine

  • Naturally aspirated
  • Mechanical Governor

Alternator

  • LC1100 Frame
  • Coastal insulation protection

Control Panel

  • GCCP 1.3 set mounted digital controller

Air Filter

  • Air cleaner, cyclonic/paper with dust cup and serviceindicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory
  • High ambient performance

Charging / Starting System

  • 12V, heavy duty charging alternator with integral regulator and belt guards

Fuel System

  • 12 hour dual wall fuel tank with internal fuel fill
  • Engine mounted primary and secondary fuel filter

Distribution

  • Separate robust steel enclosures for control & distribution sections
  • 4 pole, 40A main circuit breaker

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Sealed quarter-turn compression latches with key or padlock capabilities

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
  • Full manufacturer's warranty

Optional Equipment

Distribution

  • CE socket box with integrated MCB & RCBO protection

Fuel Option Pack

  • Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender

Drains option Pack

  • Oil and coolant drains piped to base frame
