Cat

XQ330 Tier 4 Final (264 ekW, 330 kVA)

Rating Prime

264 eKW (330 kVA)

Frequency

50/60 Hz

Voltage

120 - 600 V

Overview

The Cat® XQ330 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C9.3 Tier 4 Final compliant engine equipped with the Cat NOx Reduction System. Equipped with the EMCP 4.4 control panel, the XQ330 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Photos

360° View

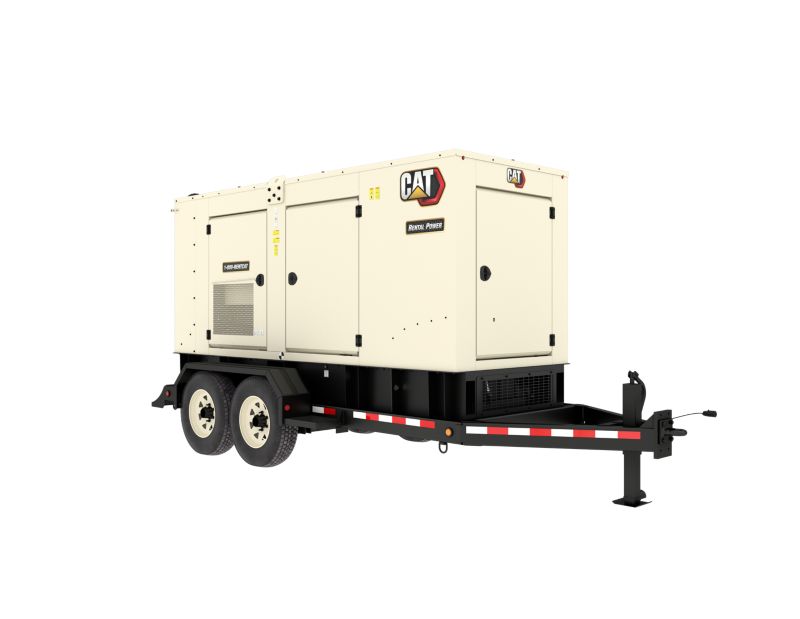

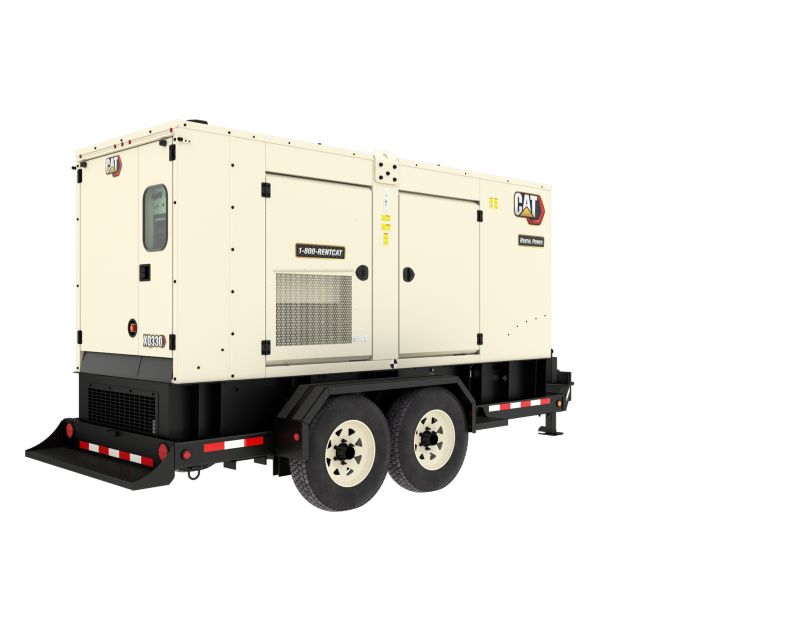

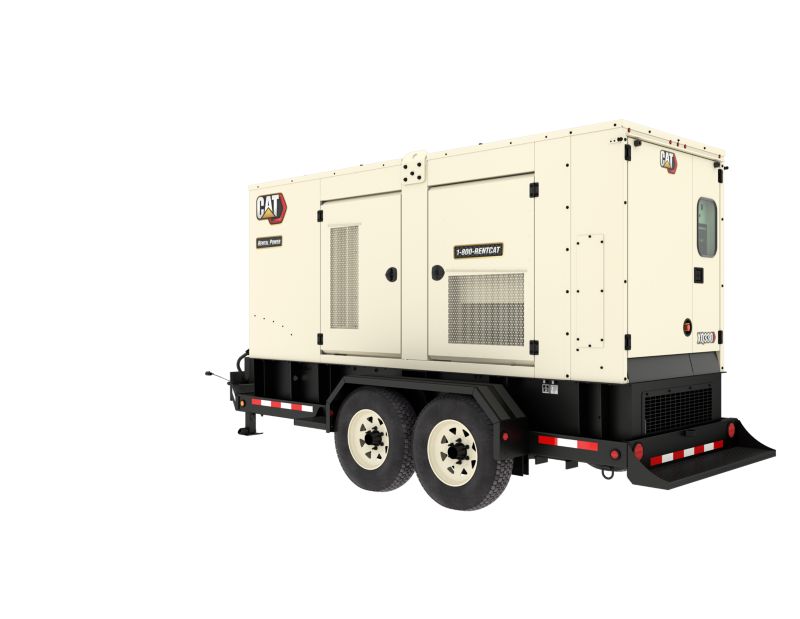

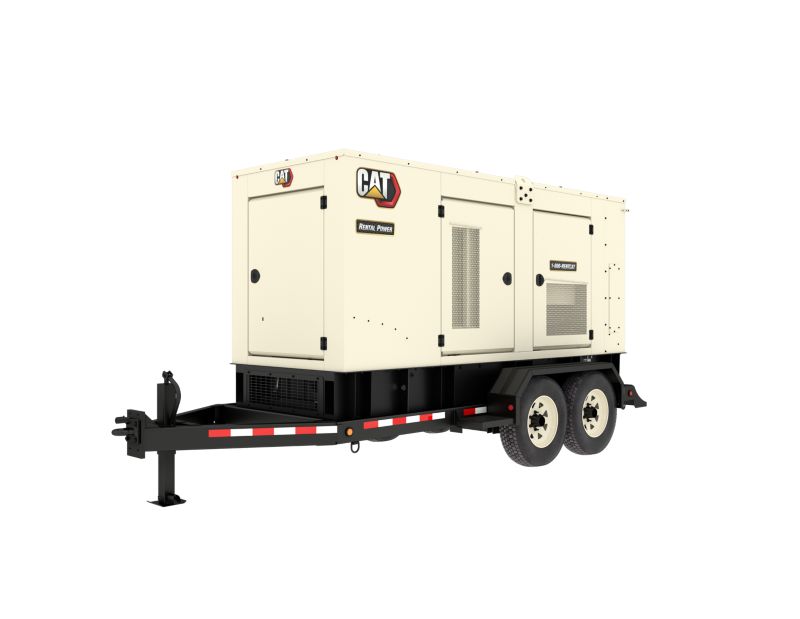

Exterior

360° Exterior View. Double click on the image to zoom in on any area of the product.

Showroom

XQ330, Virtual Product Tour

Features

Specifications

  • Generator Set
    Spec Value
    Rating Prime 264 eKW (330 kVA)
    Frequency 50/60 Hz
    Voltage 120 - 600 V
    Rating Standby 288 ekW (360 kVA)
  • Engine
    Spec Value
    Engine C9.3B
    Fuel Diesel
  • Dimensions
    Spec Value
    Height - Without Trailer 78.5 in
    Length - Without Trailer 162.2 in
    Width - Without Trailer 92.8 in
    Weight with Lube Oil and Coolant, Without Trailer 10405 lb
  • Fuel Consumption
    Spec Value
    100% Load 60 Hz 18.5 gal/hr
    75% Load 60 Hz 13.7 gal/hr
    50% Load 60Hz 9.8 gal/hr
    100% Load 50 Hz 16.5 gal/hr
    75% Load 50 Hz 12.5 gal/hr
  • Noise rating (with enclosure)
    Spec Value
    Sound Power @ 7 meters (23 feet) @ Prime Rating 70.2 dB(A) (60Hz)

Standard Equipment

CAT C9.3B Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • LC5134N Frame

Control Panel

  • Digital EMCP4.4 set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • Single 24V electric starting motor

Fuel System

  • 24 hour dual wall fuel tank

Air Filter

  • Efficient air cleaner with service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 3 pole 1000A maim circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Dual Point Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory 500-hour oil change interval

General

  • Factory tested and inspected
