New Equipment

Cat

XQP550 EU Stage V

Rating Prime

550 kVA

Frequency

50/60 Hz

Voltage

220 - 480 V

Overview

The XQP550 generator set is EU Stage V emission standard capable. A unique feature is the introduction of clutch fan drive technology where the fan no longer needs to run continually at full speed and power. This saves additional fuel, while lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures and, most importantly, in evenings when noise levels are most noticeable.

Photos

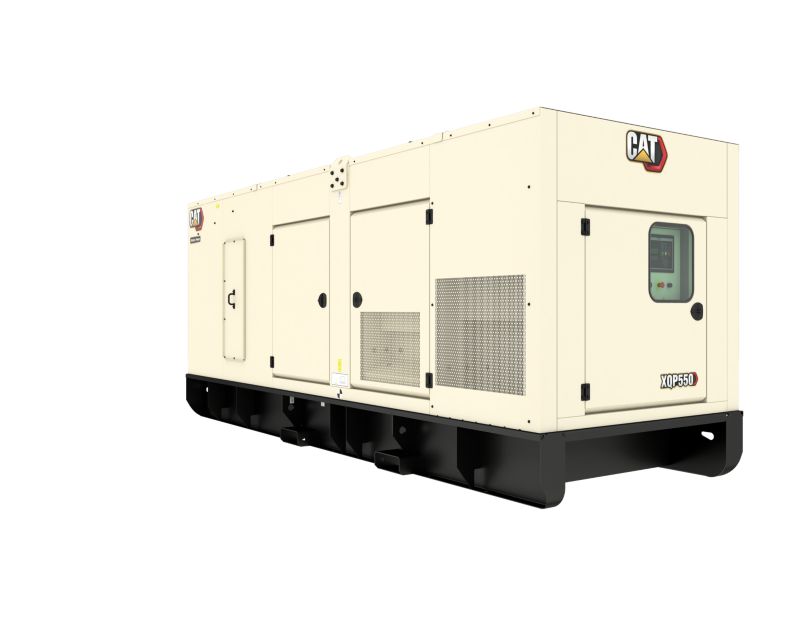

  • XQP550
    XQP550

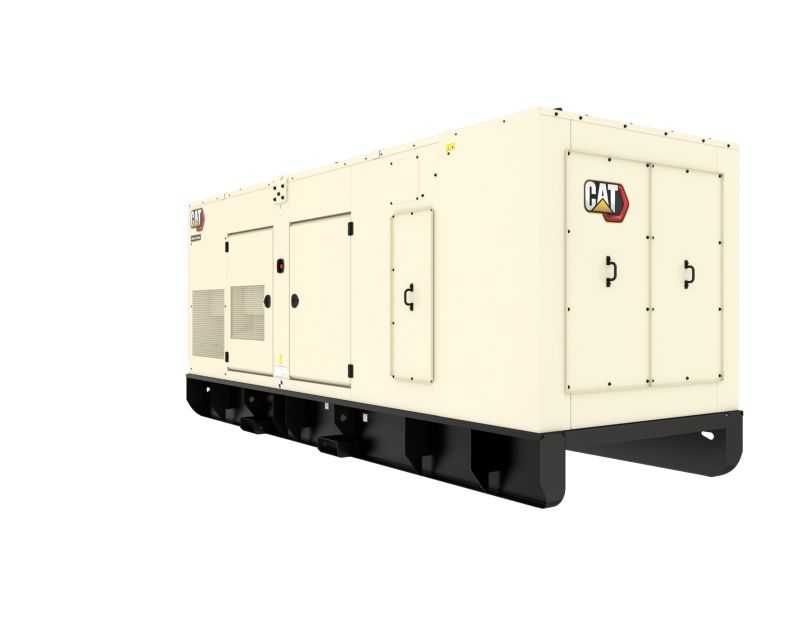

  • XQP550
    XQP550

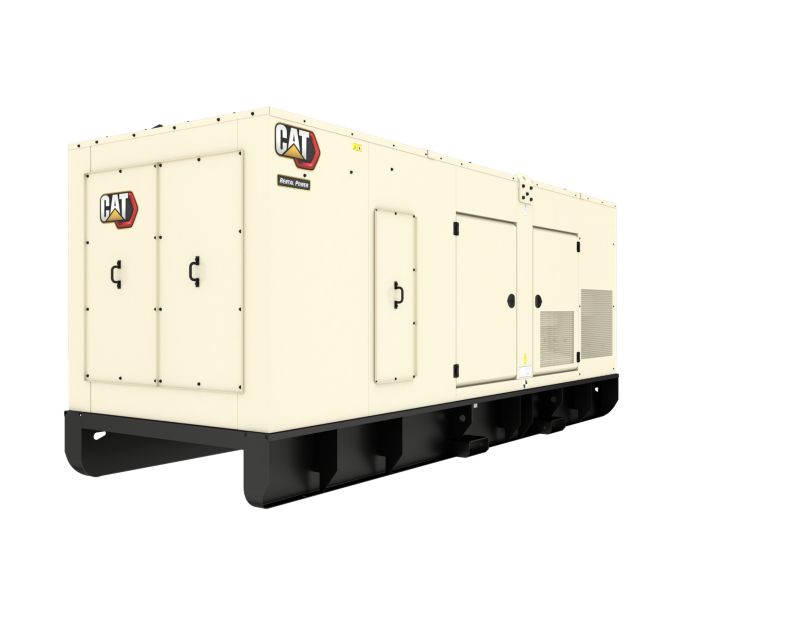

  • XQP550
    XQP550

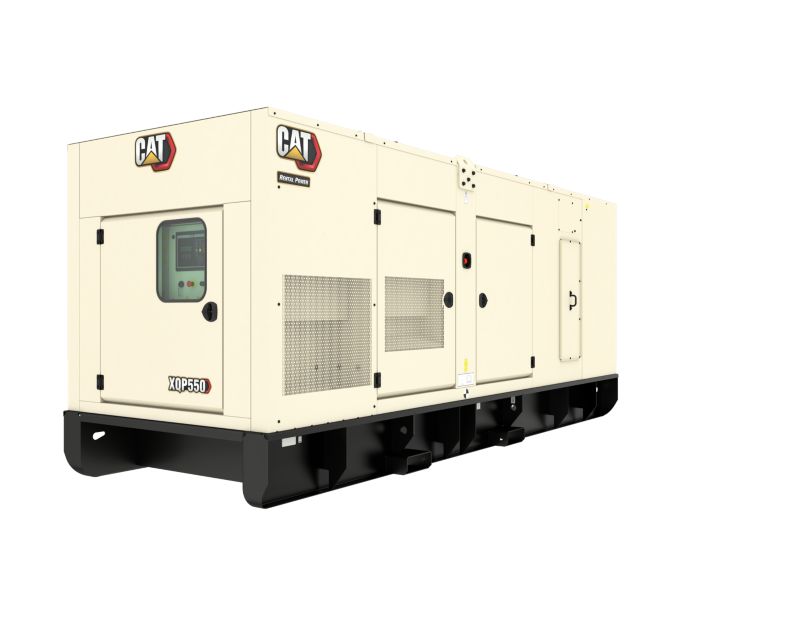

  • XQP550
    XQP550

Videos

  • Cat Rental Power XQP Product Robust Design Features
  • Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

XQP500, Virtual Product Tour

Documents

Features

Rental ready

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy

Fuel/Emissions Strategy

EU Stage V Emissions.

Fuel/Emissions Strategy

EU Stage V Emissions.
Cat C18 Diesel Engine

Cat C18 Diesel Engine

Industry proven reliability.

Cat C18 Diesel Engine

Industry proven reliability.
XQCP Control Panel

XQCP Control Panel

Easy to use digital controls.

XQCP Control Panel

Easy to use digital controls.
Cat LC6114K Generator

Cat LC6114K Generator

Integrated voltage regular for fast response in demanding applications.

Cat LC6114K Generator

Integrated voltage regular for fast response in demanding applications.
Robust Galvanised Enclosure

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Sound Isolated Operator Panel

Sound Isolated Operator Panel

Improved operator comfort.

Sound Isolated Operator Panel

Improved operator comfort.
Cat Connect

Cat Connect

Remote monitoring for fleet management and asset tracking.

Cat Connect

Remote monitoring for fleet management and asset tracking.
Factory Designed, Built and Tested

Factory Designed, Built and Tested

Single-source Supplier

Factory Designed, Built and Tested

Single-source Supplier
Worldwide Product Support

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
500 hr Oil Change Intervals

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.
Improved Transportability

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.
Additional Options Available

Additional Options Available

Synchronising controls. Extended Service interval kits.

Additional Options Available

Synchronising controls. Extended Service interval kits.

Specifications

  • Generator Set
    Spec Value
    Rating Prime 550 kVA
    Frequency 50/60 Hz
    Voltage 220 - 480 V
    Fuel/Emissions Strategy EU Stage V
  • Engine
    Spec Value
    Engine Cat® C18
    Fuel Diesel
  • Dimensions
    Spec Value
    Width 80.3 in
    Height 90.5 in
    Length 213.3 in
    Weight - With Lube Oil and Coolant 14860 lb
  • Fuel Consumption
    Spec Value
    100% Load 60 Hz 34.3 gal/hr
    100% Load 50 Hz 33.4 gal/hr
    75% Load 60 Hz 26.13 gal/hr
    75% Load 50 Hz 24.9 gal/hr
  • Noise rating (with enclosure)
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 79.19

Standard Equipment

Cat C18 Diesel Engine

  • Turbocharged, ATAAC

Generator

  • LC6114K Frame

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory

Charging / Starting System

  • 24V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Control Panel

  • XQCP set mounted controller.

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
