Cat

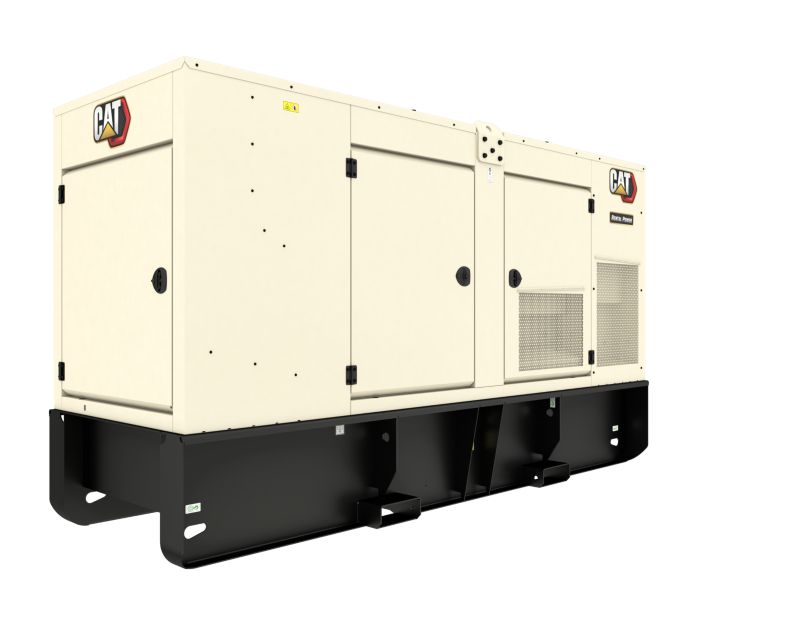

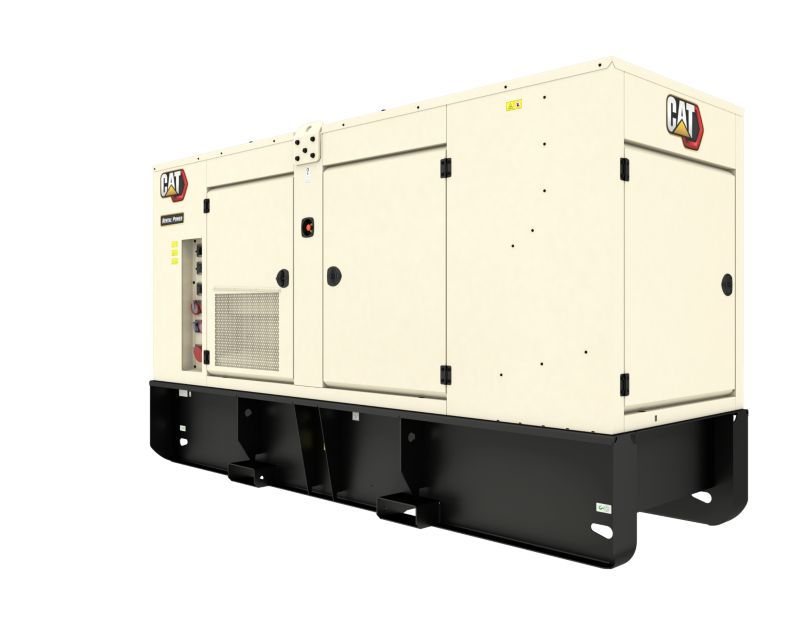

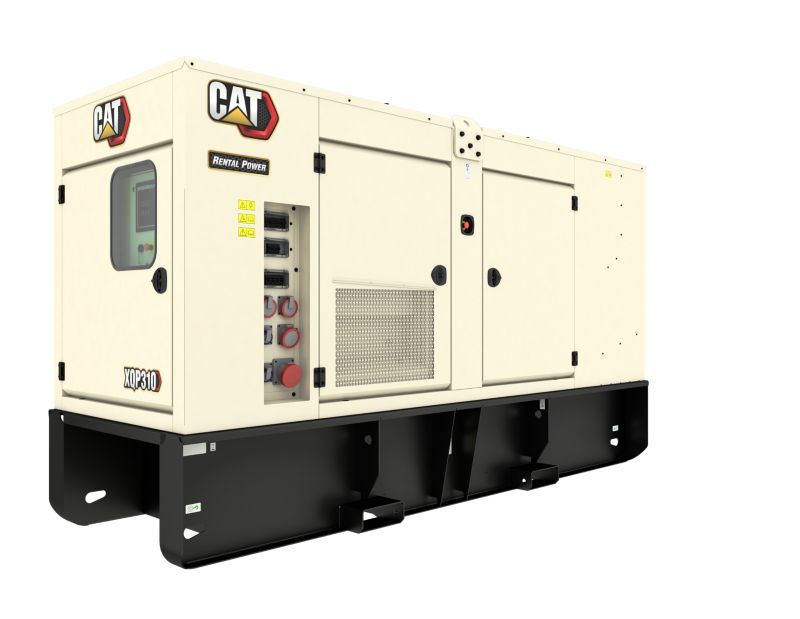

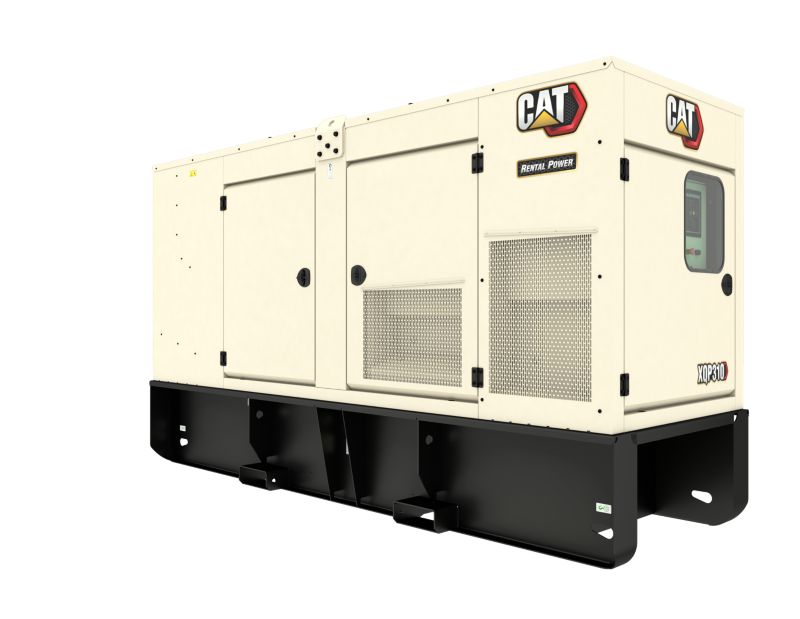

XQP310 EU Stage V

Rating Prime

310 kVA

Frequency

50/60 Hz

Voltage

127 - 480 V

Overview

This XQP310 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Photos

Videos

  • Cat Rental Power XQP Product Robust Design Features
  • Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

XQP310, Virtual Product Tour

Features

Specifications

  • Generator Set
    Spec Value
    Rating Prime 310 kVA
    Frequency 50/60 Hz
    Voltage 127 - 480 V
    Fuel/Emissions Strategy EU Stage V
  • Engine
    Spec Value
    Engine Cat C9.3
    Fuel Diesel
  • Dimensions
    Spec Value
    Width 60 in
    Height 90 in
    Length 161 in
    Weight - With Lube Oil and Coolant 9046 lb
  • Fuel Consumption
    Spec Value
    100% Load 50 Hz 17.7 gal/hr
    100% Load 60 Hz 20.4 gal/hr
    75% Load 50 Hz 13.2 gal/hr
    75% Load 60 Hz 14.9 gal/hr

Standard Equipment

Cat® C9.3B Diesel Engine

  • Twin Turbocharged, air-to-air aftercooler
  • Electronic ECM controlled

After Treatment

  • Engine Mounted Clean Emissions Module (CEM)
  • Diesel Emissions Fluid (DEF)

Alternator

  • LC5114N frame.
  • Coastal insulation protection

Control Panel

  • Digital EMCP4.2B set mounted digital controller.

Air Filter

  • High Efficiency two stage air cleaner, with dust cup andservice indicator

Cat Connect remote monitoring

  • Provides package monitoring and management.

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory.
  • High ambient performance

Charging / Starting System

  • 24V heavy duty charging alternator with integral regulator

Fuel System

  • 12hr dual wall fuel tank with internal fuel fill
  • Engine mounted primary and secondary fuel filter

Distribution

  • Separate robust steel enclosures for control & distribution sections
  • 4 pole, 630A main circuit breaker

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Sealed quarter-turn compression latches with key orpadlock capabilities

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory.

General

  • Factory tested and inspected.
  • Full manufacturer's warranty,

Optional Equipment

Control Panel

  • ComAp InteliGen NTC, Deep Sea 7320, Deep Sea 8620, DEIF AGC-4
  • Syncronising capabilities

Distribution

  • CE socket box with integrated MCB & RCBO protection

Fuel Option Pack

  • Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender

Drains option Pack

  • Oil and coolant drains piped to baseframe
