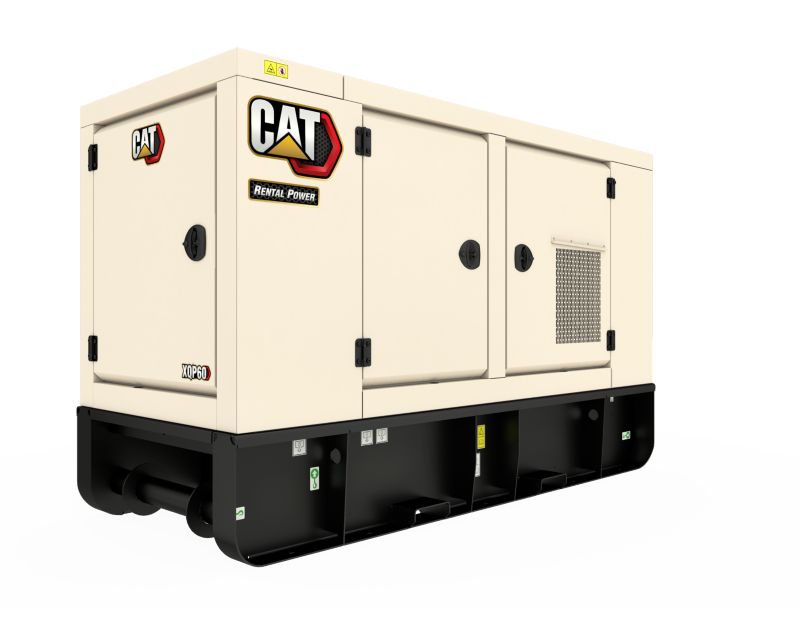

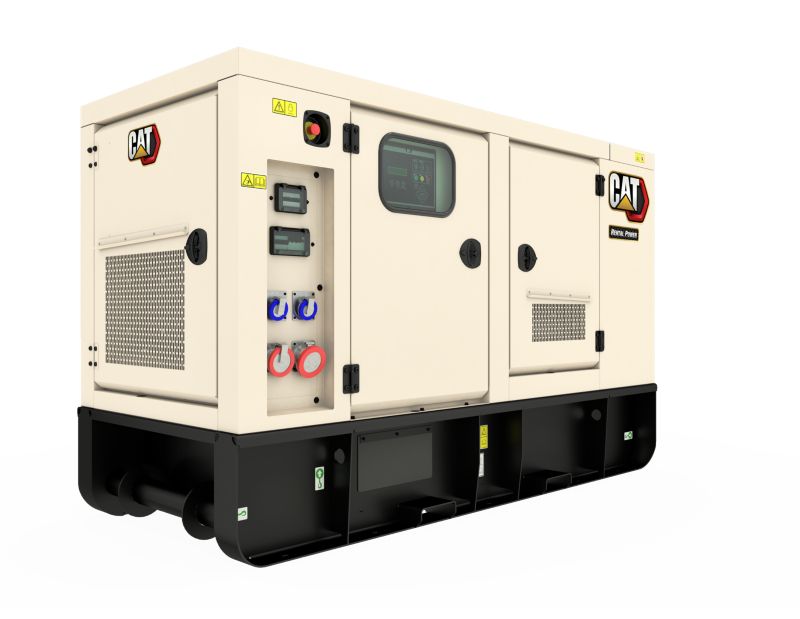

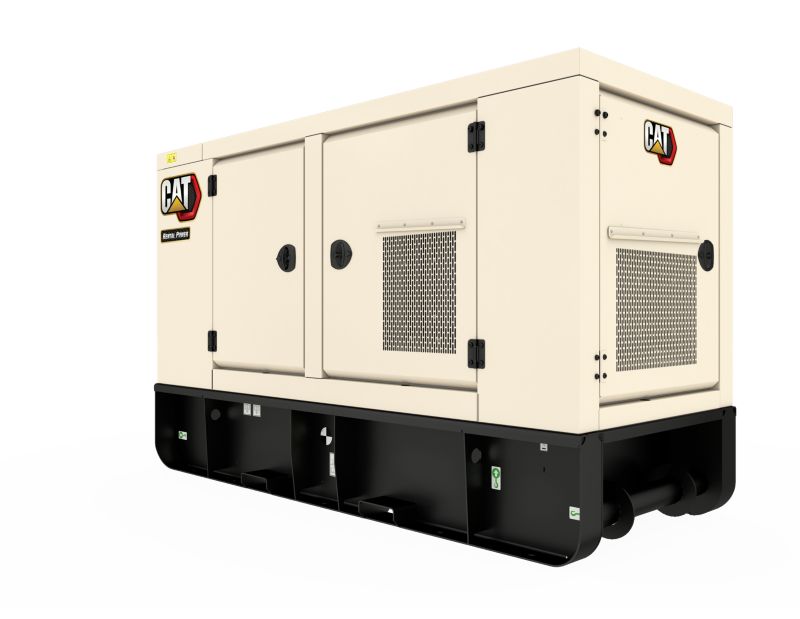

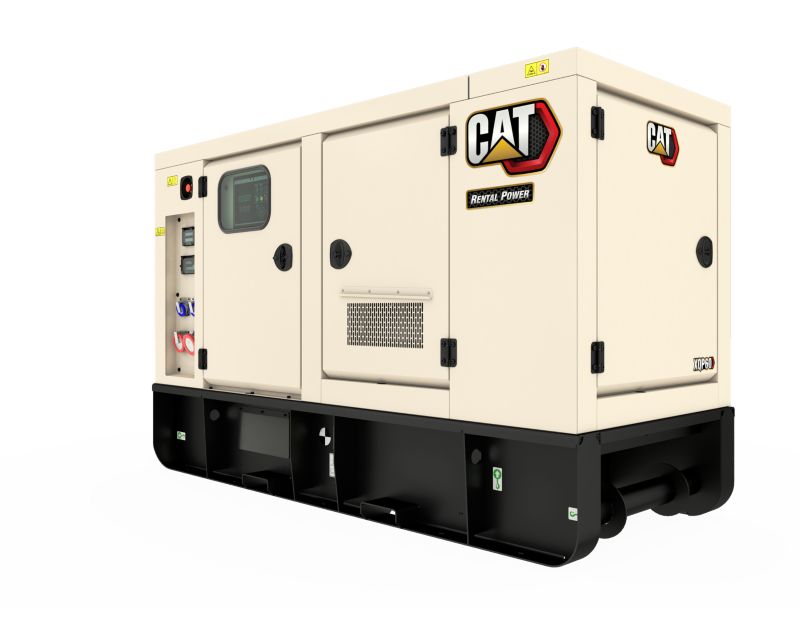

This XQP60 generator set provide low fuel consumption performance. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.
Caterpillar
XQP60
Overview
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Showroom
XQP60, Virtual Product Tour
Features
Specifications
-
Generator Set
Spec Value Rating Prime 60 kVA Frequency 50/60 Hz Voltage 127 - 480 V -
Engine
Spec Value Engine Cat C4.4 Fuel Diesel -
Dimensions
Spec Value Width 44.1 in Height 70 in Length 103 in Weight - With Lube Oil and Coolant 3781 lb -
Fuel Consumption EU Stage IIIA
Spec Value 100% Load 50Hz 4.4 gal/hr 100% Load 60Hz 5 gal/hr 75% Load 50Hz 3.3 gal/hr 75% Load 60Hz 3.8 gal/hr 50% Load 50Hz 2.2 gal/hr 50% Load 60Hz 2.6 gal/hr -
Noise rating (with enclosure) EU Stage IIIA
Spec Value Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 73.3 dB(A) Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 76.4 dB(A)
Standard Equipment
CAT C4.4 Diesel Engine
- Turbocharged
Generator
- LC1514P Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital XQCP set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
