Ziegler CAT

Caterpillar

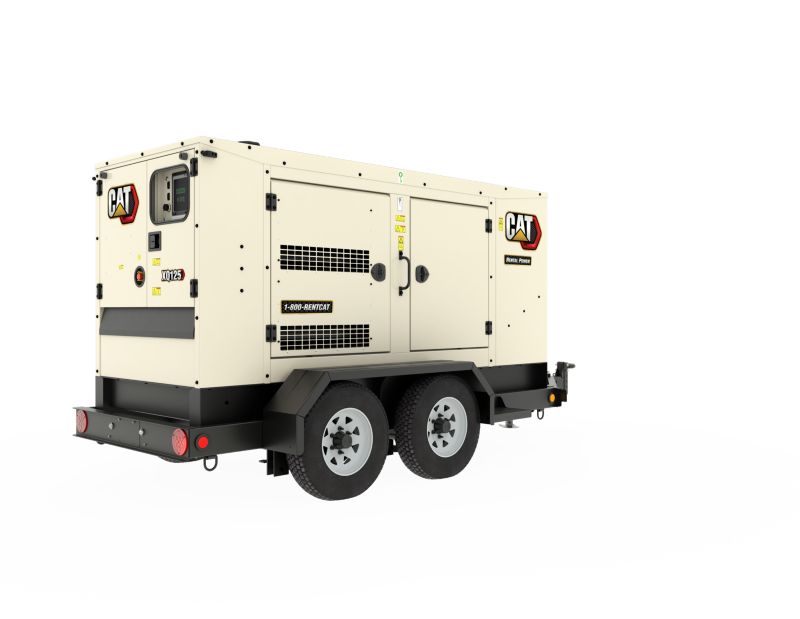

XQ125 Rental Power

Rating Prime

100 ekW (125 kVA)

Frequency

60 Hz

Voltage

120 - 600V

Overview

The Cat XQ125 is powered by a C 4.4 ACERT™ industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.

Photos

Videos

  • Cat Rental Power XQP Product Robust Design Features
  • Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior View . Double click on the image to zoom in on any area of the product.

Features

Specifications

  • Generator Set
    Spec Value
    Rating Prime 100 ekW (125 kVA)
    Frequency 60 Hz
    Voltage 120 - 600V
    Rating Standby 110 ekW (137 kVA)
  • Engine
    Spec Value
    Engine C4.4 ACERT
    Fuel Diesel
  • Dimensions
    Spec Value
    Height - Without Trailer 73 in
    Length - Without Trailer 127 in
    Width - Without Trailer 49 in
    Weight with Lube Oil and Coolant, Without Trailer 5230 lb
  • Fuel Consumption Prime
    Spec Value
    100% Load 60Hz Prime 7.5 gal/hr
    75% Load 60Hz Prime 5.51 gal/hr
    50% Load 60Hz Prime 3.8 gal/hr
  • Fuel Consumption Standby
    Spec Value
    100% Load 60Hz Standby 8.3 gal/hr
  • Noise rating (with enclosure)
    Spec Value
    Sound Power @ 7 meters (23 feet) @ Prime Rating 65 dB(A)
    Sound Power @ 7 meters (23 feet) @ Standby Rating 66 dB(A)

Standard Equipment

CAT C4.4 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment.

Generator

  • LC3114F frame.

Control Panel

  • Digital EMCP4.2B set mounted controller.

Cat Connect remote monitoring

  • Provides package monitoring and management.

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory.

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator.

Fuel System

  • 24hr dual wall fuel tank with 3 way directional valve for external supply.

Air Filter

  • Cyclonic/paper with dust cup and service indicator.

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    Base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.

Exhaust

  • Integrated spark arresting silencer.

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory.

General

  • Factory tested and inspected.
