New Equipment

Caterpillar

XQP150

Rating Prime

150 kVA

Frequency

50/60 Hz

Voltage

127 - 480 V

Overview

This XQP150 generator set is fuel consumption optimized . Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

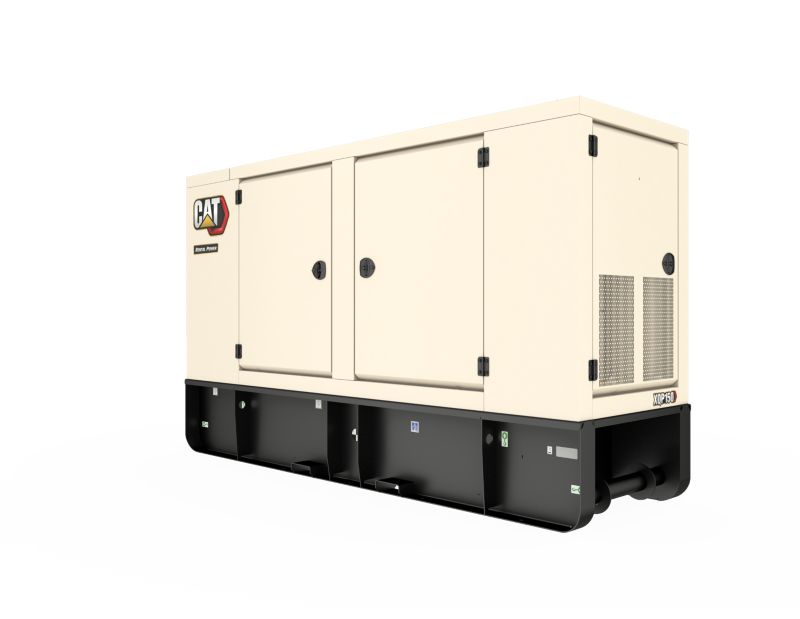

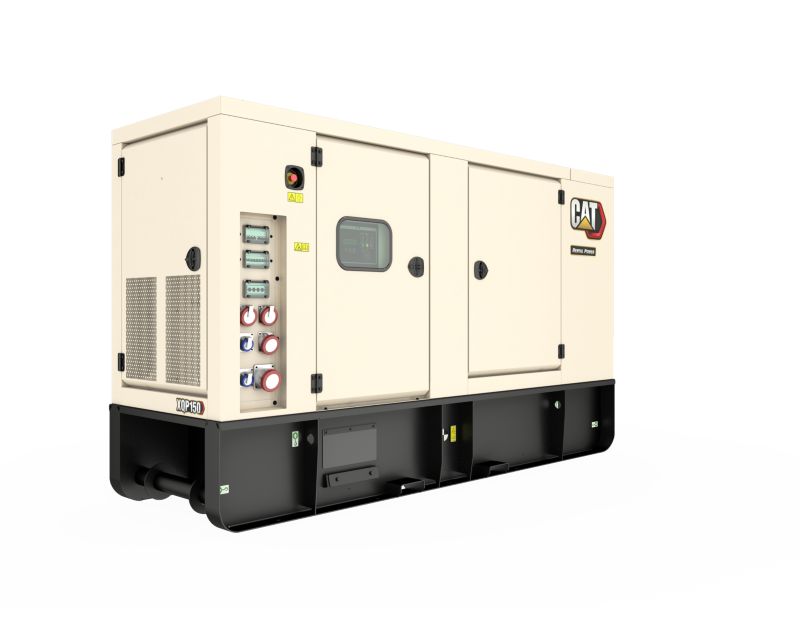

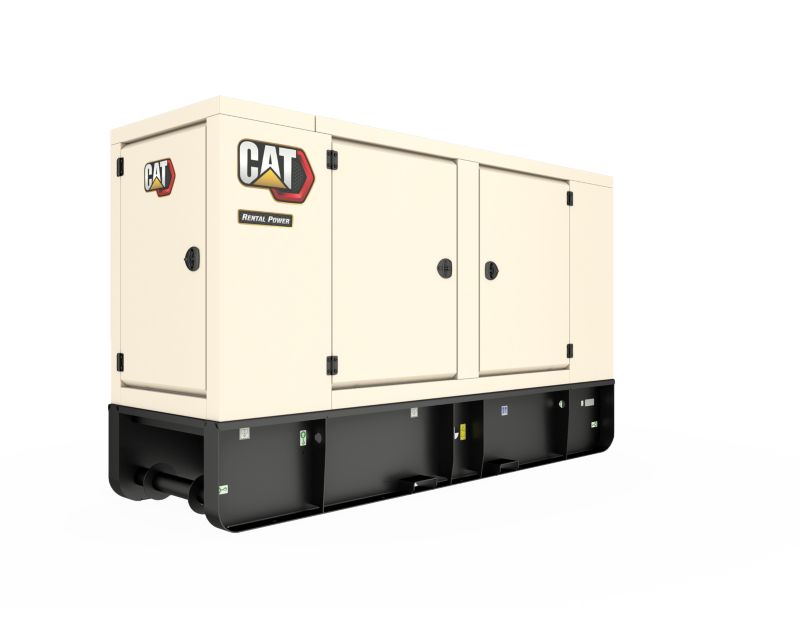

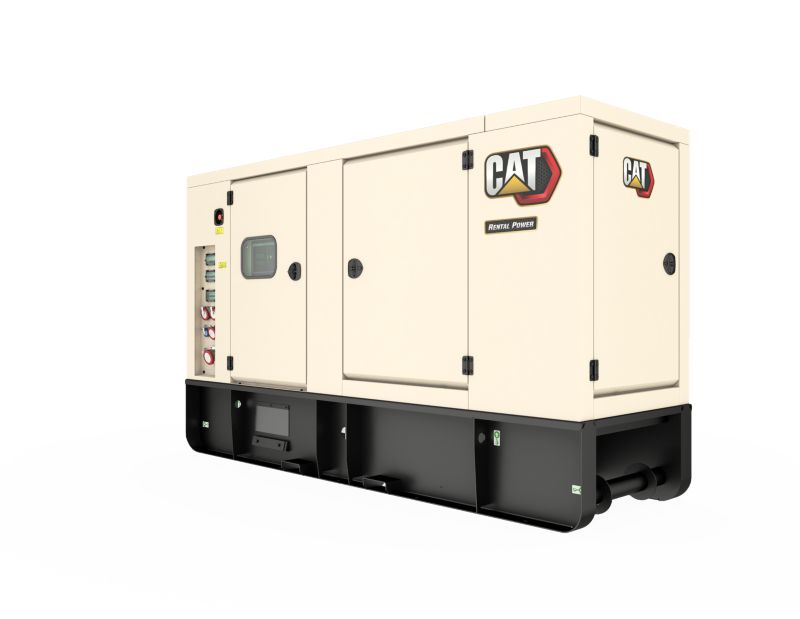

Photos

  • XQP150
    XQP150
  • XQP150
    XQP150
  • XQP150
    XQP150
  • XQP150
    XQP150

Videos

  • Cat Rental Power XQP Product Robust Design Features
  • Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

XQP150, Virtual Product Tour

Documents

Features

Rental ready

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.
Cat C7.1 Diesel Engine

Cat C7.1 Diesel Engine

Industry proven reliability.

Cat C7.1 Diesel Engine

Industry proven reliability.
XQCP Control Panel

XQCP Control Panel

Easy to use digital controls.

XQCP Control Panel

Easy to use digital controls.
Cat LC3114J Generator

Cat LC3114J Generator

Integrated voltage regular for fast response in demanding applications.

Cat LC3114J Generator

Integrated voltage regular for fast response in demanding applications.
Robust Galvanised Enclosure

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Sound Isolated Operator Panel

Sound Isolated Operator Panel

Improved operator comfort.

Sound Isolated Operator Panel

Improved operator comfort.
Cat Connect

Cat Connect

Remote monitoring for fleet management and asset tracking.

Cat Connect

Remote monitoring for fleet management and asset tracking.
Factory Designed, Built and Tested

Factory Designed, Built and Tested

Single-source Supplier

Factory Designed, Built and Tested

Single-source Supplier
Worldwide Product Support

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
500 hr Oil Change Intervals

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.
Improved Transportability

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.
Additional Options Available

Additional Options Available

Synchronising controls. Distribution sockets. Extended Service interval kits.

Additional Options Available

Synchronising controls. Distribution sockets. Extended Service interval kits.

Specifications

  • Generator Set
    Spec Value
    Rating Prime 150 kVA
    Frequency 50/60 Hz
    Voltage 127 - 480 V
  • Engine
    Spec Value
    Engine Cat C7.1
    Fuel Diesel
  • Dimensions
    Spec Value
    Width 44.1 in
    Height 87.6 in
    Length 138.6 in
    Weight - With Lube Oil and Coolant 5615 lb
  • Fuel Consumption EU Stage IIIA
    Spec Value
    100% Load 50Hz 9.9 gal/hr
    100% Load 60Hz 11.2 gal/hr
    75% Load 50Hz 7.8 gal/hr
    75% Load 60Hz 9.2 gal/hr
    50% Load 50Hz 5.4 gal/hr
    50% Load 60Hz 6.3 gal/hr
  • Fuel consumption Best Fuel Efficiency
    Spec Value
    100% Load 50Hz 8.8 gal/hr
    100% Load 60Hz 10.5 gal/hr
    75% Load 50Hz 6.5 gal/hr
    75% Load 60Hz 7.7 gal/hr
    50% Load 50Hz 4.3 gal/hr
    50% Load 60Hz 5 gal/hr
  • Noise rating (with enclosure) EU Stage IIIA
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 73.1 dB(A)
    Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 76.4 dB(A)
  • Noise rating (with enclosure) Best Fuel Efficiency
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 74.7 dB(A)
    Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 78.3 dB(A)

Standard Equipment

CAT C7.1 Diesel Engine

  • Turbocharged

Generator

  • LC3114J Frame

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Control Panel

  • Digital XQCP set mounted controller

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
