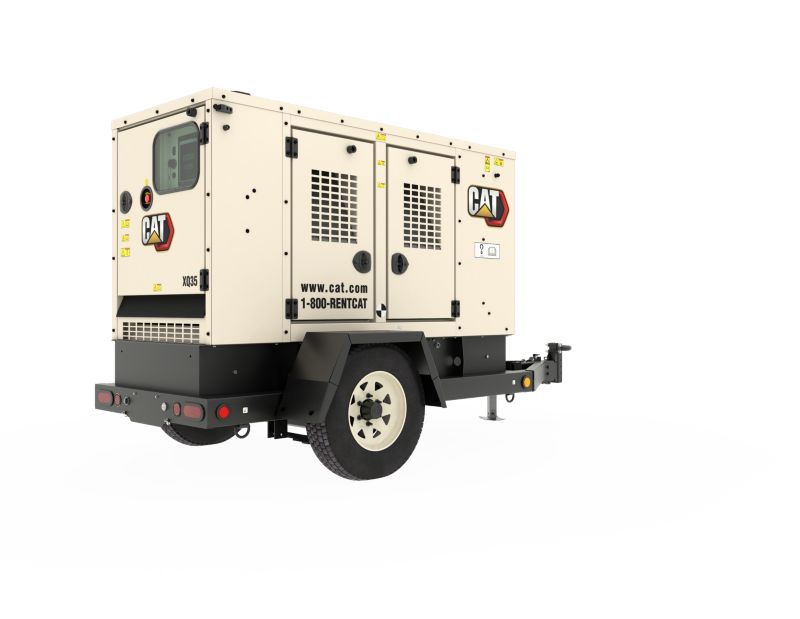

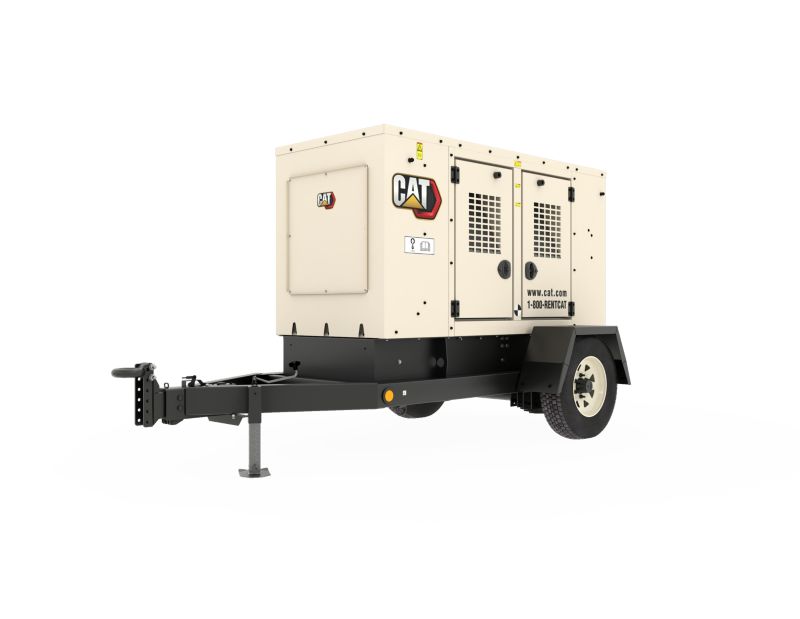

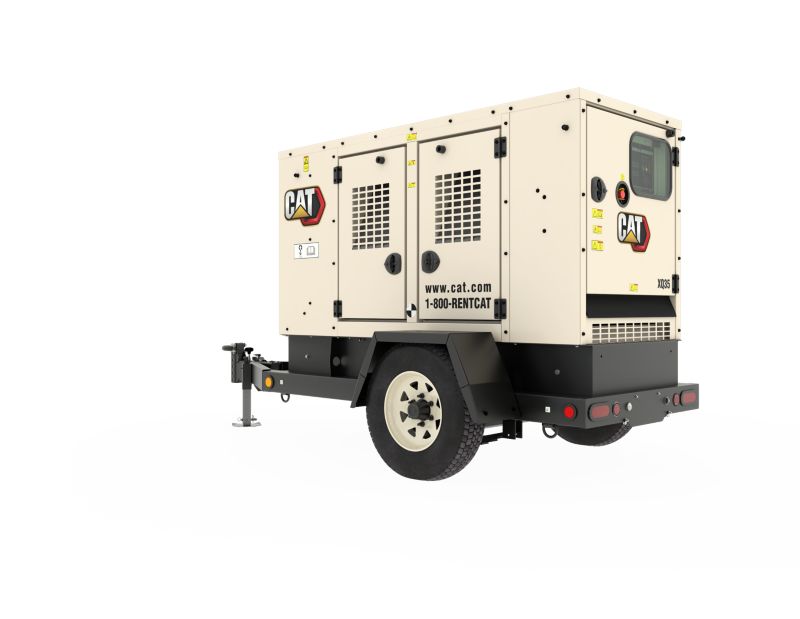

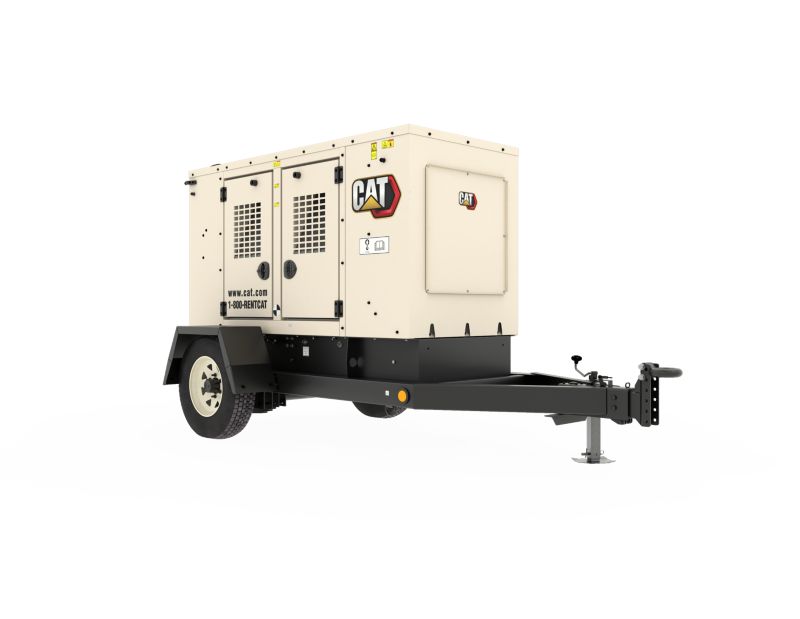

With a robust, rental-ready construction, the XQ35 is designed to be easily transported around project sites safely and efficiently. A smaller footprint saves space and provides installation versatility on worksites, while a galvanized enclosure is resilient to potentially harsh environments.
Cat
XQ35
Overview
Photos
Videos
360° View
Exterior
360° Exterior View. Double click on the image to zoom in on any area of the product.
Showroom
XQ35, Virtual Product Tour
Features
Specifications
-
Generator Set
Spec Value Rating Prime 27 ekW (35 kVA) Frequency 60 Hz Voltage 120 - 600 V Rating Standby 30 ekW (38 kVA) -
Engine
Spec Value Engine Cat C2.2 Fuel Diesel -
Dimensions
Spec Value Height - Without Trailer 63.7 in Length - Without Trailer 91.3 in Width - Without Trailer 41.4 in Weight with Lube Oil and Coolant, Without Trailer 2215 lb -
Fuel Consumption
Spec Value 100% Load 60Hz 2.3 gal/hr 75% Load 60Hz 1.8 gal/hr 50% Load 60Hz 1.2 gal/hr 100% Load 60Hz 2.6 gal/hr 75% Load 60Hz 2 gal/hr 50% Load 60Hz 1.3 gal/hr -
Noise rating (with enclosure)
Spec Value Sound Power @ 7 meters (23 feet) @ All Ratings 63 dB(A)
Standard Equipment
CAT C2.2T Diesel Engine
- Heavy-duty.
After treatment
Generator
- 1514J Frame
Control Panel
- XQCP dgital set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
