Caterpillar

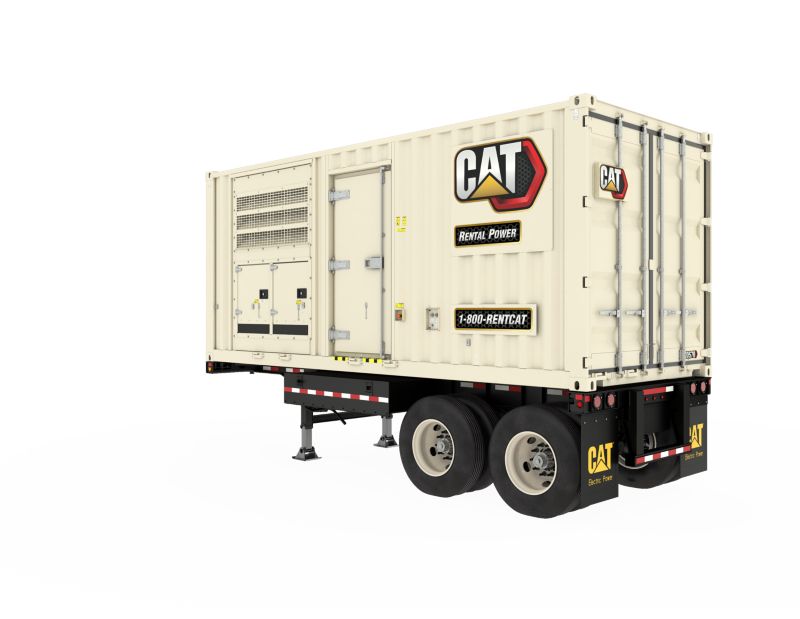

XQ570 Tier 4 Final - 455 ekW (568 kVA)

Rating Prime

455 ekW (568 kVA)

Frequency

60 Hz

Voltage

120 - 600V

Overview

The Cat® XQ570 Rental Power Generator Setprovides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C18 Tier 4 Final compliantengine equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ570 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Photos

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

XQ570, Virtual Product Tour

Features

Specifications

  • Generator Set
    Spec Value
    Rating Prime 455 ekW (568 kVA)
    Frequency 60 Hz
    Voltage 120 - 600V
    Rating Standby 500 ekW (625 kVA)
  • Engine
    Spec Value
    Engine Cat C18
    Fuel Diesel
  • Dimensions
    Spec Value
    Height - Without Trailer 102 in
    Length - Without Trailer 240 in
    Width - Without Trailer 96 in
    Weight with Lube Oil and Coolant, Without Trailer 24125 lb
  • Fuel Consumption
    Spec Value
    100% Load 60Hz 33.2 gal/hr
    75% Load 60Hz 26.2 gal/hr
    50% Load 60Hz 19 gal/hr
    100% Load 60Hz 35.9 gal/hr
    75% Load 60Hz 28.3 gal/hr
    50% Load 60Hz 20.5 gal/hr
  • Noise rating (with enclosure)
    Spec Value
    Sound Power @ 7 meters (23 feet) @ All Ratings 74 dB(A)

Standard Equipment

CAT C18 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment.

Generator

  • LC6134G frame.

Control Panel

  • Digital EMCP4.4 set mounted controller.

Cat Connect remote monitoring

  • Provides package monitoring and management.

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory.

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator.

Fuel System

  • 24hr dual wall fuel tank with 3 way directional valve for external supply.

Air Filter

  • Cyclonic/paper with dust cup and service indicator.

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    Base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.

Exhaust

  • Integrated spark arresting silencer.

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory.

General

  • Factory tested and inspected.
