New Equipment

Cat

Cat® BDP1000 Bi-Directional Power Inverter

Application

Energy Storage System

Module Type

Integral part of Power Grid Stabilization and Energy Time Shift modules

Rated Power

1000 kVA (1000kW 1PF)

Overview

The Cat® BDP1000 is a high performance inverter that provides reliable control of the Energy Storage System (ESS). Integrated controls provide complete control of the charge and discharge of the ESS.

Photos

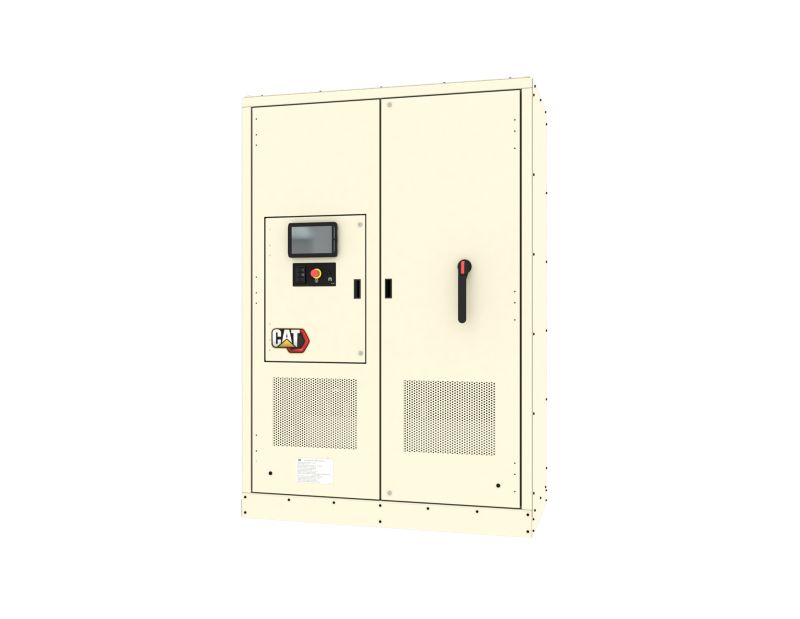

  • BDP1000
    BDP1000

360° View

Exterior

360 Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour. Double click on the hotspots to see in on any area of the product.

Documents

Features

Higher Efficiency

Higher Efficiency

  • Peak efficiency 98% (excluding isolation transformer)

Higher Efficiency

  • Peak efficiency 98% (excluding isolation transformer)

Energy Storage Management

Energy Storage Management

  • Built-in controls for the charging and discharging of the energy storage equipment.
  • Static VAR compensator.
  • Four-quadrant output power factor control.
  • Automatic anti-islanding to meet UL 1741 and synchronization back to grid.
  • Parallel ready plug-and-play paralleling with other power sources.

Energy Storage Management

  • Built-in controls for the charging and discharging of the energy storage equipment.
  • Static VAR compensator.
  • Four-quadrant output power factor control.
  • Automatic anti-islanding to meet UL 1741 and synchronization back to grid.
  • Parallel ready plug-and-play paralleling with other power sources.

Grid Support

Grid Support

  • Ancillary services to grid (voltage/power factor, frequency support)
  • Multi-mode operation
    • Grid forming
    • Grid firming
    • Grid following
    • Seamless mode transfer
    • Islanding detection
    • Autonomous mode or remote-control mode

Grid Support

  • Ancillary services to grid (voltage/power factor, frequency support)
  • Multi-mode operation
    • Grid forming
    • Grid firming
    • Grid following
    • Seamless mode transfer
    • Islanding detection
    • Autonomous mode or remote-control mode

High Performance Inverter

High Performance Inverter

  • Patented Non-Linear droop for tight control of frequency and voltage enables high power quality on high transient loads.
  • High Overload capability 1.5x.
  • 2 per unit fault current capability

High Performance Inverter

  • Patented Non-Linear droop for tight control of frequency and voltage enables high power quality on high transient loads.
  • High Overload capability 1.5x.
  • 2 per unit fault current capability

Fuel Consumption

Fuel Consumption

Integrated control of generating system which minimizes fuel consumption and emissions by:
  • Enabling highly-efficient lean-burn gas gensets to operate in island mode
  • And enabling the shutdown of one or more gensets for fuel savings.

Fuel Consumption

Integrated control of generating system which minimizes fuel consumption and emissions by:
  • Enabling highly-efficient lean-burn gas gensets to operate in island mode
  • And enabling the shutdown of one or more gensets for fuel savings.

Applicable Standards and Certifications

Applicable Standards and Certifications

UL Listed to the following standards (certification and mark pending):
  • UL 1741 SB
    • IEEE1547-2018
    • IEEE1547.1-2020
    • UL1998
  • CSA C22.2 No. 107.1/16
  • cULus mark
Compliance (pending):
  • IEC62477-1
  • IEC62909

Applicable Standards and Certifications

UL Listed to the following standards (certification and mark pending):
  • UL 1741 SB
    • IEEE1547-2018
    • IEEE1547.1-2020
    • UL1998
  • CSA C22.2 No. 107.1/16
  • cULus mark
Compliance (pending):
  • IEC62477-1
  • IEC62909

Specifications

  • Technical Summary
    Spec Value
    Application Energy Storage System
    Module Type Integral part of Power Grid Stabilization and Energy Time Shift modules
    Rated Power 1000 kVA (1000kW 1PF)

Standard Equipment

Panel

  • 10' high-resolution color LCD touchscreen

Isolation Switch

  • Contactor and Manual Isolation Switch with Lockout Feature

Protection

  • Electrically Operated Breaker with LSI Trip Unit
