The Cat® spark-ignited generator product line for stationary applications feature permanent magnet excitation, amortisseur winding, skewed stator, voltage adjustment through the EMCP controller, Class H winding insulation and 2/3 pitch incorporated.
Caterpillar
DG175-2 (Single-phase)
Overview
Photos
-

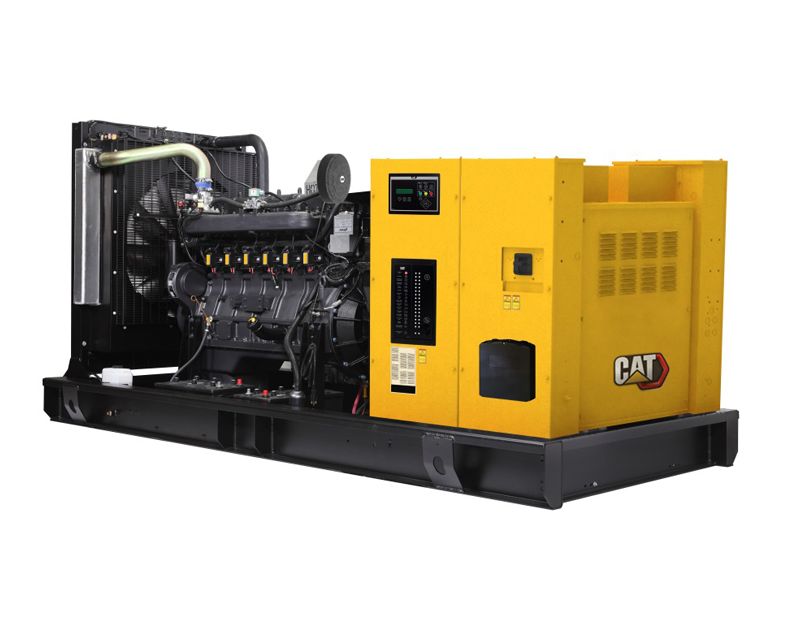

Open Generator Set -

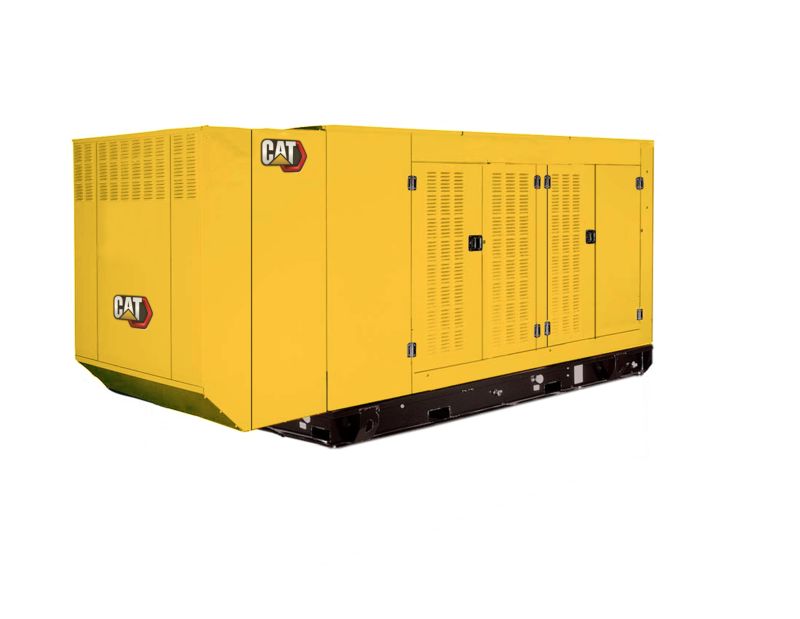

Enclosure
Features
Engine
- Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight
Engine
- Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight
Generator
- Matched to the performance and output characteristics of Cat engines
- Industry leading mechanical and electrical design
- Industry leading motor starting capabilities
- High Efficiency
Generator
- Matched to the performance and output characteristics of Cat engines
- Industry leading mechanical and electrical design
- Industry leading motor starting capabilities
- High Efficiency
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Design Criteria
- The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient response
- Cooling system designed to operate in 50˚C/122˚F ambient temperatures with an air flow restriction of 0.5 in. water
Design Criteria
- The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient response
- Cooling system designed to operate in 50˚C/122˚F ambient temperatures with an air flow restriction of 0.5 in. water
UL 2200 / CSA - Optional
- UL 2200 Listed packages
- CSA Certified
- Certain restrictions may apply
- Consult with your Cat® Dealer
UL 2200 / CSA - Optional
- UL 2200 Listed packages
- CSA Certified
- Certain restrictions may apply
- Consult with your Cat® Dealer
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Frequency 60 Hz Natural Gas Rating 175 ekW Emissions/Fuel Strategy U.S. EPA Certified for Non-Emergency Application Displacement 864.71 in Fuel Type Natural Gas Speed 1800 rpm -
Engine Specifications
Spec Value Engine Model G14.2L Inline 6, 4 cycle, Spark Ignited Fuel System Carburetor, Down Draft Aspiration Turbocharged - Aftercooled Governor Type Electronic Compression Ratio 9.5:1 Bore 5.31 in Stroke 6.5 in -
Generator Set Dimensions
Spec Value Length 127.95 in Width 52.93 in Height 67.37 in Weight 5756 lb
Standard Equipment
Cooling
- Closed coolant recovery system
- 50/50 Ethylene glycol antifreeze
Starting/Charging
- Battery charging alternator
- Solenoid activated starter motor
- Battery cables
- Engine electrical system
Fuel
- Primary and secondary fuel shut-off
- Low fuel pressure switch
Generator
- Class H insulation material
Governor
- Electronic governor (non adjustable)
Control Panel
- EMCP 4.2 Series generator set controller
Mounting
- Vibration isolators (puck type)
Optional Equipment
General
- CSA Certification
- UL 2200 package
- Suitable for Use as Service Equipment (SUSE)
