Cat

Gas Generator G3516A

Maximum Continuous Rating

1085 ekW

Fuel Type

Natural Gas, Biogas, Coal Gas

Maximum Electrical Efficiency

36.50%

Overview

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

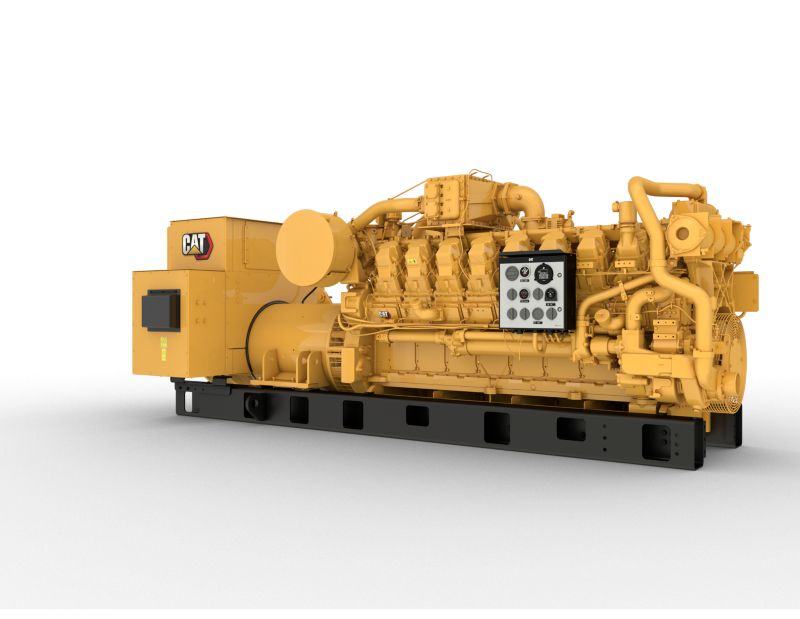

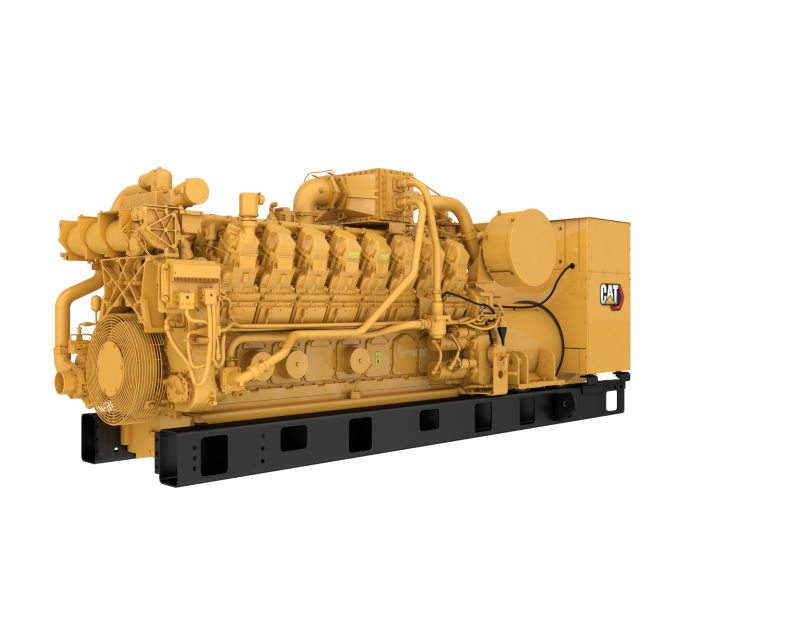

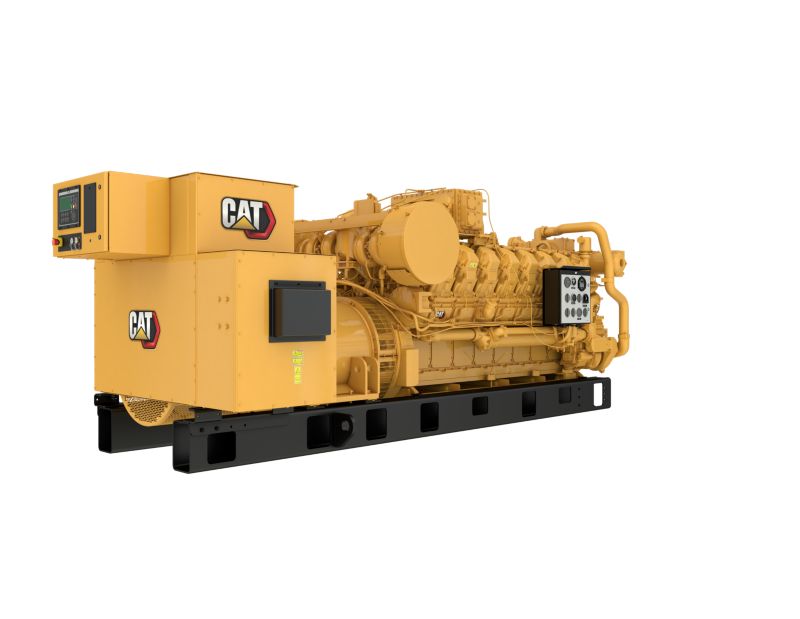

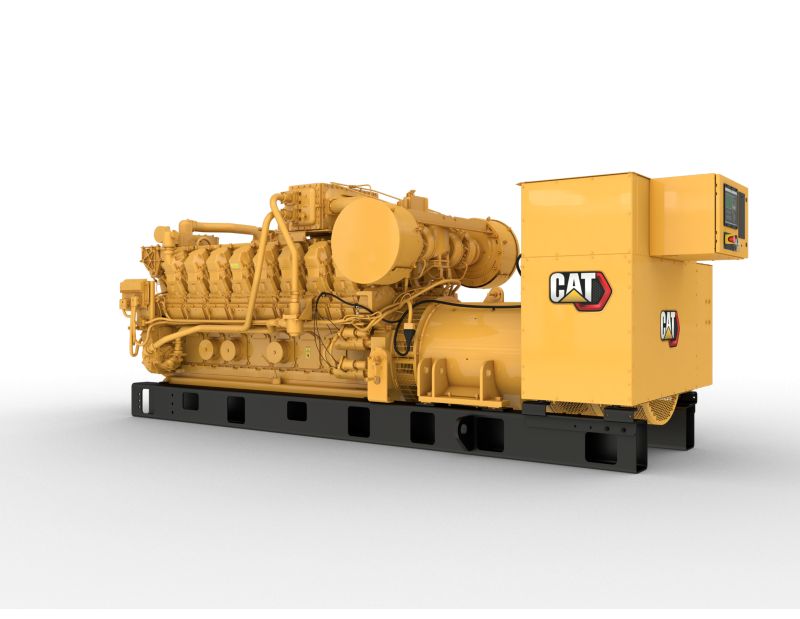

Photos

360° View

Exterior

360� Exterior view. Double click on the image to zoom in on any area of the product.

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Continuous Rating 1085 ekW
    Fuel Type Natural Gas, Biogas, Coal Gas
    Maximum Electrical Efficiency 36.50%
    Maximum Standby Rating 1000 kw
    Frequency 50 / 60 Hz
    RPM 1200 / 1500 rpm
  • Engine Specifications
    Spec Value
    Engine Model G3516A
    Displacement 4210 in³
    Aspiration TA
    Bore 6.7 in
    Stroke 7.5 in
  • Generator Set Dimensions
    Spec Value
    Length 193 in
    Width 68 in
    Height 76 in
    Dry Weight - Genset 27670 lb

Standard Equipment

Exhaust

  • Dry exhaust manifolds, insulated and shielded

Generator

  • Anti-condensation space heater
  • Permanent magnet excitation
  • SR4B
  • Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control

Starting/Charging

  • 24V starting motors

General

  • Crankshaft vibration damper and guard
  • Paint - Caterpillar Yellow except rails are gloss black
  • Operation and maintenance manuals
  • Parts book

Optional Equipment

Air Inlet

  • Air inlet adapters

Cooling

  • Inlet/Outlet connections

Exhaust

  • Flexible fitting
  • Elbow
  • Flange
  • Muffler and spark-arresting muffler with companion flanges
  • Exhaust expander

Generator

  • Low voltage extension box
  • Generator air filter
  • European bus bar
  • Cable access box

Start/Charging

  • Jacket water heater
  • Charging alternator
  • Battery with cable and rack (shipped loose)
  • Battery charger
  • Oversized battery

General

  • Engine barring group
  • EEC D.O.I and other certifications
  • Crankcase explosion relief valve
