Caterpillar

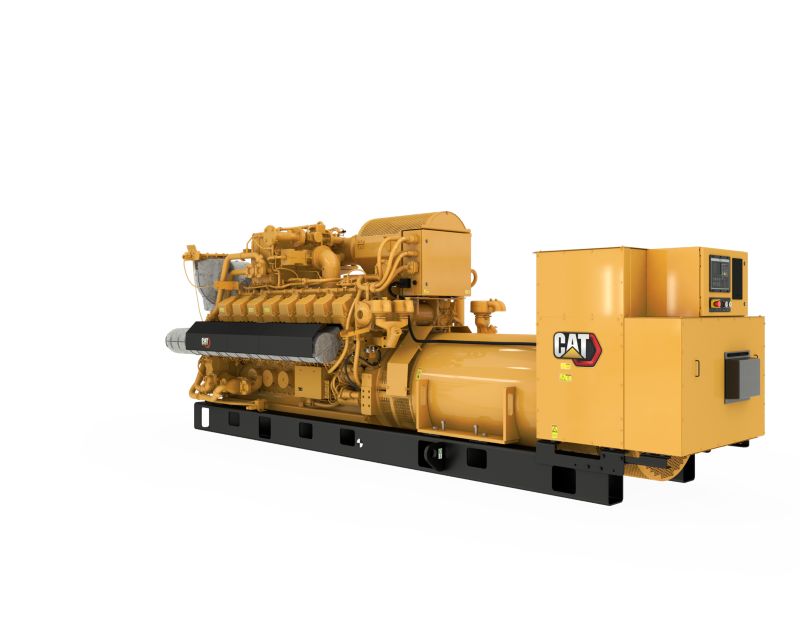

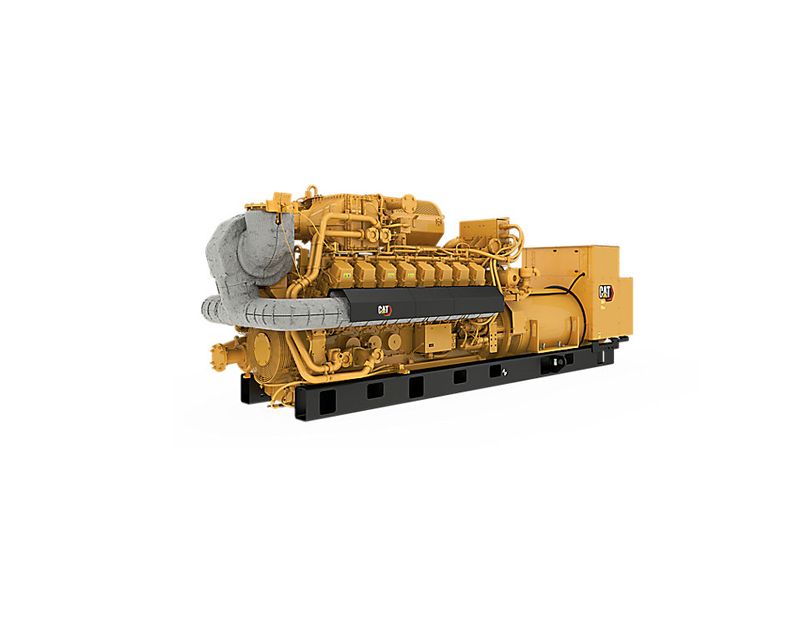

Gas Generator G3516H

Maximum Continuous Rating

2027 / 2007 ekW @ 1.0pf

Fuel Type

Natural Gas

Maximum Electrical Efficiency

45.30%

Overview

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

Photos

Videos

360° View

Exterior

360� Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Continuous Rating 2027 / 2007 ekW @ 1.0pf
    Fuel Type Natural Gas
    Maximum Electrical Efficiency 45.30%
    Frequency 50 / 60 Hz
    RPM 1500 rpm
  • Engine Specifications
    Spec Value
    Engine Model G3516H
    Displacement 4765 in³
    Aspiration TA
    Bore 6.7 in
    Stroke 8.5 in
    Compression Ratio 12.1
    Fuel System Natural Gas
  • Generator Set Dimensions
    Spec Value
    Length 291 in
    Width 84 in
    Height 95 in
    Dry Weight - Genset 40384 lb

Standard Equipment

Control Panels

  • EMCP4.3

Air Inlet

  • Package Mounted Air Cleaner with service indicator
  • Two-element single-stage air cleaner with enclosure and service indicator

Cooling

  • Jacket water and SCAC driven thermostats
  • ANSI Class 150/DN custom flange connections for JW inlet and outlet
  • Engine driven water pumps for jacket water and after cooler
  • 2nd stage SCAC-Cat Flange

Exhaust

  • Center section cooled turbocharger with Cat flanged outlet
  • Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
  • Dry exhaust manifolds, insulated and shielded
  • Cat-flanged face outlet on turbocharger

Fuel System

  • Throttle plate, 24V DC actuator, controlled by GECM
  • Electronic fuel metering valve
  • Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve

Ignition System

  • Electronic Ignition System (controlled by ADEM A4)
  • Individual Cylinder Detonation Sensitive Timing (DST)

Generator

  • Permanent Magnet Excitiation
  • Anti-condensation space heater
  • Winding temperature detectors
  • SR5
  • Reactive Droop
  • Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control

General

  • Crankshaft vibration damper and guard
  • Paint - Caterpillar Yellow except rails and radiators gloss black
  • RH Service
  • Parts book
  • Operation and maintenance manuals

Governing System

  • ADEM A4 4-20mA (0-5V) Speed Input

Starting/Charging

  • 24V starting motors

Optional Equipment

Air Inlet

  • Mounting brackets and piping
  • Air cleaner with precleaner
  • Heavy Duty air cleaner with precleaner

Circuit Breakers

  • No UV trip or package mounted CB Wiring
  • Frame Mounting
  • MP-Frame 3 Pole Bottom Cable Entry or MP- Frame 6 Pole Bottom Cable Entry
  • 4000A, 3-Pole IEC Rated
  • 2500/3000/3200A or 4000/5000A Neutral Current Transformer Automatic Selection
  • Lower & Upper Covers, Extension Box Roof Cover
  • Busbar Mounting
  • 4000A, 3-Pole UL Rated

Control Panels

  • Remote monitoring software
  • Discrete I/O Module, 12 Digital Inputs, 8 'Form C' Relay
  • Remote RS485, 32-light Annunciator
  • Cat Connect: Ehternet, Satellite, Cell Telematics
  • Cross-Current Compensation Current Transformer-- 8.7/15 kV Classes
  • RTD Module
  • Local/Remote PC Monitorring
  • 16 Point/32 Light Annunciator with NFPA99-110/CSA282 Configuration
  • Remote Monitoring & Control
  • Synchronizing module
  • Local alarm module

Cooling

  • Jacket water coolant heater
  • Inlet/Outlet connections

Exhaust

  • Flange
  • Muffler and spark-arresting muffler with ANSI companion flanges
  • Elbow

Generator

  • Manual voltage control
  • Generator air filter
  • Low voltage extension box
  • Medium and high voltage generators and attachment
  • Cable access box
  • Bearing temperature detectors

Starting/Charging

  • 24V Battery Charger
  • 60A, 24V charging alternator (requires engine driven pumps)

General

  • US AID emblem
  • Special paint order
  • Battery diconnect switch
  • Digital diagnostic tool
  • Tool set
  • Battery with cables and rack (shipped loose)
