Caterpillar

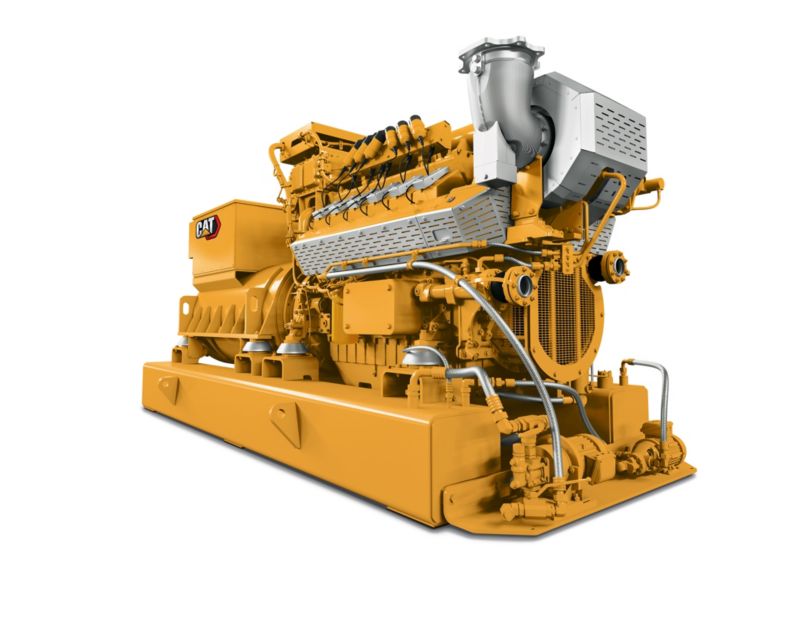

CG132B-12 Gas Generator Set

Maximum Continuous Rating

600 kW @1.0pf

Fuel Type

Natural Gas, Biogas

Maximum Electrical Efficiency

43.3% / 42.4%

Overview

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.

Photos

Videos

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Continuous Rating 600 kW @1.0pf
    Fuel Type Natural Gas, Biogas
    Maximum Electrical Efficiency 43.3% / 42.4%
    Maximum Standby Rating 600 kW
    Frequency 50 / 60 Hz
    RPM 1500 / 1800 rpm
  • Engine Specifications
    Spec Value
    Engine Model CG132
    Displacement 1604.9 in³
    Aspiration TA
    Bore 5.2 in
    Stroke 6.3 in
  • Generator Set Dimensions
    Spec Value
    Length 151 in
    Width 70 in
    Height 85 in
    Dry Weight - Genset 15432 lb

Standard Equipment

Air Inlet

  • One-element single-stage air cleaner with enclosure and sevice indicator
  • Turbocharger with a water-cooled bearing case for all cylinder

Control Panels

  • TPEM (Total Plant & Energy Management System)

Cooling

  • ANSI/DN customer flange connections for JW inlet and outlet
  • flange connections for JW inlet and outlet
  • Jacket water and SCAC thermostats
  • Electrical jacket water and aftercooler coolant pump

Exhaust

  • Exhaust waste gate for the CG132B-16
  • Closed crankcase ventilation system
  • PEARL/Low resistence exhaust system

Fuel system

  • Independently controlled cylinder monitoring and ignition system
  • Electronic fuel metering valve
  • Pre-chamber spark plugs

Generator

  • Reactive droop
  • grid code generator
  • closed-coupled generator result in no torque transmission to the base frame
  • Busbar connections
  • Winding temperature detectors
  • Anti-condensation space heater
  • 3-phase sensing and KVAR/PF control

Starting/Charging

  • 24V starting motors
  • Battery disconnect switch

General

  • Crankshaft vibration damper and guard

Optional Equipment

Air Inlet

  • Mounting stand
  • Air cleaner with precleaner

Cooling

  • CHP skid
