G3520 2000kW Gas Generator Set
Overview
Photos
-

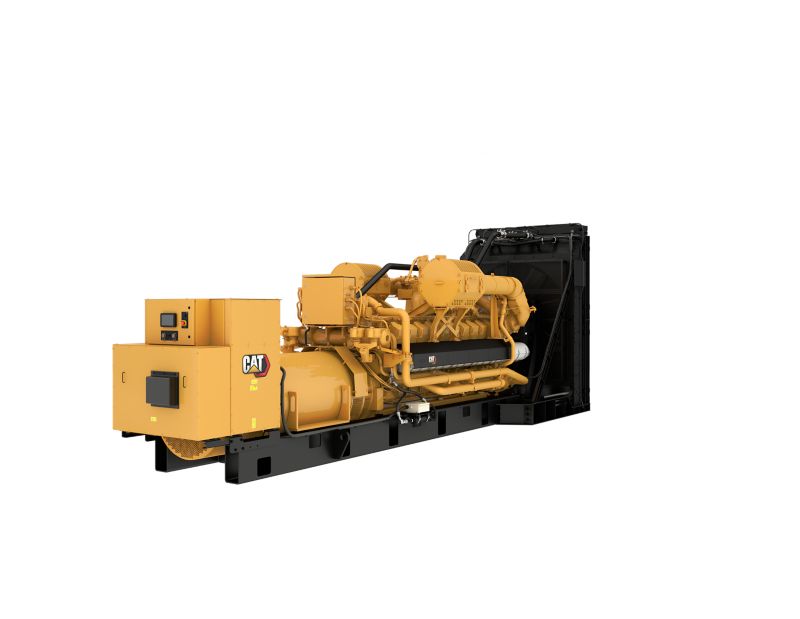

G3520 Gas Generator Set -

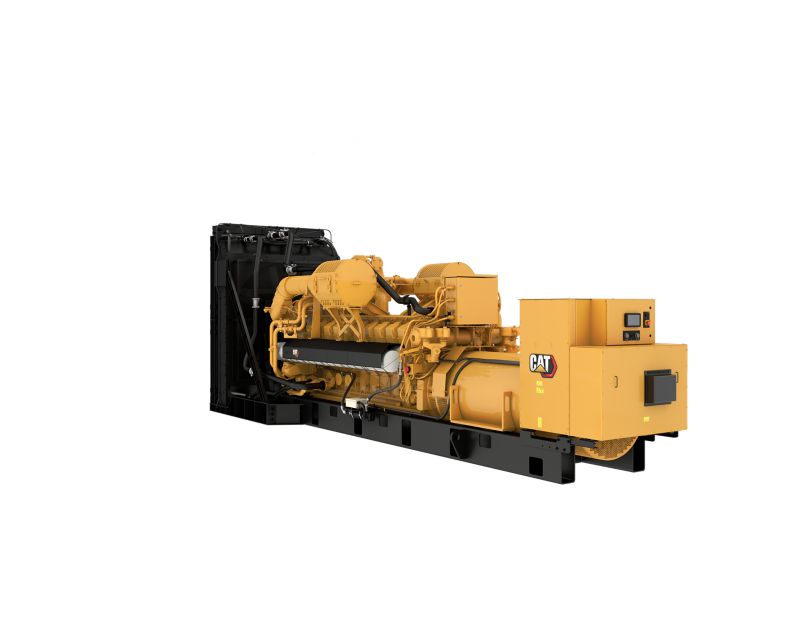

G3520 Gas Generator Set -

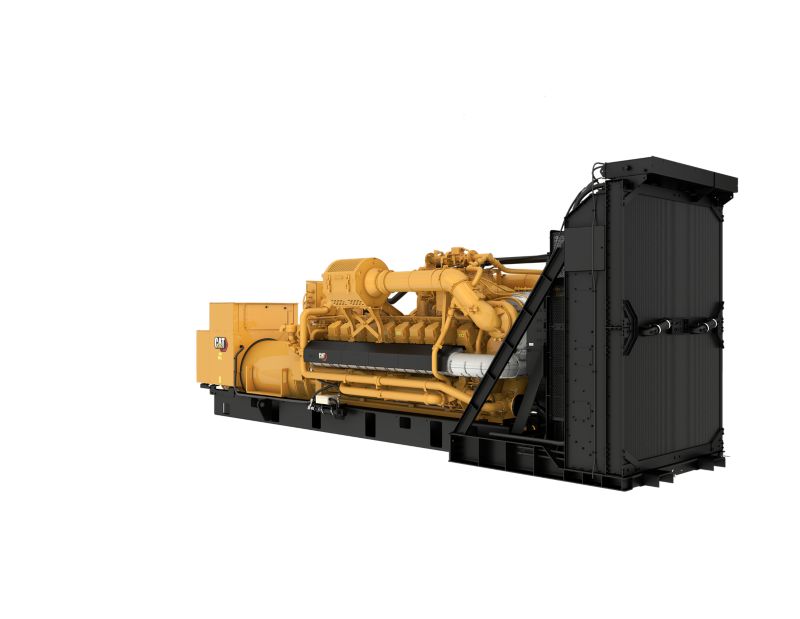

G3520 Gas Generator Set -

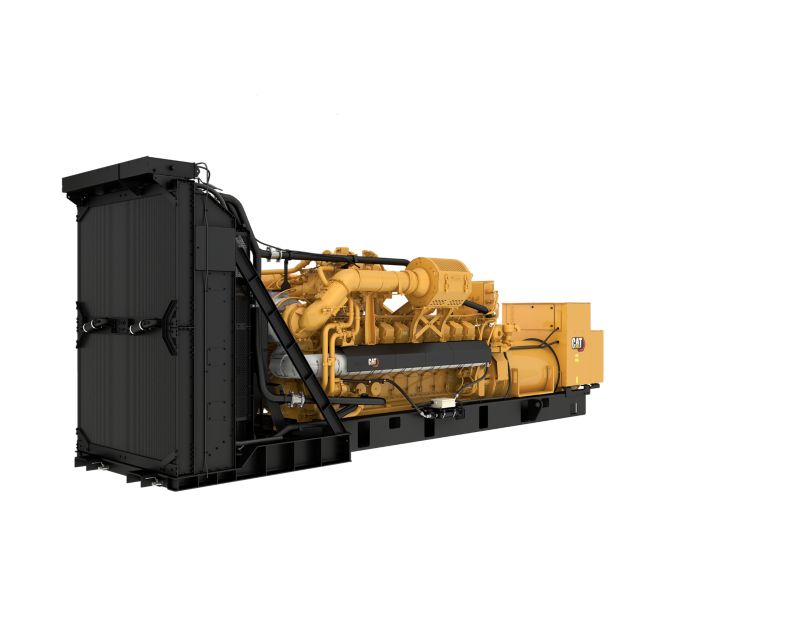

G3520 Gas Generator Set
Videos
360° View
Exterior
360� Exterior view. Double click on the image to zoom in on any area of the product.
Showroom
Virtual Product Tour
Features
Cat G3520 Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas and hydrogen blends
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
Cat G3520 Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas and hydrogen blends
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
Cooling System
- Designed to operate in standard ambient temperatures up to 43°C (110°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 43°C (110°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Emissions
- EPA Certified for use in Emergency and Non-Emergency applications
- Additional a NOx selectable genset is available to meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Emissions
- EPA Certified for use in Emergency and Non-Emergency applications
- Additional a NOx selectable genset is available to meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Gas Standby Rating 2000 ekW @ 0.8pf Fuel Type Natural Gas, Hydrogen Blend (up to 5%) Emissions/Fuel Strategy U.S. EPA Stationary Non-Emergency Certified Frequency 60 Hz RPM 1800 rpm Compression Ratio 11.5 -
Engine Specifications
Spec Value Engine Model G3520 Displacement 5956 in³ Aspiration TA Bore 6.7 in Stroke 8.5 in -
Generator Set Dimensions
Spec Value Length 336 in Width 94 in Height 128 in Weight 48500 lb
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panel
- Cat ECS 100
Cooling
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
Exhaust
- Dry exhaust manifolds, insulated and shielded
- Cat-flanged face outlet on turbocharger
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
Fuel System
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Engine-installed electronic control valve
- Gas pressure regulator
- Throttle plate, 24V DC actuator, controlled by GECM
- 24V DC energized-to-run (ETR) gas shutoff valve
General
- Parts book
- Paint- Caterpillar Yellow with high gloss black rails and radiator
- Operation and maintenance manuals
- Crankshaft vibration damper and guard
- RH Service
Generator
- Permanent Magnet Excitiation
- Integrated voltage regulator (IVR)
- SR5
- Winding temperature detectors
- Anti-condensation space heater
- NEMA Class H insulation
Starting/Charging
- 24V starting motors
- Battery with cables and rack (shipped loose)
- Jacket water heater
- Electric Starter
Governing System
- ADEM A4
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Optional Equipment
Air Inlet
- Air cleaner with precleaner
Control Panel
- EMCP 4.4
- Local alarm module
- Engine failure relay
- Remote annunciator
- Remote PC monitoring
- Local PC monitoring
Circuit Breakers
- 1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
- 100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
- S LSI, G LSIG, P LSIG-P, 4th Digit Type
- Frame mounting
- 3-pole (IEC 947-2 rated)
- 2000A, 2500A, 3000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers
Cooling
- Package mounted radiator
- Coolant level drain line with valves, fan with guard
Exhaust
- 18, 25 dBA Attenuation
- 305mm (12 in) spark arresting muffler
- 305 mm (12in.) elbow
- 305 mm (12 in.) flange
- 305 mm (12 in.) muffler
Fuel System
- 3, 0-100 kPag, 4-20mA gas train pressure sensors
General
- Digital diagnostic tool
Generator
- Bearing temperature detectors
- Generator air filter
- Cable access box
- European bus bars
- Low voltage extension box
Starting/Charging
- 20A, 24VDC battery charger
- 45A, 24V charging alternator (requires engine driven pumps)
Grid Code Compliance
- 60 Hz: USA
