Caterpillar

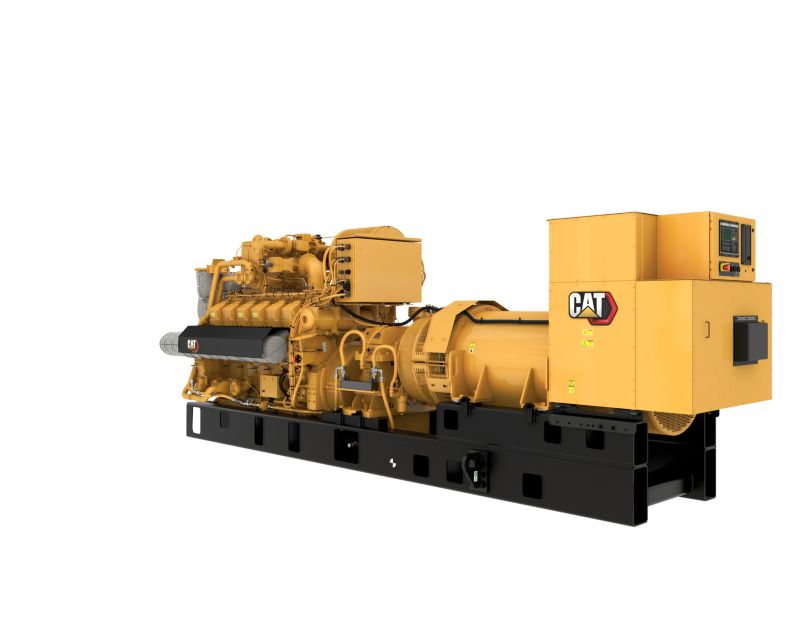

Cat G3512H Combined Heat and Power (CHP) Solution

Maximum Continuous Rating

1490 ekW @ 1.0pf

Fuel Type

Natural Gas

Maximum Electrical Efficiency

42.50%

Overview

The CHP1500 is an enclosure standardized for natural gas-fueled Cat® G3512H engines rated 1.5 MW, with generator rated for 4160V for combined heat and power (CHP) applications. In CHP applications, Cat gas generator sets simultaneously provide electricity for electrical loads and heat energy for a facility’s thermal requirements. Caterpillar will offer customers complete CHP solutions eliminating the need to outsource additional engineering or project management.

Photos

Videos

360° View

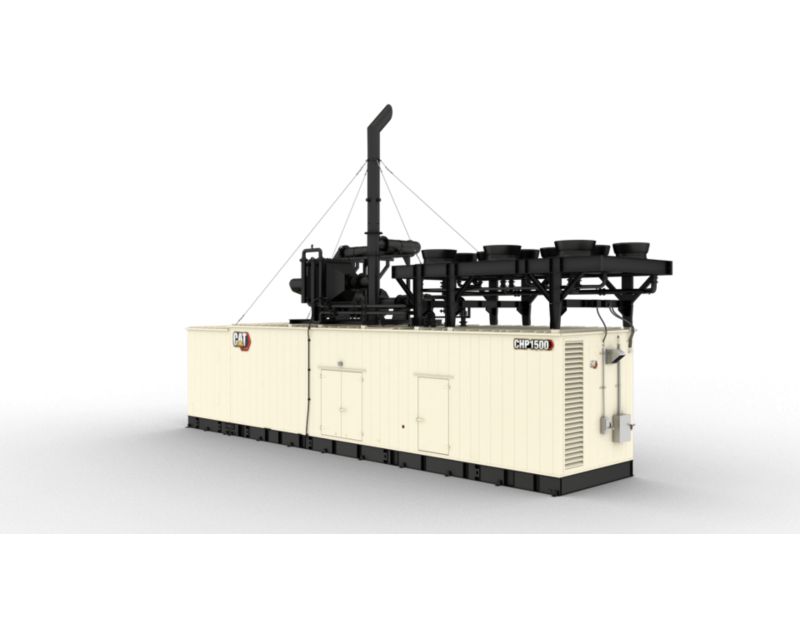

Exterior

360� Exterior view. Double click on the image to zoom in on any area of the product.

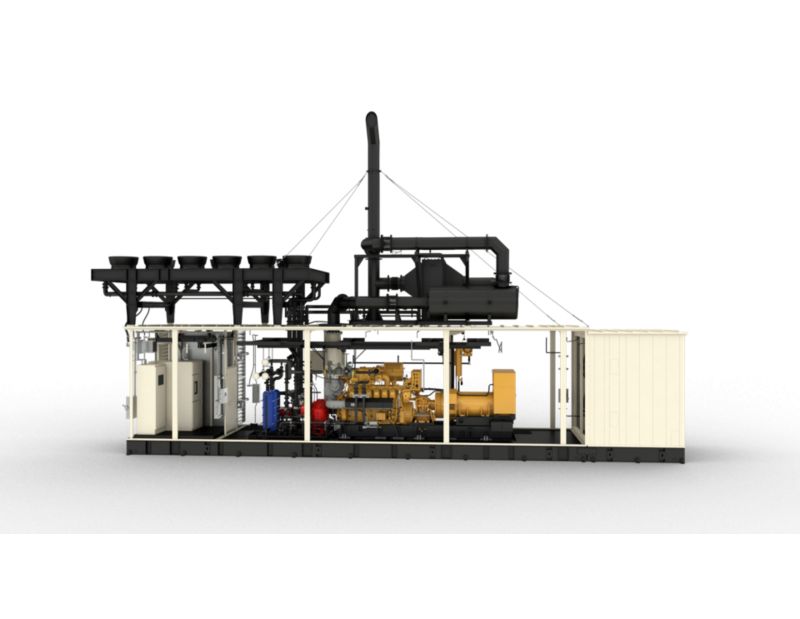

Interior

360� Exterior view. Double click on the image to zoom in on any area of the product.

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Continuous Rating 1490 ekW @ 1.0pf
    Fuel Type Natural Gas
    Maximum Electrical Efficiency 42.50%
    Frequency 60 Hz
    RPM 1500 rpm
    Frequency 60 Hz
  • Engine Specifications
    Spec Value
    Engine Model G3512H
    Displacement 3574 in³
    Aspiration TA
    Bore 6.7 in
    Stroke 8.5 in
    Fuel System Electronic Fuel Control Valve
    Governor Type ADEM™ A4
    Compression Ratio 11.1
  • Generator Set Dimensions
    Spec Value
    Length 716 in
    Width 155 in
    Height 467 in
    Dry Weight - Genset 34700 lb
    Weight 161600 lb

Standard Equipment

Engine

  • G3512H, V12, 4-stroke-cycle, gas engine. Operates on 31.5 to 47.2 MJ/NM3 dry pipeline natural gas. Turbocharged Separate Circuit Aftercooled.

Air Inlet

  • Package Mounted Air Cleaner with service indicator

Control Panel

  • On Package EMCP 4.3 Control Panel System Offers engine and generator monitoringand protection, voltage regulation with Cat IVRimproves transient response performance. Controls provide auto paralleling AGC-4 controller, load sharing, VFDcontrol, and primary generator protection for greaterversatility, package utilization and monitoring.

Cooling

  • ANSI/DN customer flange connections for JW inlet and outlet
  • Engine driven water pumps for jacket water and aftercooler
  • Jacket water and SCAC thermostats
  • Standard cooling provides 40⁰C (104⁰F) ambient capability with 500mg/Nm3 NOx at 100% Continuous rating before derate, @ 500m

Containerized Module

  • NSPS Factory Compilant, UL2200 Compilant and CSA / TSSA Sound attenuated 75 dB(A) @ 7 m (23 ft) Sound attenuated air intake louvers and lockable personnel doors with panic release LH and RH engine service doors integrated intocontainer side walls 3” ANSI flange customer fuel connection

Generator Controls And Protection

  • Integrated crankcase ventilation system (CCV)and gas fuel train NFPA37 & CSAB149.3 with external fuel connections package utilization and monitoring.

Modes of Operation

  • Provides for single unit stand-alone operation,island mode paralleling and load sharing withother power modules, and single unit-to-utilitymode paralleling for base load control

General

  • Fire detection system

Lube Oil Make-Up System

  • Integrated enclousre holding tanks: Oil makeup tank (50 gallon), Waste oil tank (300 gal / 2 oil changes), Fresh oil tank (500 gal / 2 oil changes + makeup) and oil level regulator. Low level annunciation

Circuit Breaker

  • 5000A 3-Pole IEC Rated Circuit Breakers
  • LSI Long-Time, Short-Time, Instantaneous Annunciator
  • Rear-mounted

Exhaust

  • Externally mounted exhaust system (muffler and heat exchanger)
  • Dry exhaust manifolds, insulated and shielded
  • Center section cooled turbocharger with Cat flanged outlet
  • Individual exhaust port and turbocharger outlet wired to Integrated Tmeperature Sensing Module (ITSM) with GECM providing alarms and shutdowns

Fuel System

  • Electronic fuel metering valve
  • Throttle plate, 24V DC actuator, controlled by GECM

Fuel system

  • Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve

Ignition System

  • Individual Cylinder Detonation Sensitive Timing (DST)
  • Electronic Ignition System (controlled by ADEM A4)

Generator

  • Double bearing SR5 1866 frame, brushless, form wound, 12-lead design, permanent magnet excited, three-phase, with Cat IVR, Class H insulation operating at Class F temperature. Stator and Bearing temperature monitoring and anti-condensation space heaters.
  • SR4B
  • Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
  • Busbar connections
  • Paint- Caterpillar Yellow except rails gloss black
  • Winding temperature detectors
  • Parts book
  • RH Service
  • Anti-condensation space heater
  • SR5
  • Operation and maintenance manuals
  • Crankshaft Vibration Damper and Guard
  • Reactive droop

Govrerning System

  • ADEM A4 4-20mA (0-5VV) Speed Input

Optional Equipment

Air Inlet

  • Mounting Brackets and Piping
  • Air cleaner with precleaner

Circuit Breaker

  • MP- Frame 6 Pole Bottom Cable Entry
  • Frame Mounting
  • 4000/5000A Neutral Current Transformer Automatic Selection
  • No UV trip or package mounted CB Wiring

Control Panel

  • Discrete I/O Module, 12 Digital Inputs, 8 'Form C' Relay
  • Local PC Monitorring
  • 16 Point/32 Light Annunciator, Shipped Loose
  • Remote PC Monitorring
  • Synchronizing module
  • Remote annuciator
  • Local alarm module
  • Engine failure relay
  • Cat Connect: Ehternet, Satellite, Cell Telematics
  • Remote Communications Module (PL1000T, PL1000E)

Cooling

  • Inlet/Outlet connections
  • Coolant level drain line with valves, fan with guard

Exhaust

  • Muffler and spark-arresting muffler with companion flanges
  • Elbow
  • Flange
  • Flexible Fitting
  • Exhaust Expander
  • Oxidation catalyst

Fuel System

  • Gas pressure regulator
  • Gas Knockdown Regulator
  • Fuel filter
  • Gas shutoff valve 24V, ETR (Energized-To-Run)

Generator

  • European bus bar
  • Cable access box
  • Manual voltage control
  • Medium and high voltage generators and attachment
  • Low voltage extension box
  • Bearing temperature detectors
  • Generator air filter

General

  • Special paint order
  • Tool set
  • Digital diagnostic tool
  • US AID Emblem
  • Cold-weather bundle including enclosure heaters and ventilation recirculation
  • Fire suppression system
  • Interior DC lighting system with automatic shutoff timer

Starting/Charging

  • 24V starting motors
  • Jacket water heater
  • Battery with cables and rack (shipped loose)
  • 60A, 24V charging alternator (requires engine driven pumps)
