Producing reliable power from 120 to 175 ekW at 60 Hz, our C7.1 diesel generator sets designed to ISO 8528-5 transient response requirement. All C7.1 generator sets are available with a choice of emissions levels.
Cat
C7.1 ACERT
Overview
Photos
-

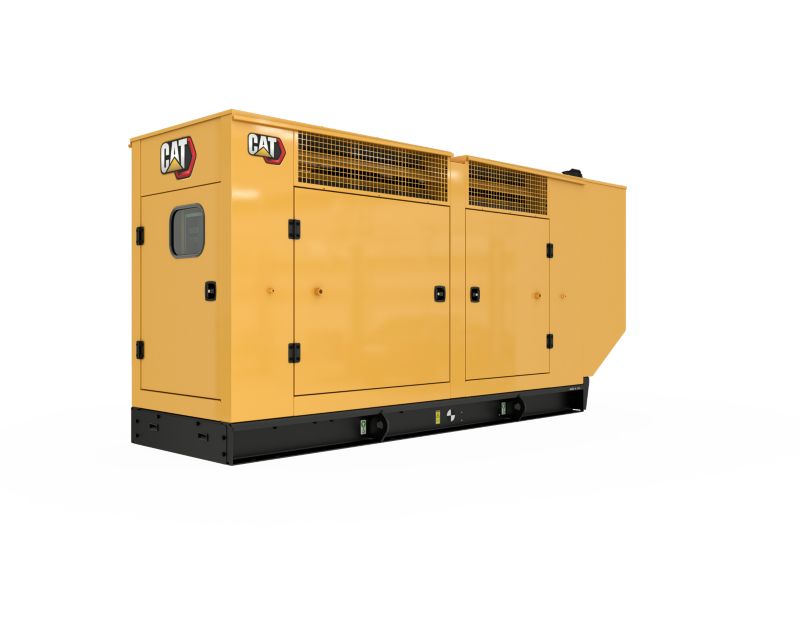

C7.1 Diesel Generator Rear Right -

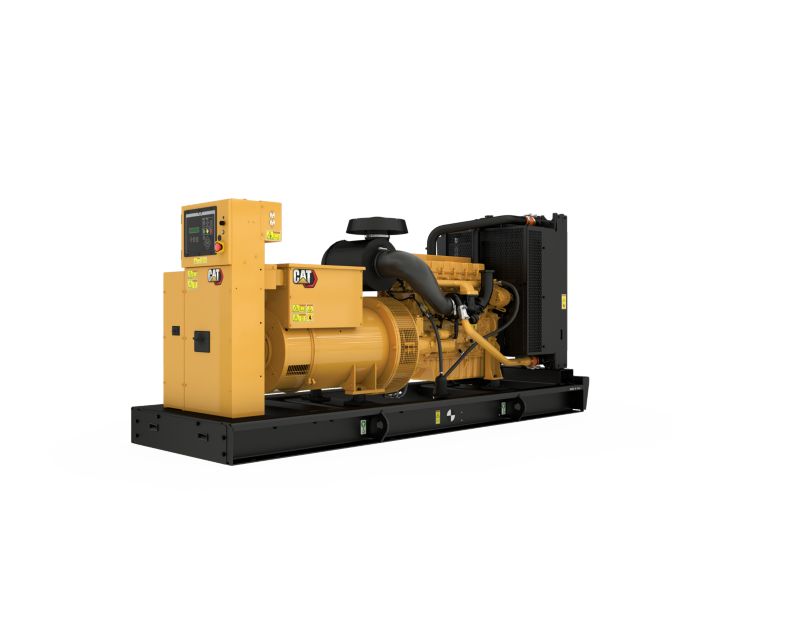

C7.1 Diesel Generator Rear Left -

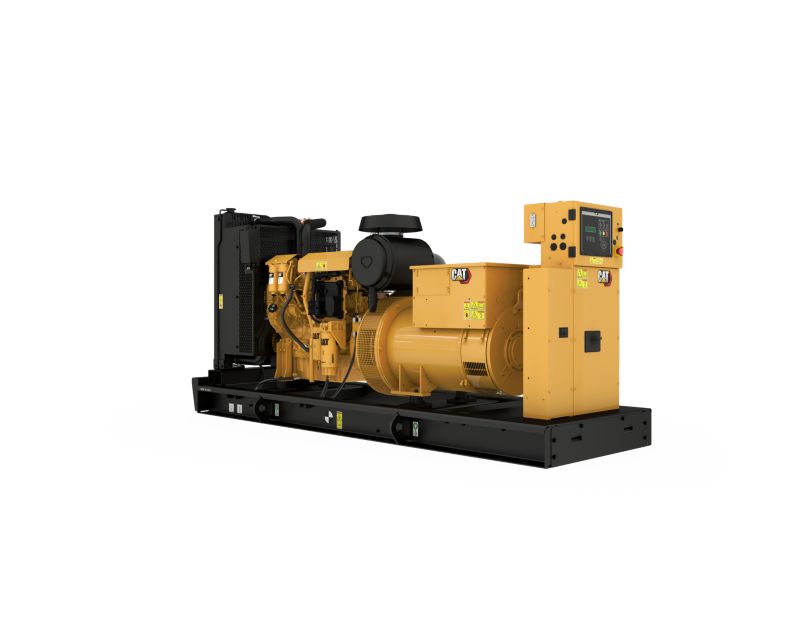

C7.1 Diesel Generator Front Right -
C7.1 Diesel Generator Front Left -

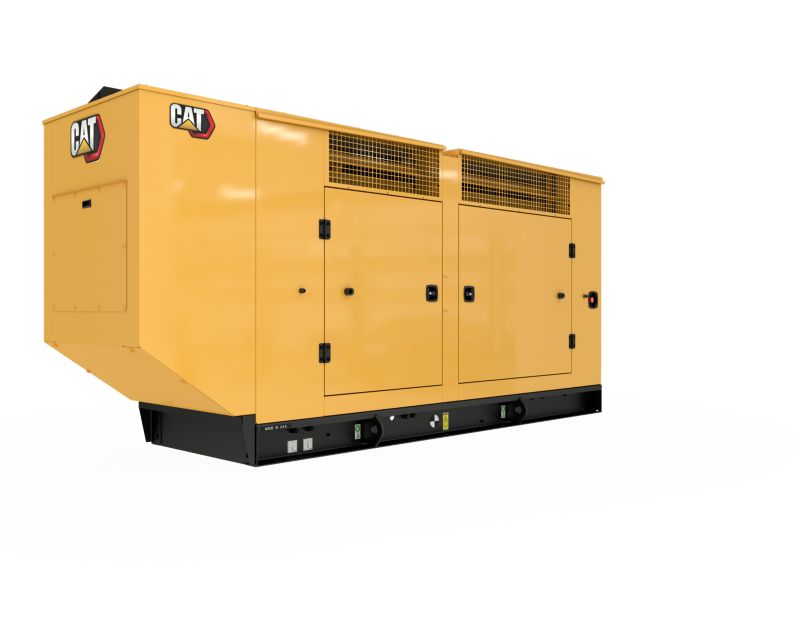

Enclosure -
Enclosure
360° View
Exterior
Enclosed Spin set
Documents
- Electric Power Ratings Guide
- DE150E0 50 Hz 150.0 kVA, 60 Hz, 165.0 ekW, LC-Frame, Low BSFC Compliant Spec Sheet
- DE165E0 50 Hz 165.0 kVA, 60 Hz, 187.5 ekW, LC-Frame, Low BSFC Compliant Spec Sheet
- DE200E0 50 Hz 200.0 kVA, 60 Hz, 218.8 ekW, LC-Frame, Low BSFC Compliant Spec Sheet
- 24-220 KVA Level 2 SA Enclosure
- C7.1 Level 1 SA Enclosures 30-220 kVA (50 and 60 Hz)
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
R-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
R-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Fully prototype tested with certified torsional vibration analysis available
Certifications
Fully prototype tested with certified torsional vibration analysis available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 175 ekW Minimum Rating 120 ekW Emissions/Fuel Strategy Non Regulated Voltage 208 to 480 Volts Frequency 60 Hz Speed 1800 rpm Duty Cycle Standby, Prime -
Engine Specifications
Spec Value Engine Model C7.1 I-6, 4-Cycle Diesel Bore 4.13 in Stroke 5.31 in Displacement 427.8 in³ Compression Ratio 16.5:1 Aspiration Turbocharged, Air to Air Aftercooled Fuel System Common Rail Governor Type ADEM™A4 -
Generator Set Dimensions
Spec Value Length - Maximum 98.4 in Width - Maximum 52 in Height - Maximum 64 in
Standard Equipment
Control Panels
- EMCP 4.1
Air Inlet System
- Air cleaner; light duty with disposable element
Cooling System
- Radiator and cooling fan with guards
- Coolant drain line with valves
- Caterpillar extended life coolant
- Fan drive, battery charging alternator drive
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
Fuel System
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Lube System
- Lubricating oil
- Oil drain line with valve
Generator and Generator Attachments
- Segregated low voltage (AC/DC) wiring panel
- Tower panel, IP22, bottom cable entry
- 12 Leads
- Voltage regulator (single phase sensing)
- IP23 Protection
- Circuit breaker, IEC, 3 pole, mounted in tower panel
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Termination points for coolant and lube oil drain lines
- Includes lifting provision and drag points
Packaged Generator Set
- Radiator and cooling fan complete with protective guards
- Flexible fuel lines to base NPT connections
- Drip proof generator air intake (NEMA 2, IP23)
- Class H insulation
- Standard ambient temperatures up to 50°C (122°F)
Starting / Charging System
- 24V battery with rack and cables
Governing System
- Mechanical and electrical governing system - model dependent
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Alternator System
- R Frame auxiliary winding: R2273L4 SE aux alt 07, aux alt 08 and aux alt 10
- Quatrature droop king
- Alternator removal
- Anti-condensation heater
- 3 Phase sensing
- Optional LC Frame alternator with coastal insulation protection
- Permanent magnet excitation (PMG)
Packaged Generator Set Options
- Radiator stone guard
Circuit breakers
- Padlockable breaker device
- 4 Pole 250A, 400A and 630A Circuit breakers
Control System
- Control panel heater
- Static battery charger
- Volt free contacts for common alarm
- Volt free contacts for generator set running
- EMCP 4.2
Control Panel Options
- Speed adjust potentiometer
- Emergency stop with key
- Battery charger
- Volt free contacts
- Earth leakage (2 wire only)
- Control panel heater
- Earth fault (2 wire only)
- Panel mounted audible alarm
- Speed adjust contacts
- Overload shutdown via breaker
Cooling System
- Low coolant temperature
- Low coolant level shutdown
- Coolant heater
Enclosures
- Sound attenuated level 2 enclosure
- Rental options (CAE only) - Single point lift
- Sound attenuated levels 1 and 2 enclosures
- Rental options (CAE only) - CEE form sockets for enclosure
- Rental options (CAE only) - Rental pack
- Rental options (CAE only) - Socket blanking plate
European Certifications
- Upgrade to STD set for CE
Mounting Options
- Battery removal
- Residential silencer
- Industrial silencer removal
- Silencer installation kit
- Electronic governor
Test Reports
- PGS Test report @ 0.8 power factor
- PGS Test report @ 1.0 power factor
General
- Stone guards/radiator trans flange
Fuel Systems
- Open set narrow tankbase
- Compact skidbase for open sets
- DEFRA bunded fuel tank
- High fuel level alarm
- Skidbase for CALG enclosure sets
- Low fuel level shutdown
- Low fuel level alarm
Global Certifications
- Certification for CIS
Power Termination
- Circuit breaker, IEC, 4 pole
Accessories / Miscellaneous
- Packing case - canopied set
- Packing case - compact set
30-220 kVA SA Lvl 1 Enclosure
