The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 350 to 450 kVA at 50 Hz, our C13 diesel generator sets designed to ISO 8528-5 transient response requirements. These generator sets range from low fuel consumption systems EU Stage IIIA Non-road Emission Standards Emissions / Fuel Strategy.
Cat
C13 Generator Set
Overview
Photos
-

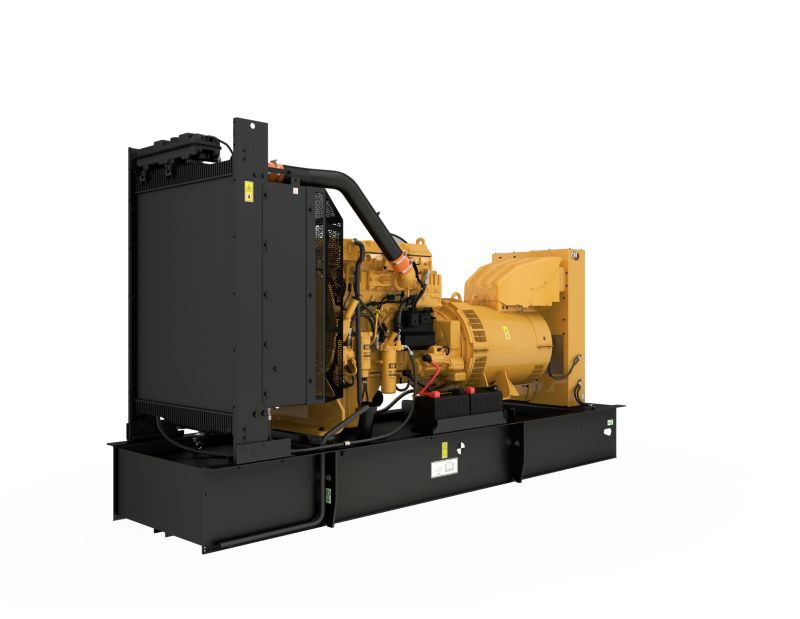

C13 Diesel Generator Rear Right -
C13 Diesel Generator Rear Left -
C13 Diesel Generator Front Right -
C13 Diesel Generator Front Left -

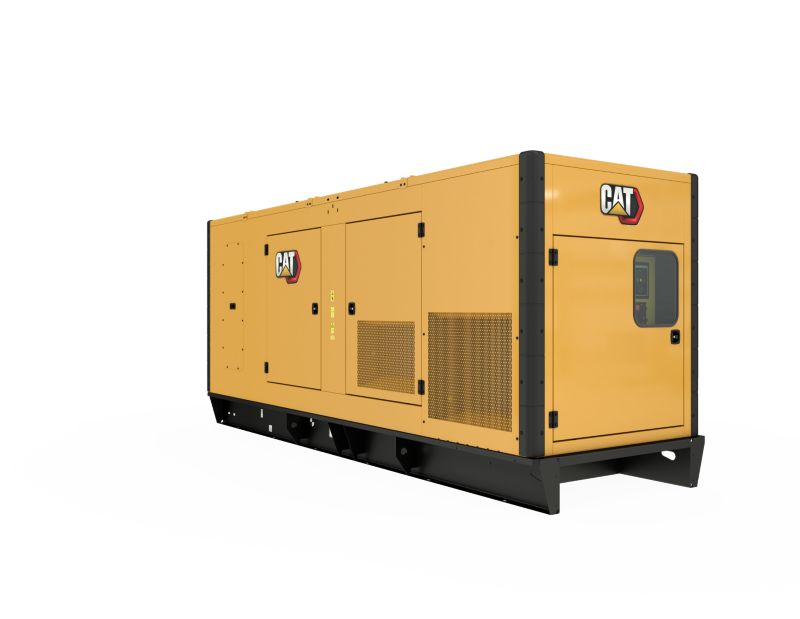

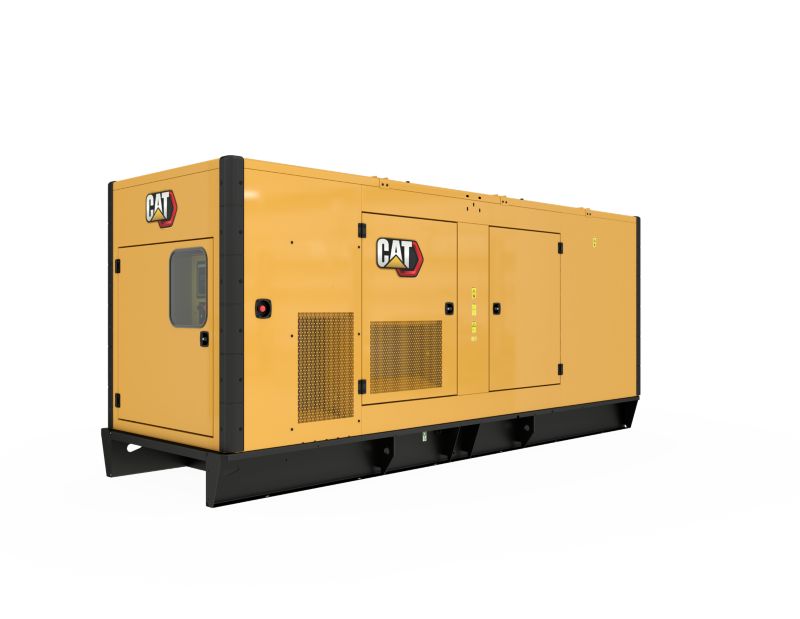

Enclosure -
Enclosure
360° View
Exterior
Enclosure
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 450 kVA Minimum Rating 350 kVA Emissions/Fuel Strategy Low Fuel, R96/EUIIIa Voltage 380 to 415 Volts Frequency 50 Hz Speed 1500 rpm Duty Cycle Standby, Prime -
Engine Specifications
Spec Value Engine Model C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel Bore 5.12 in Stroke 6.18 in Displacement 762.8 in³ Compression Ratio 16.3:1 Aspiration Air to Air Aftercooled Fuel System MEUI Governor Type Adem™A4 -
Generator Set Dimensions
Spec Value Length - Maximum 186.7 in Width - Maximum 79.3 in Height - Maximum 84 in
Standard Equipment
Air Inlet System
- Turbocharger
- Aftercooler core
- Air cleaner; light duty with disposable paper filter
Control Panel
- GCCP 1.3
Cooling System
- Radiator and cooling fan with guard
- Caterpillar extended life coolant
- Fan drive, battery charging alternator drive
- Coolant drain line with valve
Exhaust System
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Generator and Attachments
- Power center, IP22
- Segregated low voltage (AC/DC) wiring panel
- Optional LC Frame generator - IP23 Protection
- Integrated voltage regulator (IVR)
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- A Frame generator - IP21 Protection
Packaged Generator Set
- Coolant drain line with valve
- Disposable air filter
- Coolant level sight gauge
- Low coolant level sensor
- Radiator package mounted
- Service indicator
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Oil drain valves
- Lubricating oil
- Oil cooler
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
European Certificates
- Global Certification for CIS
- EU Certificate of Conformance (CE)
Air Inlet System
- Dual element air cleaner
- Single element air cleaner
Circuit breakers
- Power terminal strip
- 3 Pole (IEC-100% rated) Circuit breakers - Motorised
- Circuit breaker (IEC) Auxiliary contacts
- 4 Pole (IEC-100% rated) Circuit breaker - Motorised
- Padlockable circuit breaker device
- Shunt trip for IEC circuit breaker
- 3 Pole (IEC-100% rated) Circuit breaker
- 4 Pole (IEC-100% rated) Circuit breaker
Control Panels
- GCCP 1.4
- Volt free contacts
- Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
- Local alarm modules: Local annunciator
- Remote annunciator module
Cooling System
- Stone guards
- Radiator duct flange
- Low coolant temperature alarm
Enclosures
- High ambient sound attenuated enclosures
- Sound attenuated enclosures
Exhaust System
- 10, 25 and 35 dBA attenuation
- Mufflers - End in/end out
- 6 and 8 inch flange GP
- 6 and 8 inch elbow kit
- Flexible 8 inch exhaust fittings
Fuel System
- Manual fuel transfer pump
- Integral dual wall fuel tank base
- Fuel transfer system controls
Generator and Attachments
- A Frame oversize generator
- Permanent magnet excitation (PMG) generator
- Ingress protection
- A Frame CIP generator
- LC frame generator
- LC CIP generator
- Space heaters
Lube System
- Manual sump pump
Mounting System
- Narrow skid base
starting / Charging System
- Battery disconnect switch
- 5 Amp single Battery charger
- Jacket water heater
C13 Sound Attenuated Enclosure 50 and 60 Hz
