Cat

C4.4 Generator Set

Maximum Rating

100 ekW

Minimum Rating

36 ekW

Emissions/Fuel Strategy

Non Regulated, EU Stage II

Overview

Producing reliable power from 36 to 100 ekW at 60 Hz, our C4.4 diesel generator sets designed to ISO 8528-5 transient response requirements. All C4.4 to meet EPA Stationary Emergency (Tier 3) emissions standards.

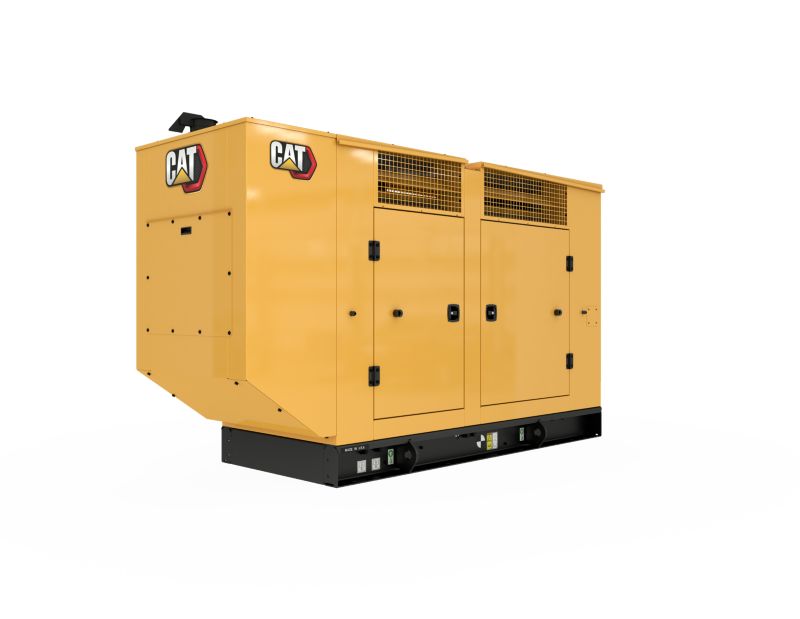

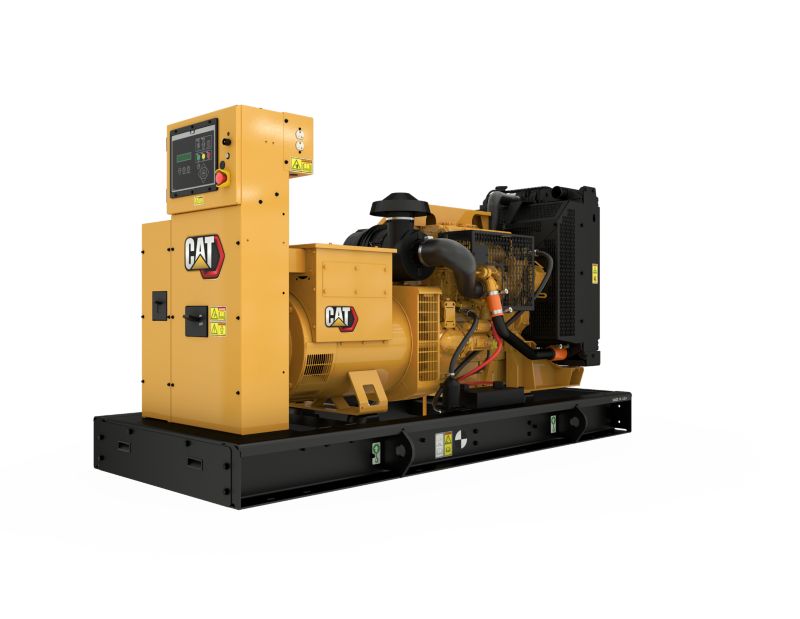

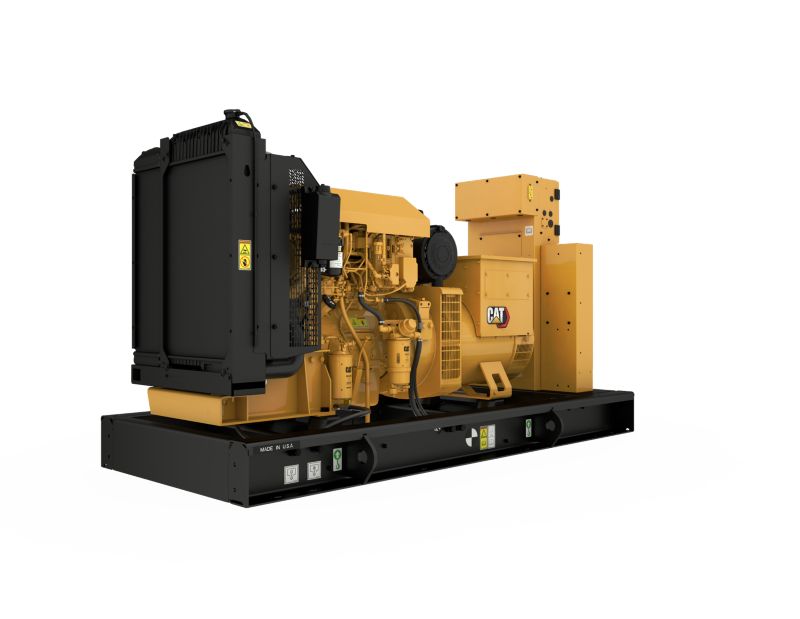

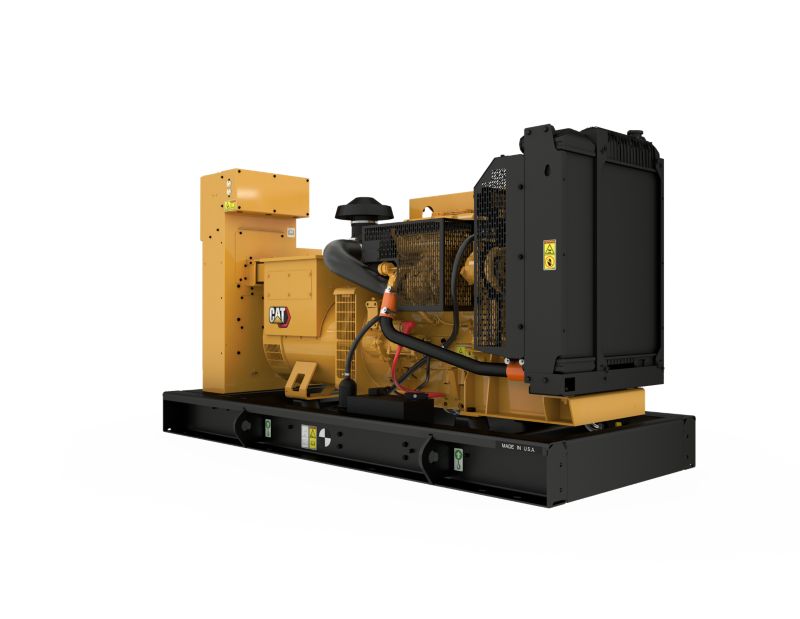

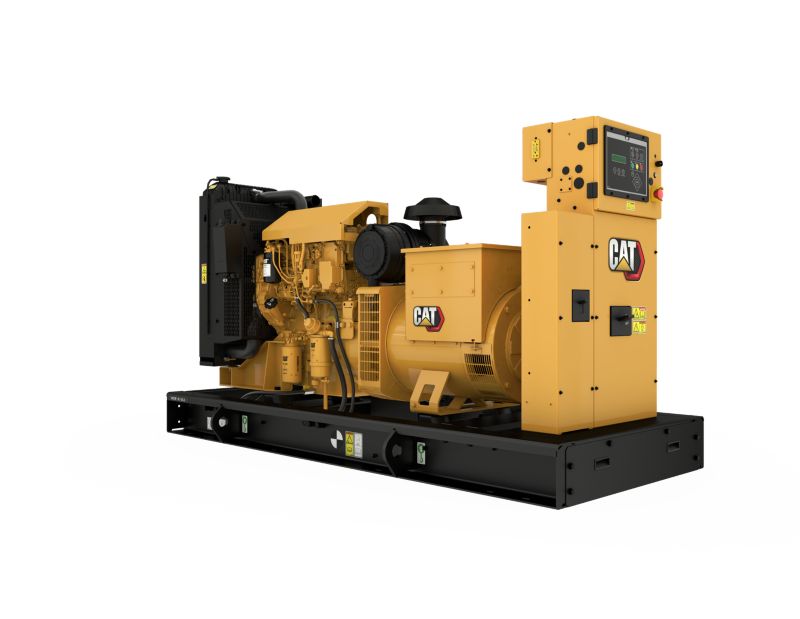

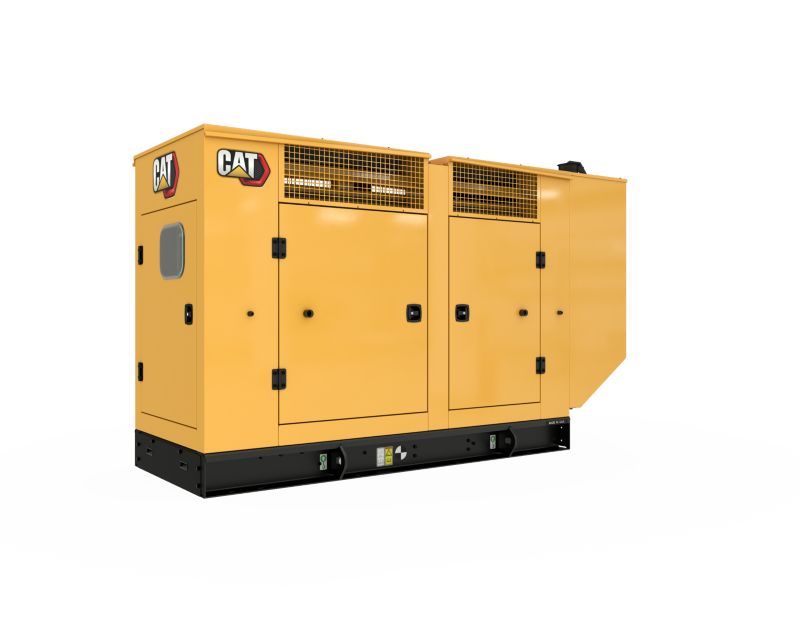

Photos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Rating 100 ekW
    Minimum Rating 36 ekW
    Emissions/Fuel Strategy Non Regulated, EU Stage II
    Voltage 220 to 480 Volts
    Frequency 60 Hz
    Speed 1800 rpm
    Duty Cycle Standby, Prime
  • Engine Specifications
    Spec Value
    Engine Model C4.4, In-line 4, 4-cycle diesel
    Bore 4.13 in
    Stroke 5 in
    Displacement 268.5 in
    Compression Ratio 18.2:1
    Aspiration Turbocharged
    Fuel System Electronic (adjustable)
    Governor Type Adem™A4
  • Generator Set Dimensions
    Spec Value
    Length - Maximum 75.8 in
    Width - Maximum 44.1 in
    Height - Maximum 53.6 in

Standard Equipment

Air Inlet System

  • Air cleaner; light duty with disposable element

Air Inlet

  • Air Cleaner

Cooling

  • Package mounted radiator

Cooling System

  • Fan drive, battery charging alternator drive
  • Radiator and cooling fan with guards
  • Coolant drain line with valve
  • Caterpillar extended life coolant

Exhaust

  • Exhaust flange outlet

Control Panel

  • GCCP 1.3

Exhaust System

  • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose

Fuel System

  • Standard open set fuel tank / base supplied base, formed steel with single wall integral 8-hour fuel tank

Fuel

  • Secondary fuel filter
  • Primary fuel filter with integral water separator
  • Fuel priming pump

Generator

  • Segregated low voltage (AC/DC) wiring panel
  • Voltage regulator (single phase sensing)
  • Matched to the performance and output characteristics of Cat engines
  • 12 Leads
  • Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
  • Circuit breaker, IEC, 3 pole, mounted in tower panel
  • Tower panel, IP22, bottom cable entry
  • IP23 protection

Governing System

  • Mechanical and electrical governing system - model dependent

Lube System

  • Lubricating oil
  • Oil drain line with valve

Power Termination

  • Bus Bar

Mounting System

  • Captive linear vibration isolators between base and engine-generator
  • Includes lifting provision and drag points
  • Termination points for coolant and lube oil drain lines

Mounting

  • Rubber vibration isolators

Starting/Charging System

  • 24V battery with rack and cables

General

  • Paint - Caterpillar Yellow except rails and radiators gloss black
  • Engine and alternator pre-paint, Caterpillar yellow

Starting/Charging

  • 24 volt starting motor
  • Batteries

Optional Equipment

Exhaust

  • Industrial, Residential, Critical Mufflers

Generator

  • Excitation: [ ] Permanent Magnet Excited (PM) [ ] Internally Excited (IE)
  • Oversize and premium generators
  • Anti-condensation heater

Alternator System

  • 3 phase sensing
  • Permanent magnet
  • R frame auxilliary winding
  • Quadrature droop kit
  • LC frame alternator with coastal insulation protection

Circuit Breakers

  • Circuit Breaker Upgrades - 4 Pole circuit reaker to 250A, 400A and 630 A

Power Termination

  • Circuit breakers, IEC compliant
  • Circuit breakers, UL listed

Control Panels

  • GCCP 1.3
  • Load share module
  • Digital I/O module
  • Remote monitoring software
  • Local & remote annunciator modules

Cooling System

  • Coolant heater
  • Low coolant level shutdown
  • Low coolant temp alarm

Control Panel Options

  • Earth fault (2 wire only)
  • GCCP 1.3
  • Volt free contacts
  • Emergency stop with key
  • Battery charger
  • Panel mounted audible alarm
  • Control panel heater
  • Speed adjust potentiometer
  • Voltage adjust potentiometer
  • Earth leakage (2 wire only)
  • Overload shutdown via breaker

Starting/Charging

  • Jacket water heater
  • Charging alternator
  • Heavy-duty starting system
  • Battery chargers
  • Oversize batteries

Enclosures

  • Sound attenuated Level 2 enclosure
  • Sound attenuated Level 1 (galv)
  • Rental pack - CAE rental option only

European Certifications

  • Upgrade to STD set for CE

Fuel System

  • Compact skidbase for open set
  • Low fuel level alarm
  • Low fuel level shutdown
  • Bunded fuel tank
  • Open set narrow base
  • Skidbase for CALG enclosure sets
  • High fuel level alarm

General

  • Single or dual wall sub-base fuel tanks
  • EU Certificate of Conformance (CE)
  • CSA Certification
  • Single or dual wall integral fuel tanks
  • Automatic transfer switches (ATS)
  • Narrow, Wide or Skid Base
  • UL 2200 package
  • Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
  • Sound attenuated, weather protective or high ambient weather protective enclosure
  • EEC Declaration of Conformity
  • Integral & sub-base fuel tanks

Global Certifications

  • Certification for CIS

Mounting Options

  • Battery removal
  • Electronic governor
  • Industrial silencer
  • Silencer installation kit
  • External single point lift - enclosure

Special Packing/Inspectons for Shipment

  • PGS test report @ 1.0 power factor
  • PGS test report @ 0.8 power factor

General - Accessories / Miscellaneous

  • Packing case - compact set
  • Stone guards / rad trans flange
  • Packing case - canopied set
