Producing reliable power from 1600 to 1875 kVA at 50 Hz, our 3512B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Cat® generator sets offer both low fuel consumption and low emission systems.
FAQ
Q. Does this generator comply with ISO 8528 guidelines?
A. Yes, the 3512B, like all Cat generators, is tested in accordance with the load steps outlined in with ISO 8528, Part 5.
Q. Are Cat generators easy to install?
A. Cat generators can be configured with a number of options for ease of installation.
Q .Does Cat’ have much experience with electric power generation?
A. Cat has over 80 years experience with on-site and portable power and has shipped millions of generators to customers around the world.
Q. Does Cat offer generators that support my Sustainability goals?
A. Cat offers generators that can run on a number of renewable fuels including HVO, biodiesel, landfill gas, sewage gas and more.
Q. Will this generator be able to provide emergency power on hot summer days?
A. Most Cat 3500 Series generators can operate in ambient temperatures up to 50°C (122°F), reliably providing power when it is needed.
Cat
3512B Diesel Generator Set
Overview
Photos
-

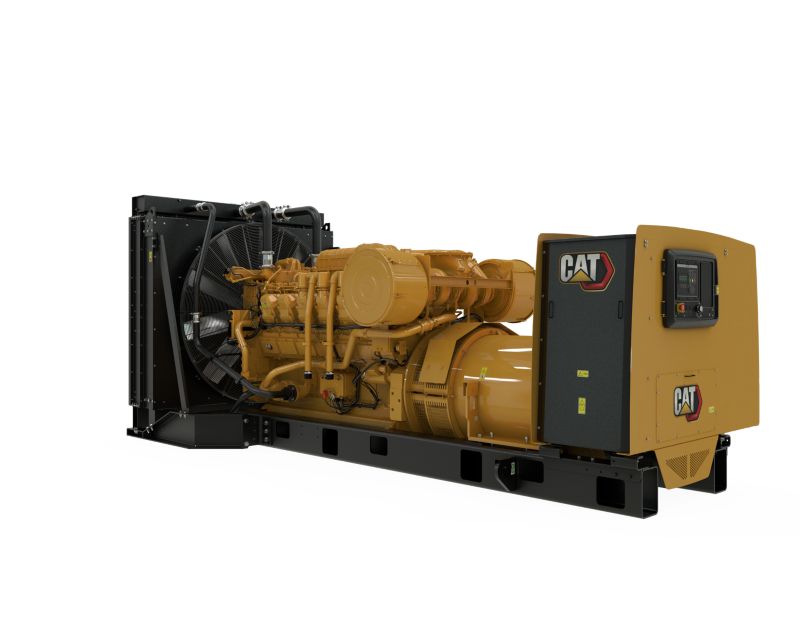

3512B Diesel Generator Sets -

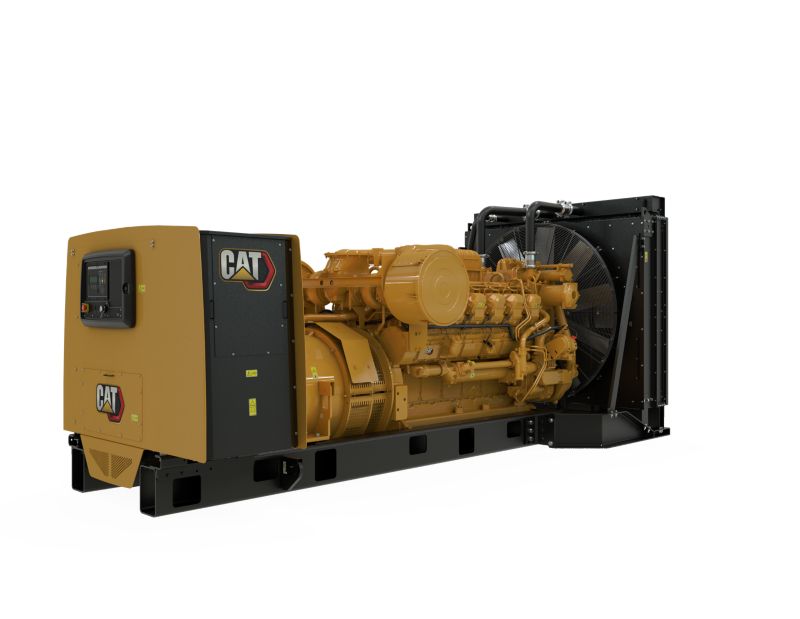

3512B Diesel Generator Sets -

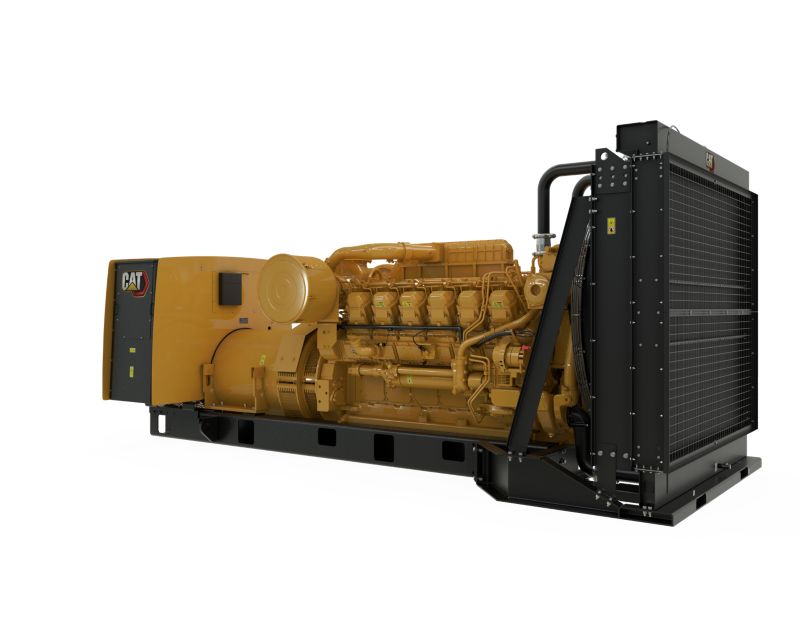

3512B Diesel Generator Sets -

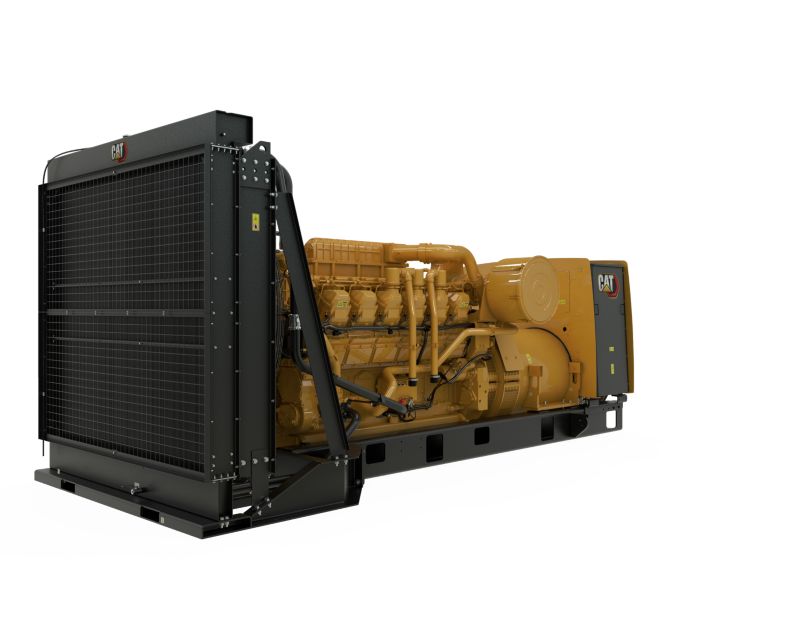

3512B Diesel Generator Sets
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Showroom
Virtual Product tour
Documents
- Electric Power Ratings Guide
- 3512B, 50 Hz, 1750 kVA Standby/MC, 1600 kVA Prime, Low Fuel Consumption or Low Emissions Spec Sheet
- 3512B Upgradeable, 50 Hz, 1875 kVA Low Fuel Consumption or Low Emissions Spec Sheet
- 3512B, 50 Hz, 1600 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet
- 3512B, 50 Hz, 1700 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP 4 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
EMCP 4 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- EU Declaration of Conformity
- EU Declaration of Incorporation
- Eurasian Conformity (EAC)
- Telecommunication Lab of China
Certifications
- EU Declaration of Conformity
- EU Declaration of Incorporation
- Eurasian Conformity (EAC)
- Telecommunication Lab of China
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Standby Rating 1875/1750 kVA Prime Power Rating 1700/1600 kVA Emissions/Fuel Strategy Low Fuel , Low Emissions Voltage 400 to 415 Volts Frequency 50 Hz Speed 1500 rpm Duty Cycle Standby, Mission Critical, Prime, Continuous Minimum Rating 1600 kVA Maximum Rating 1875 kVA -
Engine Specifications
Spec Value Engine Model 3512B TA, V-12, 4-Stroke Water-Cooled Diesel Bore 6.69 in Stroke 7.48 in Stroke - HD 8.46 in Displacement 3161.03 in³ Displacement - HD 3576 in³ Compression Ratio 15.5:1 HD Aspiration TA Fuel System Electronic Unit Injection Governor Type ADEM™ A3 -
Generator Set Dimensions
Spec Value Length - Minimum 212.8 in Length - Maximum 217.1 in Width - Minimum 90 in Width - Maximum 90 in Height - Minimum 94.9 in Height - Maximum 94.9 in Dry Weight - Genset (minimum) 25620 lb Dry Weight - Genset (maximum) 26530 lb
Standard Equipment
Control System
- EMCP 4.2B
- Emergency stop pushbutton
- Failure to start (overcrank)
- High coolant temperature
- 4 Programmable digital outputs
- Auto/start/stop control
- 4 Programmable digital inputs
- DC volts
- Engine cycle crank
- Low coolant level
- Speed adjust
- Low oil pressure
- Communications
- Frequency (Hz)
- Warnings/shutdown indicators
- Engine cool-down timer
- Operating hours
- Emergency stop
- Oil pressure
- Lamp test
- True RMS AC metering, 3-phase, +/-2% accuracy
- Digital indication for:
- Overspeed
- Alarm acknowledge
- RPM
- 24 Volt DC operation
- Amps (per phase & average)
- Coolant temperature
- Volts (L-L & L-N)
Governing System
- ADEM III
Cooling System
- SCAC
- Coolant drain line with valve
- Radiator fan and fan drive
- Fan and belt guards
- Coolant level sensors
- Caterpillar extended life coolant
Exhaust System
- Dry exhaust manifold
- Flanged faced outlet(s)
Fuel System
- Fuel cooler; not included with packages without radiator
- Flexible fuel lines
- Secondary fuel filters.
- Fuel priming pump
Generator System
- RFI suppression
- Min / max exciter
- 3 phase brushless, Salient pole
- Caterpillar's digital voltage regulator (CDVR)
- Class H temperature rise at 40C ambient
- Random wound
- Winding temperature detectors
- Internal excitation (IE)
- 3 Phase voltage sensing
- Busbar connections
- 6 Leads
- NEMA Class H insulation
Literature
- Parts book
- Operation & Maintenance Manual
Lube System
- Lubricating oil
- Gear type lube oil pump
- Fumes disposal
- Oil drain lines and valve
- Oil filter, filler and dipstick
- Integral lube Oil cooler
Mounting System
- Rails - Engine/generator/radiator mounting
General
- Flywheel and Flywheel housing-SAE
- Caterpillar yellow with high gloss black rails & radiator
- RH service
- SAE standard rotation
Optional Equipment
Air Inlet System
- Dual element air cleaner
- Single element filter
- Heavy duty air cleaner
Exhaust
- Exhaust mufflers
Generator
- Internal excitation (IE)
- Oversize and premium generators
- Anti-condensation heater
- Permanent magnet excitation (PMG)
Control System
- EMCP voltage and current sensing groups
- CAN2 network equipment
- Annunciator modules (Local and remote)
- Customer interface options
- Load share module options (LV)
- EMCP 4.3, EMCP 4.4
- Annunciator network equipment
- Neutral to ground connection
- Generator temperature monitoring
- Remote annunciator module (Low voltage)
- Local annunciator modules (Low voltage)
- Cat connect: Ethernet telematics / Satellite telematics / Cell telematics
- Governors (MUI-Low voltage)
Power Termination
- Circuit breakers, IEC compliant
- Circuit breakers, UL listed
Cooling System
- Installed radiators
- Coolant
- Water level switch gauges
- Cooling system attachments
Mounting
- IBC isolators
- Rubber anti-vibration mounts
- Spring type vibration isolators
Starting/Charging
- Jacket water heater
- Oversize batteries
- Battery chargers
- Charging alternator
- Heavy duty starting system
- Air starting motor with control and silencer
Exhaust System
- Flexible fittings
- Mufflers
- Y Adapters
- Elbows
- Flange and exhaust expanders
Factory Support
- Factory commissioning
Fuel System
- Secondary fuel filters
- Primary fuel filter
Generators and Attachments
- Internally excitation
- Permanent magnet excitation (PMG)
- RW
- 6 Leads
- Space heater kit
- 1400 and 1600 Frame
- Pitch 0.6667
- Low voltage generators 380, 400, 415 Volts 3 Phase, 1500 rpm
- Generator conversion kits - PM to IE / IE to PM
General
- EU Certificate of Conformance (CE)
- The following options are based on regional and product configuration:
- Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
- UL 2200 package
Instrumentation
- Pyrometer and thermocouples
Lube System
- Lube oil in standard sump
- Standard sump oil pan
- Lube oil filters
- Drain GP oil pan
- Oil level regulator
- Prelube pump groups
Crankcase System
- Crankcase protection group
- Crankcase ventilation system
Mounting System
- Low efficiency isolators
- Low efficiency isolators puck
- Low isolators
- Spring type vibration isolators
Power Connections
- Low voltage - Power connection options
- Electrically operated circuit breakers
- Low voltage - Package mounted circuit breakers
- Low voltage - 1400 and 1600 Frame generators
Special Tests / Reports
- Custom generator TVA report
- PGS Test report @ 1.0 power factor
- Generator fuel consumption test
- Standard generator TVA report
- PGS Test report @ 0.8 power factor
- Generator test report
- Standard engine test charge
Starting / Charging System
- 20 Amp Battery charger
- 10 Amp Battery charger
- Electric starting motors
- Starter cover
- Batteries, racks and cables
- Jacket water heater wiring groups
- Jacket water heaters
- 35 Amp Battery charger
Extended Service Coverage
- Gold - 36,48, 60, 120 month coverage
- Cat branded commercial power system
- Silver - 36 ,48, 60, 120 month coverage
- Platinum - 24, 36, 48, 60, 120 month coverage
