Producing reliable power of 30 ekW at 60 Hz, our D30 diesel generator sets are designed to meet ISO 8528-5 transient response requirements. All D30 generator sets are EPA TIER 4I emissions compliant.
Cat
C2.2 | D30 Generator Set
Overview
Photos
-

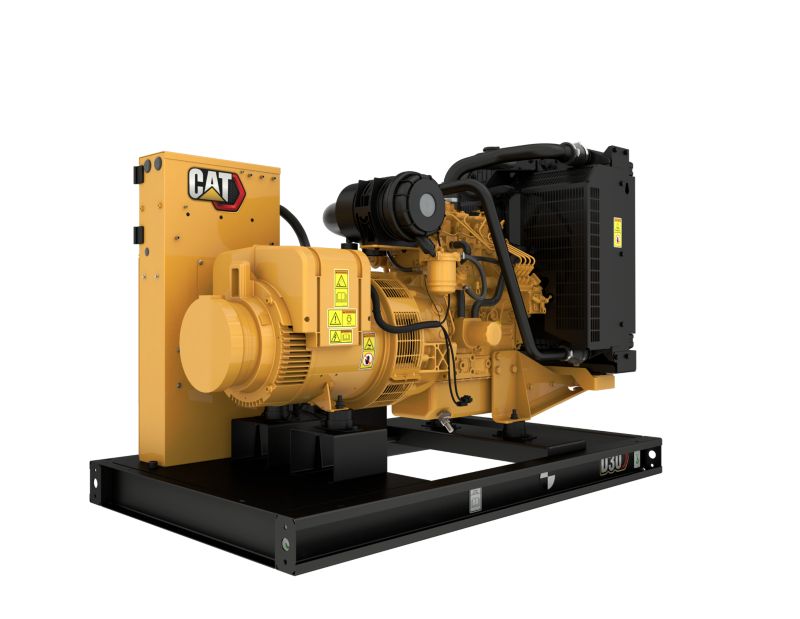

D30 -

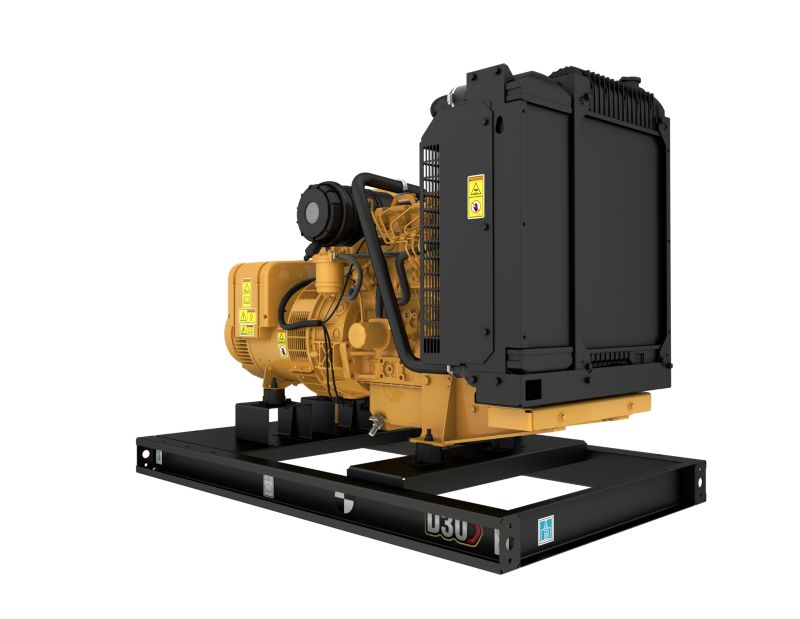

D30 -

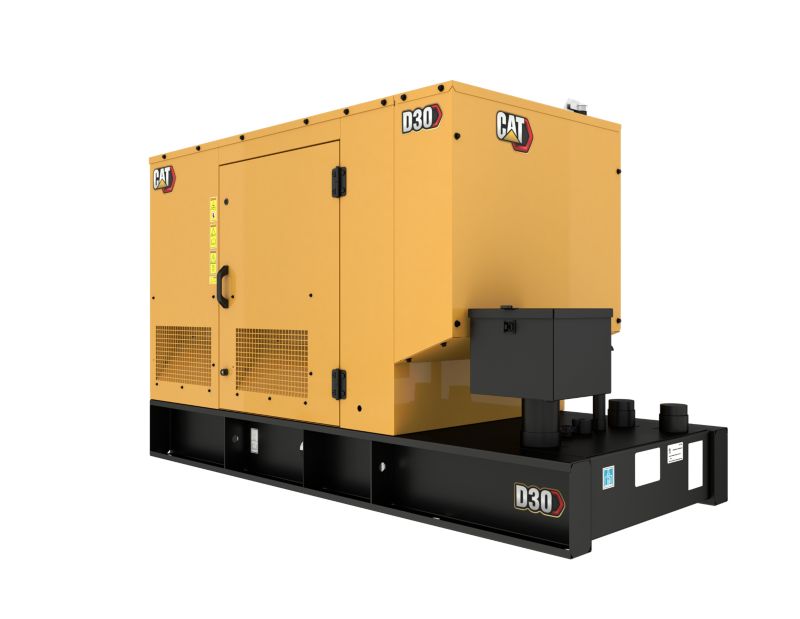

D30 -

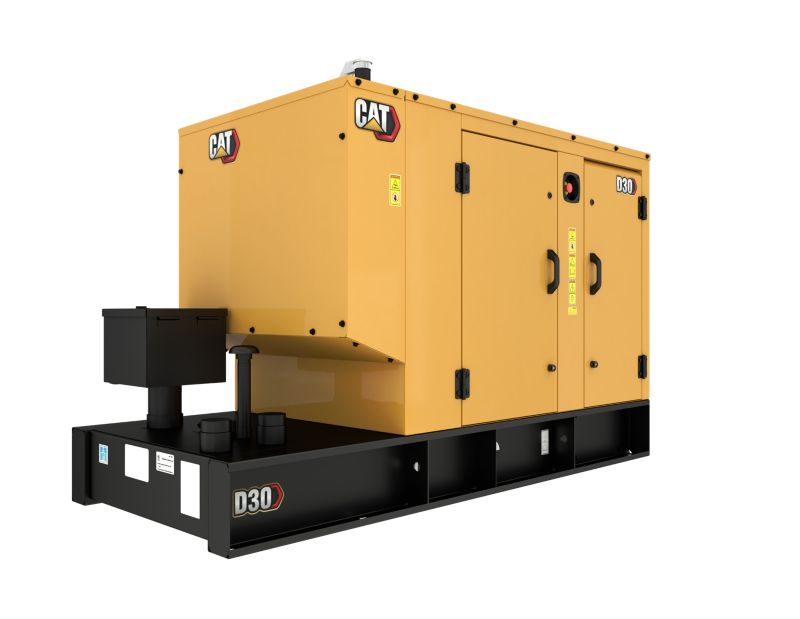

D30 -

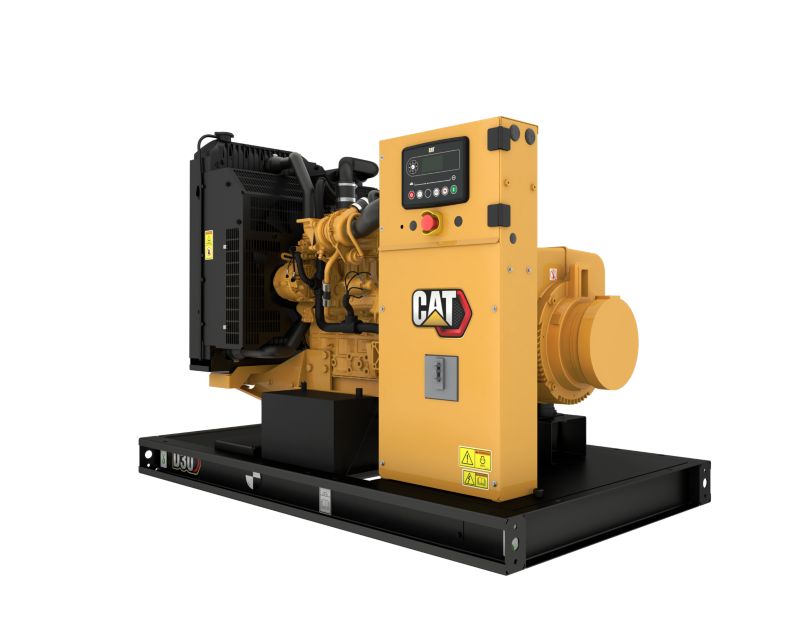

D30 -
D30
360° View
Exterior
Interior
Showroom
Virtual Product Tour
Features
Cat C2.2 Engine
- Reliable, rugged, durable design
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat C2.2 Engine
- Reliable, rugged, durable design
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Alternator
- High efficiency
Alternator
- High efficiency
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 40°C (104°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 40°C (104°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Full range of attachments
- IP23 Alternators
- Anti-vibration mounts
- UL142 compliant
- 24, 48 and 72 hour fuel tanks with option of skid base
- Factory fitted telematics
Full range of attachments
- IP23 Alternators
- Anti-vibration mounts
- UL142 compliant
- 24, 48 and 72 hour fuel tanks with option of skid base
- Factory fitted telematics
Footprint
- Compact design allows for improved packaging, resulting in the smallest genset footprint
Footprint
- Compact design allows for improved packaging, resulting in the smallest genset footprint
Specifications
-
Generator Set Specifications
Spec Value Standby Rating 30.0 ekW Frequency 60 Hz Emissions/Fuel Strategy US EPA TIER 4I (EPA 40 CFR Part 1039 Interim Tier 4) Voltage 480/277, 240/120, 208/120, 600/346, 240/120 VAC Speed 1800 rpm Duty Cycle Standby -
Engine Specifications
Spec Value Engine Model Cat® C2.2, In-line 4, 4-cycle diesel Bore 3.3 in Stroke 3.9 in Compression Ratio 23.3:1 Aspiration Turbocharged air to air charge cooling Fuel System Electronically actuated Mechanical Cassette type Governor Type Mechanical -
Generator Set Dimensions
Spec Value Length - Maximum 88.6 in Width - Maximum 41.3 in Height - Maximum 57.9 in Dry Weight - Genset (maximum) 2052 lb
Standard Equipment
Engine
- Diesel Engine 2.2L, EPA TIER IV Interim
- Electrical system, 12 VDC
Exhaust System
- Dry exhaust manifolds
Fuel System
- Actuator with electronic governor
Control Panel
- GCCP 1.2. R220 / R221 / D350 voltage regulators
Telematics
- PL444 Product link 4G LTE telematics
Generators and Generator Attachments
- Anti-condensation Space heaters
- M-Frame
Starting / Charging System
- 12V Starting motors
General
- Operation and maintenance manuals
- Paint - Caterpillar yellow except rails are gloss black
- Parts book
Optional Equipment
Air Inlet
- Air inlet adapters
Cooling System
- Inlet/outlet connections
Exhaust
- Elbow, flange
- Flexible fitting
- Muffler and spark-arresting muffler with companion flanges
- Exhaust expander
Telematics
- PLG 601 & 641 product link telematics
Enclosures
- Sound attenuated steel & aluminum enclosures
Mufflers
- 25dBA mufflers
Starting / Charging System
- Battery charger
- Space heaters
- Charging alternator
- Jacket water heater
