Cat

DE169AE0 (60 Hz) Generator Set

Maximum Rating

120.0 ekW

Minimum Rating

120.0 ekW

Emissions/Fuel Strategy

Non-Certified Emissions

Overview

Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.

Photos

360° View

Exterior

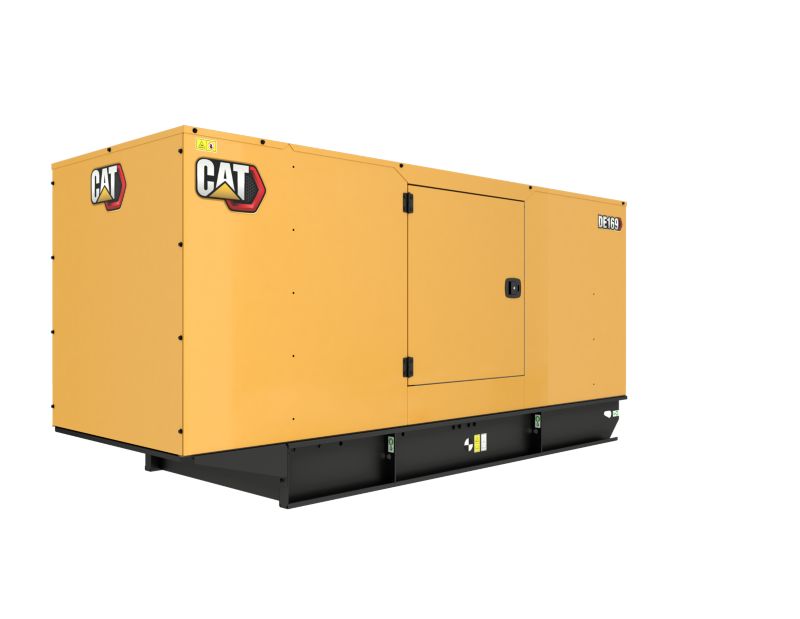

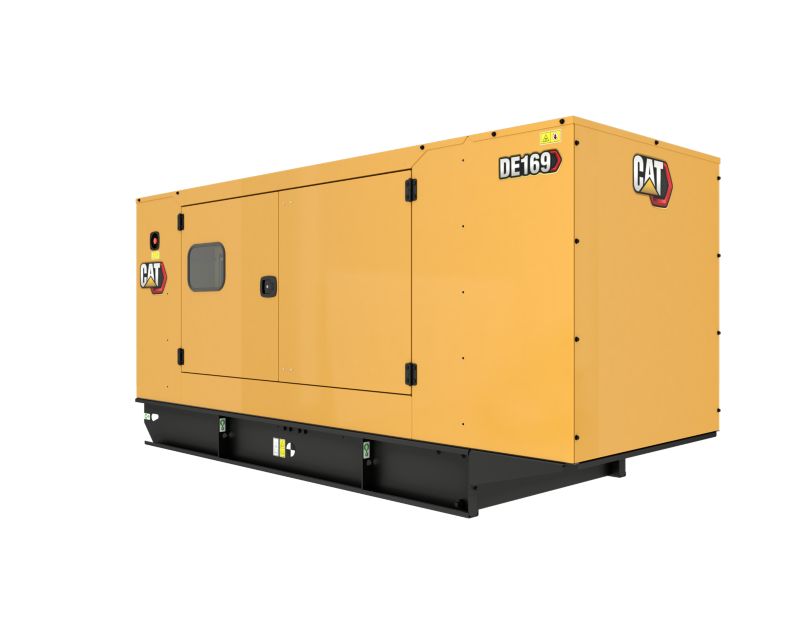

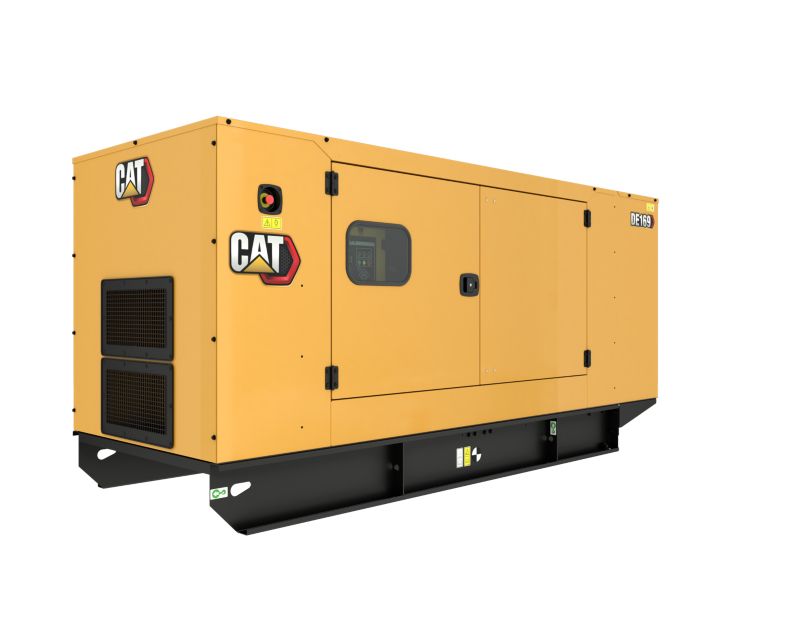

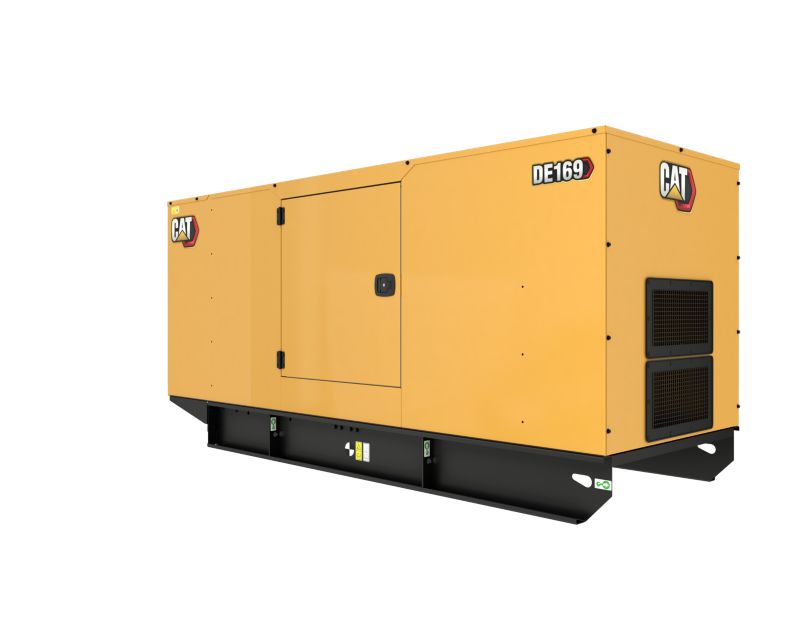

Enclosed

Interior

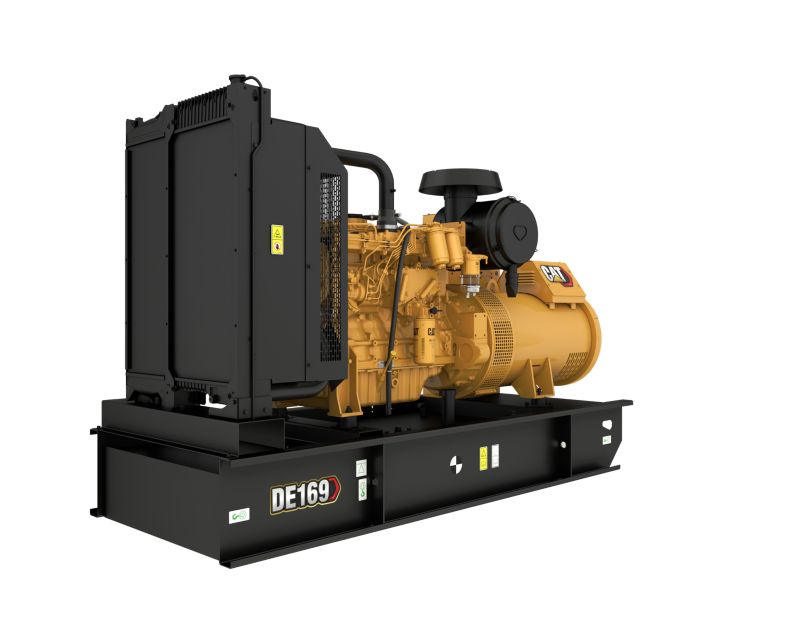

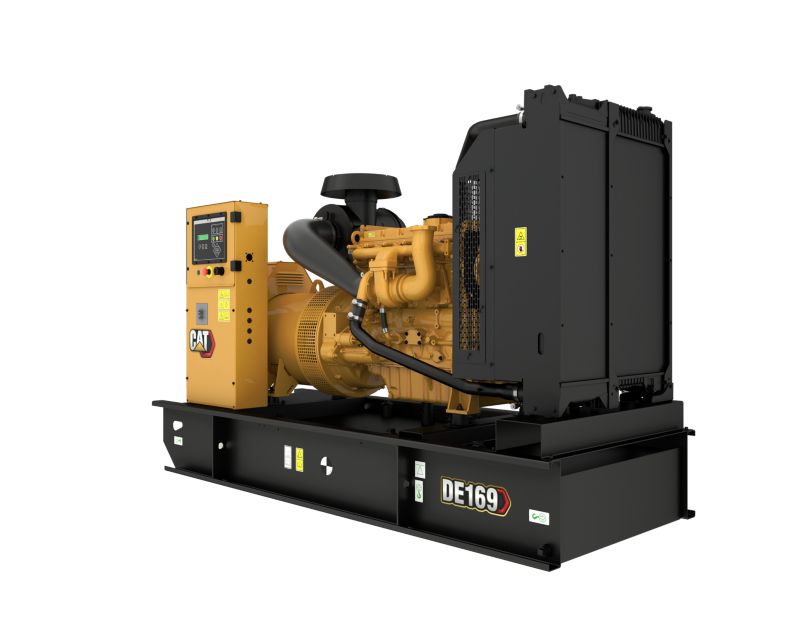

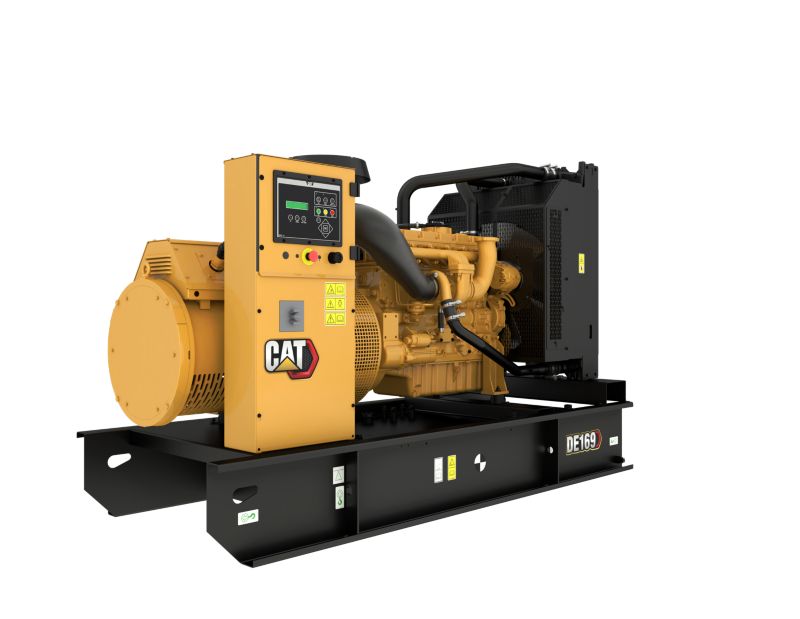

Open

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Rating 120.0 ekW
    Minimum Rating 120.0 ekW
    Emissions/Fuel Strategy Non-Certified Emissions
    Voltage 220 to 380 Volts
    Frequency 60 Hz
    Speed 1800 rpm
    Duty Cycle Standby, Prime
  • Engine Specifications
    Spec Value
    Engine Model Cat® C7.1
    Bore 4.1 in
    Stroke 5.3 in
    Displacement 427.8 in³
    Compression Ratio 18.2:1
    Aspiration Turbocharged
    Fuel System Direct Injection
    Governor Type Mechanical
  • Generator Set Dimensions
    Spec Value
    Length - Maximum 96.5 in
    Width - Maximum 1010 mm
    Height - Maximum 60.8 in
    Dry Weight - Genset (maximum) 3135 lb

Standard Equipment

Engine

  • C7.1, Inline 4 Cylinder, 4 Stroke Diesel

Control panel

  • EMCP 4.1 control panel

Governing system

  • Mechanical Governor

Alternator

  • GTA Frame Standard Alternator

Fuel Storage

  • Single Wall 8 Hour Tank

Enclosure

  • Modular Easy Access Acoustic Enclosure

Air, Cooling & Exhaust

  • Enclosure Silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
