Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.
Cat
DE125AE0 (60 Hz) Generator Set
Overview
Photos
-
DE125AE0 -
DE125AE0 -
DE125AE0 -
DE125AE0 -
Enclosure -
Enclosure -
Enclosure -
Enclosure
360° View
Exterior

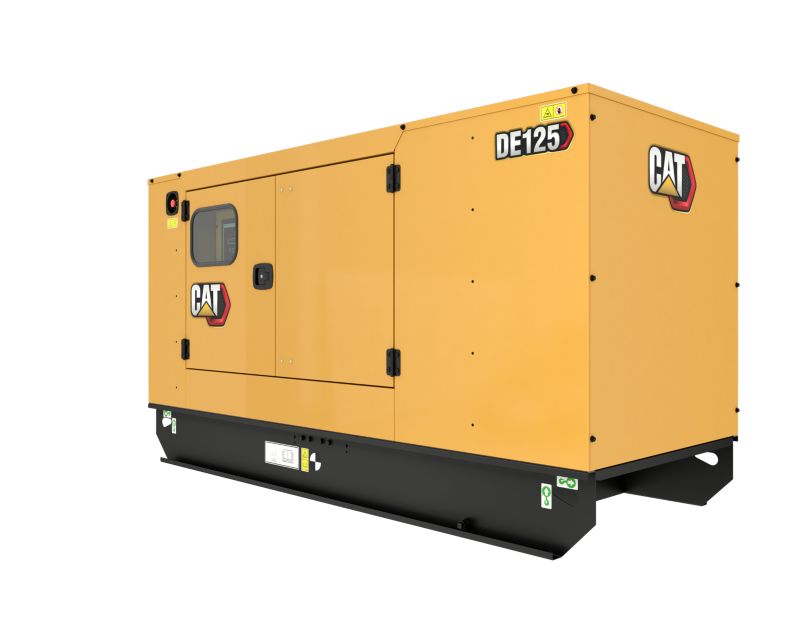

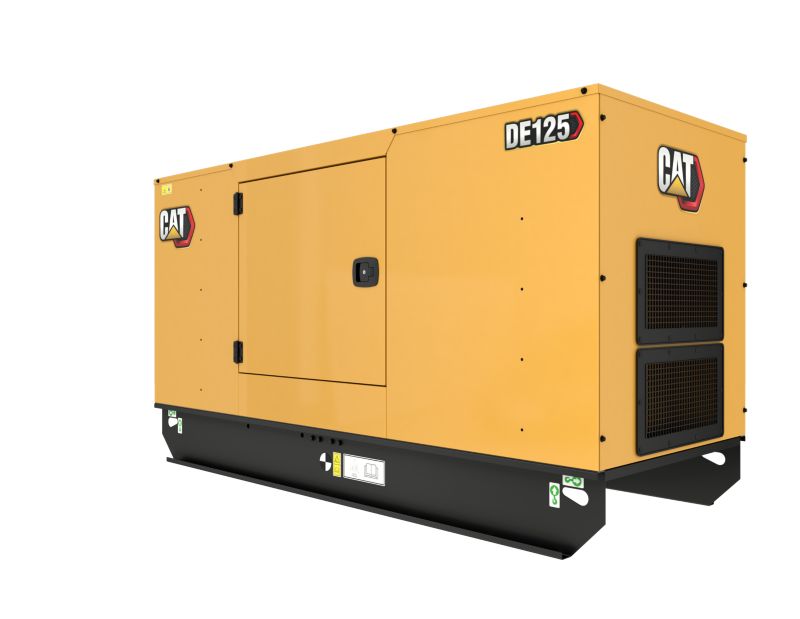

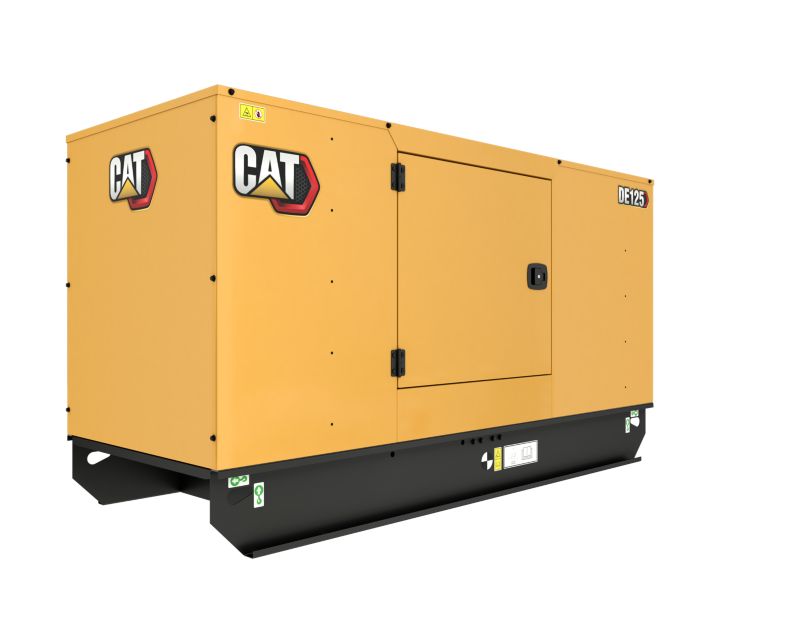

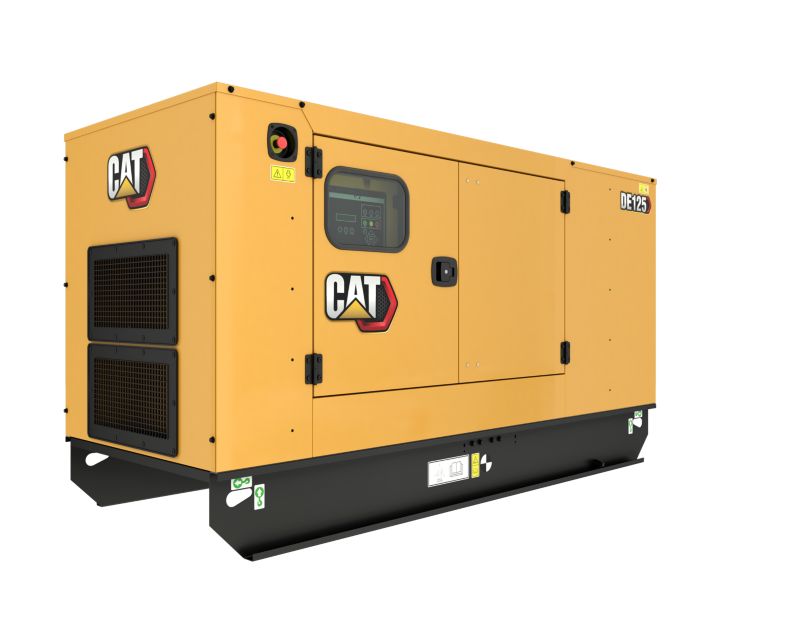

Enclosed
Interior

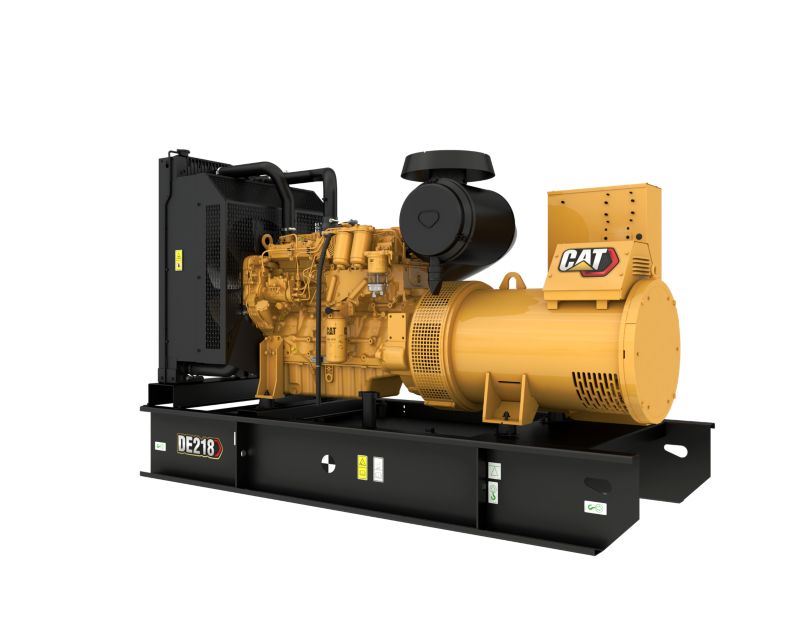

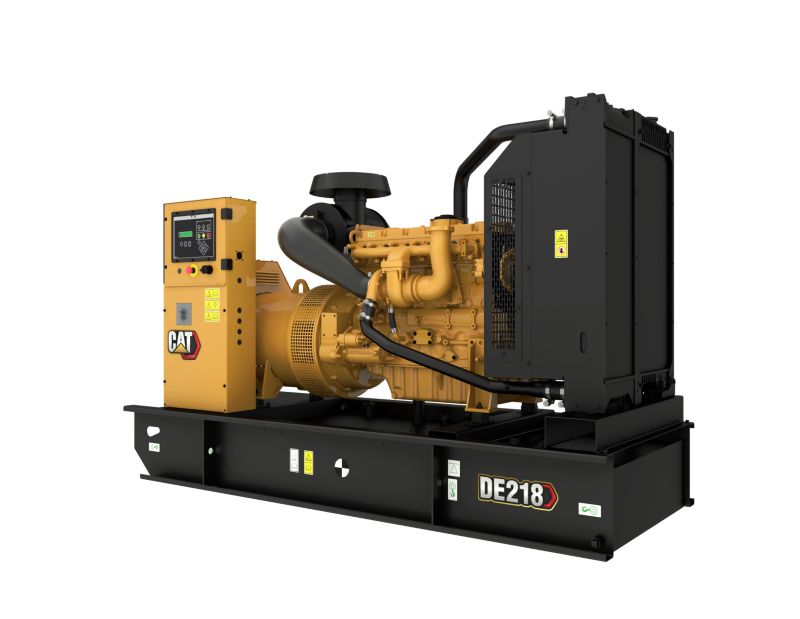

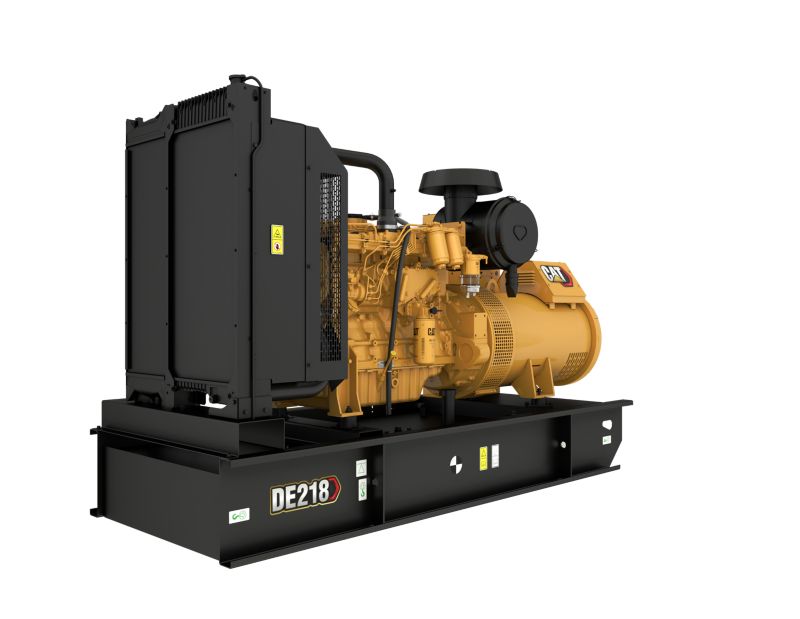

Open
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-3 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-3 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
GTA Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GTA Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Fully prototype tested with certified torsional vibration analysis available
Certifications
Fully prototype tested with certified torsional vibration analysis available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 100.0 ekW Minimum Rating 90.4 ekW Emissions/Fuel Strategy Non-Certified Emissions Voltage 220 to 380 Volts Frequency 60 Hz Speed 1800 rpm Duty Cycle Standby, Prime -
Engine Specifications
Spec Value Engine Model Cat® C4.4 Bore 4.1 in Stroke 5 in Displacement 268.5 in³ Compression Ratio 18.23:1 Aspiration Turbocharged Fuel System Direct Injection Governor Type Electronic -
Generator Set Dimensions
Spec Value Length - Maximum 78 in Width - Maximum 890 mm Height - Maximum 54.2 in Dry Weight - Genset (maximum) 2348 lb
Standard Equipment
Engine
- C4.4, Inline 4 cylinder, 4 stroke diesel
Control panel
- EMCP 4.1 Control panel
Governing system
- Electronic Governor
Alternator
- GTA Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Modular easy access acoustic enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
