The DE350S GC diesel generator sets have been developed for your standby applications. Producing reliable power of 350 ekW at 60 Hz, our C9.3 diesel-powered DE350S GC generator set is designed to ISO 8528-5 transient response requirements
Cat
DE350S GC Generator Set
Overview
Photos
-

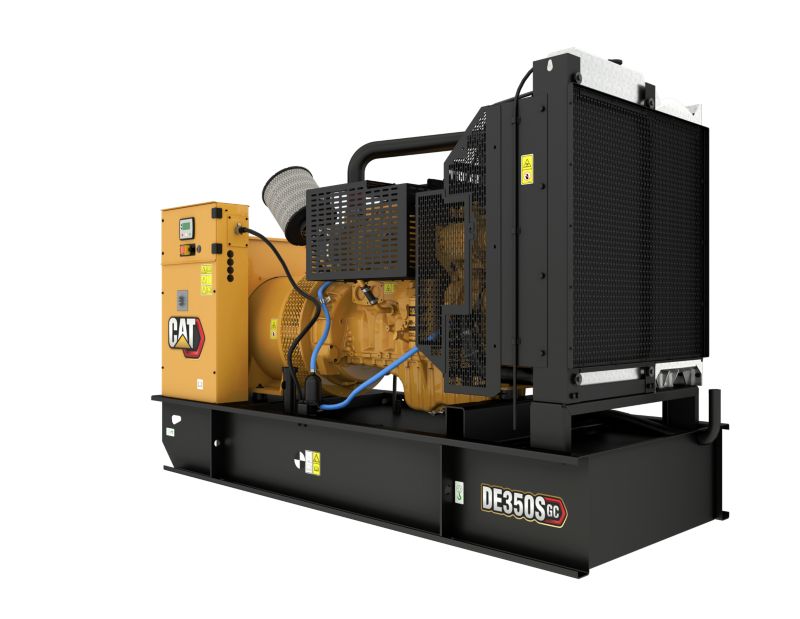

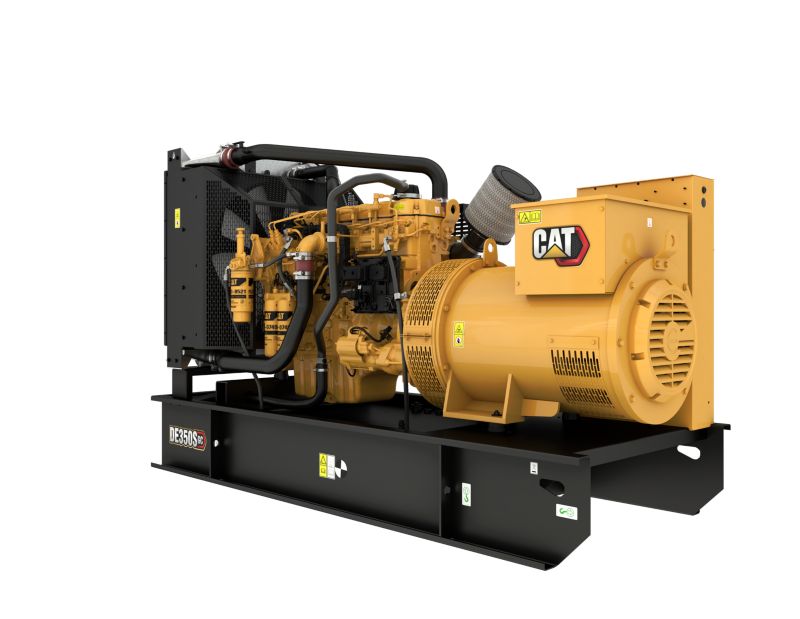

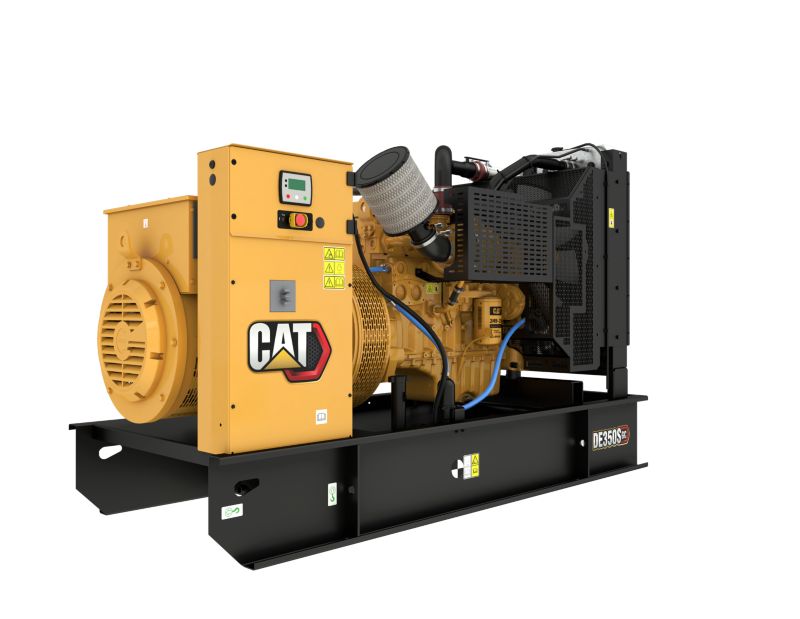

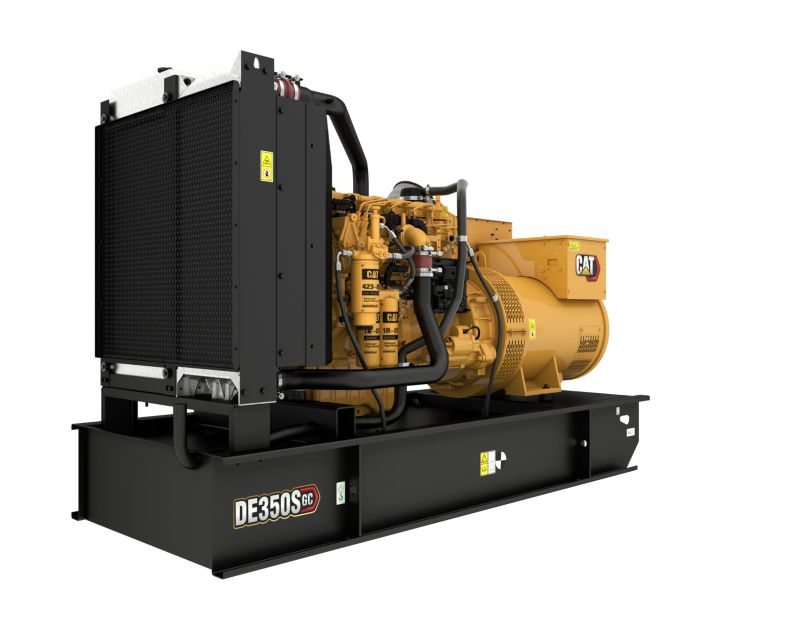

DE350S GC -
DE350S GC -
DE350S GC -
DE350S GC -

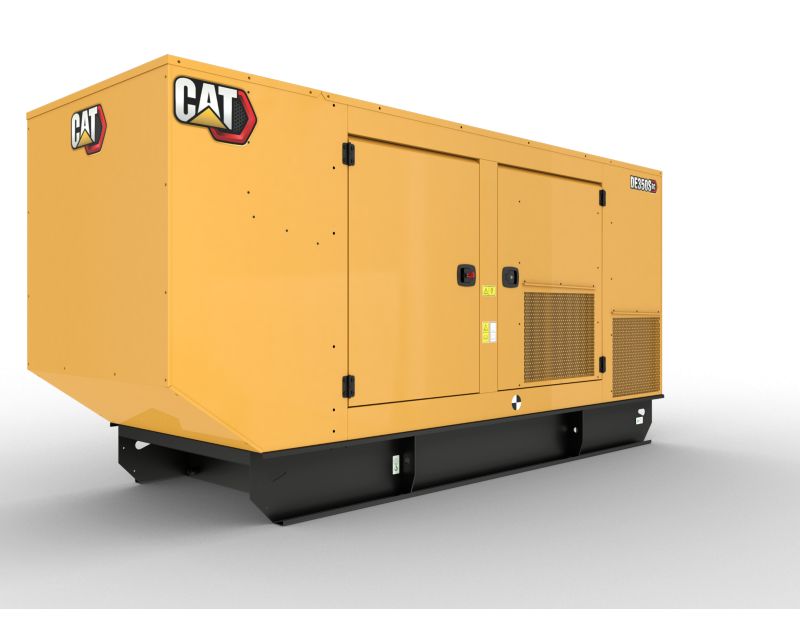

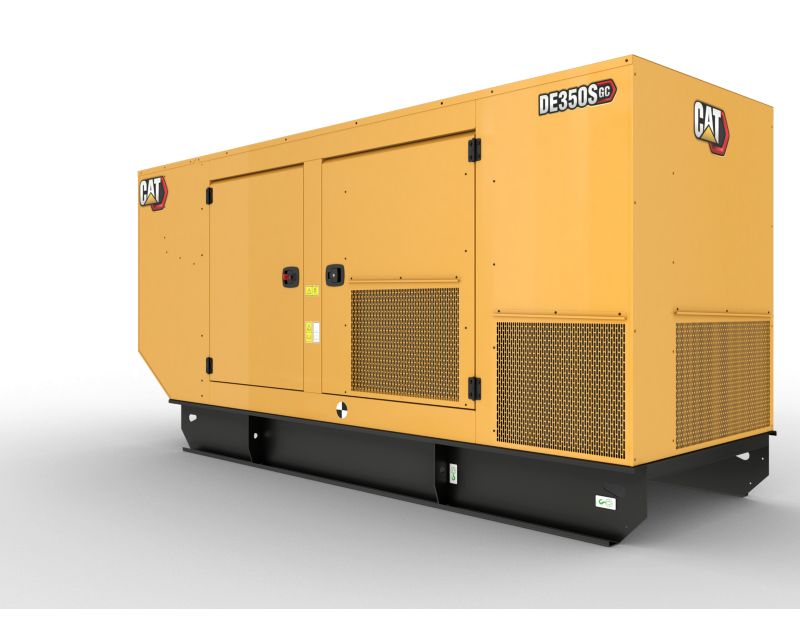

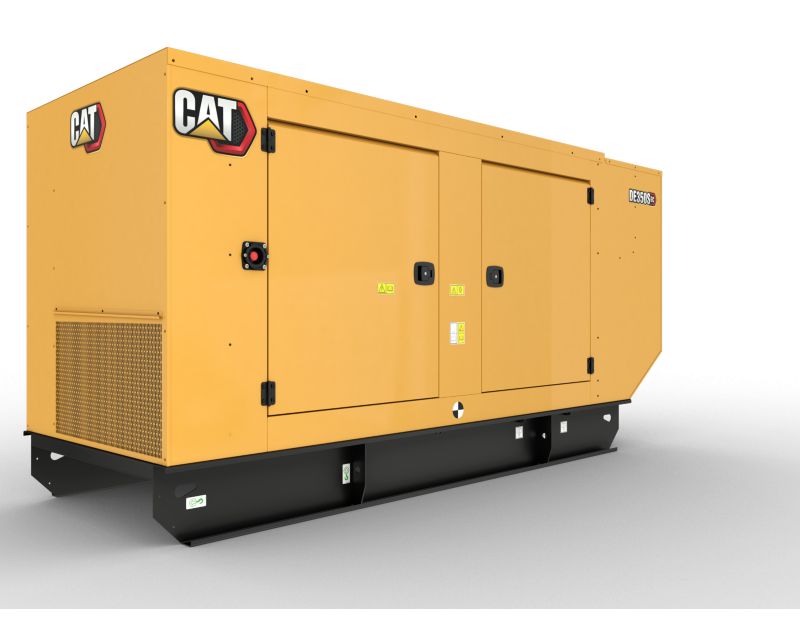

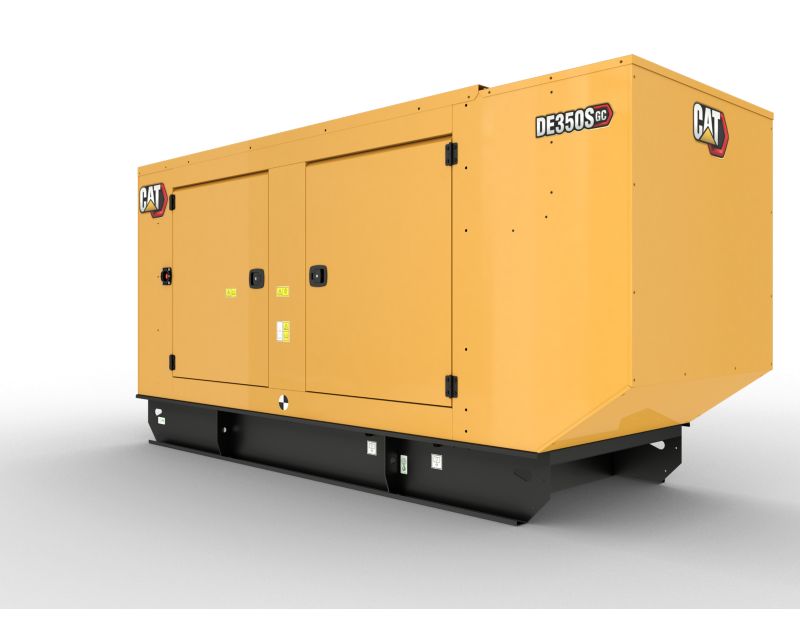

DE350S GC Enclosure -
DE350S GC Enclosure -
DE350S GC Enclosure -
DE350S GC Enclosure
360° View
Exterior
Enclosure
Interior
Open Set
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.1 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
GCCP 1.1 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 350 ekW Minimum Rating 350 ekW Emissions/Fuel Strategy Low Fuel, R96/EUIIIa Voltage 220 to 480 Volts Frequency 60 Hz Speed 1800 rpm Duty Cycle Standby -
Engine Specifications
Spec Value Engine Model C9.3B ATAAC, I-6, 4-Stroke Water-Cooled Diesel Bore 4.53 in Stroke 5.87 in Displacement 567.5 in³ Compression Ratio 16.5:1 Aspiration Air to Air Aftercooled Fuel System Direct Injection Governor Type Adem™A4 -
Generator Set Dimensions
Spec Value Length - Maximum 186.7 in Width - Maximum 79.3 in Height - Maximum 84 in
Standard Equipment
Engine
- C9.3B, Inline 6 cylinder, 4 stroke diesel
Air, Cooling & Exhaust
- Standard air filter
Genset Control
- GCCP 1.1
Governor
- Adem A4
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Air, Cooling & Exhaust
- 6" Elbow kit
- No muffler
- Single stage air filter
- 6" Elbow kit
- 5" Muffler - 10 dBA Attenuation
- 5-6" Exhaust adapter
- Dual element air filter
- 6" Muffler - 25 dBA attenuation
- 5" Elbow kit
- Canopy silencer
Alternator Requirements
- IP Standard @ 21 FUW A-Frame
- Space heater
Auxiliary Supply Voltage
- 240V
Certification
- Australia, CIS, Gulf Certification
- Certificate of Conformance 13
Circuit breaker
- 4 Pole Circuit breaker 800A
- 4 Pole Circuit breaker 1250A
- Shunt Trip
- Neutral earth link
- 3 Pole Circuit breaker 630A
- 3 Pole Circuit breaker 800A
- Circuit breaker padlock
- 4 Pole Circuit breaker 630A
- 3 Pole Circuit breaker 1250A
- Overload via alarm switch on breaker
- Auxiliary contacts
Enclosure
- Cat GC enclosure
Fuel Storage
- Low fuel level alarm
- High fuel level alarm
- Fuel level sender
- Dual wall 8 hour fuel tank
- Low fuel level shutdown
- Single wall tank with containment 01
Genset Control
- Coolant heater
- PLG Cellular 4G E
- Battery charger
- PLG Ethernet
- Standby Pack (Smart Jacket water heater, Battery charger)
- Oil temperature displays
- Low coolant temperature alarm
- Voltage adjust potentiometer
- Speed adjust potentiometer
- PLG Cellular 4G U
- Battery
