Cat

DE200 GC Generator Set (60 Hz)

Maximum Rating

175 ekW

Minimum Rating

175 ekW

Emissions/Fuel Strategy

Non Regulated

Overview

Producing reliable power of 175 ekW at 60 Hz, our DE200 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.

Photos

360° View

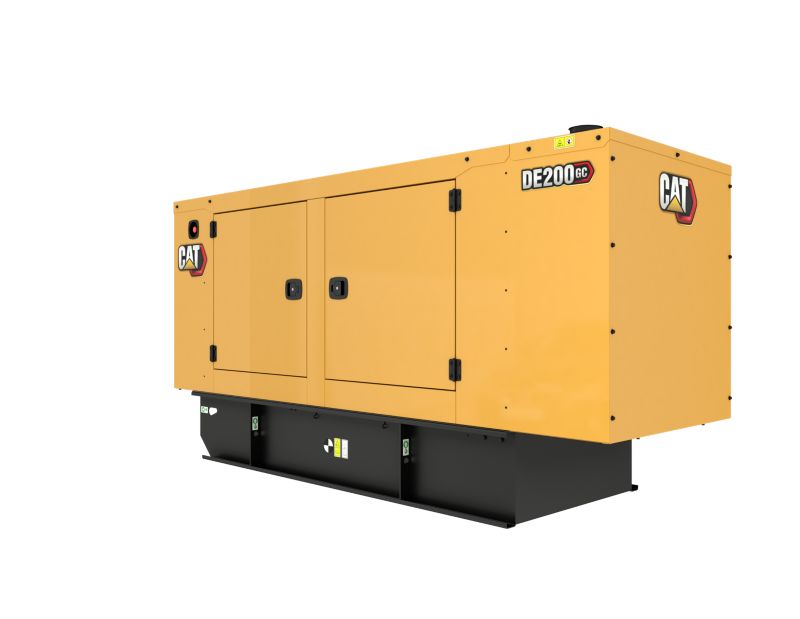

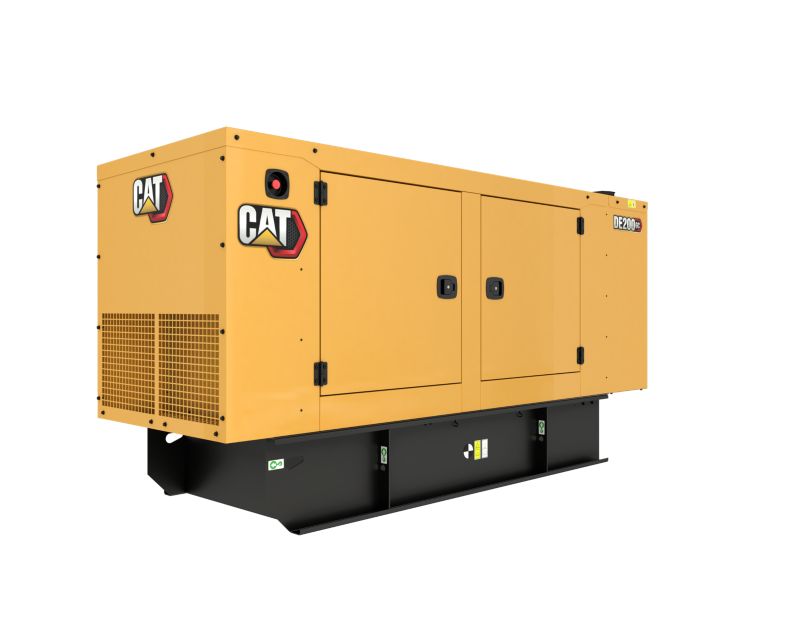

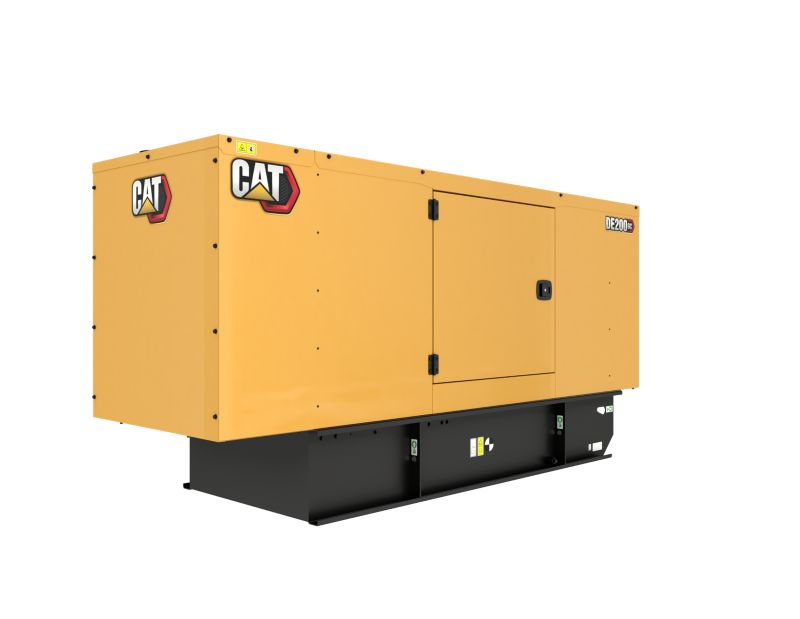

Exterior

Showroom

DE200 GC, Virtual Product Tour

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Rating 175 ekW
    Minimum Rating 175 ekW
    Emissions/Fuel Strategy Non Regulated
    Voltage 220 to 480 Volts
    Frequency 60 Hz
    Speed 1800 rpm
    Duty Cycle Standby
  • Engine Specifications
    Spec Value
    Engine Model C7.1 I-6, 4-Cycle Diesel
    Bore 4.1 in
    Stroke 5.3 in
    Displacement 427.8 in³
    Compression Ratio 16.0:1
    Aspiration Turbocharged Air To Air Charge Cooled
    Fuel System Inline
    Governor Type Mechanical
  • Generator Set Dimensions
    Spec Value
    Length - Maximum 130.9 in
    Width - Maximum 44.6 in
    Height - Maximum 65.6 in
    Dry Weight - Genset (maximum) 4257 lb

Standard Equipment

Engine

  • C7.1, Inline 6 cylinder, 4 stroke diesel

Control Panels

  • GCCP 1.1

Enclosure

  • Cat GC enclosure

Governor

  • Mechanical governor

Alternator

  • A Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Certification

  • Certificate of Conformance
  • Australia, CIS, Gulf Certification

Auxiliary Supply Voltage

  • 120V

Alternator Requirements

  • Space heater

Genset Control

  • Battery charger
  • Panel mounted audible alarm
  • Volt free contacts for genset running
  • Volt free contacts for common alarm
  • Earth fault
  • Emergency stop with key
  • USB to RS485 Communications device
  • Coolant heater
  • Low coolant level shutdown
  • Battery
  • Standby Pack (Smart Jacket water heater, Battery charger)

Fuel Storage

  • Dual wall 8 hour fuel tank
  • Single wall tank with containment
  • Low fuel level shutdown
  • Low fuel level alarm
  • High fuel level alarm

Testing & Packaging

  • PGS Test report @ 1.0 power factor
  • PGS Test report @ 0.8PF

Circuit breaker

  • 3 Pole Circuit breaker 630A
  • 4 Pole Circuit breaker 200A
  • 4 Pole Circuit breaker 250A
  • 3 Pole Circuit breaker 250A
  • 3 Pole Circuit breaker 200A
  • 4 Pole Circuit breaker 400A
  • 4 Pole Circuit breaker 630A
  • Circuit breaker padlock
  • Neutral earth link
  • Overload via alarm switch on breaker
  • 3 Pole Circuit breaker 400A
