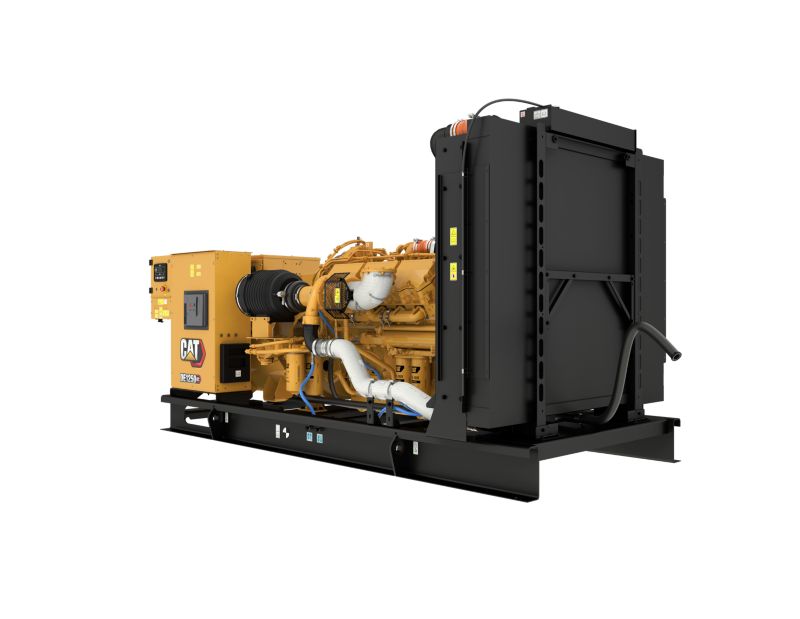

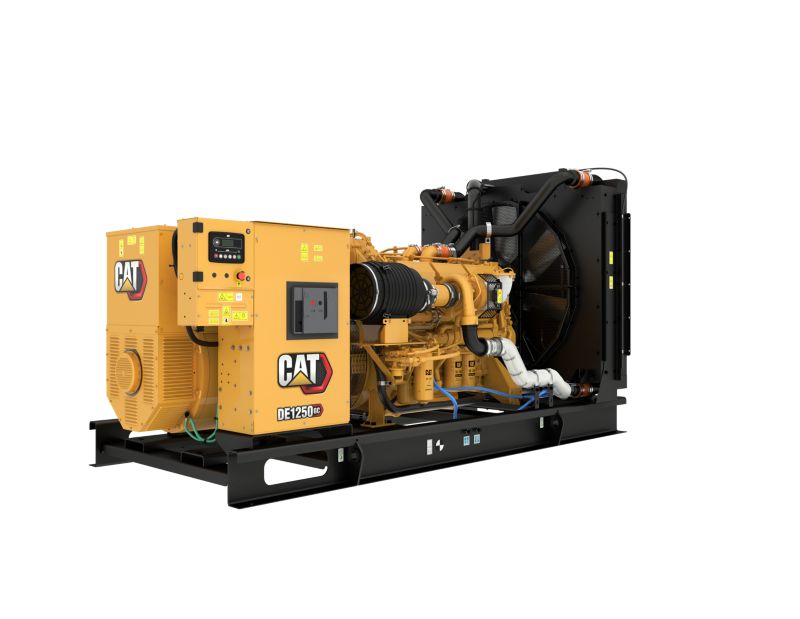

DE1250 GC (50 Hz)

Minimum Rating

1250 kVA

Maximum Rating

1250 kVA

Emissions/Fuel Strategy

Low Fuel Consumption


Producing reliable power at 1250 kVA, 50 Hz, our DE1250GC diesel generator set is made to meet your needs in standby applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. This generator set offers a low fuel consumption system.


360° View


Open Set


Virtual Product tour



  • Generator Set Specifications
    Spec Value
    Minimum Rating 1250 kVA
    Maximum Rating 1250 kVA
    Emissions/Fuel Strategy Low Fuel Consumption
    Voltage 400 - 415 Volts
    Frequency 50 Hz
    Speed 1500 rpm
    Duty Cycle Standby
  • Engine Specifications
    Spec Value
    Engine Model C32 TA, V-12, 4-Stroke Water-Cooled Diesel
    Bore 5.71 in
    Stroke 6.38 in
    Displacement 1958.86 in³
    Compression Ratio 15.0:1
    Aspiration TA
    Fuel System EUI
    Governor Type Adem™A4
  • Generator Set Dimensions
    Spec Value
    Length - Minimum 164.3 in
    Length - Maximum 164.3 in
    Width - Minimum 73.1 in
    Width - Maximum 73.1 in
    Height - Minimum 87.3 in
    Height - Maximum 87.3 in
    Dry Weight - Genset (minimum) 15606 lb
    Dry Weight - Genset (maximum) 15606 lb

Standard Equipment

Control Panel

  • GCCP1.3

Cooling System

  • Radiator

Optional Equipment

Control Panels

  • Remote monitoring software


  • Jacket water heater


  • Single element or dual element air cleaner
  • Circuit breaker panel, based on regional and product configuration
