Cat

D60 GC Generator Set

Maximum Rating

60 ekW

Minimum Rating

60 ekW

Emissions/Fuel Strategy

U.S. EPA Cert., Tier 3

Overview

Producing reliable power of 60 ekW at 60 Hz, our D60 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D60 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.

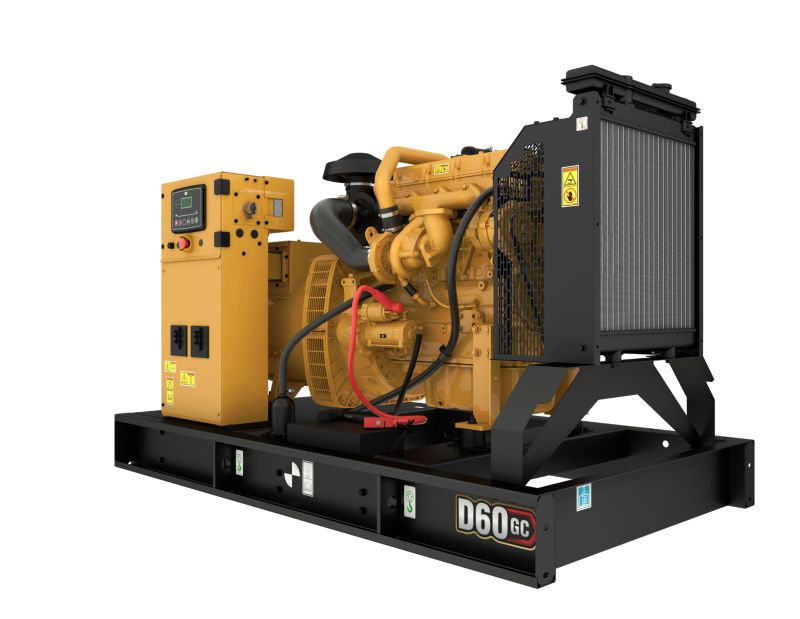

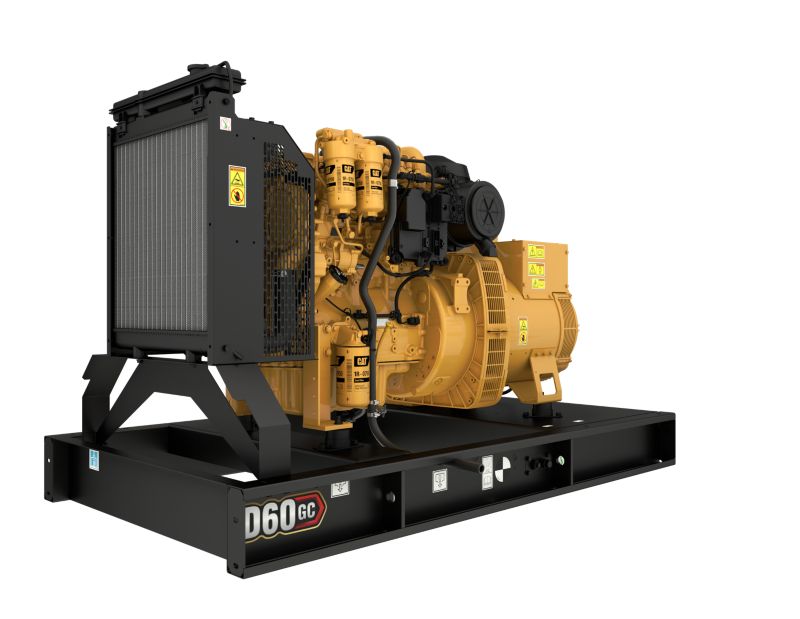

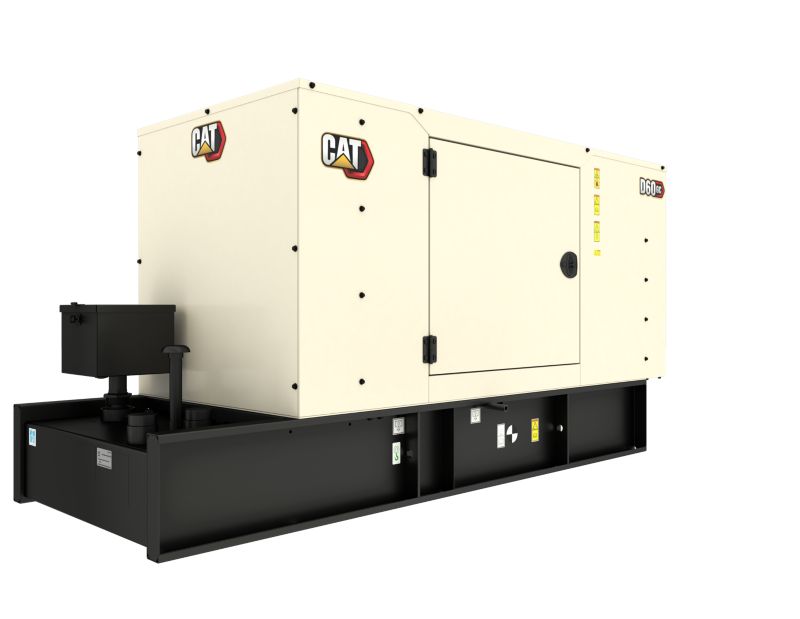

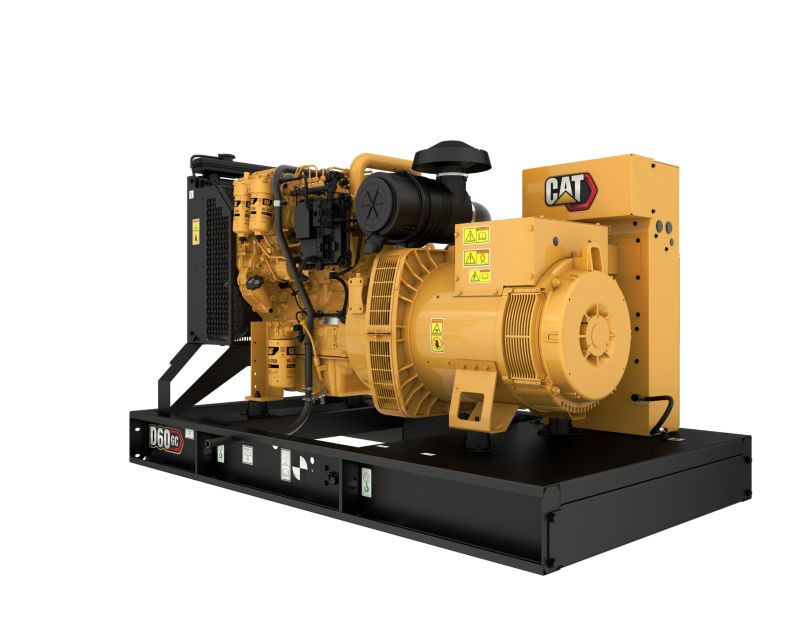

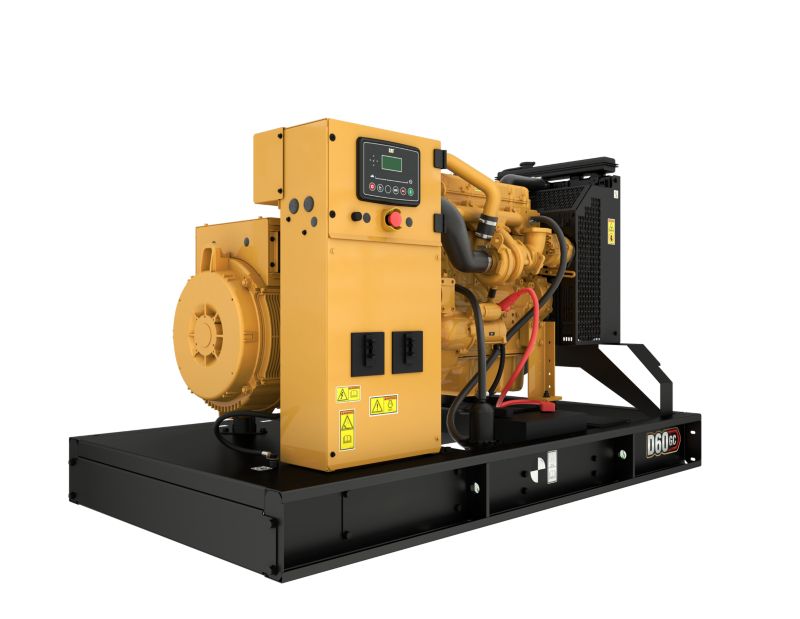

Photos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Showroom

D60 GC, Virtual Product Tour

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Rating 60 ekW
    Minimum Rating 60 ekW
    Emissions/Fuel Strategy U.S. EPA Cert., Tier 3
    Voltage 208 to 600 Volts
    Frequency 60 Hz
    Speed 1800 rpm
    Duty Cycle Standby
  • Engine Specifications
    Spec Value
    Engine Model C4.4, In-line 4, 4-cycle diesel
    Bore 4.1 in
    Stroke 5 in
    Displacement 269 in
    Compression Ratio 16.7:1
    Aspiration Turbocharged
    Fuel System Electronic (adjustable)
    Governor Type Mechanical, ADEM™A4
  • Generator Set Dimensions
    Spec Value
    Length - Maximum 77.2 in
    Width - Maximum 43.3 in
    Height - Maximum 48 in
    Dry Weight - Genset (maximum) 2054 lb

Standard Equipment

Certificates

  • IBC seismic and wind Certifications

Air Inlet System

  • Air cleaner
  • Cartridge type air filter

Circuit breakers

  • Breakers (100% UL rated)
  • 3-Pole 100% rated
  • Second circuit breaker box
  • Power terminal strip

Charging System

  • NFPA battery charger UL10A 120VAC

Control Panel

  • GCCP 1.2 Control panel

Exhaust System

  • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose

Fuel System

  • Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank

Control Panels

  • WSS1 Low coolant level shut down
  • FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected
  • NFPA110 bundle includes:
  • WCA1 Low coolant temperature alarm
  • A Coolant heater, remote annunciator or 0.8 power factor test may be required depending on the application
  • PBC10NU NFPA battery charger
  • Oil temperature gauge and sender
  • PAA1 Panel mounted audible alarm
  • Ground fault relay
  • Remote E-stop button
  • Remote annunciator module
  • Audible alarm
  • Volt free contacts genset run and common alarm
  • Discrete I/O module
  • Overload shutdown via breaker
  • Low coolant temperature alarm
  • Protective devices:
  • Fuel level reading
  • Low coolant level shutdown

Cooling System

  • Coolant drain line with valve
  • Fan drive, battery charging alternator drive
  • Caterpillar extended life coolant
  • Radiator and cooling fan with guards
  • Radiator stone guard

Generator

  • 12 Leads

Governing System

  • Mechanical and electrical governing system - model dependent

Lube System

  • Oil drain line with valve
  • Lubricating oil

General

  • Engine and alternator pre-paint, Caterpillar yellow

Starting/Charging System

  • Batteries
  • 24V battery with rack and cables

Optional Equipment

Certificates

  • IBC seismic and wind Certifications

Alternator System

  • R Frame auxilliary winding

Air Inlet System

  • Cartridge type air filter

Charging System

  • NFPA battery charger UL10A 120VAC

Circuit breakers

  • Breakers (100% UL rated)
  • 3-Pole 100% rated
  • Second circuit breaker box
  • Power terminal strip

Control Panels

  • NFPA110 bundle includes: FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected - WSS1 Low coolant level shut down - WCA1 Low coolant temperature alarm - PAA1 Panel mounted audible alarm - PBC10NU NFPA battery charger - A Coolant heater ,remote annunciator or 0.8 power factor test may be required depending on the application
  • Ground fault relay
  • Remote E-stop button
  • Volt free contacts genset run and common alarm
  • Oil temperature gauge and sender
  • Audible alarm
  • Remote annunciator module
  • Protective devices: Low coolant temperature alarm - Low coolant level shutdown - Fuel level reading - Overload shutdown via breaker
  • Discrete I/O module

Cooling System

  • Radiator transition flange

Enclosures

  • Sound attenuated enclosure, Level 1
  • External emergency stop
  • Sound attenuated Level 2 Enclosure (White)
  • Panel viewing window

Exhaust System

  • 10, 25 and 35 dBA silencer systems
  • Overhead silencer mounting kit

Fuel System

  • Emergency vent pipe
  • Tank riser
  • 5 Gallon spill containment
  • 209 and 394 gallon sub-base fuel tanks
  • 5 Gallon fill containment

Heating Elements

  • Battery heater
  • Jacket water heater
  • Coolant heater
  • Anti-condensation heater
  • Wiring for canopy space heater
  • Lube oil sump heater

Generators

  • Permanent magnet excitation (PMG) generator
  • Cat Alternator

Mounting System

  • Seismic vibration isolators

Tests

  • 4 Hour factory test
  • Generator test report
  • PGS Test report @ 0.8 power factor
  • PGS Test report @ 1.0 power factor
