Producing reliable power of 40 ekW at 60 Hz, our D40 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D40 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.
Cat
D40 GC Generator Set
Overview
Photos
-

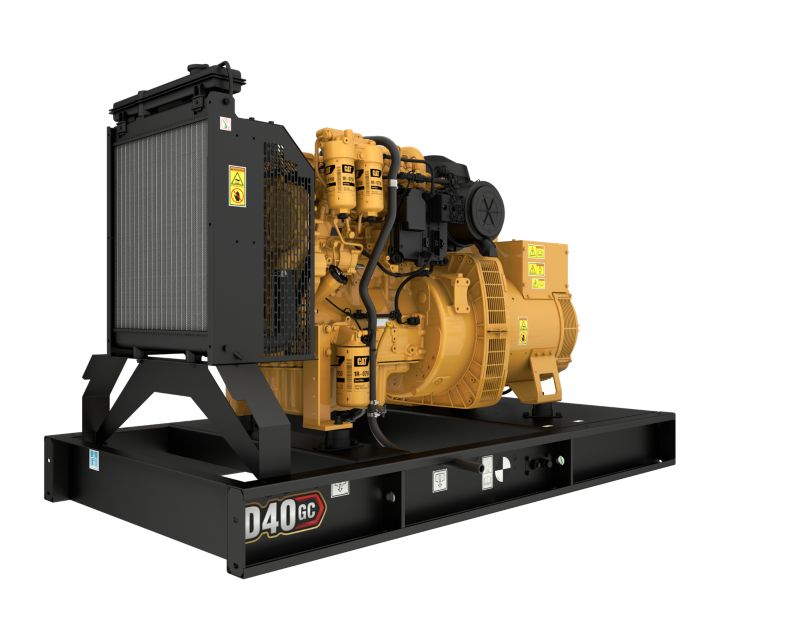

D40 GC Open Set -

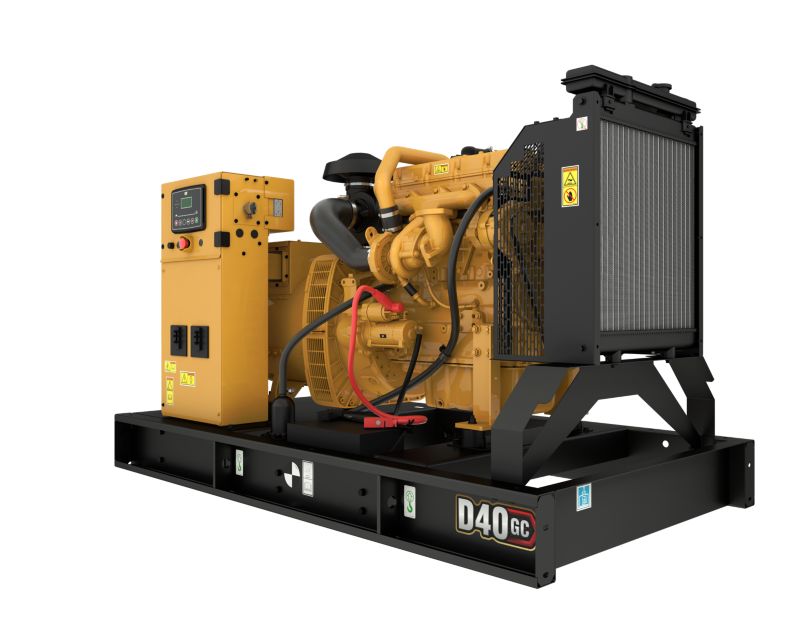

D40 GC Open Set -

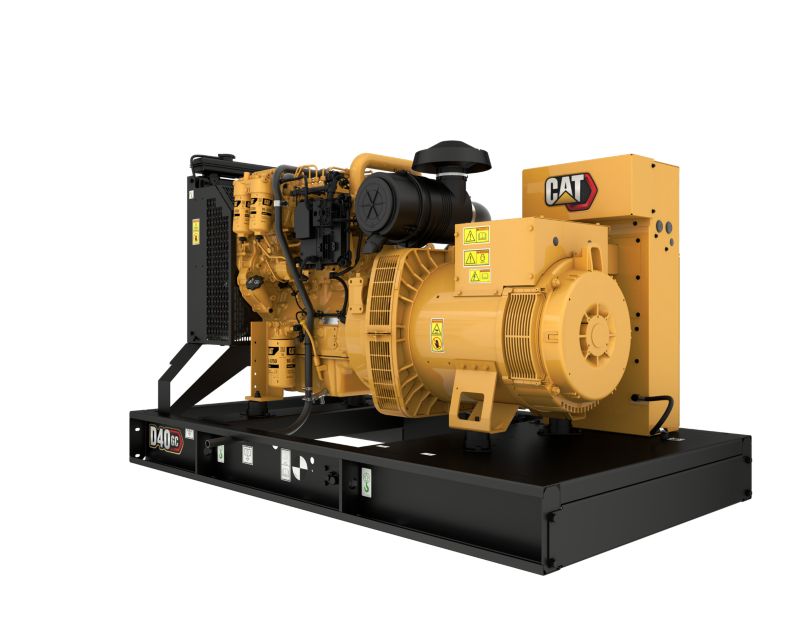

D40 GC Open Set -
D40 GC Open Set -

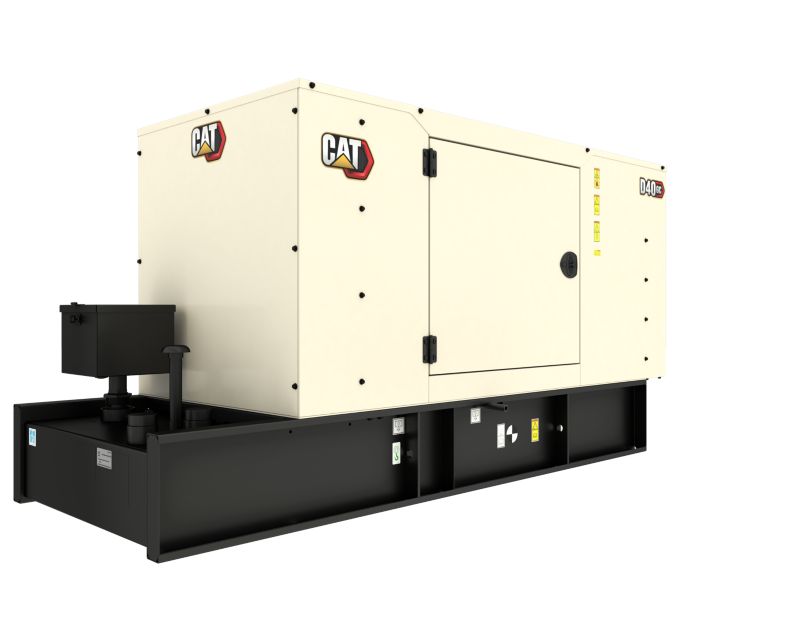

Enclosure -

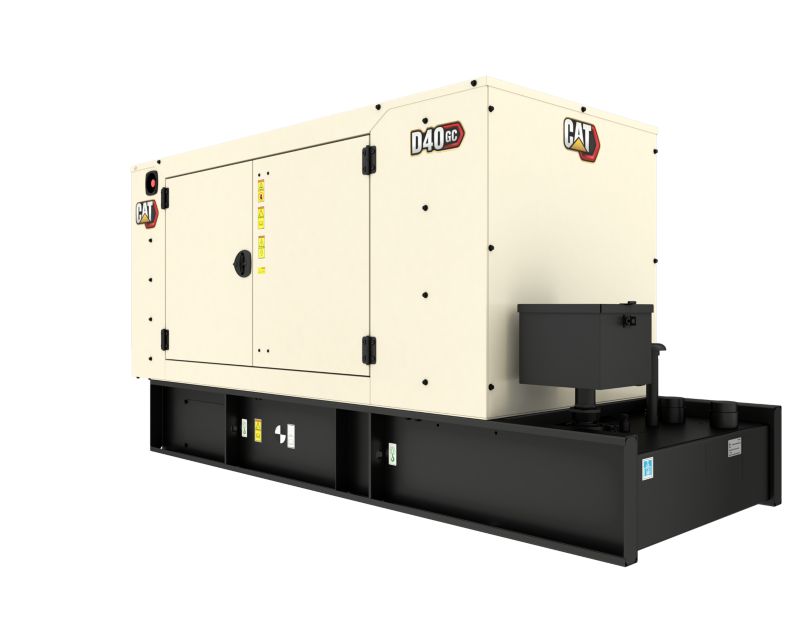

Enclosure
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Showroom
D40 GC, Virtual Product Tour
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- UL 2200 Listed
- ULC Certification Available
Certifications
- UL 2200 Listed
- ULC Certification Available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 40 ekW Minimum Rating 40 ekW Emissions/Fuel Strategy U.S. EPA Cert., Tier 3, SCAQMD Compliant Voltage 208 to 600 Volts Frequency 60 Hz Speed 1800 rpm Duty Cycle Standby -
Engine Specifications
Spec Value Engine Model C4.4, In-line 4, 4-cycle diesel Bore 4.1 in Stroke 5 in Displacement 269 in Compression Ratio 18.2:1 Aspiration Turbocharged Fuel System Common Rail Governor Type Mechanical, ADEM™A4 -
Generator Set Dimensions
Spec Value Length - Maximum 77.2 in Width - Maximum 43.3 in Height - Maximum 48 in Dry Weight - Genset (maximum) 1847 lb
Standard Equipment
Certificates
- IBC seismic and wind Certifications
Air Inlet System
- Air cleaner
- Cartridge type air filter
Circuit breakers
- Breakers (100% UL rated)
- Second circuit breaker box
- 3-Pole 100% rated
- Power terminal strip
Charging System
- NFPA battery charger UL10A 120VAC
Control Panel
- GCCP 1.2 Control panel
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank
Control Panels
- NFPA110 bundle includes:
- WSS1 Low coolant level shut down
- WCA1 Low coolant temperature alarm
- FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected
- PBC10NU NFPA battery charger
- Oil temperature gauge and sender
- A Coolant heater, remote annunciator or 0.8 power factor test may be required depending on the application
- PAA1 Panel mounted audible alarm
- Remote E-stop button
- Volt free contacts genset run and common alarm
- Discrete I/O module
- Audible alarm
- Ground fault relay
- Remote annunciator module
- Overload shutdown via breaker
- Low coolant level shutdown
- Fuel level reading
- Protective devices:
- Low coolant temperature alarm
Cooling System
- Caterpillar extended life coolant
- Radiator and cooling fan with guards
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Radiator stone guard
Generator
- 12 Leads
Governing System
- Mechanical and electrical governing system - model dependent
Lube System
- Lubricating oil
- Oil drain line with valve
General
- Engine and alternator pre-paint, Caterpillar yellow
Starting/Charging System
- Batteries
- 24V battery with rack and cables
Optional Equipment
Certificates
- IBC seismic and wind Certifications
Air Inlet System
- Cartridge type air filter
Alternator System
- R Frame auxilliary winding
Charging System
- NFPA battery charger UL10A 120VAC
Circuit breakers
- Power terminal strip
- Second circuit breaker box
- Breakers (100% UL rated)
- 3-Pole 100% rated
Control Panels
- Volt free contacts genset run and common alarm
- Protective devices: Low coolant temperature alarm - Low coolant level shutdown - Fuel level reading - Overload shutdown via breaker
- Discrete I/O module
- Audible alarm
- Ground fault relay
- Remote annunciator module
- NFPA110 bundle includes: FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected - WSS1 Low coolant level shut down - WCA1 Low coolant temperature alarm - PAA1 Panel mounted audible alarm - PBC10NU NFPA battery charger - A Coolant heater ,remote annunciator or 0.8 power factor test may be required depending on the application
- Oil temperature gauge and sender
- Remote E-stop button
Enclosures
- Panel viewing window
- Sound attenuated enclosure, Level 2
- External emergency stop
Heating Elements
- Anti-condensation heater
- Coolant heater
- Lube oil sump heater
- Wiring for canopy space heater
- Jacket water heater
- Battery heater
Cooling System
- Radiator transition flange
Fuel System
- Emergency vent pipe
- Tank riser
- 209 and 394 gallon sub-base fuel tanks
- 5 Gallon fill containment
Mounting System
- Seismic vibration isolators
Tests
- PGS Test report @ 1.0 power factor
- 4 Hour factory test
- PGS Test report @ 0.8 power factor
- Generator test report
Exhaust System
- 10, 25 and 35 dBA silencer systems
- Overhead silencer mounting kit
Generators
- Permanent magnet excitation (PMG) generator
