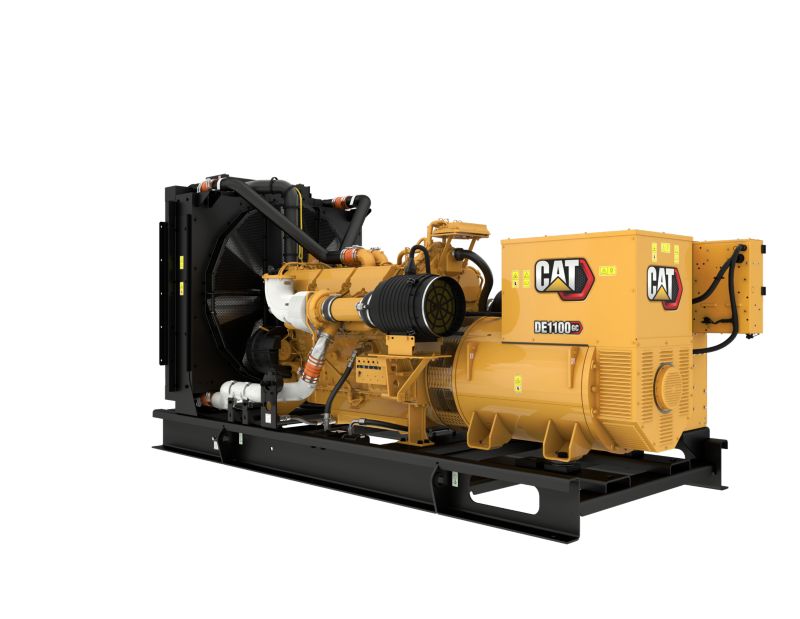

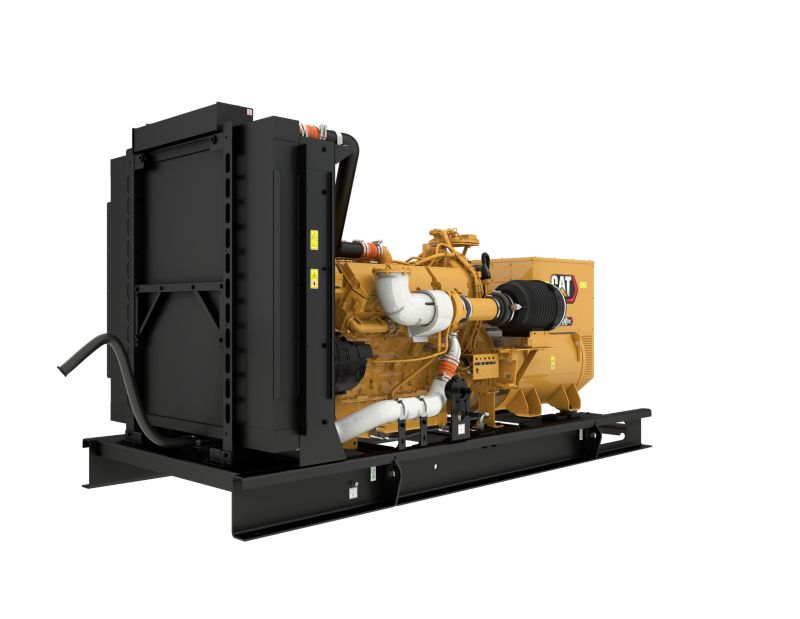

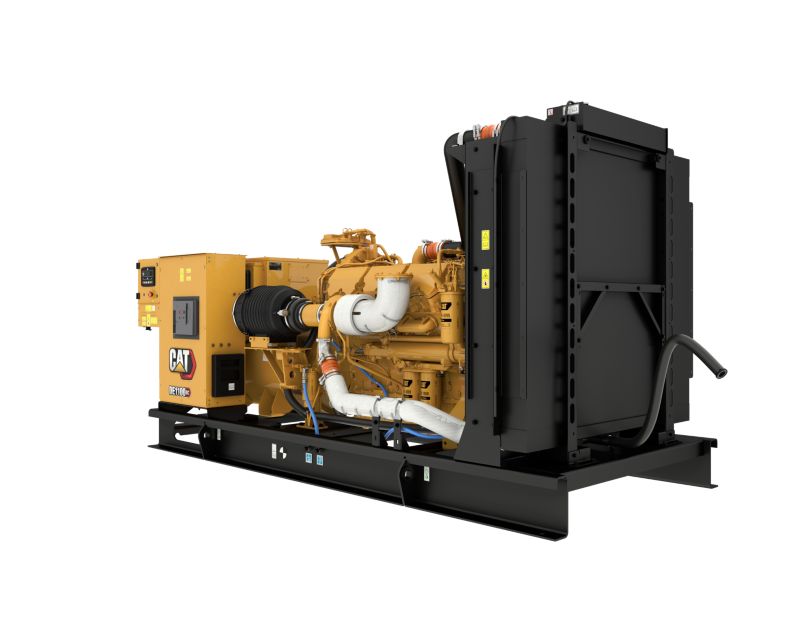

Producing reliable power at 1100 kVA, 50 Hz, our DE1100 GC diesel generator set is made to meet your needs in standby applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. This generator set offers a low fuel consumption system.
Cat
DE1100 GC
Overview
Photos
360° View
Interior
Open Set
Showroom
Virtual Product tour
Features
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 1100 kVA Minimum Rating 1100 kVA Emissions/Fuel Strategy Low Fuel Consumption Voltage 400 - 415 Volts Frequency 50 Hz Speed 1500 rpm Duty Cycle Standby -
Engine Specifications
Spec Value Engine Model C32 TA, V-12, 4-Stroke Water-Cooled Diesel Bore 5.71 in Stroke 6.38 in Displacement 1958.86 in³ Compression Ratio 15.0:1 Aspiration TA Fuel System EUI Governor Type Adem™A4 -
Generator Set Dimensions
Spec Value Length - Minimum 164.3 in Length - Maximum 164.3 in Width - Minimum 73.1 in Width - Maximum 73.1 in Height - Minimum 87.3 in Height - Maximum 87.3 in Dry Weight - Genset (minimum) 14879 lb Dry Weight - Genset (maximum) 14879 lb
Standard Equipment
Control Panel
- GCCP1.3
Cooling System
- Radiator
Optional Equipment
Control Panels
- Remote monitoring software
Starting/Charging
- Jacket water heater
General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
