Producing reliable power from 3350 to 5320 ekW at 60 Hz, our 3616 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is certified for low fuel consumption.
Cat

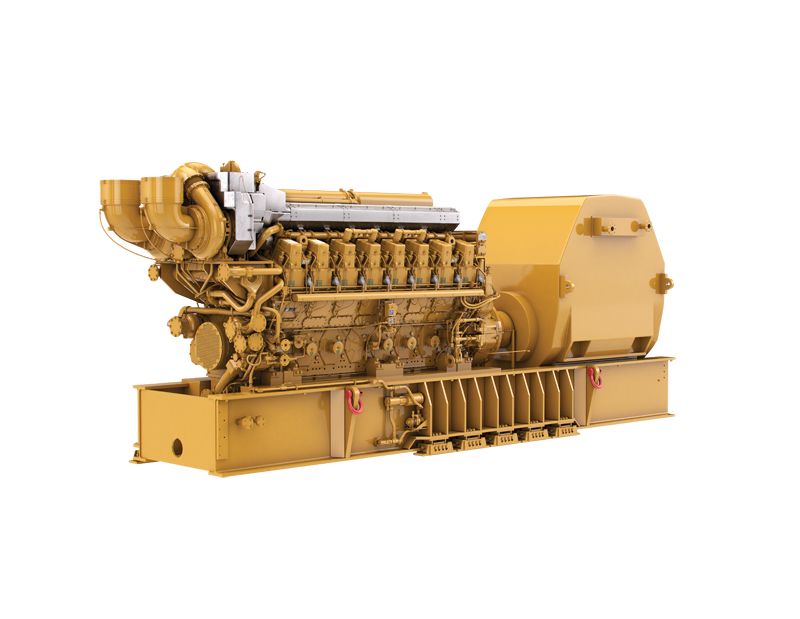

3616 Generator Set (Medium Speed)
Overview
Photos
-
3616
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 5320 ekW Minimum Rating 3350 ekW Emissions/Fuel Strategy Low Fuel Consumption Frequency 60 Hz Speed 720 & 900 rpm Duty Cycle Prime, Continuous -
Engine Specifications
Spec Value Engine Model 3616 V-16,4-Stroke Water-Cooled Diesel Bore 11 in Stroke 11.8 in Displacement 18032 in³ Compression Ratio 13:01 Aspiration TA Fuel System Direct unit injection Governor Type Generator Set Monitoring System (GMS) -
Generator Set Dimensions
Spec Value Length - Maximum 404 in Width - Maximum 99.62 in Height - Maximum 156.6 in Dry Weight - Genset (maximum) 141840 lb
Standard Equipment
Air Inlet System
- Air cleaner
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Breather, crankcase, top-mounted
- Turbocharger, watercooled, engine oil lubricated
- Air inlet shutoff
Cooling System
- Three-bundle oil cooler
- Jacket water thermostats
- Water temperature regulator
- Engine coolant water drains
- Front Mounted turbos
Exhaust System
- Dry, gas tight, exhaust manifold
- 457 mm (18 in) Cat bolt pattern
- Includes adapter, flexible exhaust fitting
Fuel System
- Simplex or duplex
Generator System
- Custom generator per generator data sheet completed by dealer
Governor System
- UG Actuator
Lube System
- Service Side Engine mounted on Cylinder Block Inspection Covers
- Centrifugal oil filters with single shutoff
- Oil filler and dipstick
- Oil pressure regulating valve
- Wet oil sump. Includes engine-driven main lubrication and oil pumps, oil lines and oil pan
- Crankcase explosion relief valves
Mounting System
- Damper, torsional vibration
- Engine and generator mounting
Starting / Charging System
- Line group for single point custom connection
- Two Motors, engine mounted at rear, on left side
- Air silencer
- Vane type air starter
General:
- Gear driven pumps: Fuel/oil/jacket water/Aftercooler/Oil cooler water
- Paint, Caterpillar yellow
Optional Equipment
Air Inlet System
- Heavy duty air cleaner
- Soot filter
- Boost control valve
- Vertical support bracket
- Air Inlet Adapter
- Air cleaner louver assembly
Cooling System
- Cooling system aids
- Auxiliary water pump
- Heat exchanger for single circuit
- Expansion tank
- Heating aids
Exhaust System
- Flexible exhaust Fittings
- Weld flange and related hardware
Fuel System
- Duplex Primary Fuel Strainer
- Fuel priming pump
- Fuel system connections
Generator System
- 3 Phase, Six Leads, WYE
- Anti-condensation space heaters
- Winding temperature detectors
- Busbar connections
- Class F insulation
Governor System
- 723 Plus
- Electronic/actuators
- EGB actuator
- Digital programmers
- 230 UA
- Battery backup/power supply
Lube System
- Lube ANSI Adapter (Emergency connection)
- Oil pan drain valve
Mounting System
- Isolator
- Non-vertically Restrained
- Vertically Restrained
- Spring type vibration isolators
Starting / Charging System
- Pressure reducing valve
- Compressed air flex hose
- Turbine type air starters
- Redundant air starters
General:
- Custom paint colors
