Producing reliable power from 27.0 to 60.0 ekW at 60 Hz, our C3.3 diesel generator sets designed to ISO 8528-5 transient response requirements. All C3.3 generator sets are R96/EUIIIa equivalent emissions compliant.
Cat
C3.3 Generator Set
Overview
Photos
-

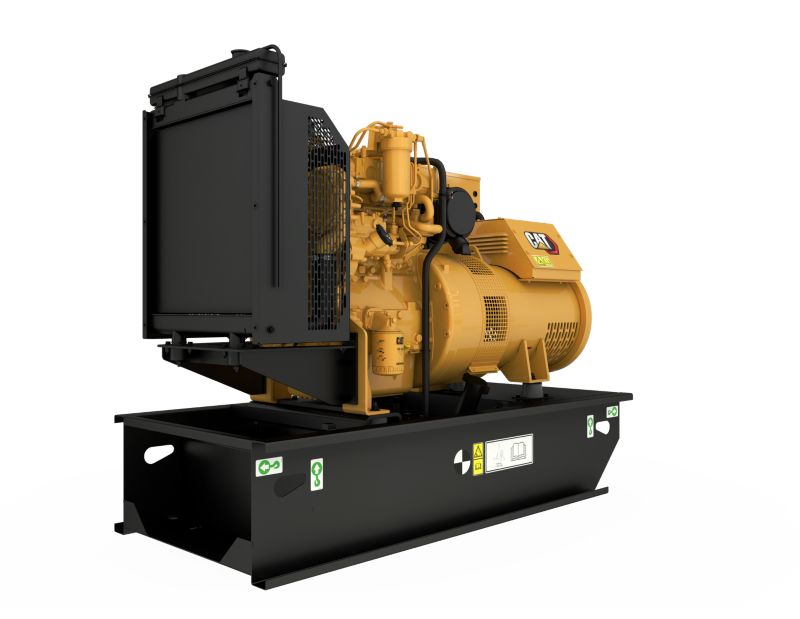

C3.3 open set Rear Right -

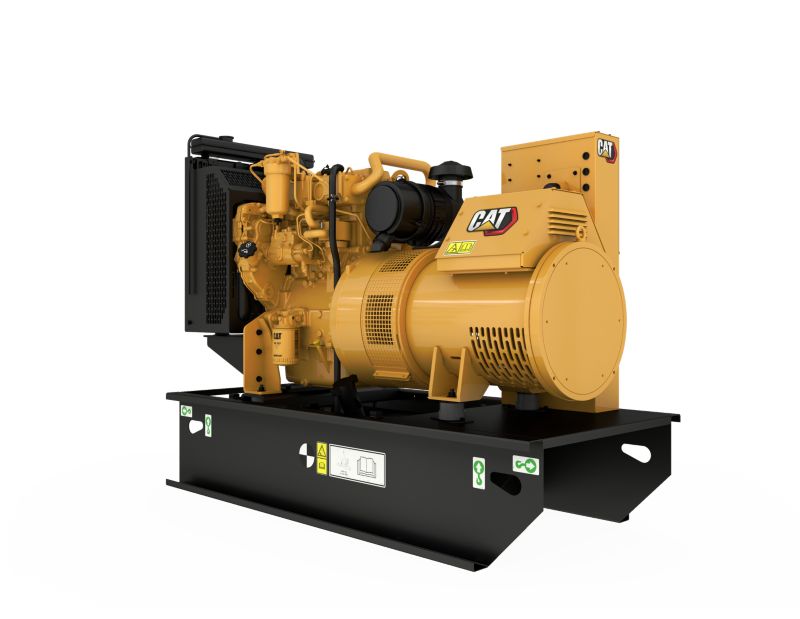

C3.3 open set Rear Left -

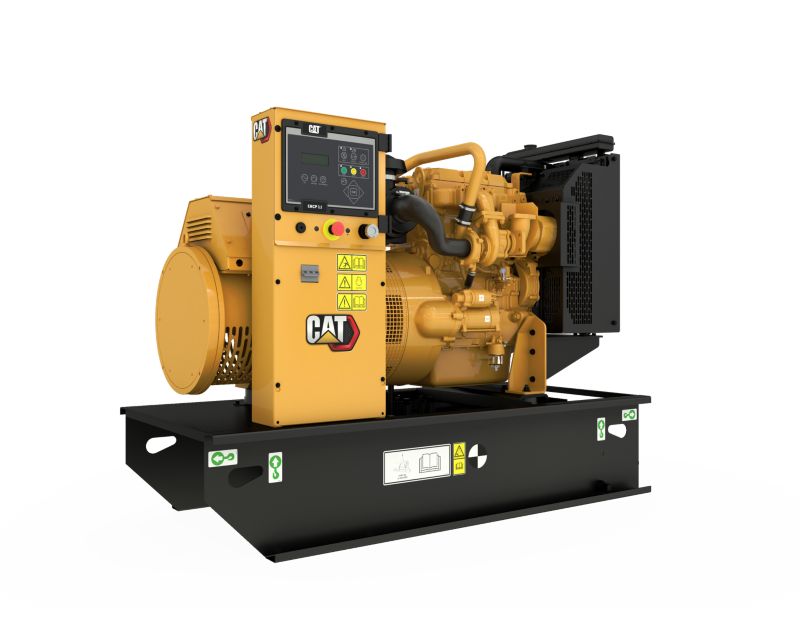

C3.3 -

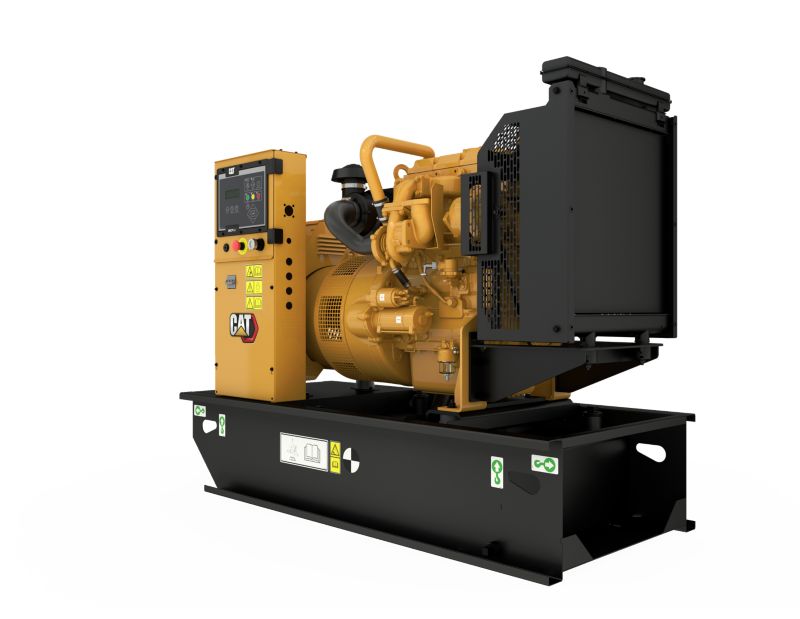

C3.3 Open Set -

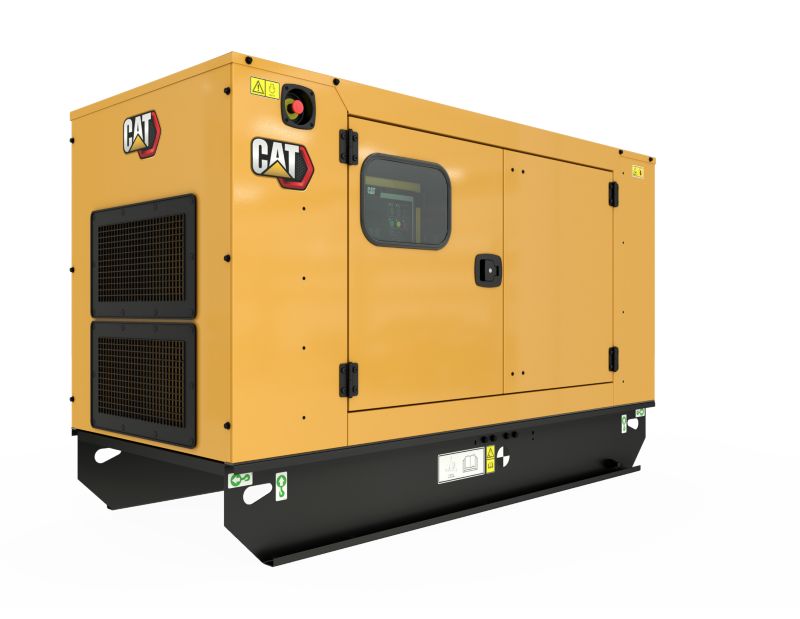

C3.3 Enclosure -

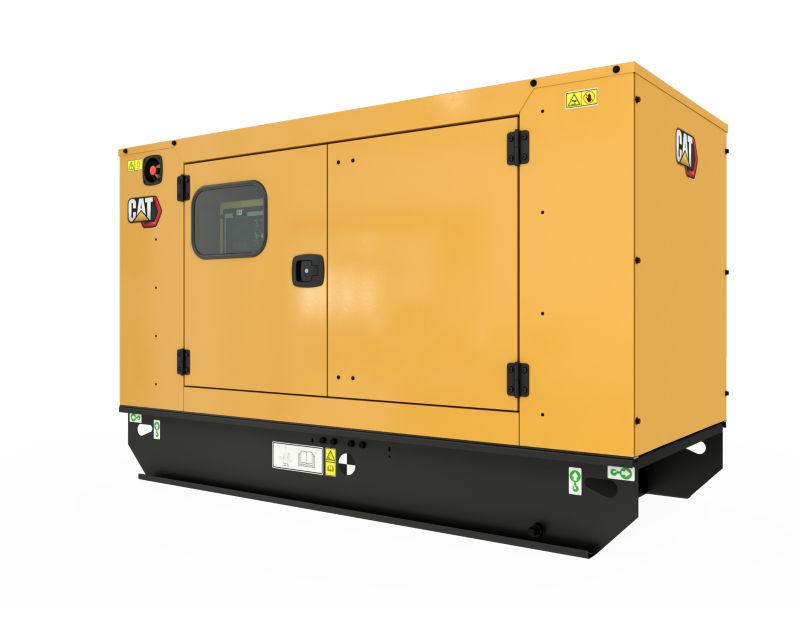

C3.3 Enclosure
360° View
Exterior
Enclosure
Documents
- Electric Power Ratings Guide
- DE33E0, 50 Hz 33.0 kVA, 60 Hz 37.5 LC Frame, Low BSFC Emissions Compliant Spec Sheet
- DE33E3, 50 Hz 33.0 kVA, LC Frame, EUIII Emissions Compliant Spec Sheet
- DE50E0, 50 Hz 50.0 kVA, 60 Hz 56.3 LC Frame, Low BSFC Emissions Compliant Spec Sheet
- DE50E2, 50 Hz 55.0 kVA, LC Frame, EU II Emissions Compliant Spec Sheet
- DE65E0, 50 Hz 65.0 kVA, 60 Hz 75.0 LC Frame, Low BSFC Emissions Compliant Spec Sheet
- DE55E0, 50 Hz 55.0 kVA, 60 Hz 62.5 LC Frame, Low BSFC Emissions Compliant Spec Sheet
- DE56E0, 60 Hz 49.2 kVA, Non-Certified Emissions Compliant Spec Sheet
- DE75E0, 60 Hz 65.0 kVA, Non-Certified Emissions Compliant Spec Sheet
- 24-220 KVA SA LVL 2 Enclosure
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
R-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
R-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
Certifications
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 60.0 ekW Minimum Rating 27.0 ekW Emissions/Fuel Strategy EU Stage II & R96/EUIIIa Voltage 110 to 480 Volts Frequency 60 Hz Speed 1800 rpm Duty Cycle Standby, Prime -
Engine Specifications
Spec Value Engine Model Cat® C3.3 Bore 4.1 in Stroke 5 in Displacement 201.4 in³ Compression Ratio 17.25:1, 19.25:1 Aspiration Turbocharged Fuel System Direct Injection Governor Type Mechanical -
Generator Set Dimensions
Spec Value Length - Maximum 43.9 in Width - Maximum 38.2 in Height - Maximum 53.6 in
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable element
Control Panel
- GCCP 1.3
Cooling System
- Coolant drain line with valve
- Caterpillar extended life coolant
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
Exhaust System
- Stub pipe, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Generators and Generator Attachments
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- IP23 Protection
- Tower panel, IP22, bottom cable entry
- 12 Leads
- Voltage regulator (single phase sensing)
- Segregated low voltage (AC/DC) wiring panel
Governing System
- Mechanical governing system - model dependant
- Mechanical and electrical governing system - model dependant
Lube System
- Lubricating oil
- Oil drain line with valve
Mounting System
- includes lifting provisions and termination points for coolant
- Includes lifting provision and drag points
- Termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
Starting / Charging System
- 12V Battery with rack & cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Alternator System
- LC Frame alternator
- Anti-condensation heater
- Permanent magnet excitation (PMG)
- LC Frame alternator with coastal protection
- R Frame auxilliary winding
Alternator
- Alternator removal options
Circuit breakers
- 4 Pole Circuit breaker to 250A
- Padlockable breaker device
Control Panels
- GCCP 1.3
Control Panel Options
- Overload shutdown via breaker
- Volt free contacts
- Earth leakage (2 wire only)
- Speed adjust potentiometer
- Voltage adjust potentiometer
- Battery charger
- Control panel heater
- Earth fault (2 wire only)
- Panel mounted audible alarm
- Emergency stop with key
Cooling System
- Coolant heater
- Low coolant level shutdown
- Low coolant temperature alarm
Certifications
- European upgrade to STD set for "CE"
- Global certification for CIS
Enclosures
- CEE for sockets for enclosure
- Socket blanking plate
- Sound attenuated level 1 enclosure (GALV)
- Sound attenuated level 2 enclosure CE
- Rental pack (CAE only)
Fuel System
- Skidbase for CALG enclosure sets
- Low fuel level shutdown
- High fuel level alarm
- Compact skidbase for open sets
- Low fuel level alarm
- Bunded fuel tank
- Open set narrow tankbase
Mounting Options
- Silencer installation kit
- Battery removal
- Electronic governor
- Residential silencer
- External single point lift - enclosure
Special Packing Inspections
- PGS Test report @ 0.8 power factor
- PGS Test report @ 1.0 power factor
General
- Stone guards/rad trans flange
- Packing case - compact set
- Packing case - canopied set
30-220 kVA SA Lvl 1 Enclosure
