Producing reliable power from 13.0 to 22.0 kVA at 50 Hz, our C2.2 diesel generator sets designed to ISO 8528-5 transient response requirements. All C2.2 generator sets are R96/EUIIIa equivalent emissions compliant.
Cat

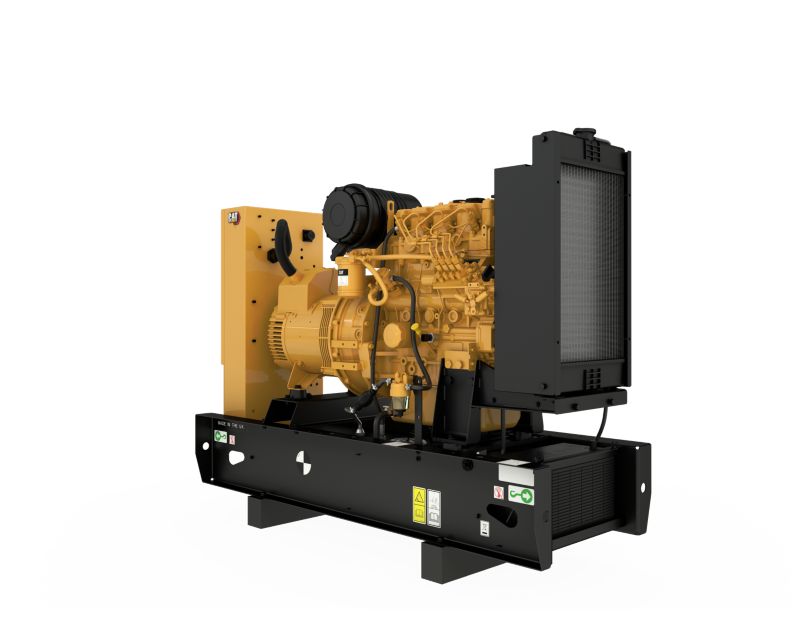

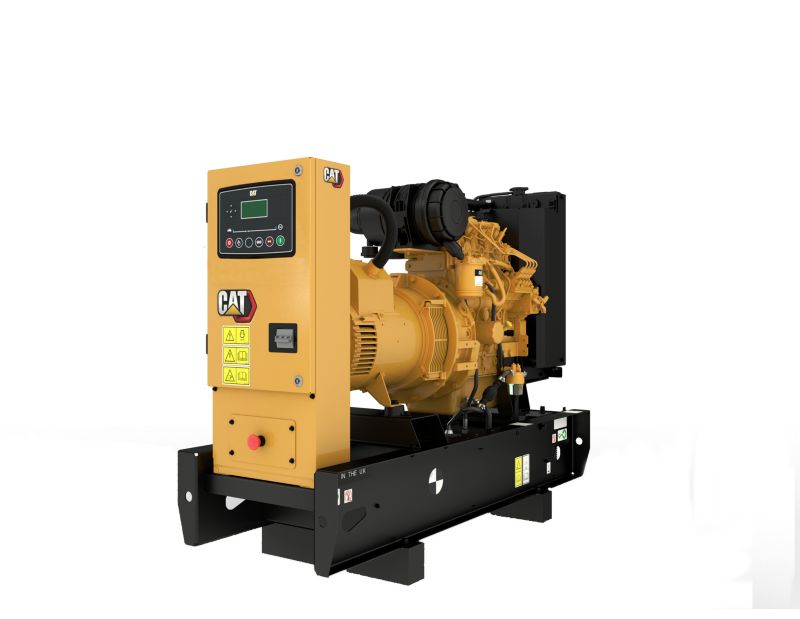

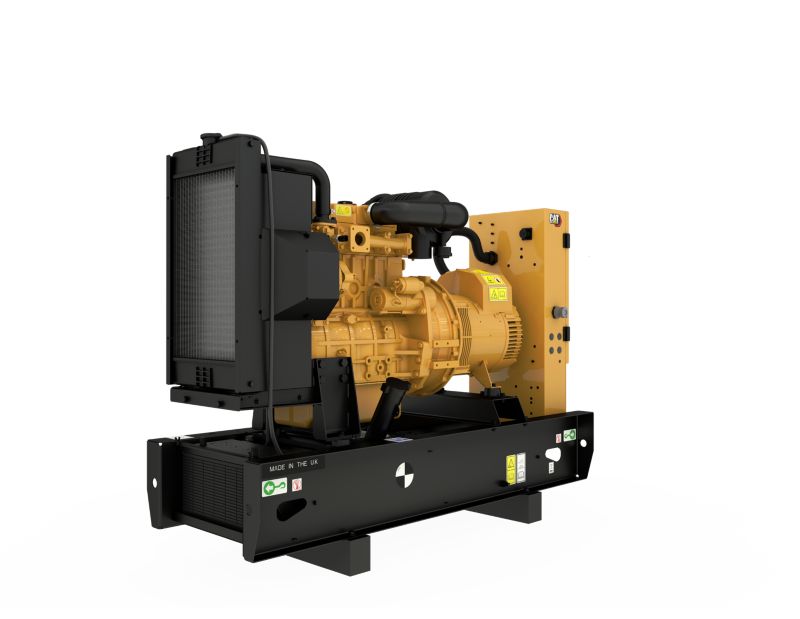

C2.2 Generator Set
Overview
Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Documents
- DE22E3 50 Hz 22.0 kVA, 60 Hz 25.0 kVA, M Frame, EU IIIA Emissions Compliant Spec Sheet
- Electric Power Ratings Guide
- DE14E3S 50 Hz 14.0 kVA, 60 Hz 17.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE16E3S 50 Hz 16.5 kVA, 60 Hz 19.4 kVA, M Frame, EU IIIA Emissions Compliant Spec Sheet
- DE18E3 50 Hz 18.0 kVA, 60 Hz 22.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE14E3S 50 Hz 14.0 kVA, 60 Hz 17.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- DE16E3S 50 Hz 16.5 kVA, 60 Hz 19.4 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- DE18E3 50 Hz 18.0 kVA, 60 Hz 22.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- DE22E3 50 Hz 22.0 kVA, 60 Hz 25.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet
- C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet
Features
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 22.0 kVA Minimum Rating 13.0 kVA Emissions/Fuel Strategy R96/EUIIIa Equivalent Voltage 110 to 415 Volts Frequency 50 Hz Speed 1500 rpm Duty Cycle Standby, Prime -
Engine Specifications
Spec Value Engine Model Cat® C2.2, In-line 4, 4-cycle diesel Bore 3.3 in Stroke 3.9 in Displacement 135.2 in³ Compression Ratio 22.5:1 Aspiration Naturally Aspirated Fuel System Indirect Injection Governor Type Mechanical -
Generator Set Dimensions
Spec Value Length - Maximum 59.1 in Width - Maximum 24.4 in Height - Maximum 43.9 in
Standard Equipment
Control Panel
- GCCP 1.3
Air Inlet System
- Air cleaner; light duty with disposable element
Cooling System
- Radiator and cooling fan with guards
- Caterpillar extended life coolant
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Exhaust System
- Stub pipe, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Generators and Generator Attachments
- Voltage regulator (single phase sensing)
- Segregated low voltage (AC/DC) wiring panel
- Tower panel, IP22, bottom cable entry
- IP23 Protection
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- 12 Leads
Governing System
- Mechanical governing system
Lube System
- Oil drain line with valve
- Lubricating oil
Mounting System
- Captive linear vibration isolators between base and engine-generator
- includes lifting provisions and termination points for coolant
Starting / Charging System
- 12 Volt battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Alternator Options
- Coastal insulation protection
Certificates
- European upgrade to STD set for CE certificate
- Global certification for CIS
Circuit breakers
- Padlockable breaker device
- 4 Pole Circuit breaker
Control Panel Options
- Emergency stop with key
- Volt free contacts for common alarm
- Volt free contacts for genset running
- GCCP 1.3
- Battery charger
Cooling System
- Coolant heater
Enclosures

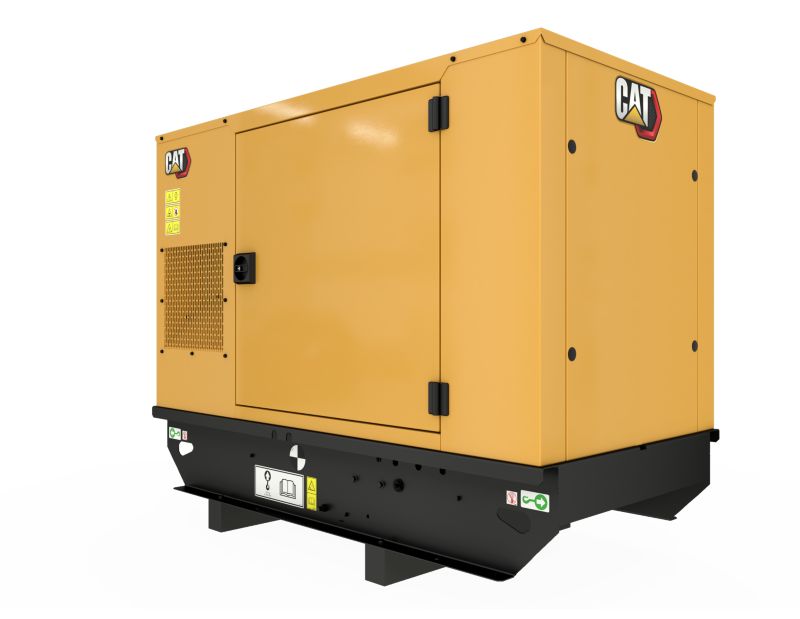

- Sound attenuated enclosure (GALV)
- Single point lift for enclosure
Fuel System
- Low fuel level alarm
Mounting Options
- Industrial silencer removal
- Silencer installation kit
- Battery removal
Special Test and Inspection
- PGS Test report @ 1.0 power factor
General
- Packing case - compact set
- Packing case - canopied set
- Radiator stone guard
