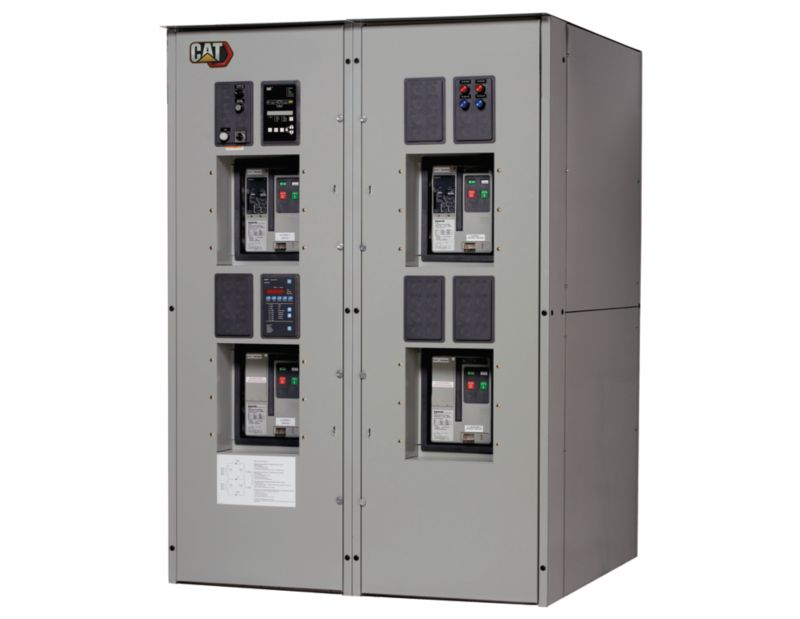

ATC Power Breaker & Case Switch Automatic Transfer Switch

Cat® transfer switches are designed for a variety of standby power applications. They provide flexibility, reliability and value in a compact package. The open transition power case switch-based Automatic Transfer Switch (ATS) will provide fully functioning transfer in applications where a momentary loss of power is acceptable on retransfer from emergency to normal power supply. The Cat power case switch-based ATS also permits periodic testing of the emergency source without interrupting power to the loads and are available from 200 to 5000.

Brand: Caterpillar

Photos

Specifications

  • Technical Summary
    SpecValue
    Rating Range 200 to 5000A
    Transfer Type Open Transition
    Switch Type Power Breaker
  • Ratings
    SpecValue
    Control Power Fixed Mount 200-3200A 2, 3, or 4 Pole
    Drawout 200-5000A 2-, 3-, 4-pole
    System Voltage Application 120 - 600 Vac, 50/60 Hz
    Time Withstand 85,000 for 30 cycles
    Withstand 100,000 amps withstand/closing/ interrupting at 600 Vac
    Applicable Testing
    CSA C22.2 No. 178 certified

    IBC 2006, CBC 2007 and OSHPD
