Caterpillar

CW34 Pneumatic Roller

Operating Weight - Standard Machine Empty

22050 lb

Operating Weight - Maximum Ballast

59525 lb

Compaction Width

82 in

Overview

The CW34 is an eight wheel pneumatic roller that features a modular ballast system and flexible operating weight of 10 000 kg to 27 000 kg (22,050 lb – 59,525 lb). This machine offers excellent visibility, ECO-mode operation, even compaction, and excels on a variety of materials due to its flexible air-on-the-run capability.

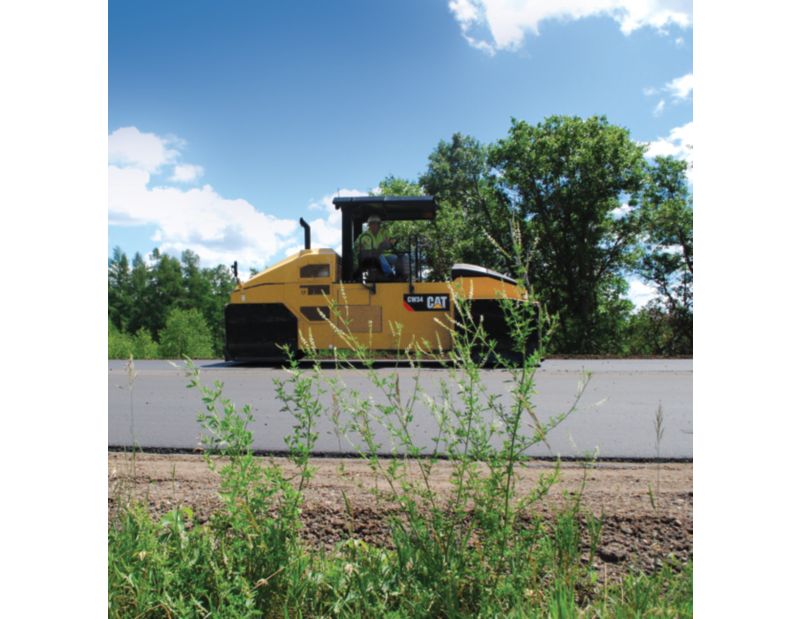

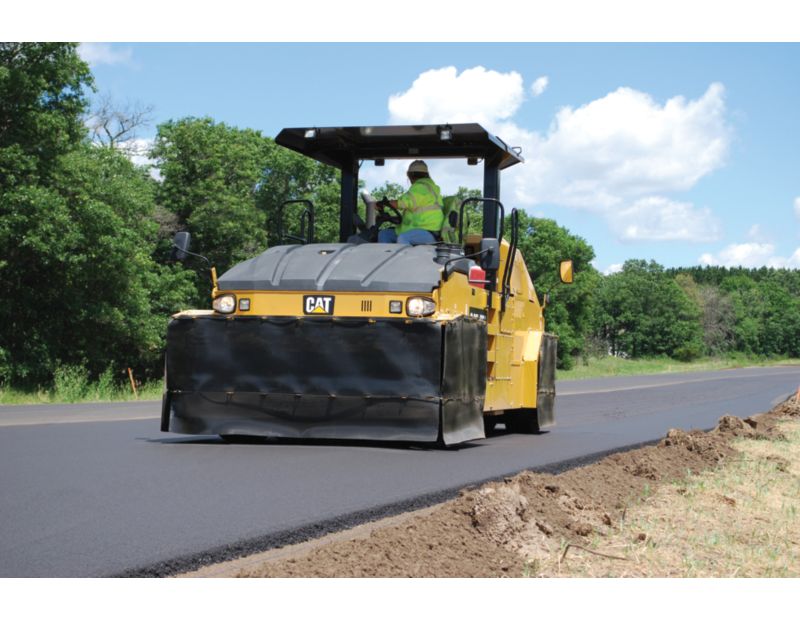

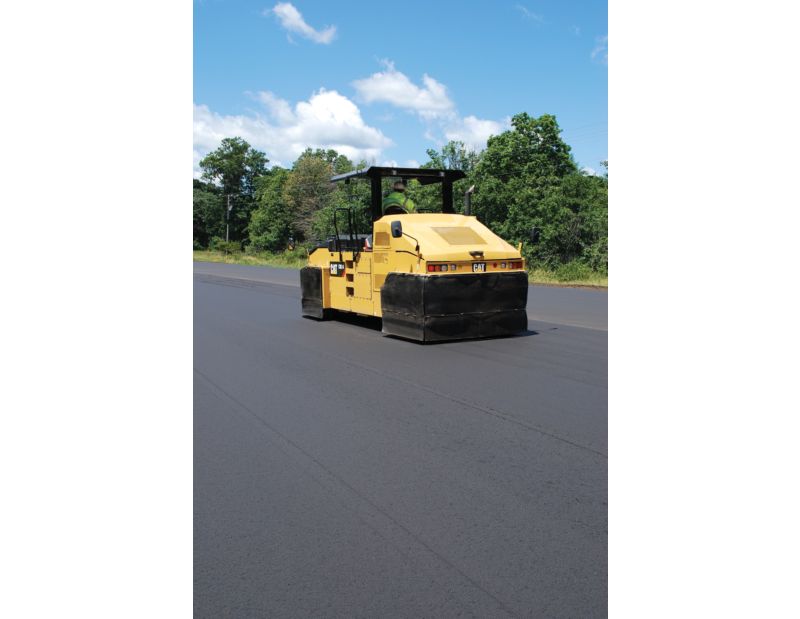

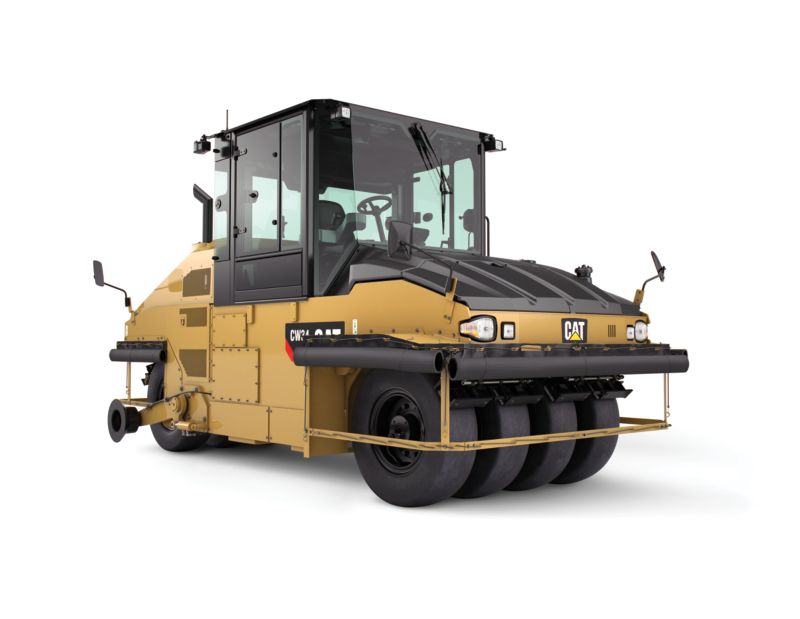

Photos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour

Specifications

  • Weights
    Spec Value
    Operating Weight - Standard Machine Empty 22050 lb
    Operating Weight - Maximum Ballast 59525 lb
    Operating Weight - Maximum Wet Sand Ballast 35275 lb
    Average Weight per Wheel 3571 lb
    Operating Weight - No Ballast 22050 lb
    Operating Weight - Maximum Water Ballast 28660 lb
    Average Weight per Wheel - No Ballast 2755 lb
    Average Weight per Wheel - Maximum Ballast 7451 lb
  • Operating Specifications
    Spec Value
    Compaction Width 82 in
    Turning Radius - Inside (2) 20 ft
    Rolling Width 82 in
    Turning Radius - Outside 342 in
    Ground Clearance 10 in
    Travel Speed - Maximum 12 mile/h
    Turning Radius - Inside (1) 240 in
    Number of Wheels 8
  • Engine
    Spec Value
    Bore 4.13 in
    Stroke 5 in
    Gross Power 133 HP
    Engine Model C4.4
  • Dimensions
    Spec Value
    Overall Width 85 in
    Height - Steering Wheel 96 in
    Height - ROPS 118 in
    Overall Length 210 in
    Maximum Machine Height 118 in
  • Tires
    Spec Value
    Tires 13/80 R20
  • Service Refill Capacities
    Spec Value
    Water Spray Tank Capacity 100 gal (US)
    Fuel Tank Capacity 71 gal (US)
