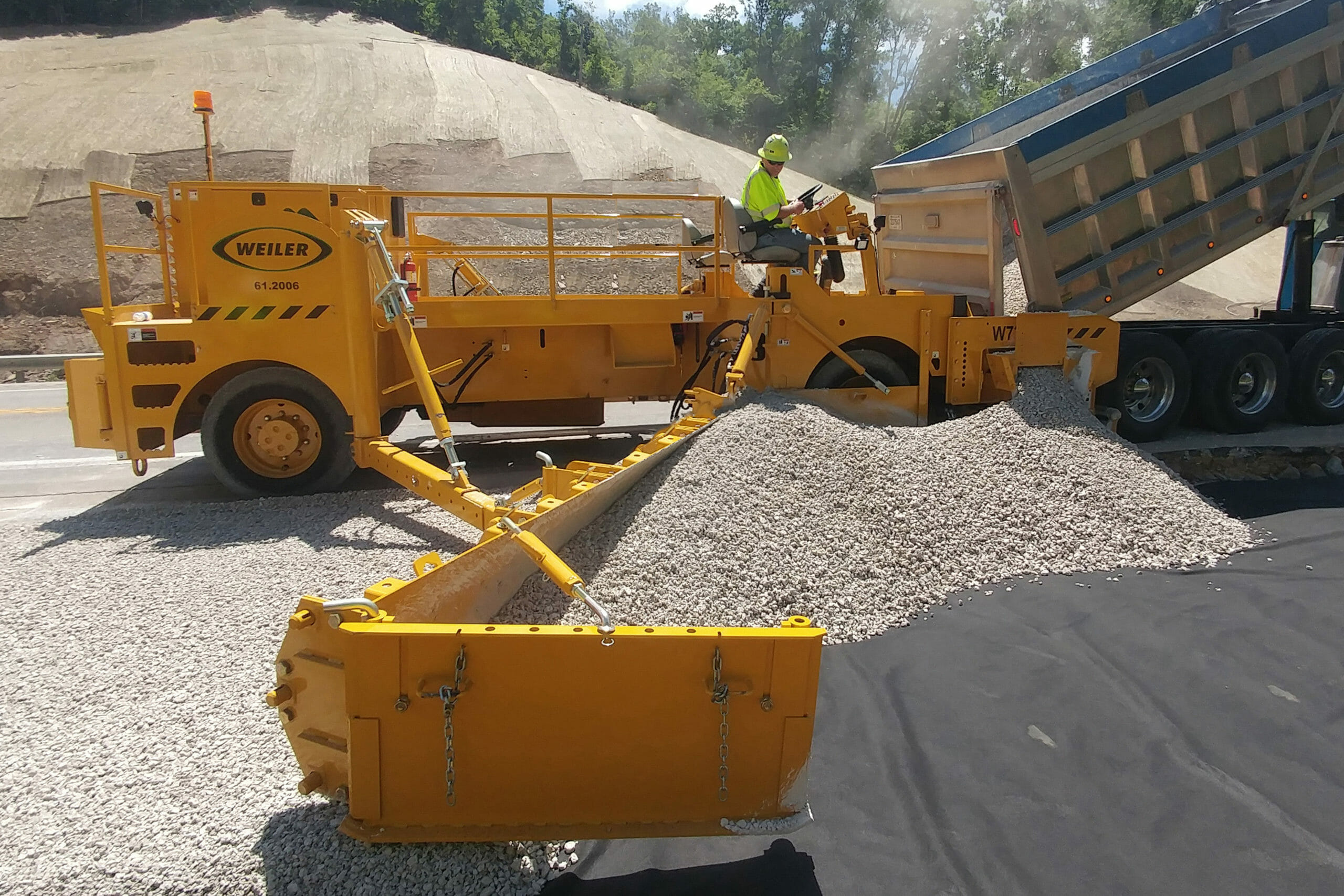

25” (635 mm) tall strike-off tools widen from 1’ (.3 m) to 14’ (4.2 m) and are capable of placing material up to 12” (305 mm) above and below grade. Multiple tool sizes plus hydraulically adjustable tools ensure precise strike-off and can be set to exact grade and slope specifications.



  • Specifications
    Spec Value
    Weight 34,160 lb
    Length 26
    Operating Width 10'
    Height 7' 8"
    Wheelbase 180"
    Hopper Capacity 3.5 yd
    Conveyor Length 10'
    Conveyor Width 30"
    Belt Speed 800 fpm
    Max Working Speed 350 fpm
    Transport Speed 12 mph
    Engine Cat® C4.4B Tier 4
    Turning Radius 14'
    Fuel Capacity 61 gal
    Hydraulic Capacity 51 gal
