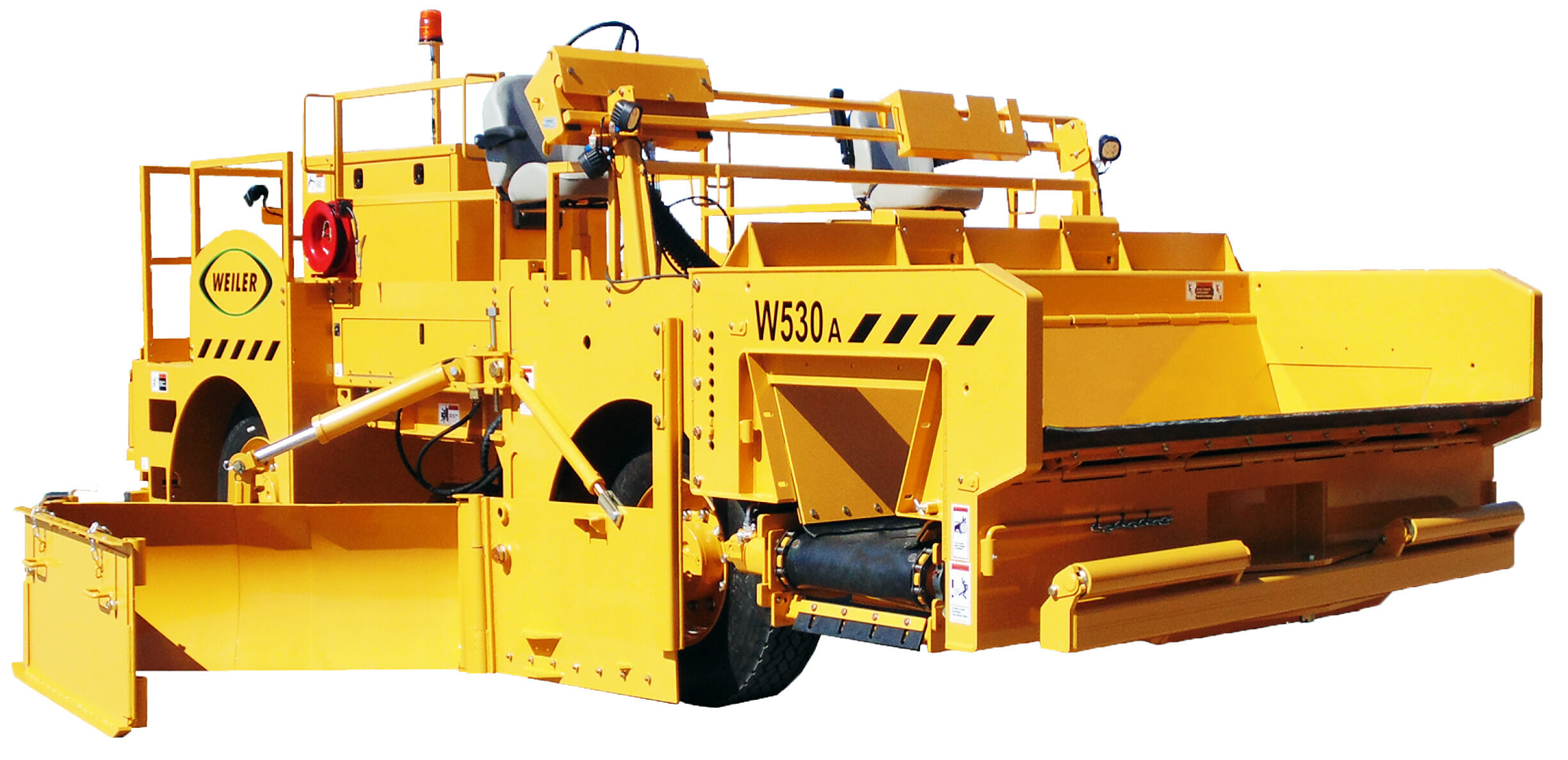

W530A

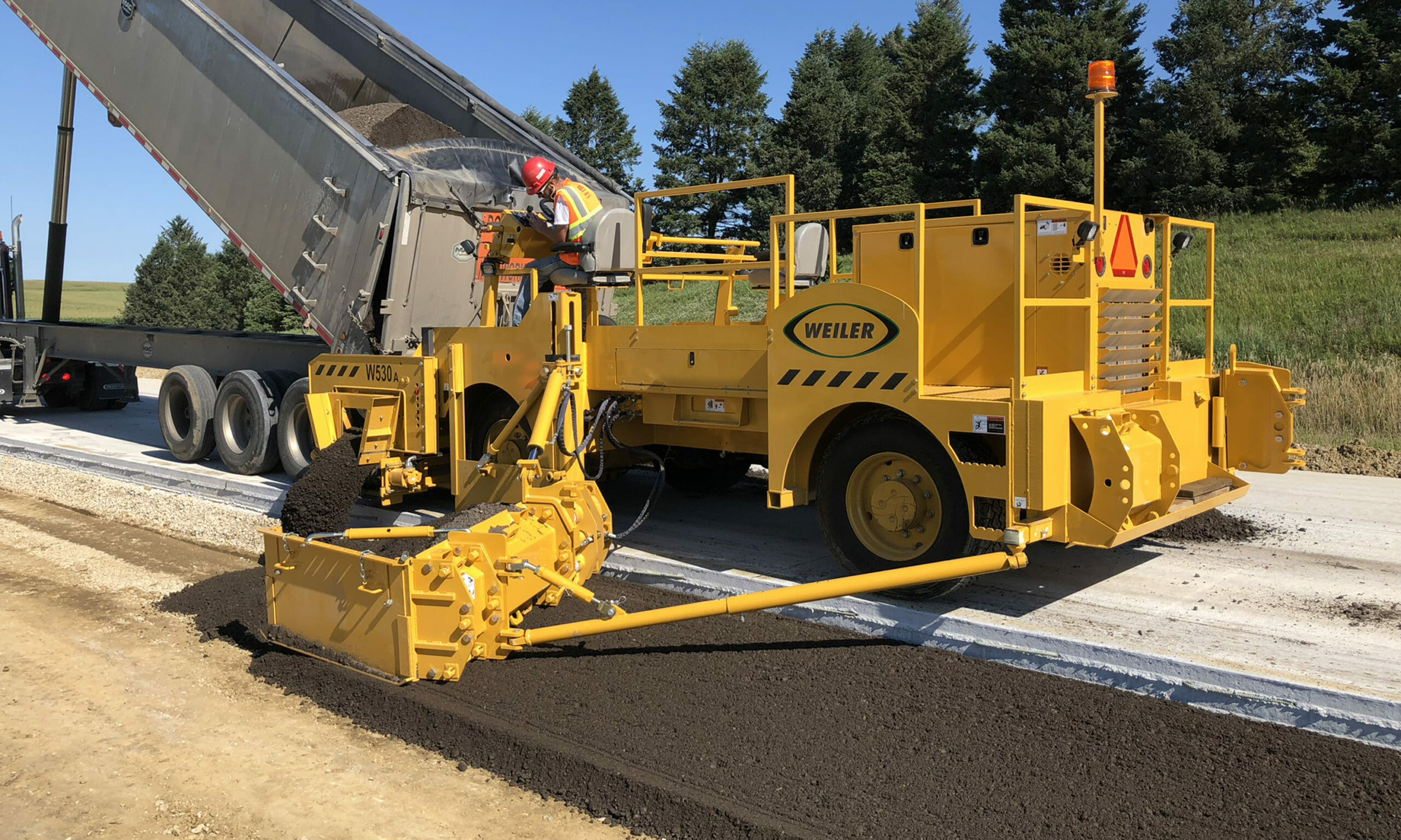

A 3.5 yd3 (2.6 m3) hopper means fewer truck exchanges during the workday. The 24” (610 mm) wide belt and 400 fpm (121 mpm) belt speed provides quick placement of materials to either side of the machine. The hydraulically adjustable dump hopper accommodates varying trucks.

Photos

Specifications

  • Specifications
    Spec Value
    Weight 26,327 lb
    Length 22' 4"
    Operating Width 10'
    Height 7' 8"
    Wheelbase 130"
    Hopper Capacity 3.5 yd
    Conveyor Length 10'
    Conveyor Width 24"
    Belt Speed 400 fpm
    Max Working Speed 350 fpm
    Transport Speed 12 mph
    Engine Cat® C3.4B/C4.4 Tier 4
    Rear Steer Turning Radius 8'
    Fuel Capacity 74 gal
    Hydraulic Capacity 60 gal
