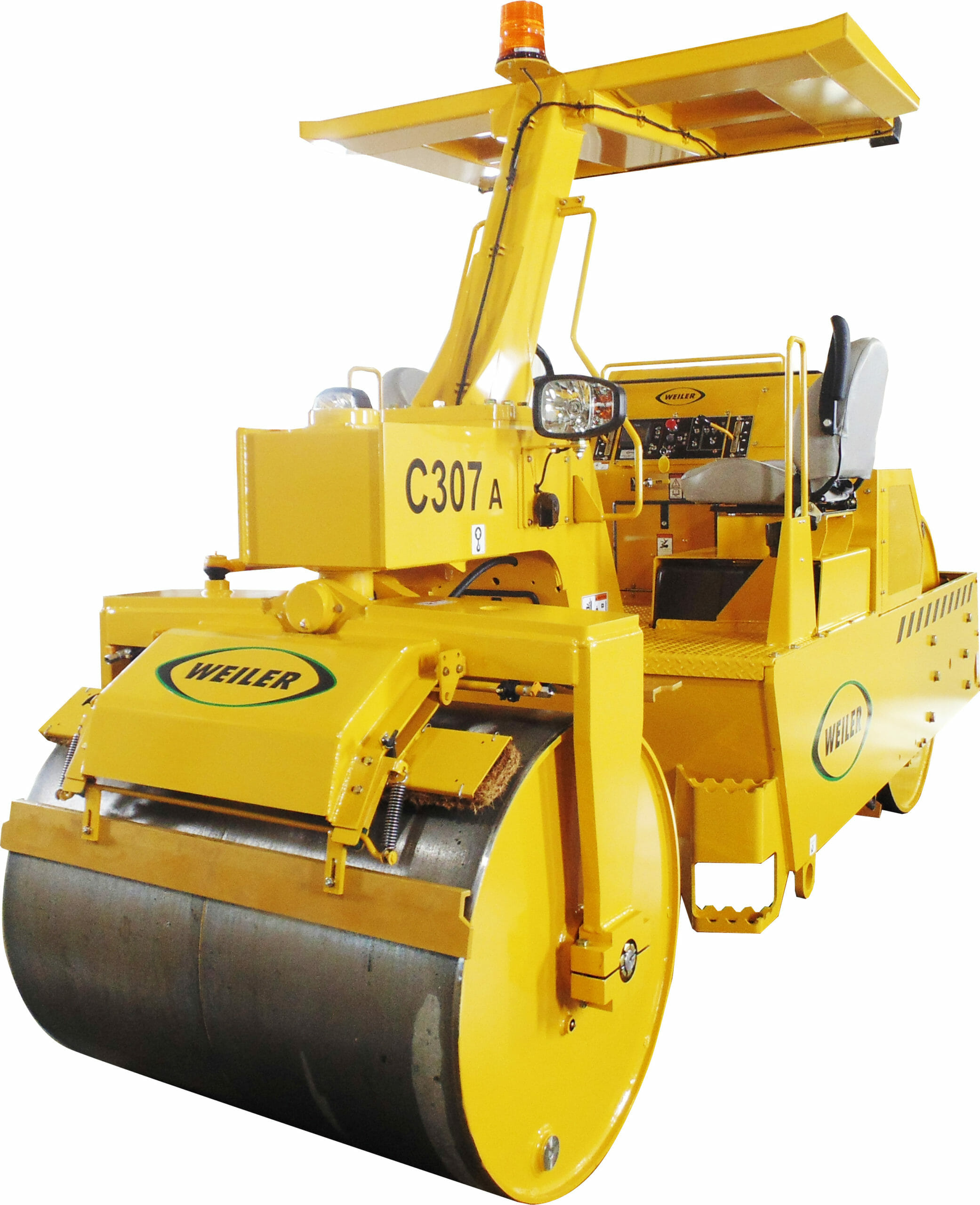

C307A

Photos

Documents

Specifications

  • Specifications
    Spec Value
    Base Weight 14,080 lb
    Max Weight 20,500 lb
    Width 5' 4"
    Length 15' 6"
    Height 8' 11"
    Wheelbase 132'
    Front Drum Diameter 40"
    Front Drum Width 50"
    Rear Drum Diameter 53"
    Rear Drum Width 50"
    Maximum Turn Angle 45°
    Inside Turning Radius 12' 6"
    Low Range Max Speed 5.25 mph
    High Range Max Speed 10.5 mph
    Water Tank Capacity 200 gal
    Fuel Tank Capacity 42 gal
