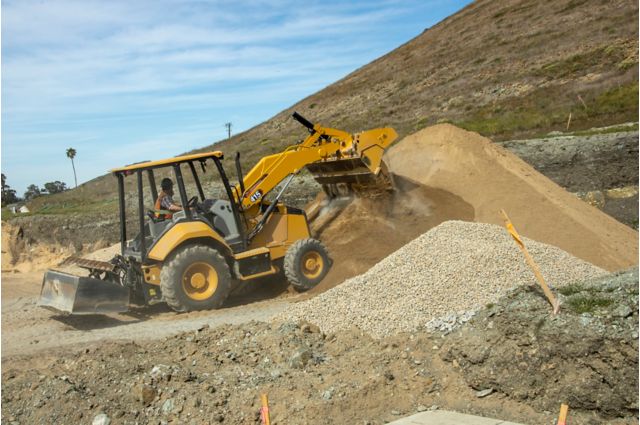

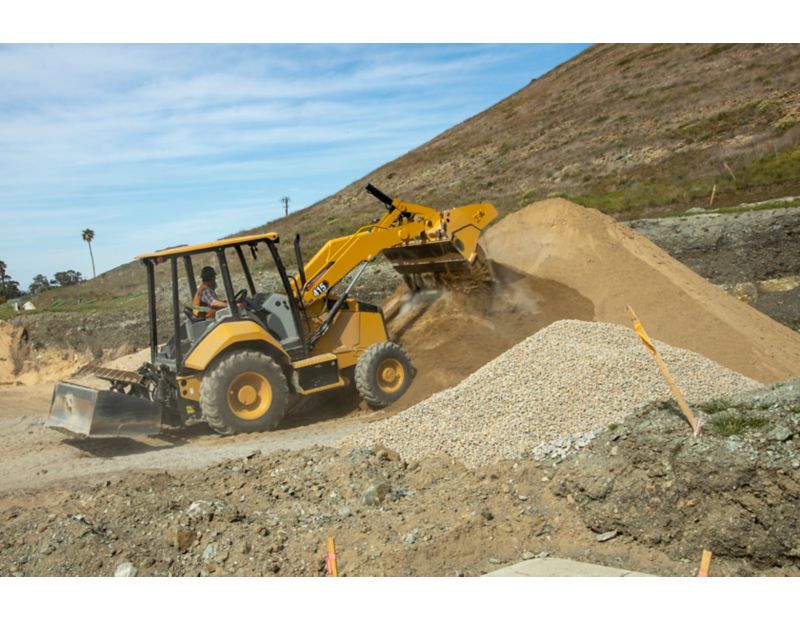

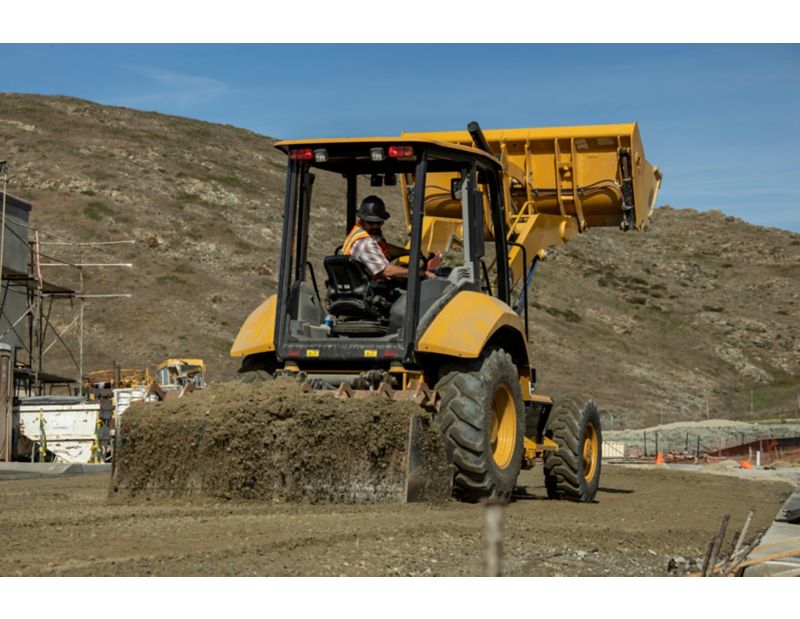

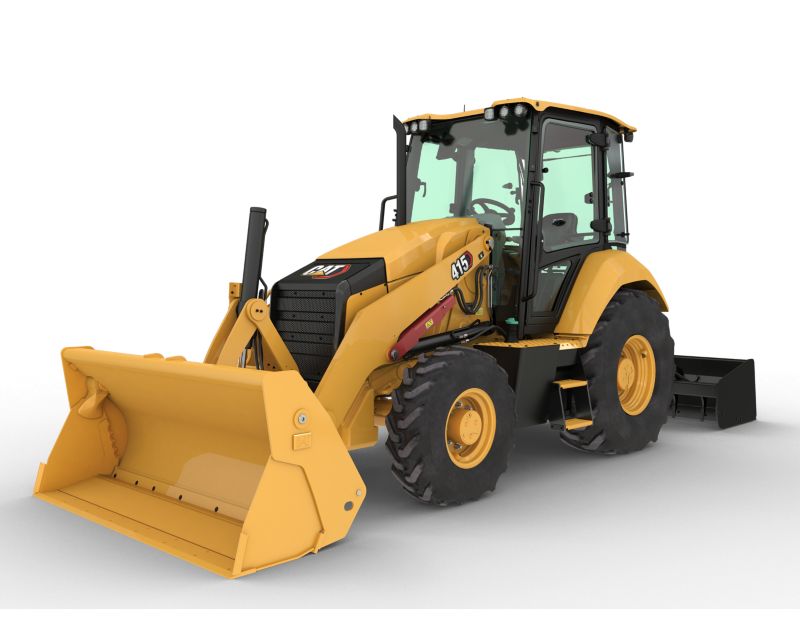

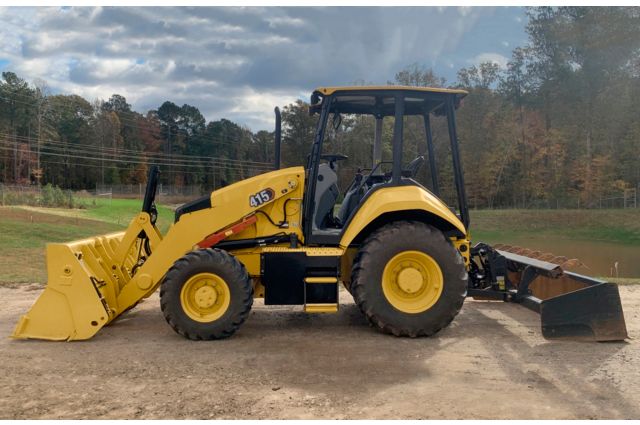

The Cat® 415 IL Industrial Loader delivers great performance, improved fuel efficiency, and a superior hydraulic system.
Caterpillar
415 IL Industrial Loader
Overview
Photos
Features
Specifications
-
Engine
Spec Value Net Power - SAE J1349:2011 69 hp Engine Model Cat C3.6 Bore 3.86 in Stroke 4.72 in Displacement 220 in³ Emissions Engine meets U.S. EPA Tier 4 Final emission standards. Net Peak Torque SAE J1349 308 ft·lbf Gross Power - SAE J1995:2014 75 hp Net Peak Power - 2,200 rpm - SAE J1349 69 hp Gross Power - ISO 14396 74 hp Net Torque Rise - 1,200 rpm 86 % Note No derating required up to 2286 m (7,500 ft). Net Power - 2,200 rpm - SAE J1349 69 hp Rated Net Power - 2,200 rpm - ISO 9249 69 hp Net Peak Power - 2,200 rpm - ISO 9249 69 hp -
Weights
Spec Value Operating Weight - Maximum 17637 lb Cab - ROPS/FOPS 359 lb Air Conditioning 101 lb MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642 lb MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017 lb Operating Weight - Maximum - ROPS Capacity 17637 lb Front Counterweight - Counterweights - Option 3 1015 lb Rear Counterweight 198 lb Note *Specifications shown are for machine equipped with 0.76 m³ (1.0 yd³) general purpose loader bucket, 115 kg (255 lb) front counterweight, 80 kg (176 lb) operator, all wheel drive and full fuel tank. Front Counterweight - Counterweights - Option 1 255 lb Front Counterweight - Counterweights - Option 2 530 lb Minimum Operating Weight 14035 lb -
Transmission
Spec Value Power Shuttle Transmission - Standard - Reverse - 2nd 5.5 mile/h Power Shuttle Transmission - Standard - Forward - 3rd 13 mile/h Power Shuttle Transmission - Standard - Reverse - 3rd 13 mile/h Power Shuttle Transmission - Standard - Reverse - 4th 23 mile/h Power Shuttle Transmission - Standard - Forward - 4th 23 mile/h Power Shuttle Transmission - Standard - Forward - 2nd 5.5 mile/h Power Shuttle Transmission - Standard - Forward - 1st 3.4 mile/h Power Shuttle Transmission - Standard - Reverse - 1st 3.4 mile/h -
Axle Ratings
Spec Value Rear Axle - Dynamic 20233 lb Front Axle (4WD) - Static 26455 lb Front Axle (4WD) - Dynamic 13228 lb Rear Axle - Static 50582 lb -
Hydraulic System
Spec Value Pump Type Variable Flow, Axial Piston Type Closed Center System Pressure - Loader 2973 psi System Pressure - Hitch/Box Scraper 2973 psi Pump Capacity at 2,200 rpm 33 gal/min -
Steering
Spec Value Bore 2.6 in Stroke 4.2 in Rod Diameter 1.6 in Power Steering Hydrostatic Axle Oscillation 11° Type Front Wheel Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels 26.8 ft Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket 36 ft -
Service Refill Capacities
Spec Value Hydraulic System 23.8 gal (US) Rear Axle 4.4 gal (US) Cooling System with Air Conditioning 4.4 gal (US) Fuel Tank 42 gal (US) Front Axle (4WD) - Planetaries 0.2 gal (US) Engine Oil - With Filter 2.3 gal (US) Front Axle (4WD) 2.9 gal (US) Rear Axle - Planetaries 0.4 gal (US) Transmission - Power Shuttle - 2WD 4 gal (US) Transmission - Power Shuttle - 4WD 4 gal (US) Hydraulic Tank 10.6 gal (US) Note Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur -
Tires
Spec Value Standard Configuration of Front/Rear Tires Front: 12.5 80/16.9; Rear: 16.9-24 -
Counterweights - Front - Minimum Recommendations
Spec Value Standard Stick - MP Loader Bucket - 4WD no counterweight Standard Stick - GP Loader Bucket - 4WD 255 lb
Standard Equipment
STANDARD EQUIPMENT
- Air cleaner
- Alarm, back-up
- Audible system fault alarm
- Box Blade Controls, finger lever pilot
- Battery, maintenance-free, 880 CCA
- Battery disconnect switch
- Brace, lift cylinder
- Brake, secondary parking
- Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
- Bucket level indicator
- Canopy, ROPS/FOPS
- Coat restraint
- Coolant/antifreeze, extended life
- Counterweight, bumper
- Dome light (cab only)
- Diagnostic port for engine
- Differential lock, floor mounted
- Differential lock, loader joystick
- Drink holders, two
- Engine, Cat C3.6, meets Tier 4 Final emission standards, diesel particulate filter
- Engine enclosure, sound suppression removal panels
- Face seals, O-ring
- Fan, suction and guard
- Fast reversing shuttle, all gears
- Fenders, rear
- Filters, spin-on: fuel, engine oil, transmission oil, water separator
- Filters, bowl and cartridge: hydraulic fluid
- Flashing hazards/signal lights
- Floor mat
- Fuel tank, fully enclosed
- Fully hinged front grill for cooling package cleaning access
- Gauge cluster: coolant temperature, fuel level, torque converter temperature, battery voltage
- Ground level fuel fill
- High ambient cooling package
- Hitch, rear 3-point
- Hood lock, inside cab
- Hydraulic hose, Cat XT™-3
- Hydraulic oil cooler
- Hydraulic oil level sight gauge
- Hydraulic valve, hydrostatic steering
- Hydraulic valves, loader 3 function
- Hydraulic valves, rear 5 function
- Hydraulics, load sensing with variable displacement piston pump
- Indicator lights and LCD warnings for system status
- Instrument panel lights
- Key start/stop system
- LCD screen with machine system information
- Lights, working (2 front, 2 rear)
- Loader, self-leveling, return-to-dig and transmission disconnect switch
- Loader, single tilt
- Mirror, rearview
- Open circuit breather
- Power receptacle, 12 volt, 2 internal, 2 external roof mounted
- Power steering, hydrostatic
- Seat belt, retractable, 75 mm (3 in)
- Steering knob
- Seat, mechanical suspension, fabric or vinyl cover, with armrest
- Starting system, glow plugs
- Steering, hydrostatic
- Storage compartment, lockable
- Storage tray
- Stop and tail lights
- Tires, 12.5/80-18 front, 16.9-24 rear
- Toolbox, external, lockable
- Torque converter
- Throttle, foot, electronic
- Transmission, four speed, syncromesh
- Transmission neutralizer switch
- Transport tie-downs
- Four Wheel Drive
- Warning horn, electric
- Product Link™, cellular, PLE643
- Product Link, dual mode, PLE683
Optional Equipment
OPTIONAL EQUIPMENT
- Battery, additional, 880 CCA

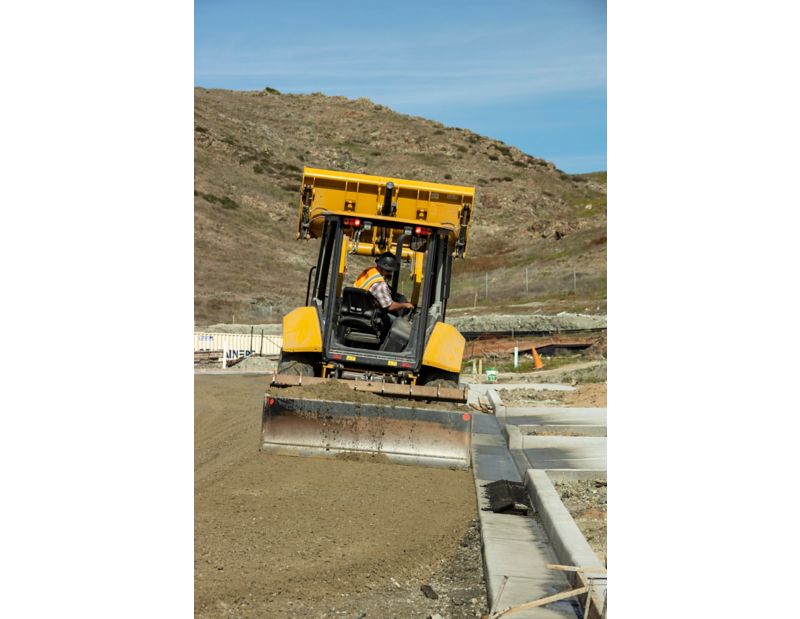

- Box, blade/scarifier
- Cab, standard with air conditioning
- Cold weather fuel (–30° C/–22° F)
- Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
- Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
- Counterweight, rear 90 kg (198 lb)
- Dual tilt rear hitch
- Face fan
- Fenders, front with integral steps
- Radio and CD player, Bluetooth®
- Ride Control
- Rotating beacon, magnetic mount
- Security system keypad
- Vandalism protection, gauge cover
- Work Tool Attachments such as buckets, forks, and material handling arms. See your Cat dealer for more information.
- LED lights, working (2 front, 2 rear)
- Security system, Bluetooth
- Security System, operator display
- Side mirrors, cab, external
- Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
