The AP555 Mobil-trac™ asphalt paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
Cat
AP555
Overview
Photos
-

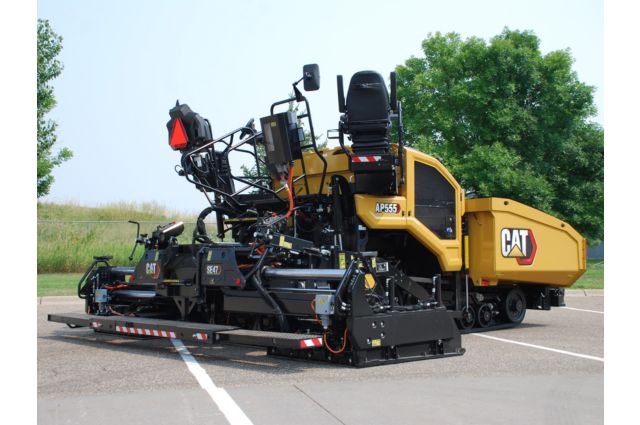

AP555 Paver -
AP555 Paver -
AP555 Paver -
AP555 Paver -
AP555 Paver -
AP555 Paver
360° View
Exterior
360º Exterior view. Double click
Interior
360º Interior View. Double click
Documents
Features
More Performance and Flexibility
- Powerful C4.4 engine delivers 110 kW (148 hp) of power that supports increased feeder system capacity as well as hopper inserts for continuous paving
- Tight 90 degree turning capability enables the paver to rotate and cover tracks on a return paving pass
- Standard paving range utilizing the SE47 V screed is 2.4 m - 4.7 m (8' - 15' 6") with a maximum width of 6.1 m (20')
- Standard paving range utilizing the SE47 FM screed is 2.4 m - 4.7 m (8' - 15' 6") with a maximum width of 6.2 m (20' 6")
- Paving depths up to 250 mm (10") supports aggregate paving applications
More Performance and Flexibility
- Powerful C4.4 engine delivers 110 kW (148 hp) of power that supports increased feeder system capacity as well as hopper inserts for continuous paving
- Tight 90 degree turning capability enables the paver to rotate and cover tracks on a return paving pass
- Standard paving range utilizing the SE47 V screed is 2.4 m - 4.7 m (8' - 15' 6") with a maximum width of 6.1 m (20')
- Standard paving range utilizing the SE47 FM screed is 2.4 m - 4.7 m (8' - 15' 6") with a maximum width of 6.2 m (20' 6")
- Paving depths up to 250 mm (10") supports aggregate paving applications
Transport Made Easy
- Paver and screed combination weight of 15.3 mt (34,000 lb) enables easy transport on a variety of trailer types
- Length of less than 5.65 m (18' 6") and width of 2.6 m (8' 6") accommodates machine transport without special permits
- The front-loading angle of 15 degrees and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
- Front, middle, and rear tie-down locations make securing the load efficient for quick travel to the next job site
Transport Made Easy
- Paver and screed combination weight of 15.3 mt (34,000 lb) enables easy transport on a variety of trailer types
- Length of less than 5.65 m (18' 6") and width of 2.6 m (8' 6") accommodates machine transport without special permits
- The front-loading angle of 15 degrees and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
- Front, middle, and rear tie-down locations make securing the load efficient for quick travel to the next job site

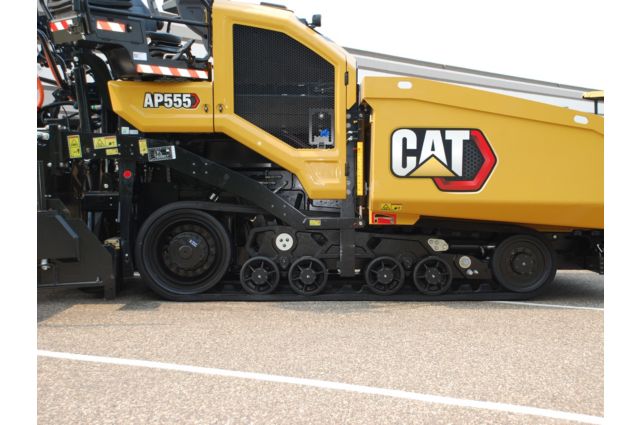

Exceptional Mobility
- Mobil-trac ™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
- Counter-rotating tracks provide excellent maneuverability in tight quarters
- Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
- Rubber-coated components help shed asphalt and prevent accumulation
- Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression
Exceptional Mobility
- Mobil-trac ™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
- Counter-rotating tracks provide excellent maneuverability in tight quarters
- Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
- Rubber-coated components help shed asphalt and prevent accumulation
- Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression
Smooth Material Flow
- Low truck entry height and short front apron enhance material flow while simplifying clean-out
- Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
- Confined auger chamber keeps material moving and helps eliminate stagnate patches
- Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for proportional feed system control
Smooth Material Flow
- Low truck entry height and short front apron enhance material flow while simplifying clean-out
- Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
- Confined auger chamber keeps material moving and helps eliminate stagnate patches
- Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for proportional feed system control
More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Dual independent consoles provide operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
- Dual independent seats swing-out 40 degrees beyond the platform for good visibility to curbs and obstacles
- Optimized height and integrated exhaust provide unobstructed visibility around the machine
- Optional screed and paver mounted umbrellas offer protection from direct sunlight
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance
More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Dual independent consoles provide operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
- Dual independent seats swing-out 40 degrees beyond the platform for good visibility to curbs and obstacles
- Optimized height and integrated exhaust provide unobstructed visibility around the machine
- Optional screed and paver mounted umbrellas offer protection from direct sunlight
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance
Easy Viewing Displays
- High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
- New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
- Single-touch functions from the main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
- Operating displays can be tailored to specific language requirements with multiple options available
- Wash-down system includes level indication
Easy Viewing Displays
- High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
- New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
- Single-touch functions from the main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
- Operating displays can be tailored to specific language requirements with multiple options available
- Wash-down system includes level indication
Screeds that Deliver Quality
- SE-Series screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
- Screeds with front-mounted extenders and rear-mounted extenders are available
- Cat Grade Control or Basic Grade Control options available
Screeds that Deliver Quality
- SE-Series screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
- Screeds with front-mounted extenders and rear-mounted extenders are available
- Cat Grade Control or Basic Grade Control options available
Low Owning and Operating Costs
- Durable Cat C4.4 engine provides 110 kW (148 hp) of power and meets U.S. EPA Tier 4 Final and EU Stage V emissions
- Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems
Low Owning and Operating Costs
- Durable Cat C4.4 engine provides 110 kW (148 hp) of power and meets U.S. EPA Tier 4 Final and EU Stage V emissions
- Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems
Product Link™ Elite
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time in real time
- Diagnostic codes are made available through online web applications
- Remote flash for easy software updates
- Scheduled maintenance and SOS notification
- Remote disable deactivates the engine for enhanced security
Product Link™ Elite
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time in real time
- Diagnostic codes are made available through online web applications
- Remote flash for easy software updates
- Scheduled maintenance and SOS notification
- Remote disable deactivates the engine for enhanced security
Service and Repair Kits
- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Service and Repair Kits
- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Specifications
-
Dimensions
Spec Value Paving Range with SE47 FM 2.4 m - 6.1 m (8' - 20') Paving Range with SE47 V 2.4 m - 6.2 m (8' - 20' 6") Truck Entry Height 22 in Operating Length 19.25 ft Operating Width 10.75 ft Overall Height 10.75 ft Transport Length 18.5 ft Transport Width 8.5 ft Transport Height 825 ft -
Engine
Spec Value Engine Power (1) 148 hp Engine Model (1) Cat C4.4 -
Operating Specifications
Spec Value Maximum Paving Speed 200 ft/min Maximum Travel Speed 7 mile/h Maximum Throughput Capacity 1100 ton(US)/h -
Weights
Spec Value Operating weight with SE47 FM 33689 lb Operating weight with SE47 V 33448 lb Shipping Weight - Paver Only 26993 lb -
Service Refill Capacities
Spec Value Fuel Tank 53 gal (US) DEF Tank 5 gal (US) Cooling System - Total 6.3 gal (US) Hydraulic Oil Tank 32 gal (US) Washdown Spray Tank 8.5 gal (US)
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Steering, spring return
- Ventilation system
Technology
- Product Link™ Elite 643 (cellular)
Powertrain
- Cooling fan, variable speed
- Mobil-trac, smooth belt
Electrical System
- 1400 CCA battery
- 150-amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Auto-reset breaker for material sensors
- Battery, maintenance-free
- Cat Electronic Technician (Cat ET)
- Remote start receptacle
Material Delivery
- Auger extensions, 0.15 m (6")
- Material feed sensors, contact
- Push-roller, adjustable
Service and Maintenance
- Hydraulic oil, Cat HYDO Advanced
- Remote access drains
- Remote flash
- Service repair kits
- Sampling ports for Scheduled Oil Sampling
- Sight Gauges, engine coolant, hydraulic oil
Safety
- Mirror package
- Alarm, back-up
- Horn, warning (front & rear)
- Lights, LED Working
Optional Equipment
Operating Environment
- Canopy
- Deceleration pedal
- Heated seat
- Friction Steering
- Umbrella
- Side shields
- Windshield
Technology
- Cat Grade Control
- Basic Grade Control
- Product Link™ Elite 683 Cellular/Satellite
Powertrain
- Ballast - front weights
Material Delivery
- Auger extensions, 0.46 m (1.5')
- Mainframe extensions, power
- Mainframe extensions, manual
- Material feed sensors, sonic
- Truck hitch
- Wash-down pump and reel
Safety
- Lights, LED Roading
- Warning beacon, LED
- Lights, LED Roading
- Warning beacon, LED
- Mirror package
