The SE50 V vibratory screed is equipped with rear-mounted extenders and vibratory screed plates. It offers a paving range of 2.55 m – 6.5 m (8′ 4″ – 21′ 4″) and excels on highways, parking lots, urban streets and other variable width paving applications.
Caterpillar

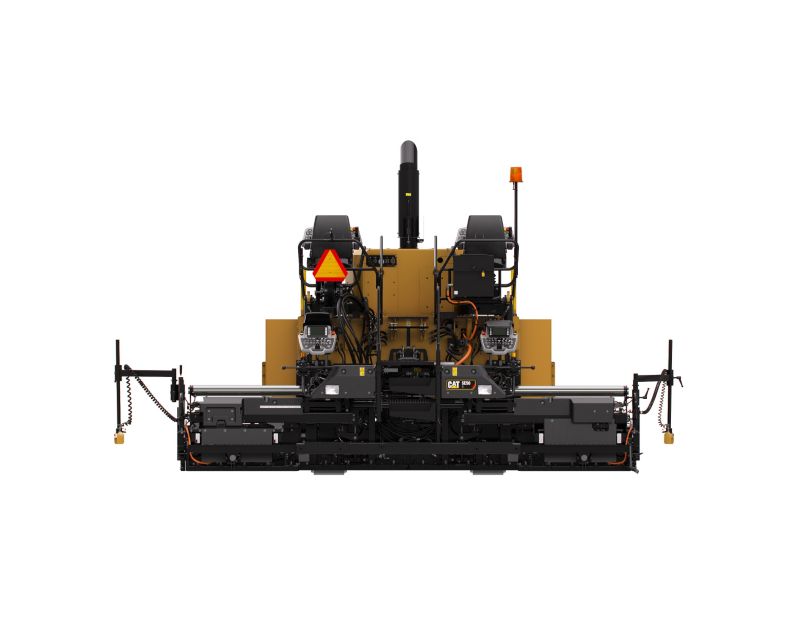

SE50 V Vibratory Screed
Photos
-
SE50 V Screed -
SE50 V Screed -
SE50 V Screed
Videos
Features
Fast Heating
The 70 kW, tractor integrated generator combined with the technologically advanced screed heating system, ensures fast, even heat distribution. The 15 minute heating time at standard widths can lead to more daily production and lower fuel consumption due to less time waiting for the screed plates to reach the preset temperature. At maximum widths screed plate heating occurs in as little as 25 minutes.
Fast Heating
The 70 kW, tractor integrated generator combined with the technologically advanced screed heating system, ensures fast, even heat distribution. The 15 minute heating time at standard widths can lead to more daily production and lower fuel consumption due to less time waiting for the screed plates to reach the preset temperature. At maximum widths screed plate heating occurs in as little as 25 minutes.
Exclusive Monitoring
The exclusive generator system monitors heating elements for failure conditions in order to help plan for scheduled service events. Furthermore, temperature zone monitoring allows heating to continue in the event of a sensor failure and warning indicators are delivered through the LCD displays.
Exclusive Monitoring
The exclusive generator system monitors heating elements for failure conditions in order to help plan for scheduled service events. Furthermore, temperature zone monitoring allows heating to continue in the event of a sensor failure and warning indicators are delivered through the LCD displays.
More Control

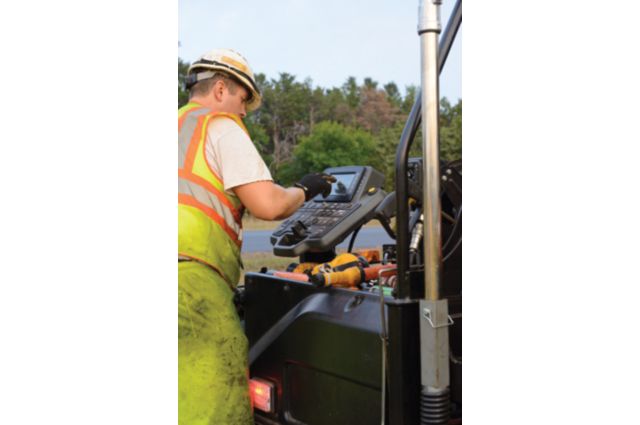

The extenders are equipped with 2 speed ranges and proportional control for better performance around obstacles. A pendant control located on the extenders enables operators to perform functions remotely. The conveyor ratio adjustment can be made from the screed control panel when utilizing the 2-sensor feeder system in order to maintain optimal material height in front of the screed.
More Control
The extenders are equipped with 2 speed ranges and proportional control for better performance around obstacles. A pendant control located on the extenders enables operators to perform functions remotely. The conveyor ratio adjustment can be made from the screed control panel when utilizing the 2-sensor feeder system in order to maintain optimal material height in front of the screed.

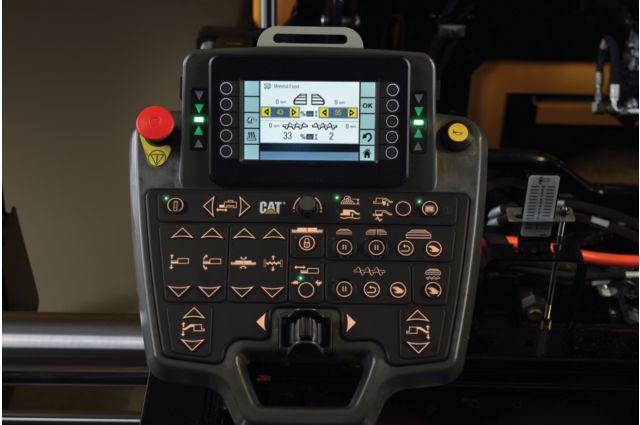

Integrated Cat Grade Control
Factory integrated Cat Grade Control allows the crew to operate from either of the tractor or screed consoles. A split screen mode enables the screed operators to work from a single side or from each side of the screed. This is especially helpful when training new operators and when the crew is tasked with multiple job site duties.
Integrated Cat Grade Control
Factory integrated Cat Grade Control allows the crew to operate from either of the tractor or screed consoles. A split screen mode enables the screed operators to work from a single side or from each side of the screed. This is especially helpful when training new operators and when the crew is tasked with multiple job site duties.
Simple Adjustment
Power controls for crown, slope, and height allow for on-the-go adjustment at standard and maximum widths. The exclusive trailing edge screed plate adjusters as well as machined screed frames help optimize plate life and simplify leveling procedures.
Simple Adjustment
Power controls for crown, slope, and height allow for on-the-go adjustment at standard and maximum widths. The exclusive trailing edge screed plate adjusters as well as machined screed frames help optimize plate life and simplify leveling procedures.
Specifications
-
Weights
Spec Value Standard Weight 7239 lb -
Operating Specifications
Spec Value Standard Paving Range 2.55 - 5.0 m (8' 4" - 16' 4") Maximum Paving Width 21.3 ft Vibratory Speed Range 0 to 3000 vpm Crown Range -4% to +10% Maximum Paving Depth 12 in Heating Time - Standard Width 15 minutes Heating Time - Maximum Width 25 minutes Extender Height Range -20 mm to +50 mm Extender Slope Range -3% to +10% -
Dimensions
Spec Value Transport Width - Endgates Folded 8.3 ft Screed Plate Width - Front to Back 16 in Length - Front to Back, Endgates Removed 68 in Length - Front to Back, Endgates Attached 92 in Transport Length - Tractor and Screed 22.1 ft
