Condition

• GENERAL CONDITION

  Item	Condition
  ET Product Status Report Download	Yes
  Logged / Active Codes	Yes
  Machine Starts and is Operable	Yes
  Visible Oil Leaks	Yes
  Body	●
  Frame	●●
  General	●

• GENERAL APPEARANCE

  Item	Condition
  Cleaning Required	Yes
  Cab or Canopy	●● THE CAB GUARD HAS BEEN PUSHED INTO THE FRONT OF CAB CRACKING THE FIBERGLASS.
  Counterweight	●●●
  Crankcase Guard / Battery Box	●● THE R.H. BATTERY BOX IS DENTED
  Decals	●
  Eng. Enclose Hood / Stack	●● THE R.H. ENGINE DOOR IS CRACKED. THE L.H. FORWARD SIDE PANEL HAS A BROKEN TOP MOUNT.
  Fenders	●
  Fiberglass	●
  Front Frame	●●● NO CRACKS WERE SEEN.
  Fuel Tank	●●●
  Grab Irons	●●●
  Paint	●
  Plastic	● THE R.H. OUTER CAB PLASTIC AROUND THE HEATER CONTROL IS CRACKED.
  Pre-Cleaner Bowl	●●
  Radiator Grill & Shroud	●● FIBERGLASS IS CRACKED AROUND THE RADIATOR DOOR.
  Rear Frame	●●● NO CRACKS WERE SEEN.
  Sheet Metal	●
  Steps / Ladder	●● THE L.H. CAB STEPS ARE BENT

• SAFETY ITEMS

  Item	Condition
  Parking Brake Functioning	Yes
  ROPS Certification Plate	Yes CERTIFICATION IS IN PLACE.
  Safety Locks / Pins	Yes
  Service Brakes Functioning	Yes
  Back Up Alarm	● NOT WORKING.
  Camera(s)	●●●
  Horn	●●●
  ROPS	●●● THE ROPS ARE CLEAN.
  Seat Belt / Date	●● FUNCTIONAL

• OPERATOR STATION

  Item	Condition
  Current O&MM	Yes
  Air Conditioner	● NOT WORKING
  Armrests	●●
  Cab Filter / Heat Vent Louvres	●●
  Dash Console	●● SEVERAL LOOSE PLASTIC PANELS AROUND THE DASH.
  Door Latches / Hinges / Seals	●●
  Floor Boards / Mats	●●
  Gauges	●●●
  Headliner	●●
  Heater / Defroster	● POOR AIR FLOW

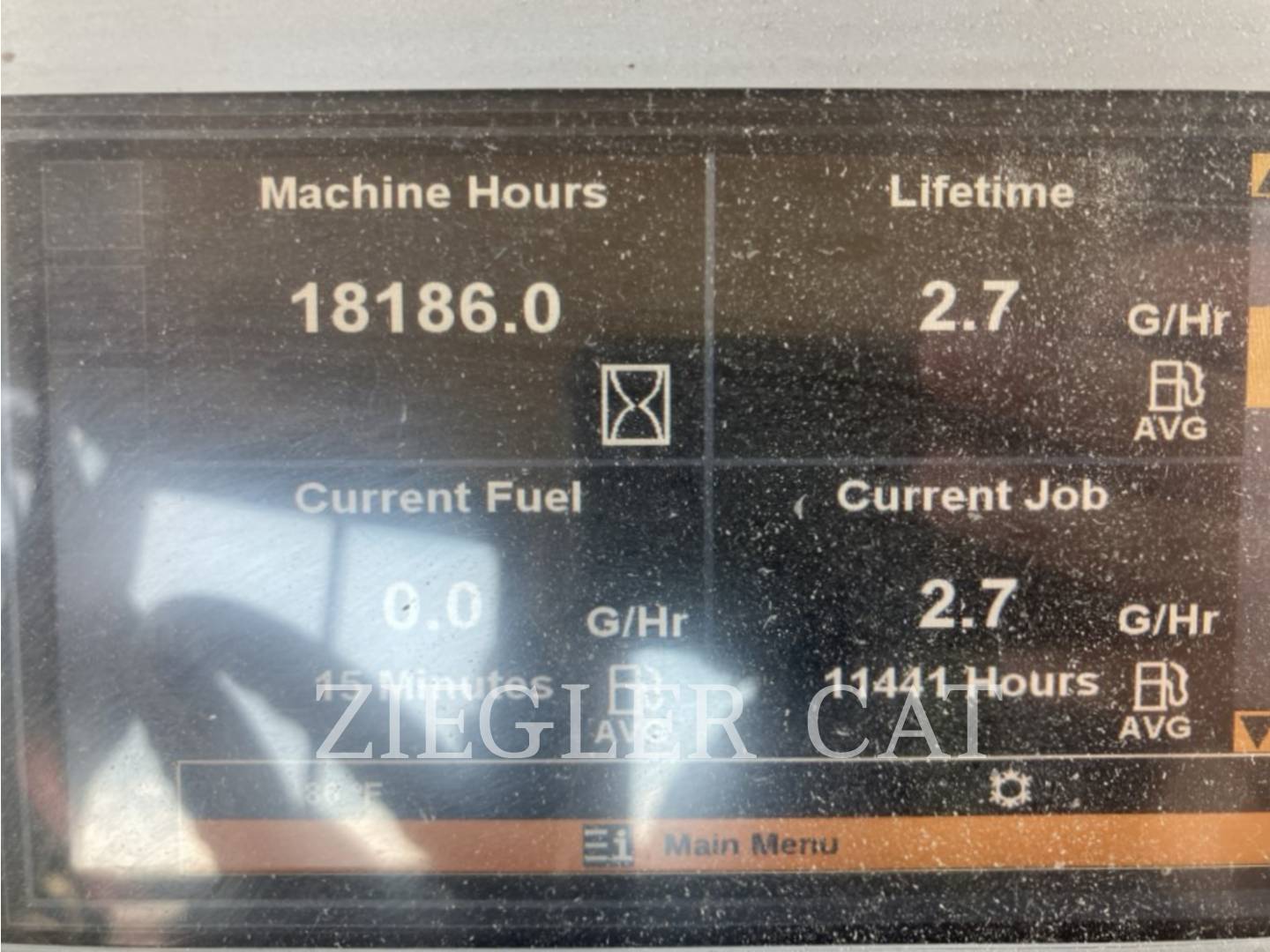

  Hour Meter	●●● ACCURATE AND FUNCTIONAL.
  Hydraulic Controls	●●●
  Interior Lights	●●●
  Mirrors	●● THE R.H. MIRROR IS CRACKED.
  Monitoring Display	●●●
  Radio	●●● USB & BT5
  Seat Cushions / Suspension / Type	● CUSHIONS ARE WORN
  Switches	●●●
  Transmission Controls	●●●
  Windows	● ALL FRONT WINDOWS ARE BROKEN WITH THE R.H. LOWER FRAME DENTED.
  Windshield Wipers	●●

• ENGINE

  Item	Condition
  Blow By	Yes

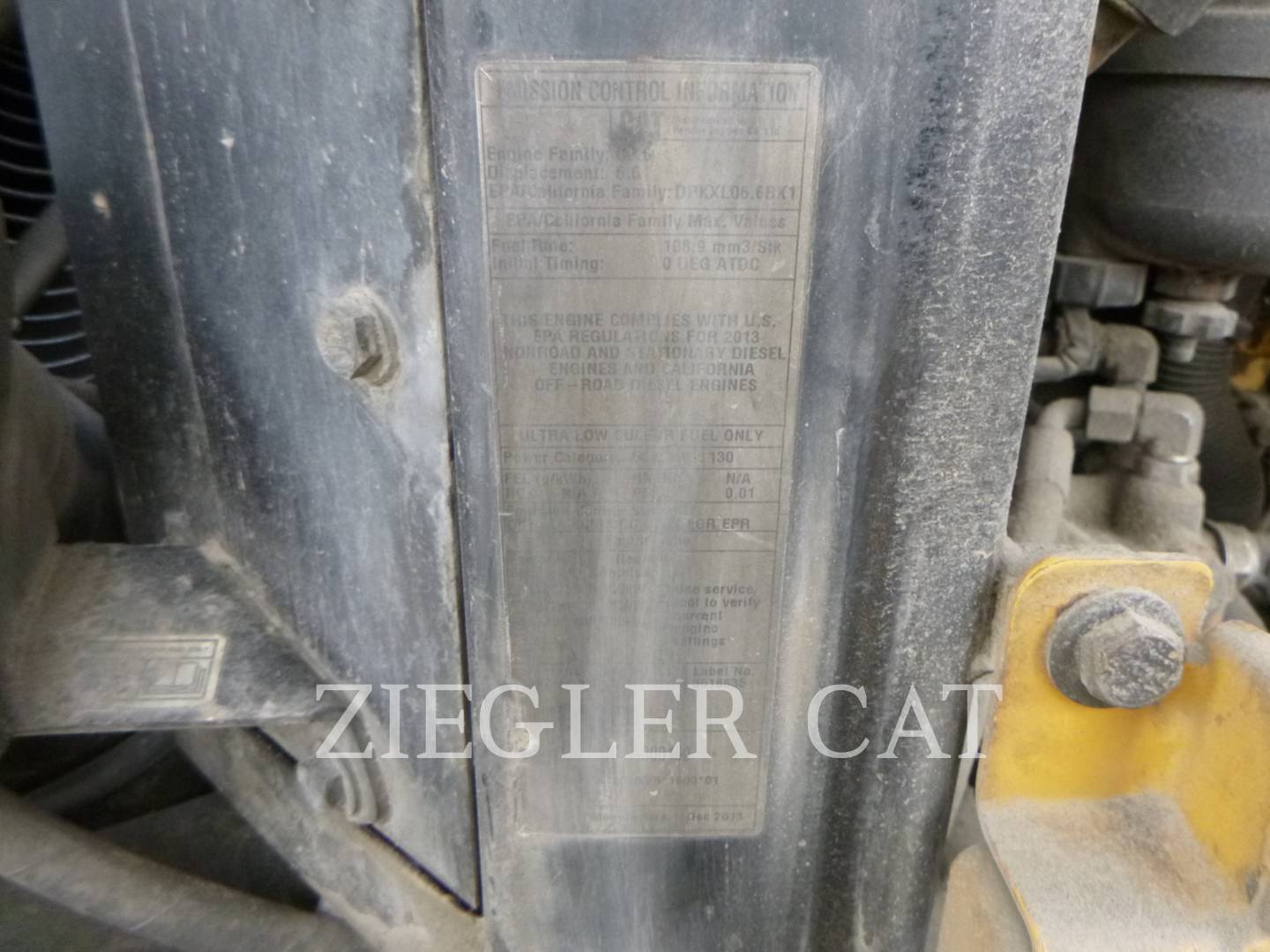

  Emissions Decal Legible	Yes TIER 4 INTERIM.
  Fuel Leaks	No
  Knocking	No
  Oil Leaks	No
  Water in Oil	No
  Notes - ENGINE	THERE IS AN ACTIVE CODE 3405-5 EGR VALVE CONTROL CURRENT IS BELOW NORMAL. THE ENGINE RUNS FAIR.
  Oil Pressure (H/L/N)	NORMAL
  Smoke Color (B/D/L/W)	SOME MINOR BLUE
  Belts / Pulleys	●●
  Engine Oil Level / Condition	●●●
  Engine Supports / Mounts	●●●
  Exhaust / Muffler / Stack	●●
  Fuel Injection System	●●
  Governor	●●
  Intake / Air Filters	●●
  Operating Condition	●●
  Turbocharger / Blower	●●

• EMISSIONS

  Item	Condition
  Notes - EMISSIONS	THE EMISSIONS SYSTEM HAS NO CODES.
  Diesel Particulate Filter (DPF) Condition / Service Hours	●●

• COOLING SYSTEM

  Item	Condition
  Compression in Radiator	No
  Coolant Leaks	No
  Oil in Anti-Freeze	No
  Standard Radiator	Yes
  Notes - COOLING SYSTEM	THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 60 DEGREE WEATHER.
  Anti-Freeze Level / Color / Condition	●●● COOLANT HAS A NORMAL COLOR & IS LEVEL.
  Belts / Pulleys - COOLING SYSTEM	●●
  Coolers	●●
  Fan	●●
  Fan Drive / Type	●●● HYDRAULIC
  Fan Shrouds / Guards	●●
  Hoses / Tubes	●●
  Radiator	●● ORIGINAL.
  Water Pump	●●

• ELECTRICAL, STARTING AND CHARGING SYSTEM

  Item	Condition
  Block Heater	Yes
  Ether Aid	Yes
  Signal Lights	Yes
  Alternator	●●●
  Batteries / Cables / Master Disconnect	●●●
  Starter / Type	●●●
  Wiring	●●
  Work Lights	● ALL FRONT LIGHTS AND SIGNALS ARE OUT IN THE FRONT WITH ONE REAR LIGHT OUT AND ONE TAIL LIGHT OUT.

• TRANSMISSION

  Item	Condition
  Transmission - Noisy	No
  Notes - TRANSMISSION	THE HYDROSTATIC DRIVE TRANSMISSION IS ORIGINAL (PUMPS AND MOTOR) AND PERFORMING FAIR THROUGHOUT ALL SPEED SETTINGS. THE HYDRAULIC OIL WAS LAST SAMPLED AT 17761 HOURS RETURNING NORMAL.
  Controls - TRANSMISSION	●●●
  Drive Shaft	●●
  Lines / Fittings - TRANSMISSION	●● FEW HOSES LEAKING LEVEL 3 AROUND THE PUMPS.
  Operating Condition - TRANSMISSION	●●
  Pump - TRANSMISSION	●● ORIGINAL.
  Seals	● LEVEL 3 LEAK AT PUMP AND TRANSFER GEAR CASE AREA.
  Temp / Pressure Gauges	●●●
  Transmission - Forward Shifts	●●
  Transmission - Reverse Shifts	●●
  Universal Joints - TRANSMISSION	●●

• STEERING

  Item	Condition
  Notes - STEERING	THE MACHINE IS STEERING FAIR WITH EXCESSIVE ARTICULATION JOINT PLAY.
  Articulate P & B	● THERE IS EXCESSIVE PLAY IN THE ARTICULATION JOINTS.
  Hand Metering Unit	●●
  Lines / Fittings - STEERING	●●
  Steering Cylinder	● BOTH CYLINDERS ARE LEAKING LEVEL 3 .
  Steering Linkage	●● THE L.H. STEERING STOP IS TORN UP WITH THE R.H. IN GOOD CONDITION. THE LINKAGE HAS 1/16 INCH PLAY.
  Steering Valves / Pumps	●● ORIG
  Steering Wheel Tilt / Extend	●●
  Valves	●●

• BRAKE

  Item	Condition
  Holds In Park	Yes
  Leaks - BRAKE	No
  Notes - BRAKE	THE BRAKES ARE FUNCTIONAL
  Accumulator	●●
  Control Valve	●●
  Lines / Tubes	●●
  Parking Brake - BRAKE	●●●
  Pedal	●●●
  Pump - BRAKE	●● ORIG
  Type (Wet, Dry)	●● WET INTERNAL

• HYDRAULICS

  Item	Condition
  Leaks - HYDRAULICS	Yes
  Notes - HYDRAULICS	THE IMPLEMENT HYDRAULICS ARE FUNCTIONAL.
  Accumulator Charge - Ride Control	● TURNS ON BUT FIRM.
  Bucket & Hoist Kickout	●● ACTIVE CODES 350-13 & 351-13 FOR THE LIFT & TILT LINKAGE POSITION SENSORS BUT BOTH KICKOUTS ARE WORKING.
  Control Linkage	●●●
  Hose Lines	●● THE AUX CIRCUIT IS MISSING THE HOSES FROM THE TOWER TO THE STEEL TUBES ON LOADER ARMS.
  Hoses & Tubes - HYDRAULICS	●●
  Lift Cylinders	●●●
  Overall Operating Condition	●●
  Pumps & Valves	●● ORIGINAL.
  Tank	●●●
  Tilt Cylinder	●●●

• BUCKET

  Item	Condition
  High Lift	Yes
  Notes - BUCKET	THE LOADER ARM, LINKAGES AND COUPLER ARE FUNCTIONAL OVERALL.
  Bucket Linkage - BUCKET	●● THE PLAY IN THE LOWER LOADER ARM TO COUPLER JOINTS AND TILT LINKAGE IS MINOR
  Loader Frame	●● THE TILT LEVEL SUPPORT IS HEAVILY PLATED & WELDED TO THE LOADER FRAME CROSS TUBE.
  Loader Pins & Bushings	●●● THE LIFT CYLINDER JOINTS AND UPPER TOWER JOINTS ARE TIGHT TO MINIMAL PLAY.
  Quick Coupler	●●

• FINAL DRIVES

  Item	Condition
  Notes - FINAL DRIVES	AXLES OVER FILLED
  Differentials	● ORIG WITH POOR SAMPLING.
  Front Axle	● LAST SAMPLE HAD HIGH PARTICLE COUNTS. OIL WAS CHANGED AT 18169 HOURS.
  Rear Axle	● OIL CHANGED & SAMPLED AT 17761 HOURS. SAMPLE RETURNED WITH HIGH PARTICAL COUNT
  Trunion	● PLAY CAN BE SEEN.

• COMMENTS, MISC. REPAIRS, GENERAL REMARKS

  Item	Condition
  comment 1	PREVIOUS DEMOLITION COMPANY MACHINE
