Condition

• GENERAL CONDITION

  Item	Condition
  ET Product Status Report Download	Yes
  Logged / Active Codes	Yes No active codes
  Machine Starts and is Operable	Yes
  S.O.S. (All Compartments)	Yes Sampled engine, hyd, and power train
  Visible Oil Leaks	No
  Body	●●●
  Frame	●●●
  General	●●●

• GENERAL APPEARANCE

  Item	Condition
  Notes - GENERAL APPEARANCE	Belly pans full of dirt
  Battery Box	●●●
  Belly Pans	●●●
  Bumper	●●●
  Cab or Canopy	●●●
  Decals	●●●
  Engine Enclosures	●●●
  Fenders	●●● Left side has minor damage
  Fuel Tank	●●●
  Grab Irons	●●●
  Hard Nose P&B	●●●
  Hood	●●●
  Main Frame Welds	●●●
  Paint	●●●
  Pre-Cleaner Bowl	●●●
  Radiator Grill	●●●
  Screens	●●●
  Sheet Metal	●●
  Steps / Ladder	●●●
  Transmission Guard	●●●

• SAFETY ITEMS

  Item	Condition
  Parking Brake Functioning	Yes
  ROPS Certification Plate	Yes
  Safety Decals In Place	Yes
  Safety Decals Legible	Yes
  Safety Locks / Pins	Yes
  Service Brakes Functioning	Yes
  Back Up Alarm	●●●
  Camera(s)	●●●
  Horn	●●●
  ROPS	●●●
  Seat Belt / Date	●●●
  Secondary Exit	●●●

• OPERATOR STATION

  Item	Condition
  Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION	7/8 full
  Fuel Level - OPERATOR STATION	7/8 full
  Current O&MM	Yes
  Sound Proofing	Yes
  Air Conditioner	●● Cooling 60F. Poor air flow in cab.
  Armrests	●● Right side arm rest slide adjust doesn't work. Left side cable is hard to disengage
  Cab Filter / Heat Vent Louvres	●●●
  Dash Console	●●● Rear plastic is busted
  Door Latches / Hinges / Seals	●●●
  Floor Boards / Mats	●●●
  Gauges	●●●
  Headliner	●●●
  Heater / Defroster	●● Poor air flow in cab.
  Hour Meter - GAUGES, OPERATION STATION, CONSOLE	●●●
  Hydraulic Controls	●●●
  Interior Lights	●●●
  Interior Plastic / Fabric	●●●
  Mirrors	●●●
  Monitoring Display	●●●
  Pans/Guards	●●●
  Radio	●●●
  Seat Cushions / Suspension / Type	● Seat comfort control switches are broken.
  Switches	●●●
  Transmission Controls	●●●
  Visor / Sunshade	●●●
  Windows	●●●
  Windshield Wipers	●● Door and rear washers don’t spray.

• ENGINE

  Item	Condition
  Blow By	No
  Emissions Decal Legible	Yes
  Fuel Leaks	No
  Knocking	No
  Oil Leaks	Yes Level 2 leak at hose on right side of engine
  Water in Oil	No
  Oil Pressure (H/L/N)	Normal
  Smoke Color (B/D/L/W)	Normal
  Belts / Pulleys - ENGINE	●●●
  Engine Oil Level / Condition	●●●
  Engine Supports / Mounts	●●●
  Exhaust / Muffler / Stack	●●●
  Fuel Injection System	●●●
  Governor	●●●
  Intake / Air Filters	● Clamp on right rear of engine for the intake tube fell off and is wedged against the pipe. Pipe is dented
  Operating Condition - ENGINE	●●●
  Turbocharger / Blower	●●●

• STRUCTURAL - (OPTIONAL) - LOADING IMPLEMENTS

  Item	Condition
  Display	●●●
  GNSS Antennas #1	●●●
  GNSS Antennas #2	●●●
  GNSS Receiver #1	●●●
  GNSS Receiver #2	●●●
  GPS Radio	●●●
  Sensor Blade	●●●

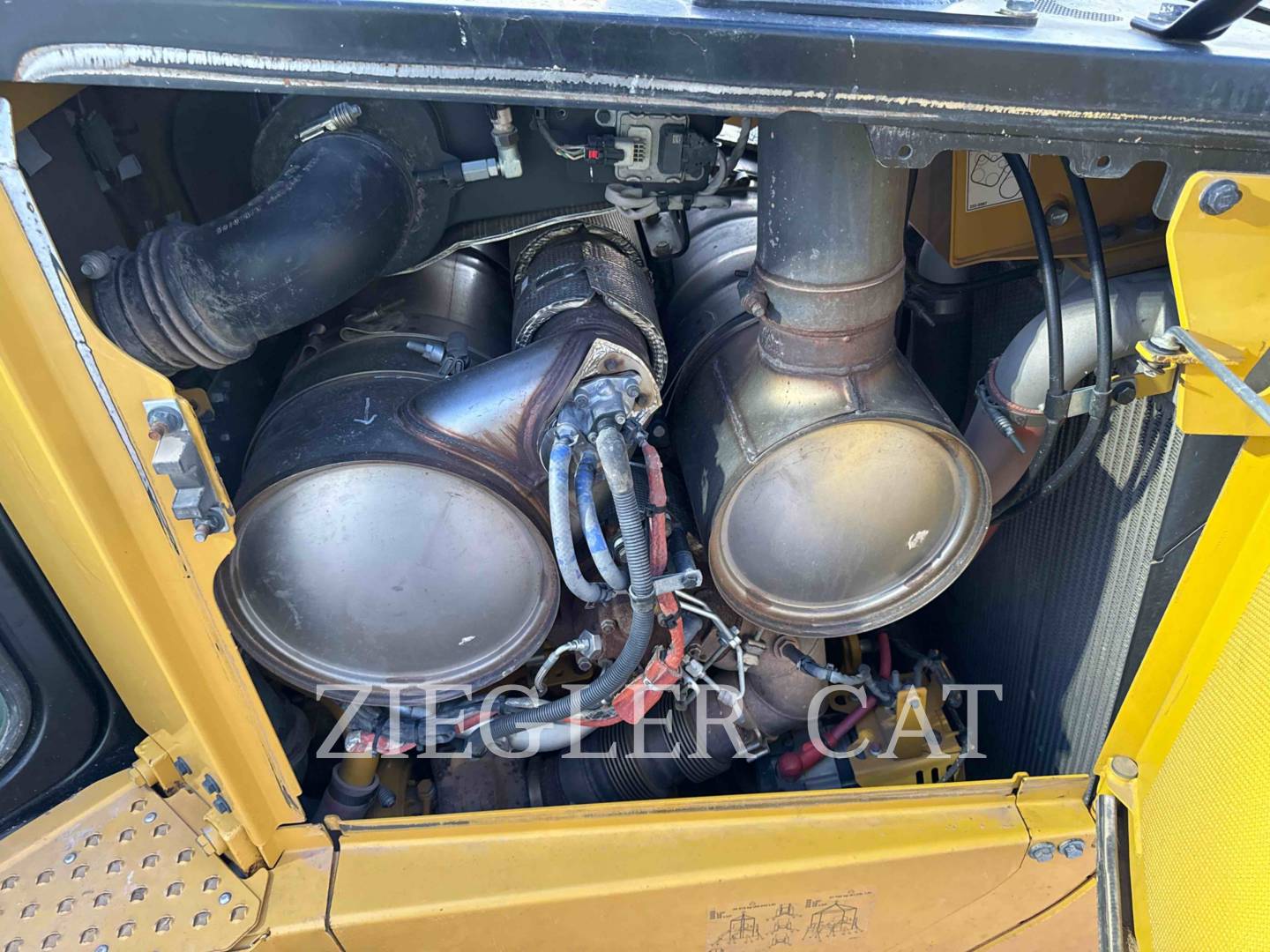

• EMISSIONS

  Item	Condition
  Aftertreatment System Codes	No
  Leaks / Type	No
  Aftertreatment Heat Shields / Guards	●●●
  DEF Lines / Wiring	●●●
  Diesel Exhaust Fluid (DEF) Tank	●●●
  Diesel Particulate Filter (DPF) Condition / Service Hours	●●● Last ash service at 4980 hrs

• COOLING SYSTEM

  Item	Condition
  Compression in Radiator	No
  Coolant Leaks	No
  Oil in Anti-Freeze	No
  Standard Radiator	Yes
  Anti-Freeze Level / Color / Condition	●●● -35F
  Belts / Pulleys - COOLING SYSTEM	●●●
  Coolers	●●●
  Fan	●●●
  Fan Drive / Type	●●●
  Fan Shrouds / Guards	●●●
  Hoses / Tubes	●●●
  Radiator	●●●
  Water Pump	●●●

• ELECTRICAL, STARTING AND CHARGING SYSTEM

  Item	Condition
  Active Codes	No
  Block Heater	Yes
  Ether Aid	Yes
  Alternator	●●●
  Batteries / Cables	●●●
  Pre-Heater	●●●
  Product Link / Condition	●●●
  Starter	●●●
  Wiring	●● ECM wires rubbing a tube.
  Work Lights	●●●

• TRANSMISSION

  Item	Condition
  Leaks - TRANSMISSION	No
  Transmission - Noisy	No
  Notes - TRANSMISSION	Electric drive.
  Controls - TRANSMISSION	●●●
  Cooler	●●●
  Lines / Fittings - TRANSMISSION	●●●
  Operating Condition - TRANSMISSION	●●●
  Pump - TRANSMISSION	●●●
  Temp / Pressure Gauges	●●●
  Transmission - Forward Shifts	●●●
  Transmission - Reverse Shifts	●●●

• STEERING

  Item	Condition
  Differential Steer	●●●
  Differential Steering Controls	●●●
  Pump / Motor	●●●
  Steering Operating Condition	●●●
  Steering Valve	●●●

• BRAKE

  Item	Condition
  Parking Brake Operation	●●●
  Service Brake Operation	●●●

• HYDRAULICS

  Item	Condition
  Leaks - HYDRAULICS	No
  Control Linkage - HYDRAULICS	●●●
  Hose Lines	●●●
  Hydraulic Valves	●●●
  Lift Cylinders	● Right lift cylinder has level 2 leak as rod is scored
  Mounts / Yokes	●● 1/16-1/8” play
  Overall Operating Condition	●● When going into float the machine picks up first then let’s go into float
  Pumps	●●●
  Tank / Sight Glass / Cap	●●●
  Tilt Cylinder	●● 1/8” play

• BLADE

  Item	Condition
  Back of Blade	●●●
  Cutting Edge & Bits	●● Can be turned.
  Face / Moldboard	●●●
  Push Arm	●●●
  Spill Rack	●●●
  Tilt Arms	●● 1/8” play
  Trunnions	●● 3/16 movement in push arm to Trunnion. Shims can be removed

• RIPPER / GRAPPLE / WINCH

  Item	Condition
  Notes - RIPPER / GRAPPLE / WINCH	Diamond ripper, 3 shank
  Beam / Frame	●●●
  Lines / Fittings - RIPPER / GRAPPLE / WINCH	●●● Ripper lines rub
  Pins & Bushings	●● Upper left front bushing don’t take grease, lower rear left bushing don’t take grease.
  Ripper Lift Cylinder	●● Retainer plate for rod end pin has a bolt broken off.
  Shanks / Get	●●●

• UNDERCARRIAGE

  Item	Condition
  Pins & Bushings Turned?	No
  Equalizer Bar	Tight. 1/16” play in pins and bushings
  Link / Brand / Part Number	248-2307
  Guiding Guard - Left	●●● Left front is bent
  Guiding Guard - Right	●●●
  Track Frame - Left	●●●
  Track Frame - Right	●●●
  Carrier Rollers Front	Left     Right
  Idlers Front	Left     Right
  Idlers Rear	Left     Right
  Links	Left     Right
  Pins & Bushings (External)	Left     Right
  Track Roller 1	Left     Right
  Track Roller 2	Left     Right
  Track Roller 3	Left     Right
  Track Roller 4	Left     Right
  Track Roller 5	Left     Right
  Track Roller 6	Left     Right
  Track Roller 7	Left     Right
  Track Roller 8	Left     Right
  Track Shoe Grouser Height	Left     Right

• FINAL DRIVES

  Item	Condition
  Magnetic Plugs Removed & Checked?	Yes
  Housings, Left	●●●
  Housings, Right	●●●
  Planetaries / Differential, Left	●●●
  Planetaries / Differential, Right	●●●

• COMMENTS, MISC. REPAIRS, GENERAL REMARKS

  Item	Condition
  comment 1	Has Trimble 3d. All components were reporting in monitor.
