Condition

• GENERAL CONDITION

  Item	Condition
  ET Product Status Report Download	No
  Machine Starts and is Operable	Yes
  S.O.S. (All Compartments)	Yes
  VIDS/VIMS Download Available	No
  Body	●●●
  Frame	●●●
  General	●●●

• GENERAL APPEARANCE

  Item	Condition
  Cleaning Required	No
  Extra Fuel Tanks	No
  S.O.S. Taken	Yes
  Cab or Canopy	●●●
  Car Body	●●●
  Catwalk	●●●
  Counterweight	●●● Some scrapes in paint good for age and hours
  Crankcase Guard / Battery Box	●●●
  Draw Bar	●●●
  Engine Doors	●●●
  Fuel Tank	●●●
  Grab Irons	●●●
  Main Frame Welds	●●●
  Paint	●●● Good for hours on machine
  Radiator Grill & Shroud	●●●
  Sheet Metal	●● Right front panel dented, several panels under machine are bent. no affect on operation
  Steps / Ladder	●●●

• SAFETY ITEMS

  Item	Condition
  Back Up Alarm Functioning	Yes
  Brakes Functioning	Yes
  Cab Guards	No
  ROPS	Yes
  Safety Decals In Place	Yes
  Safety Decals Legible	No
  Brake Hold	●●●
  Glass / Mirrors	●●●
  Horn	●●●
  Parking Brake	●●●
  ROPS	●●●
  Seat Belt - SAFETY ITEMS	●●●
  Swing Brake	●●●

• OPERATOR STATION

  Item	Condition
  Back Up Alarm	Yes
  Current O&MM	Yes
  Current Parts Manual	No
  Current Safety Manual	No
  ROPS Certification Plate	Yes
  Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION	NA
  Fuel Level - OPERATOR STATION	3/4 tank of fuel
  Air Conditioner	●●●
  Dash Console	●●●
  Door Latches	●●●
  Door Latches & Hinges	●●●
  EMS Panel / Warnings	●●●
  Floor Boards	●●●
  Floor Mats	●●●
  Gauges	●●●
  Glass/Mirrors	●●●
  Heater	●●●
  Interior Lights	●●●
  Meter	●●●
  Seat Belt - OPERATOR STATION	●●●
  Seat Cushion / Arm Rest	●● Has a seat cover on it.
  Switches	●●●
  Travel Controls (Type)	●●●
  Windshield Wipers	●●●

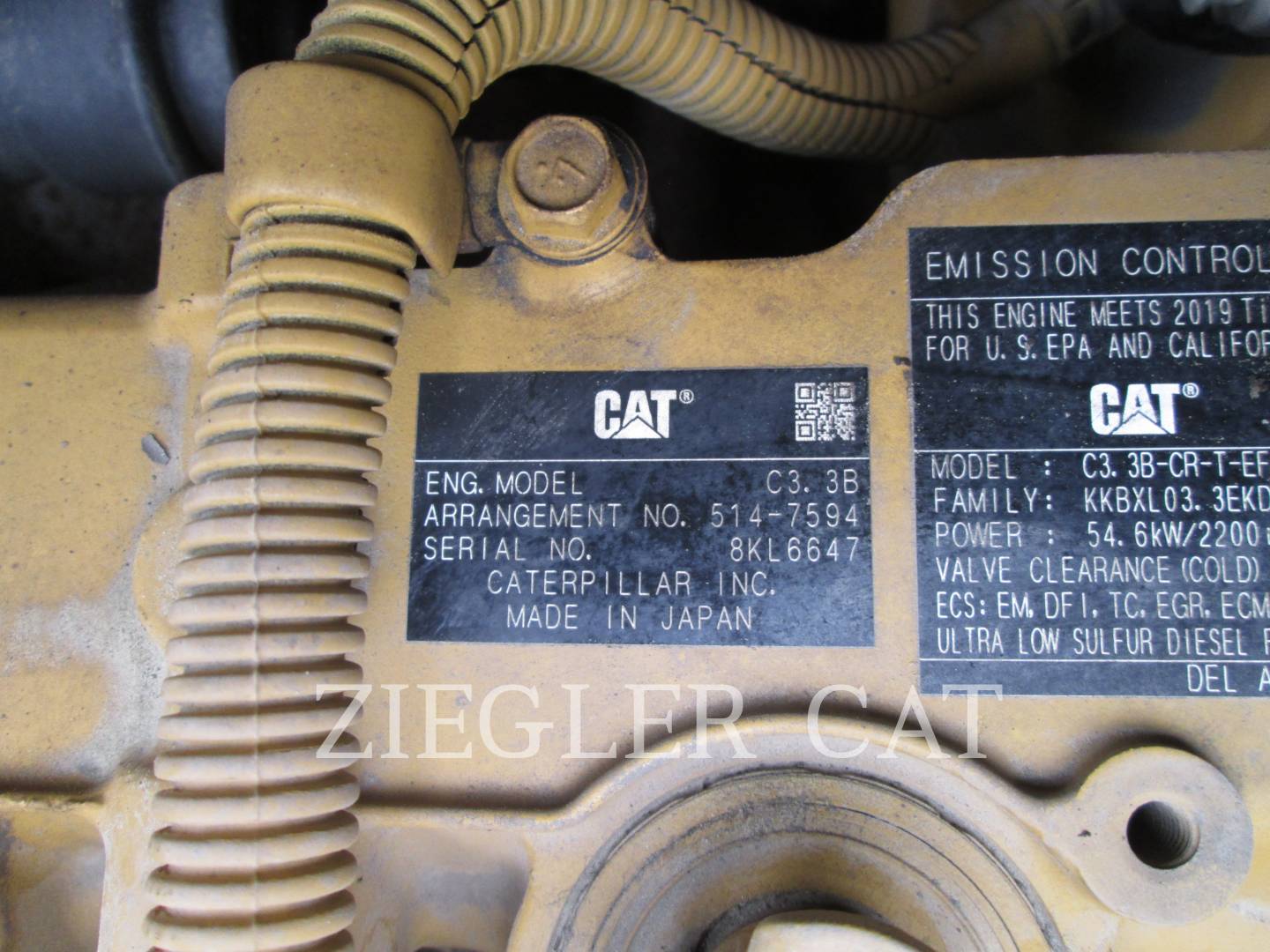

• ENGINE

  Item	Condition
  Anti-Freeze Color	Pink
  Diesel Exhaust Fluid (DEF) Level - ENGINE	NA
  Fuel Level - ENGINE	3/4 tank of fuel
  Hours On Engine	5399
  Oil Pressure (H/L/N)	Normal
  Smoke (B/D/L/W)	Normal
  Blow By	No
  Compression in Radiator	No
  Emissions Decal	Yes
  Engine Oil Level Full	Yes
  Fluid Levels OK?	Yes
  Fuel Leaks	No
  Knocking	No
  Oil Leaks	No
  Water in Oil	No
  Air Cleaners	●●●
  Belts / Pulleys - ENGINE	●●●
  Engine Supports	●●●
  Exhaust / Muffler	●●●
  Fuel Injection System	●●●
  Fuel System	●●●
  Governor	●●●
  Operating Condition - ENGINE	●●●
  Turbocharger	●●●
  Turbocharger / Blower	●●●

• COOLING SYSTEM

  Item	Condition
  Leaks	No
  Belts / Pulleys - COOLING SYSTEM	●●●
  Coolers	●●●
  Fan	●●●
  Fan Drive	●●●
  Hoses	●●●
  Hoses & Tubes - COOLING SYSTEM	●●●
  Hydraulic Fan Drive	●●●
  Radiator	●●●
  Water Pump	●●●

• ELECTRICAL, STARTING AND CHARGING SYSTEM

  Item	Condition
  Block Heater	Yes
  Ether Aid	No
  Alternator	●●●
  Batteries / Cables	●●●
  Lighting	●●●
  Pre-Heater	●●●
  Starter	●●●
  Starter Electric	●●●
  Wiring	●●●

• HYDRAULICS

  Item	Condition
  Center Swing Motor Hours (5230 only)	5399
  Implement Pump Hours	5399
  Pilot Pump Hours	5399
  Pump Drive Hours	5399
  Swivel Hours	5399
  Boom Cylinder	●●●
  Bucket Cylinder	●● Bent tube on cylinder. No leaks and still functions.
  Control Linkage	●●●
  Hose Lines	●●●
  Hydraulic Swivel	●●●
  Operating Condition - HYDRAULICS	●●●
  Pump Drive	●●●
  Pumps & Valves	●●●
  Stick Cylinder	●●●
  Swing Gear	●●●
  Swing Motors	●●●
  Tank	●●●
  Travel Motors	●●●

• ATTACHMENTS / WORK TOOLS

  Item	Condition
  Auger	No
  Claw	No
  Crusher	No
  Grapple	No
  Hammer	No
  Pulverizer	No
  Rake	No
  Ripper	No
  Shear	No
  Thumb	No
  Tilting Ditch Bucket	No
  Vibratory Plate	No

• BOOM & STICK

  Item	Condition
  Boom Cracked	No
  Stick Cracked	No
  Boom Lower Pins & Bushings	●● Movments in pins and bushing but good for age and hours.
  Boom Upper Pins & Bushings	●● Movments in pins and bushing but good for age and hours.
  Stick Pins & Bushings (Boom End)	●● Movments in pins and bushing but good for age and hours.
  Stick Pins & Bushings (Bucket End)	●● Movments in pins and bushing but good for age and hours.

• BOOM

  Item	Condition
  Boom Condition	●●●
  Boom Pins	●● Movments in pins and bushing but good for age and hours.
  Pins & Bushings - BOOM	●● Movments in pins and bushing but good for age and hours.

• STICK

  Item	Condition
  Pins & Bushings - STICK	●● Movments in pins and bushing but good for age and hours.
  Stick Conditions	●●●
  Stick Pins	●● Movments in pins and bushing but good for age and hours.

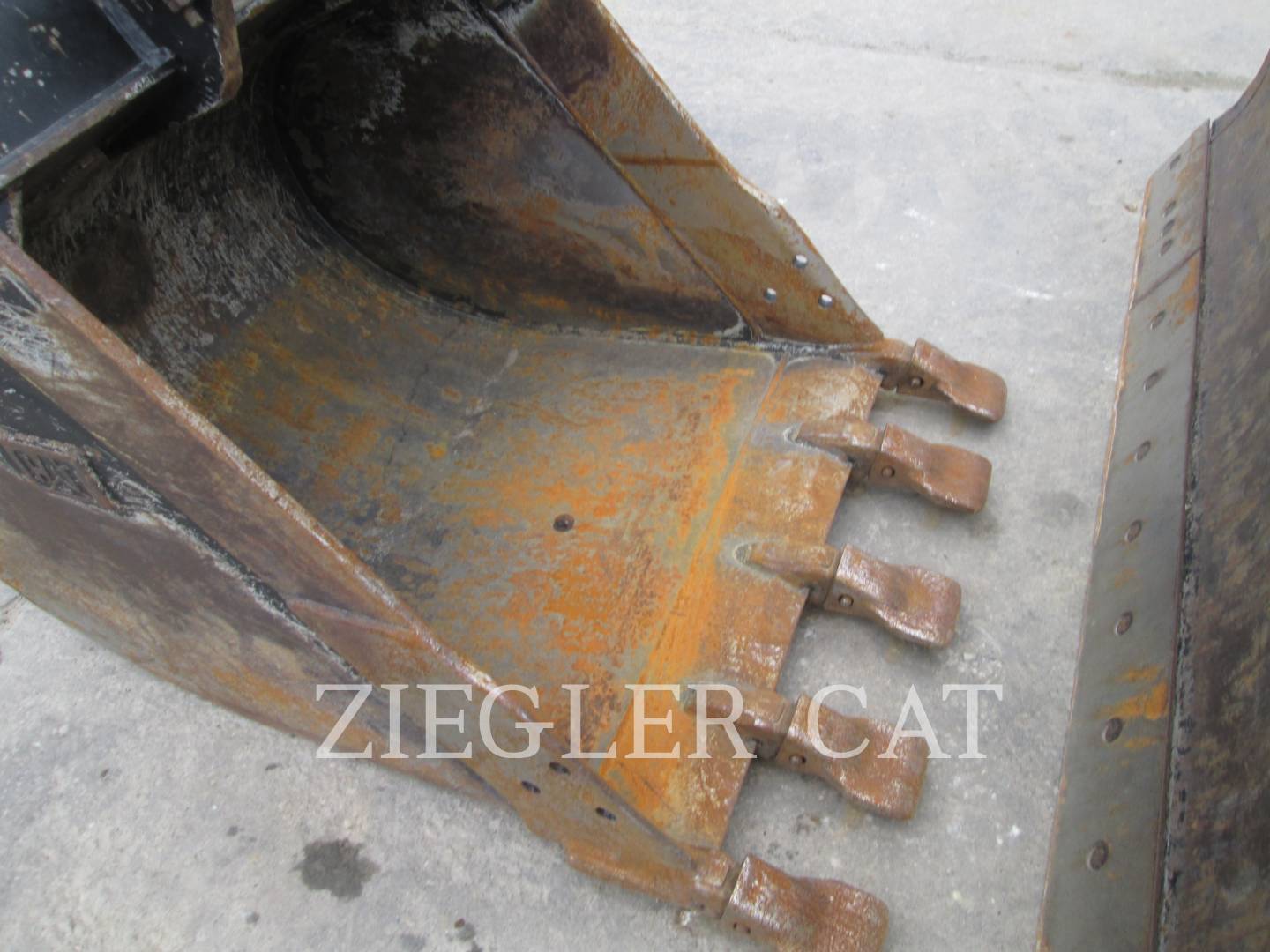

• BUCKET

  Item	Condition
  Quick Coupler	No
  Bucket Bottom	●● Dent in bottom back of bucket. Still functions
  Bucket Linkage	●● Slight play in them
  Bucket Sides	●●●
  Teeth / Adapters	●● Some wear it teeth. Good for age and hours

• UNDERCARRIAGE

  Item	Condition
  Notes - UNDERCARRIAGE 1	Stuck track link, marked with paint marker.
  Track Shoes	Some bent shoes and broken corners on shoes.

• FINAL DRIVES

  Item	Condition
  Left Final Drive Hours	5399
  Left Final Drive Motor Hours	5399
  Right Final Drive Hours	5399
  Right Final Drive Motor Hours	5399
  Chip Detectors Operational	No
  Left Final Drive Mag Plug Inspected	No
  Right Final Drive Mag Plug Inspected	No
  Drive Motors	●●●
  Housings	●●●
  Planetaries	●●●
  Planetaries / Diff	●●●

• COMMENTS, MISC. REPAIRS, GENERAL REMARKS

  Item	Condition
  comment 1	Blade does not come down equal.
