Condition

• GENERAL CONDITION

  Item	Condition
  ET Product Status Report Download	Yes
  Machine Starts and is Operable	Yes
  Body	●●●
  Frame	●●●
  General	●●

• GENERAL APPEARANCE

  Item	Condition
  Notes - GENERAL APPEARANCE	THE MACHINE HAS SOME DENTS AND BENDS TO THE FENDERS BUT OVERALL STRAIGHT
  Belly Pans	●●●
  Cab or Canopy	●●● AFTERMARKET CAB.
  Decals	●●●
  Draw Bar	●●●
  Engine Enclosures	●●●
  Fenders	●● BENT MODERATLY BUT FUNCTIONAL
  Fuel Tank	●●●
  Grab Irons	●●
  Hard Nose P&B	●● FUNCTIONAL FOR THE AGE, HRS AND VALUE.
  Hood	●●●
  Main Frame Welds	●●●
  Paint	●●● MACHINE WAS PAINTED AT SOME POINT.
  Pre-Cleaner Bowl	●● COVER IS DENTED.
  Radiator Grill	●●●
  Sheet Metal	●●●

• SAFETY ITEMS

  Item	Condition
  Parking Brake Functioning	Yes
  ROPS Certification Plate	Yes CERTIFICATION IS IN PLACE.
  Safety Decals In Place	Yes
  Safety Decals Legible	Yes
  Service Brakes Functioning	Yes
  Back Up Alarm	● NOT WORKING.
  Horn	● NOT WORKING.
  ROPS	●●● THE ROPS ARE CLEAN.
  Seat Belt / Date	●● FUNCTIONAL.

• OPERATOR STATION

  Item	Condition
  Current O&MM	No
  Notes - GAUGES, OPERATOR STATION, CONSOLE	THE CUSTOMER INSTALLED A DIAMOND CAB. IT IS INSTALLED CORRECTLY UTILIZING FACTORY WELD LUGS ON THE CANOPY ROPS.
  Air Conditioner	●●● EVAPORATOR COIL WAS REPLACED AT 9069 HOURS.
  Armrests	●●
  Cab Filter / Heat Vent Louvres	●●
  Dash Console	●●●
  Door Latches / Hinges / Seals	●●●
  Floor Boards / Mats	●●
  Gauges	●●●
  Headliner	●●●
  Heater / Defroster	●●●
  Hour Meter - GAUGES, OPERATION STATION, CONSOLE	●●● ACCURATE
  Hydraulic Controls	●●●
  Interior Lights	●●●
  Monitoring Display	●●●
  Pans/Guards	●●●
  Seat Cushions / Suspension / Type	●● THE SEAT CUSHIONS ARE POOR. THE SUSPENSION IS FUNCTIONAL.
  Switches	●●●
  Transmission Controls	●●●
  Windows	●●●
  Windshield Wipers	●●

• ENGINE

  Item	Condition
  Blow By	Yes MINOR OVERALL.
  Emissions Decal Legible	Yes THE LABEL IS TORN.
  Fuel Leaks	No
  Knocking	No
  Oil Leaks	No
  Water in Oil	No
  Notes - ENGINE	THE HEAD GASKET WAS REPLACED AROUND 7065 HOURS. THE ENGINE IS RUNNING SMOOTH WITH NORMAL POWER.
  Oil Pressure (H/L/N)	NORMAL
  Smoke Color (B/D/L/W)	NORMAL
  Engine Oil Level / Condition	●●●
  Engine Supports / Mounts	●●●
  Exhaust / Muffler / Stack	●●●
  Fuel Injection System	●●● NEW INJECTION PUMPS INSTALLED IN THE FUEL PUMP AROUND 9005 HOURS
  Governor	●●● GOVERNOR WAS RECONDITIONED AS NEEDED AROUND 9005 HOURS.
  Intake / Air Filters	●●● THE AIR FILTERS ARE NEW.
  Operating Condition - ENGINE	●●●
  Turbocharger / Blower	●●●

• COOLING SYSTEM

  Item	Condition
  Compression in Radiator	No
  Coolant Leaks	No
  Modular Radiator	Yes
  Oil in Anti-Freeze	No
  Notes - COOLING SYSTEM	THE COOLING SYSTEM IS PERFORMING NORMAL IN 80 DEGREE WEATHER.
  Anti-Freeze Level / Color / Condition	●●● NORMAL COLOR & LEVEL.
  Belts / Pulleys - COOLING SYSTEM	●● WEAR IN THE PULLEYS.
  Coolers	●●●
  Fan	●●●
  Fan Drive / Type	●●● MECHANICAL.
  Fan Shrouds / Guards	●●
  Hoses / Tubes	●●●
  Radiator	●● ORIG
  Water Pump	●●●

• ELECTRICAL, STARTING AND CHARGING SYSTEM

  Item	Condition
  Active Codes	No
  Block Heater	Yes
  Ether Aid	Yes NO CAN.
  Alternator	●●●
  Batteries / Cables	●●●
  Starter	●●●
  Wiring	●●
  Work Lights	●●●

• TRANSMISSION

  Item	Condition
  Auto Shift	Yes
  Leaks - TRANSMISSION	No
  Powershift	Yes
  Transmission - Noisy	No
  Notes - TRANSMISSION	THE TRANSMISSION IS ORIGINAL AND SHIFTING FAIR TO NORMAL. THE OIL HAS 2,381 HOURS OF SERVICE. SAMPLED DURING INSPECTION AND CAME BACK POOR WITH METALS.
  Case	●●●
  Controls - TRANSMISSION	●● THE TILLER HAS MODERATE PLAY BUT FUNCTIONAL
  Cooler	●●●
  Lines / Fittings - TRANSMISSION	●●●
  Operating Condition - TRANSMISSION	●●
  Pump - TRANSMISSION	●●
  Seals	●●●
  Temp / Pressure Gauges	●●●
  Torque Converter (Stall Speed)	●●● STALL SPEED 1,665 RPM SO IN SPEC.
  Transmission - Forward Shifts	●●
  Transmission - Reverse Shifts	●●
  Transmission Oil Filter Condition / Service Hours	●●
  Valves	●●●

• STEERING

  Item	Condition
  Notes - STEERING	THE MACHINE IS STEERING NORMAL WITH GOOD CONTROL.
  Differential Steer	●●●
  Differential Steering Controls	●●●
  Pump / Motor	●●●
  Steering Operating Condition	●●●
  Steering Valve	●●●

• BRAKE

  Item	Condition
  Holding What Gear?	HOLDS SECOND GEAR STALL.
  Parking Brake Operation	●●●
  Service Brake Operation	●●●

• HYDRAULICS

  Item	Condition
  Leaks - HYDRAULICS	Yes
  Notes - HYDRAULICS	THE IMPLEMENT PUMP WAS REPLACED WITH A REMAN AT 8593 HOURS WITH THE TANK BEING CLEANED OUT. THE IMPLEMENT HYDRAULICS ARE FUNCTIONING TO NORMAL
  Control Linkage - HYDRAULICS	●● THE IMPLEMENT CONTROL HAS LINKAGE PLAY BUT FUNCTIONAL
  Hose Lines	●● LEVEL 3 LEAK DRIPPING FROM BELLY PAN.
  Hydraulic Oil Filter Condition / Service Hours	● I SAMPLED THE HYDRAULIC OIL DURING THIS INSPECTION IT RETURNED WITH DEBRIS (RESIDUAL FROM IMPLEMENT PUMP REPLACEMENT). RECOMMEND OIL CHANGE AND RESAMPLE IN 100 HOURS.
  Hydraulic Valves	●●●
  Lift Cylinders	●●●
  Mounts / Yokes	●●● YOKES & MOUNTS OVERALL GOOD.
  Overall Operating Condition	●●●
  Pumps	●●●
  Tank / Sight Glass / Cap	●●●
  Tilt Cylinder	●●

• BLADE

  Item	Condition
  Back of Blade	●● THE BACK OF BLADE IS DENTED ON THE TOP.
  Cutting Edge & Bits	●● READY FOR A TURN.
  Face / Moldboard	●●●
  Pins	● THE STABILIZER PIN & TILT CYLINDER PIN ARE WORN.
  Push Arm	●● FUNCTIONAL. CENTER PUSH ARM TRUNNION IS FUNCTIONAL
  Trunnions	● THE REAR PUSH ARM TRUNNIONS ARE VERY WORN.

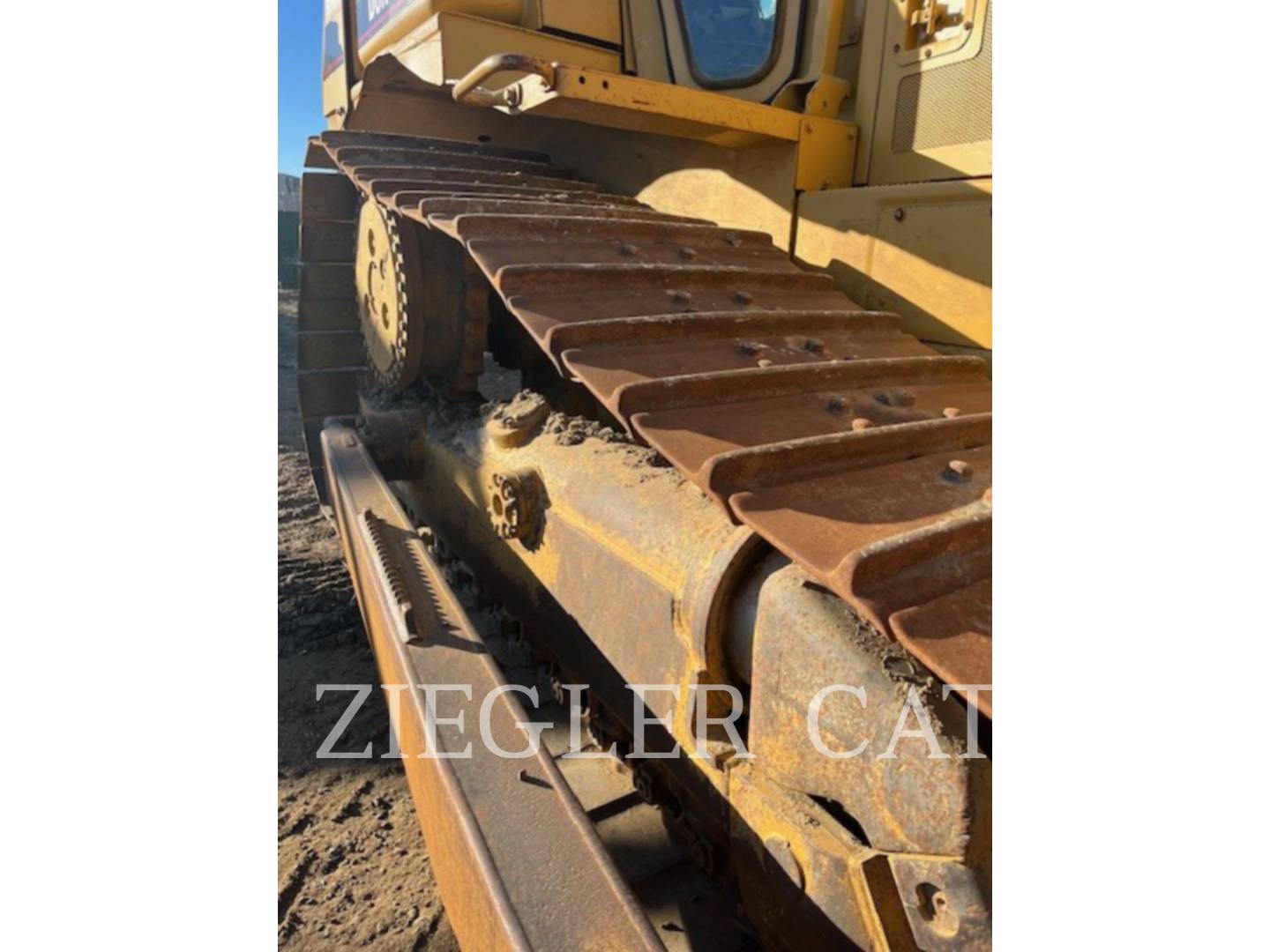

• UNDERCARRIAGE

  Item	Condition
  Pins & Bushings Turned?	No
  Cannon / Track Adjuster	DRY
  Equalizer Bar	THERE IS MOVEMENT IN THE CENTER PIN AND AROUND 1/8 INCH MOVEMENT IN THE OUTER JOINTS.
  Link / Brand / Part Number	BERCO CR5536 SALT LINKS.
  Pivot Shaft	DRY.
  Track Shoes Width / Type	30 INCH MODERATE SERVICE SHOES.
  Guiding Guard - Left	●●●
  Guiding Guard - Right	●● THE R.H. FRONT OUTER & BOTH REAR GUIDING GUARDS ARE BENT WITH WEAR STRIPS MISSING.
  Track Frame - Left	●●
  Track Frame - Right	●● THE EQUALIZER BAR POCKET IS DAMAGED ON THE R.H. FRAME.
  Carrier Rollers Front	Left     Right
  Idlers Front	Left     Right
  Idlers Rear	Left     Right
  Links	Left     Right
  Pins & Bushings (External)	Left     Right
  Segments	Left     Right
  Track Roller 7	Left     Right
  Track Shoe Grouser Height	Left     Right

• FINAL DRIVES

  Item	Condition
  Magnetic Plugs Removed & Checked?	Yes BOTH LOOK NORMAL.
  Notes - FINAL DRIVES	BOTH DRIVE OILS ARE LEVEL WITH MAGNETS LOOKING NORMAL.
  Housings, Left	●●●
  Housings, Right	●●●
  Planetaries / Differential, Left	●●
  Planetaries / Differential, Right	●●
