Condition

• GENERAL CONDITION

  Item	Condition
  ET Product Status Report Download	Yes
  Logged / Active Codes	Yes SEE TECHNOLOGY SECTION.
  Machine Starts and is Operable	Yes
  Visible Oil Leaks	No
  Body	●●●
  Frame	●●●
  General	●●●

• GENERAL APPEARANCE

  Item	Condition
  Cleaning Required	No
  Notes - GENERAL APPEARANCE	THE MACHINE IS CLEAN & LOOKS NICE.
  Bumper	●●●
  Car Body	●●●
  Catwalk	●●●
  Counterweight	●●●
  Crankcase Guard / Battery Box	●●●
  Decals	●●●
  Draw Bar	●●●
  Eng. Enclose Hood / Stack	●●●
  Engine Doors	●●●
  Fuel Tank	●●●
  Grab Irons	●●●
  Hood	●●●
  Main Frame Welds	●●●
  Paint	●●●
  Radiator Grill & Shroud	●●●
  Sheet Metal	●●●
  Steps / Ladder	●●●

• SAFETY ITEMS

  Item	Condition
  ROPS	Yes THE ROPS ARE CLEAN.
  ROPS Certification Plate	Yes CERTIFICATION IS IN PLACE.
  Safety Decals In Place	Yes
  Safety Decals Legible	Yes
  Camera(s)	●●●
  Horn	●●●
  Seat Belt / Date	●●●
  Travel Alarm	●●●

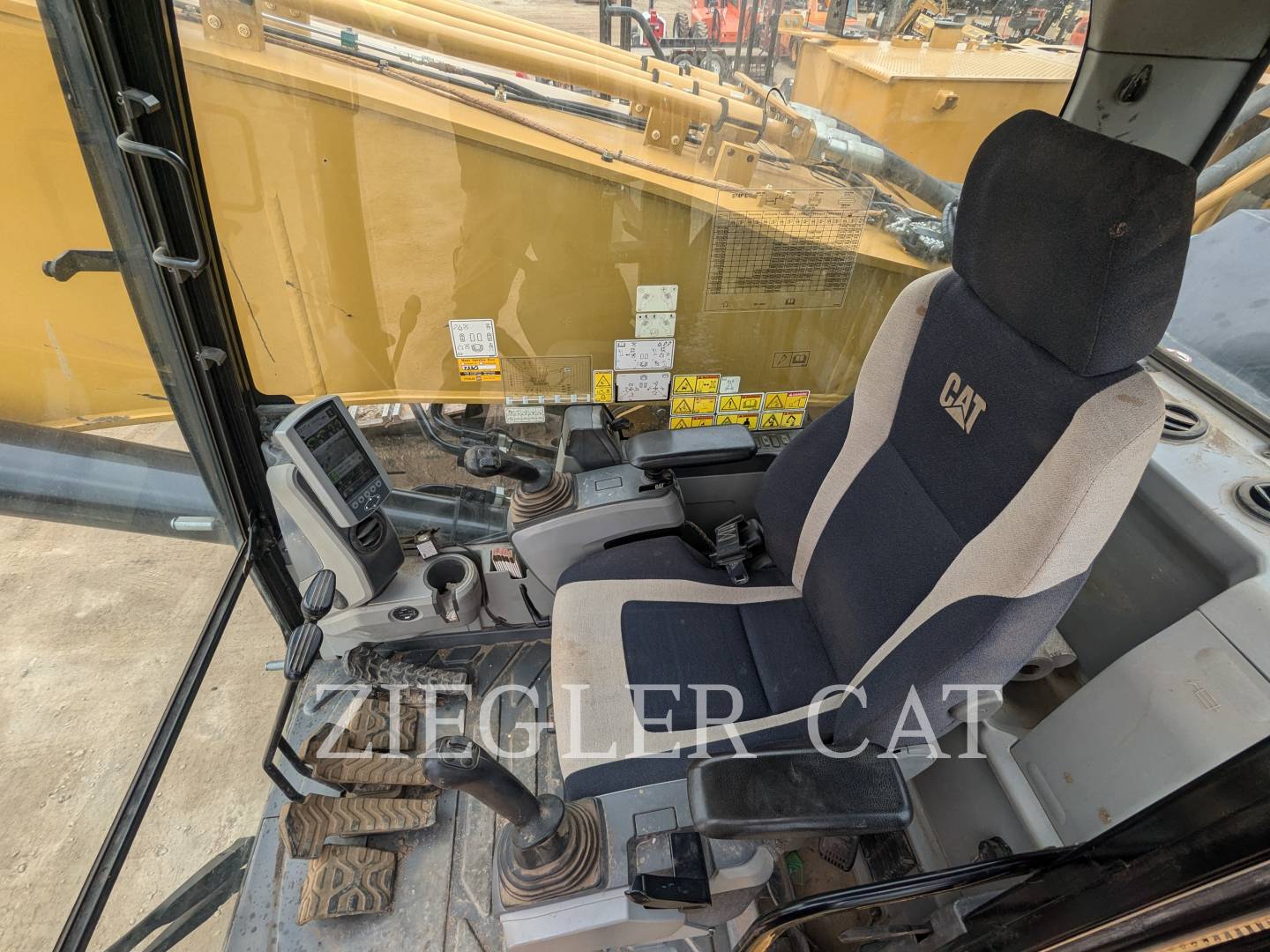

• OPERATOR STATION

  Item	Condition
  Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION	100%
  Fuel Level - OPERATOR STATION	100%
  Current O&MM	Yes
  Air Conditioner	●●● COOLING
  Armrests	●●●
  Cab Filter / Heat Vent Louvres	●●●
  Dash Console	●●●
  Door Latches / Hinges / Seals	●●●
  Floor Boards / Mats	●●●
  Gauges	●●●
  Headliner	●●●
  Heater / Defroster	●●●

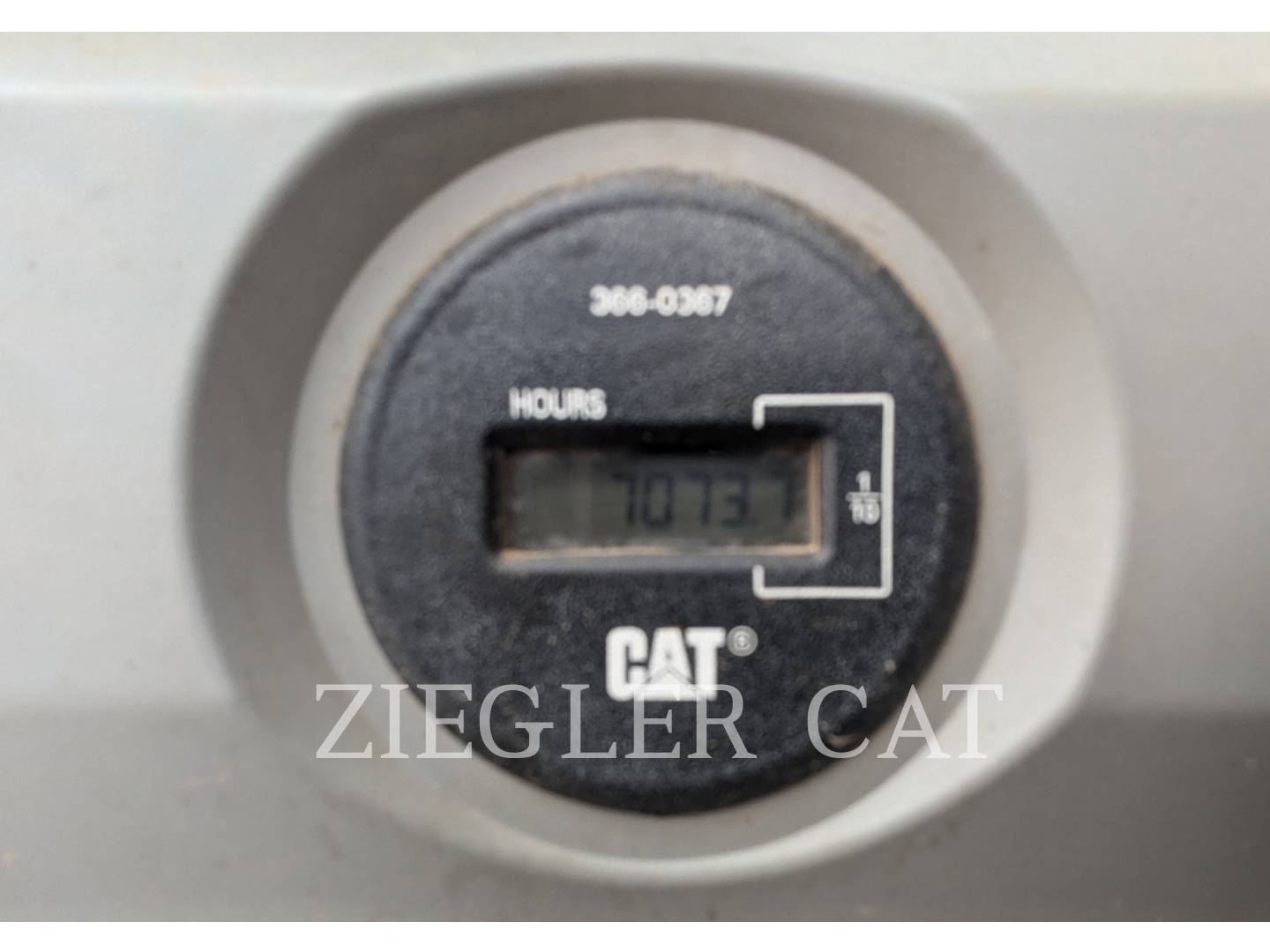

  Hour Meter - GAUGES, OPERATION STATION, CONSOLE	●●● ACCURATE.
  Hydraulic Controls	●●●
  Interior Lights	●●●
  Interior Plastic / Fabric	●●●
  Mirrors	●●●
  Monitoring Display	●●●
  Radio	●●●
  Seat Cushions / Suspension / Type	●●●

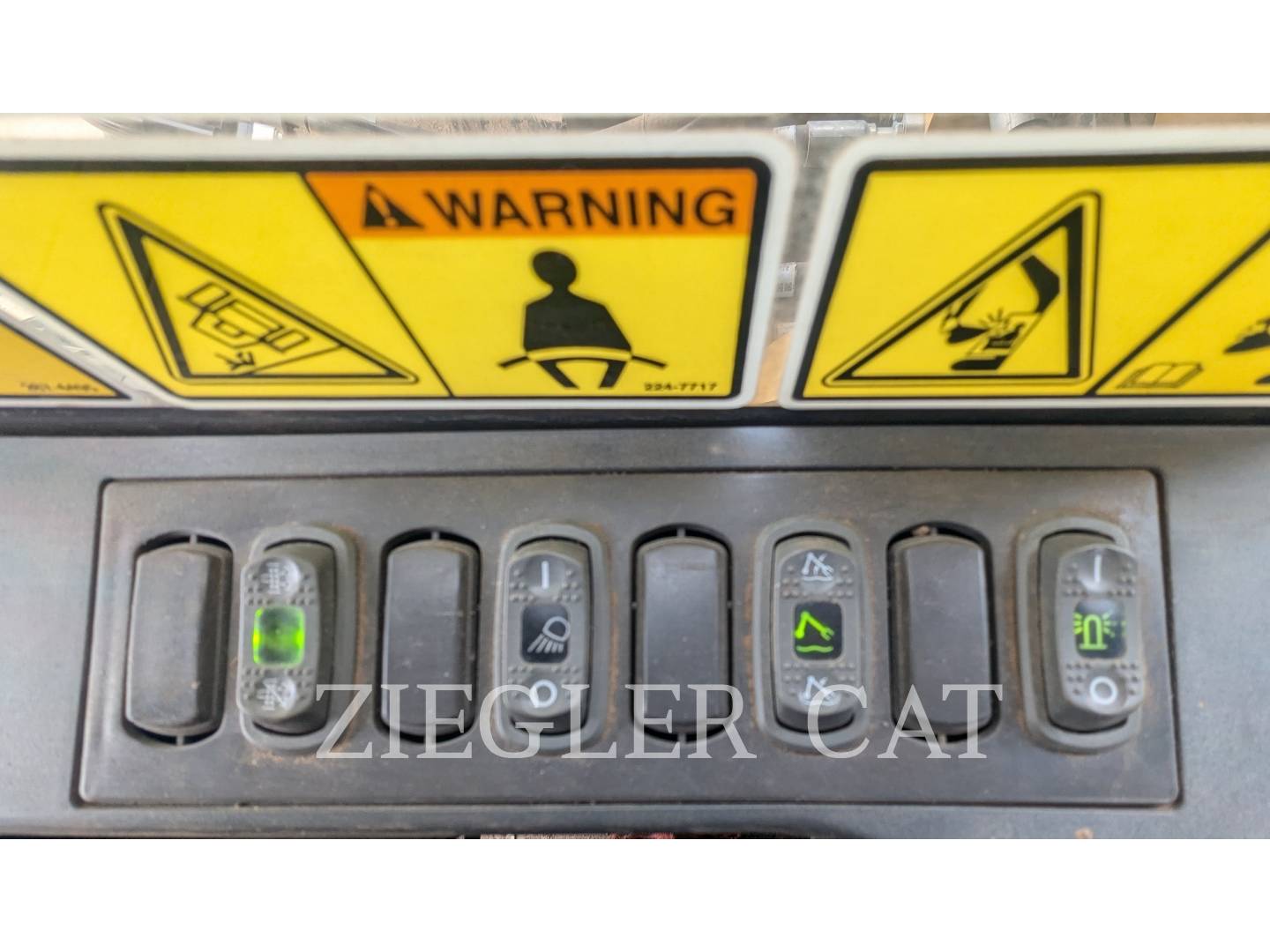

  Switches	●●●
  Travel Controls (Type)	●●●
  Windows	●●●
  Windshield Wipers	●●

• ENGINE

  Item	Condition
  Blow By	Yes MINIMAL
  Emissions Decal Legible	Yes TIER 4 FINAL.
  Fuel Leaks	No
  Has Engine been rebuilt?	No
  Knocking	No
  Oil Leaks	No
  Service Needed	No THE OIL WAS CHANGED & SAMPLED AT 7060 HOURS WITH SAMPLE RETURNING NORMAL.
  Water in Oil	No
  Notes - ENGINE	THE ENGINE IS RUNNING SMOOTH WITH GOOD POWER.
  Oil Pressure (H/L/N)	NORMAL
  Smoke Color (B/D/L/W)	NORMAL
  Belts / Pulleys - ENGINE	●●●
  Engine Oil Level / Condition	●●●
  Engine Supports / Mounts	●●●
  Exhaust / Muffler / Stack	●●●
  Fuel Injection System	●●●
  Governor	●●●
  Intake / Air Filters	●●
  Operating Condition - ENGINE	●●●
  Turbocharger / Blower	●●●

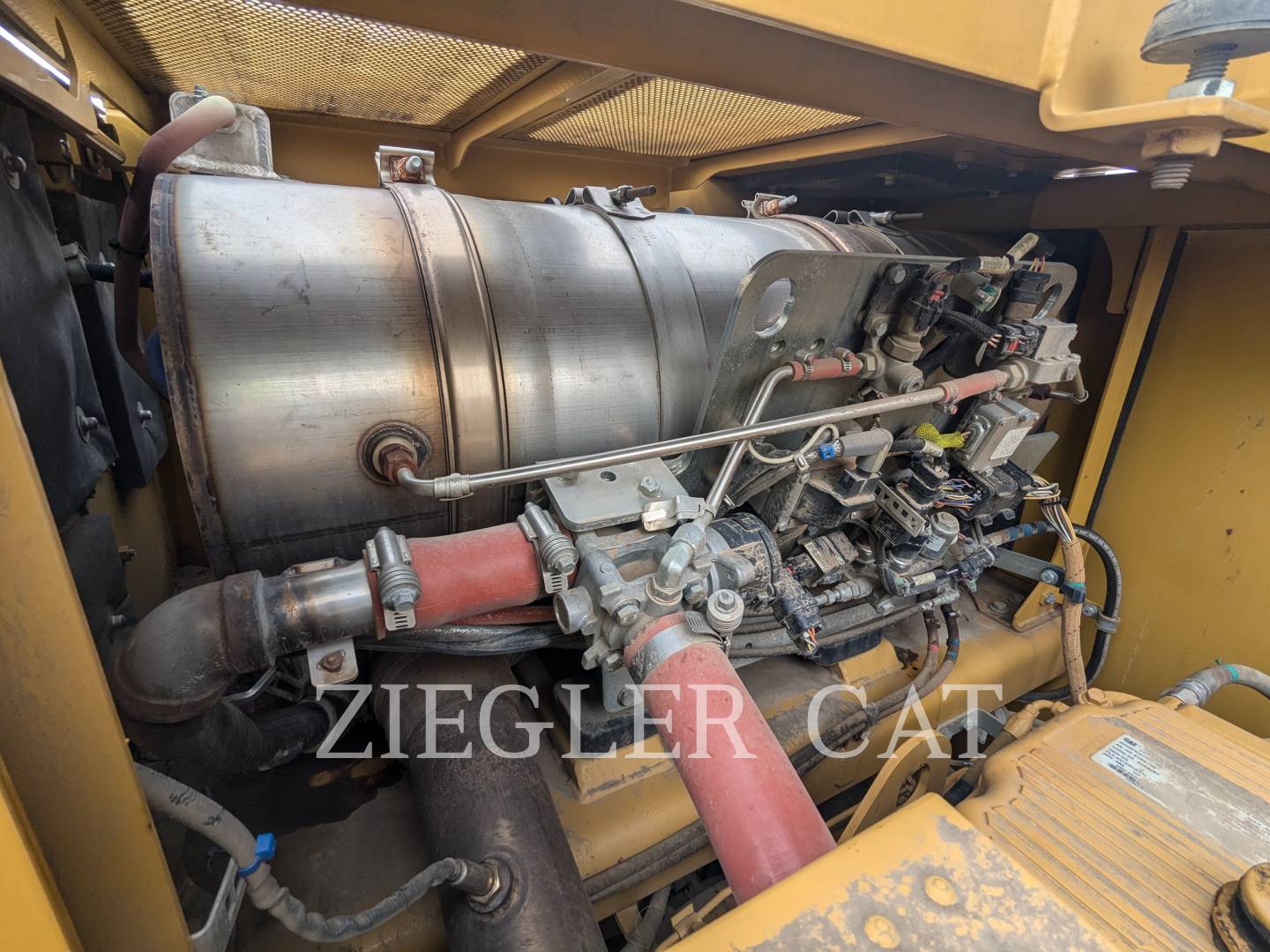

• EMISSIONS

  Item	Condition
  Aftertreatment System Codes	No
  Leaks / Type	No
  Notes - EMISSIONS	THE DPF FILTER WAS ASH SERVICED 10-22 AT 5567 HOURS. THE DEF MANIFOLD WAS REPLACED 5-23 AT 5660 HOURS. THE EMISSIONS SYSTEM IS FUNCTIONING NORMAL.
  Aftertreatment Heat Shields / Guards	●●●
  DEF Lines / Wiring	●●●
  Diesel Exhaust Fluid (DEF) Tank	●●●
  Diesel Particulate Filter (DPF) Condition / Service Hours	●●●

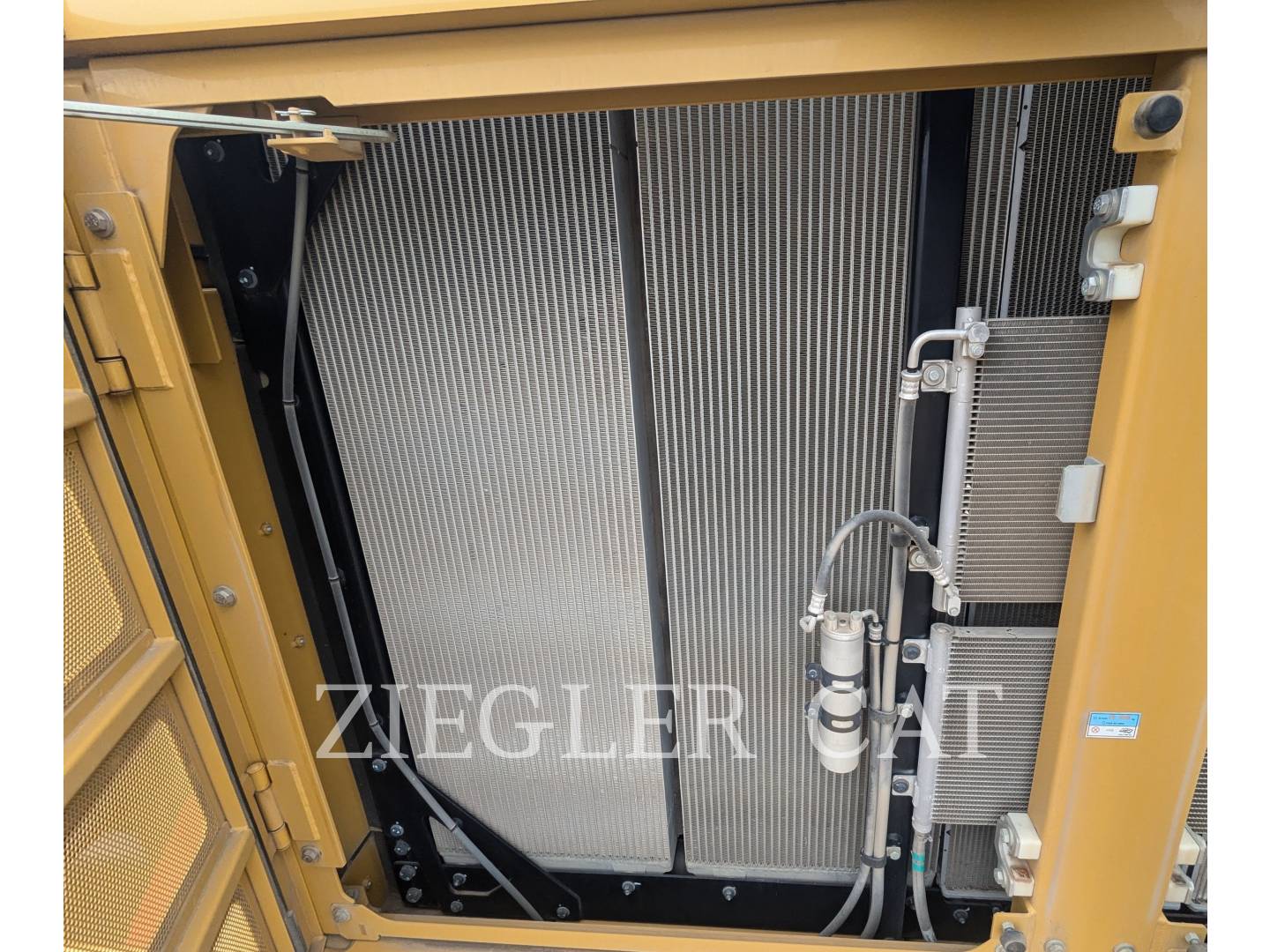

• COOLING SYSTEM

  Item	Condition
  Compression in Radiator	No
  Coolant Leaks	No
  Oil in Anti-Freeze	No
  Standard Radiator	Yes
  Notes - COOLING SYSTEM	THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 55 DEGREE WEATHER.
  Anti-Freeze Level / Color / Condition	●●● NORMAL COLOR.
  Belts / Pulleys - COOLING SYSTEM	●●●
  Coolers	●●●
  Fan	●●●
  Fan Drive / Type	●●●
  Fan Shrouds / Guards	●●●
  Hoses / Tubes	●●●
  Radiator	●●●
  Water Pump	●●●

• ELECTRICAL, STARTING AND CHARGING SYSTEM

  Item	Condition
  Block Heater	Yes
  Ether Aid	Yes
  Alternator	●●●
  Batteries / Cables / Master Disconnect	●●●
  Lighting	●●●
  Starter	●●●
  Wiring	●●●

• HYDRAULICS

  Item	Condition
  Notes - HYDRAULICS	THE HYDRAULICS ARE PERFORMING NORMAL.
  NOTES - HYDRAULICS 1	OIL SAMPLE HISTORY OF HIGH IRON SINCE 796 HOURS.
  Swing Drive Oil Level	CURRENTLY NORMAL LEVEL & COLOR.
  Boom Cylinder	●●●
  Bucket Cylinder	●●●
  Control Linkage	●●●
  Filter Condition (CUT)	●●
  Hose Lines	●● ONE SMALL HOSE IN THE PUMP COMPARTMENT IS LEAKING TO LEVEL 2.
  Hydraulic Swivel	●●●
  Operating Condition - HYDRAULICS	●●●
  Pump Drive	●●●
  Pumps & Valves	●●●
  Stick Cylinder	●●● Resealed at 7073 hours.
  Swing Gear	●●●
  Swing Motors	●●●
  Tank	●●●
  Travel Motors	●●● TRACKING STRAIGHT AND SPOT TURNING ON DRY MATERIAL.

• TECHNOLOGY

  Item	Condition
  NOTES - TECHNOLOGY	THERE IS AN ACTIVE CODE FOR THE BUCKET POSITION SENSOR 1956-3.

• BOOM

  Item	Condition
  Boom Length (Actual Length)	25 FOOT 7 INCHES
  Notes - BOOM	THE BOOM MOUNT & BOOM CYLINDER JOINTS ARE IN GOOD FUNCTIONAL CONDITION.
  Boom Condition	●●●
  Boom Pins	●●●
  Pins & Bushings - BOOM	●●●

• STICK

  Item	Condition
  Notes - STICK	THE BOOM TO STICK JOINT IS IN GOOD FUNCTIONAL CONDITION.
  Stick Length	15 FOOT 4 INCHES.
  Pins & Bushings - STICK	●●●
  Stick Conditions	●●●
  Stick Pins	●●●

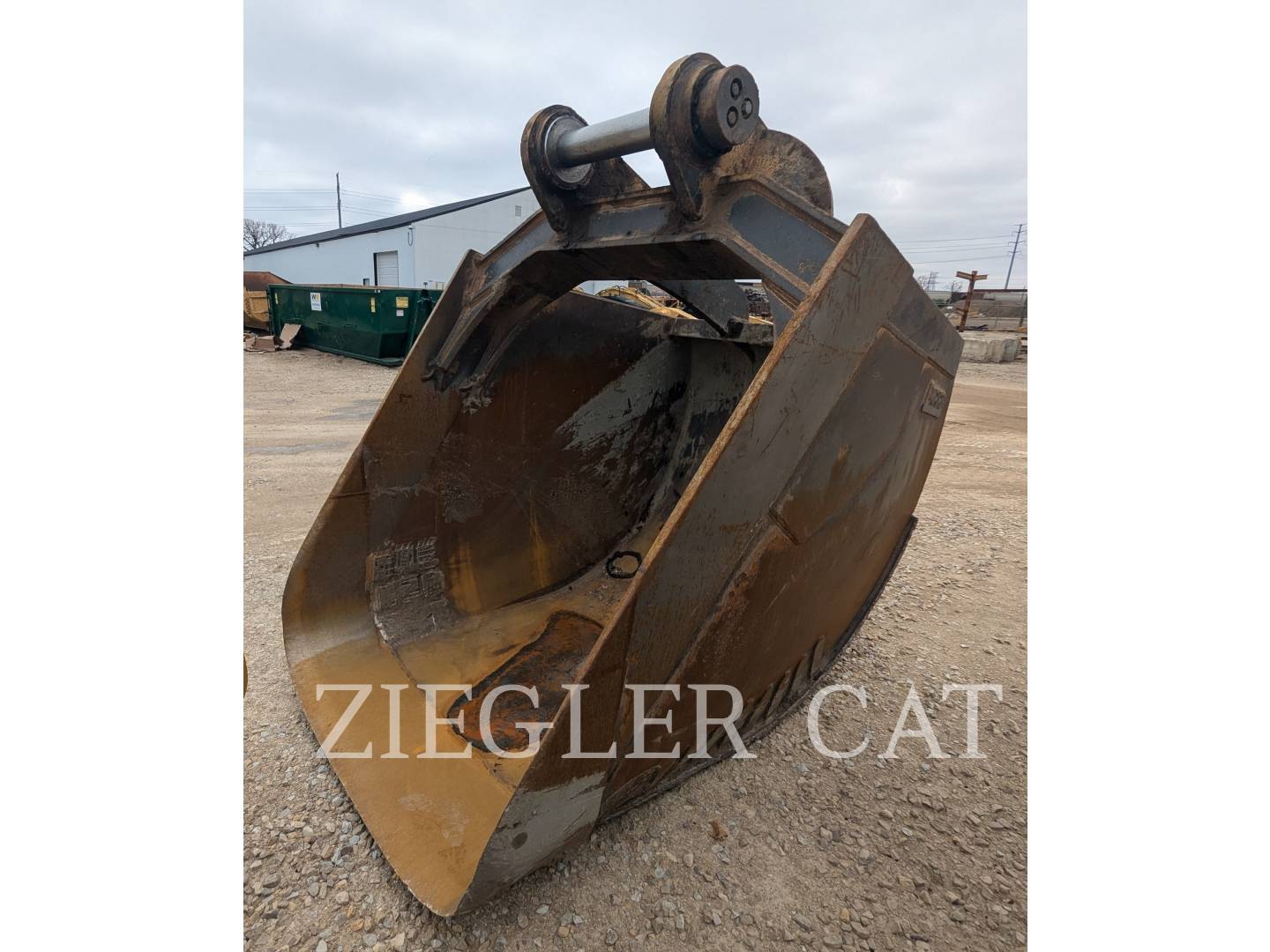

• BUCKET

  Item	Condition
  Quick Coupler	No
  Brand	EMPIRE ROUND CORNER SAND
  Notes - BUCKET	THE BUCKET & LINKAGES ARE IN GOOD FUNCTIONAL CONDITION.
  Width	60 INCH
  Bucket Bottom	●●●
  Bucket Linkage	●●● TIGHT
  Bucket Mounts	●●●
  Bucket Sides	●●●
  Cutting Edges	●●● BASE EDGE LOOKS GOOD.

• UNDERCARRIAGE

  Item	Condition
  Link Part Number	296-4361
  Notes - UNDERCARRIAGE	THE TRACK BUSHINGS AND SPROCKETS ARE SHOWING WEAR WITH AN ESTIMATED 1,000 - 2,000 HRS REMAINING DEPENDING ON MATERIAL AND TRAVEL.
  Track Shoes Width / Type	35.5 INCH XL DOUBLE GROUSER SHOES.
  Track Frame - Left	●●●
  Track Frame - Right	●●●
  Carrier Rollers Front	Left     Right
  Carrier Rollers Rear	Left     Right
  Idlers Front	Left     Right
  Links	Left     Right
  Pins & Bushings (External)	Left     Right
  Pins & Bushings (Internal)	Left     Right
  Segments	Left     Right
  Track Roller 9	Left     Right
  Track Shoe Grouser Height	Left     Right

• FINAL DRIVES

  Item	Condition
  Notes - FINAL DRIVES	CURRENTLY BOTH ARE LEVEL WITH A NORMAL COLOR.
  Housings, Left	●●●
  Housings, Right	●●●
  Planetaries / Differential, Left	●●
  Planetaries / Differential, Right	●●
