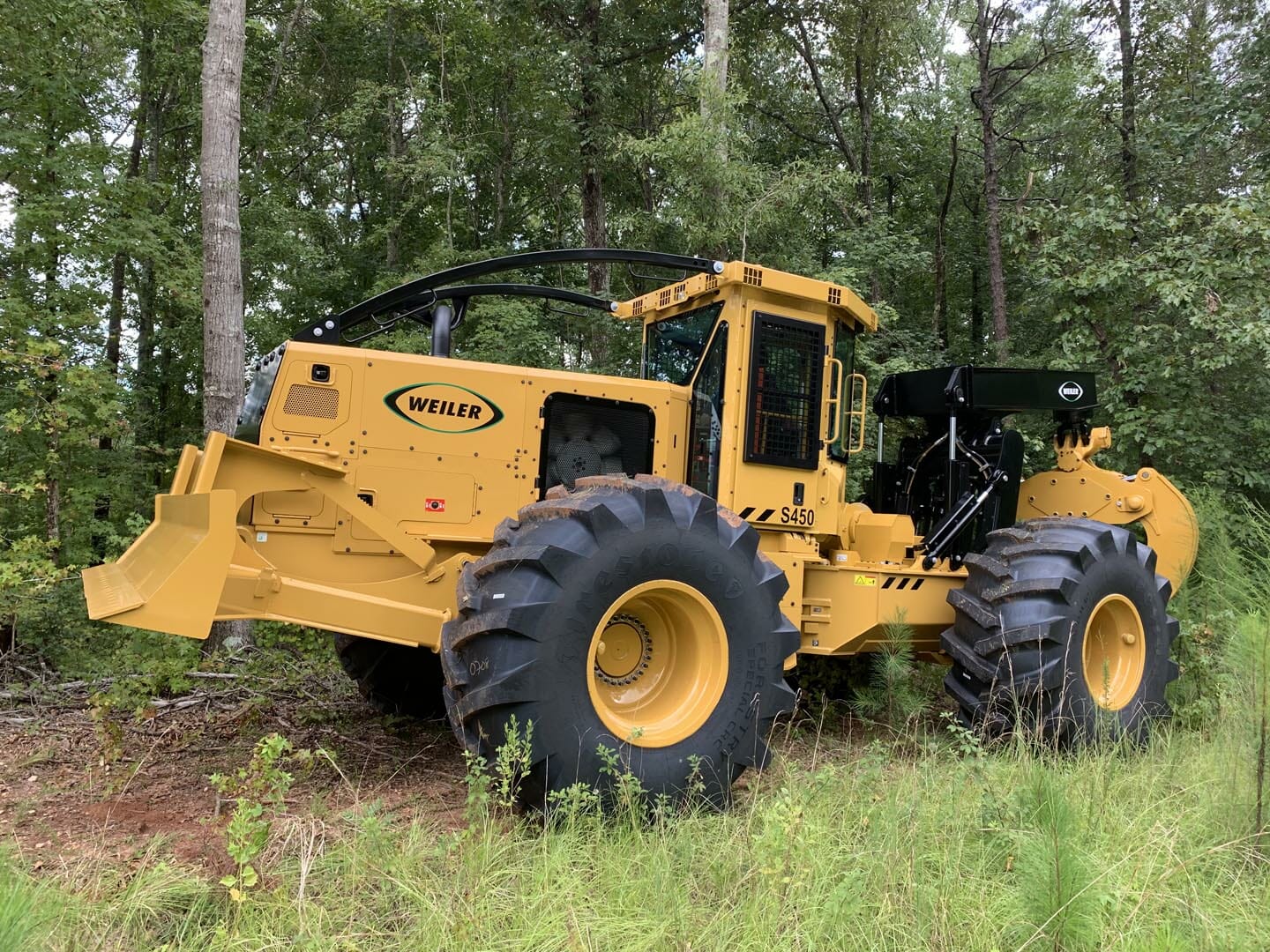

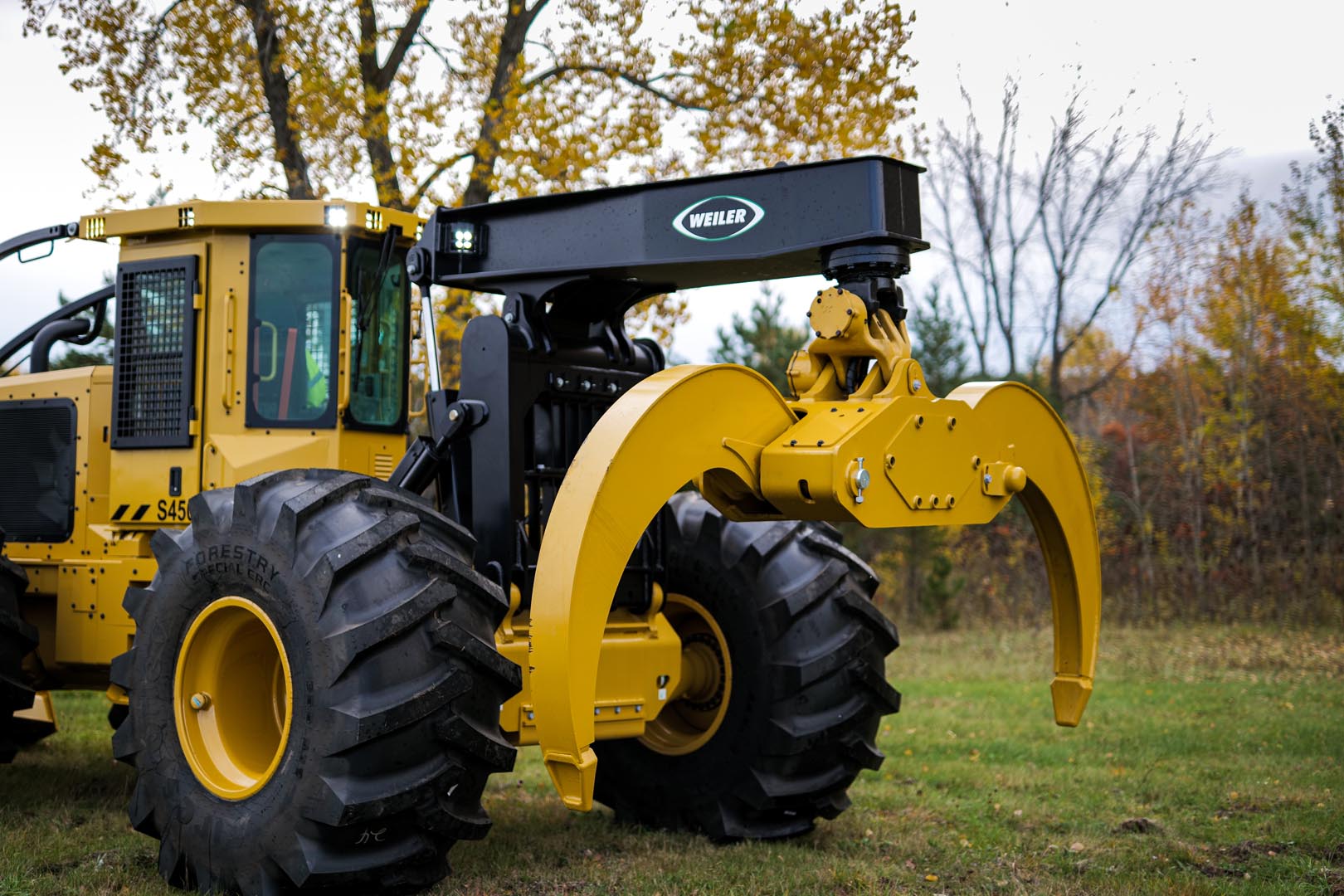

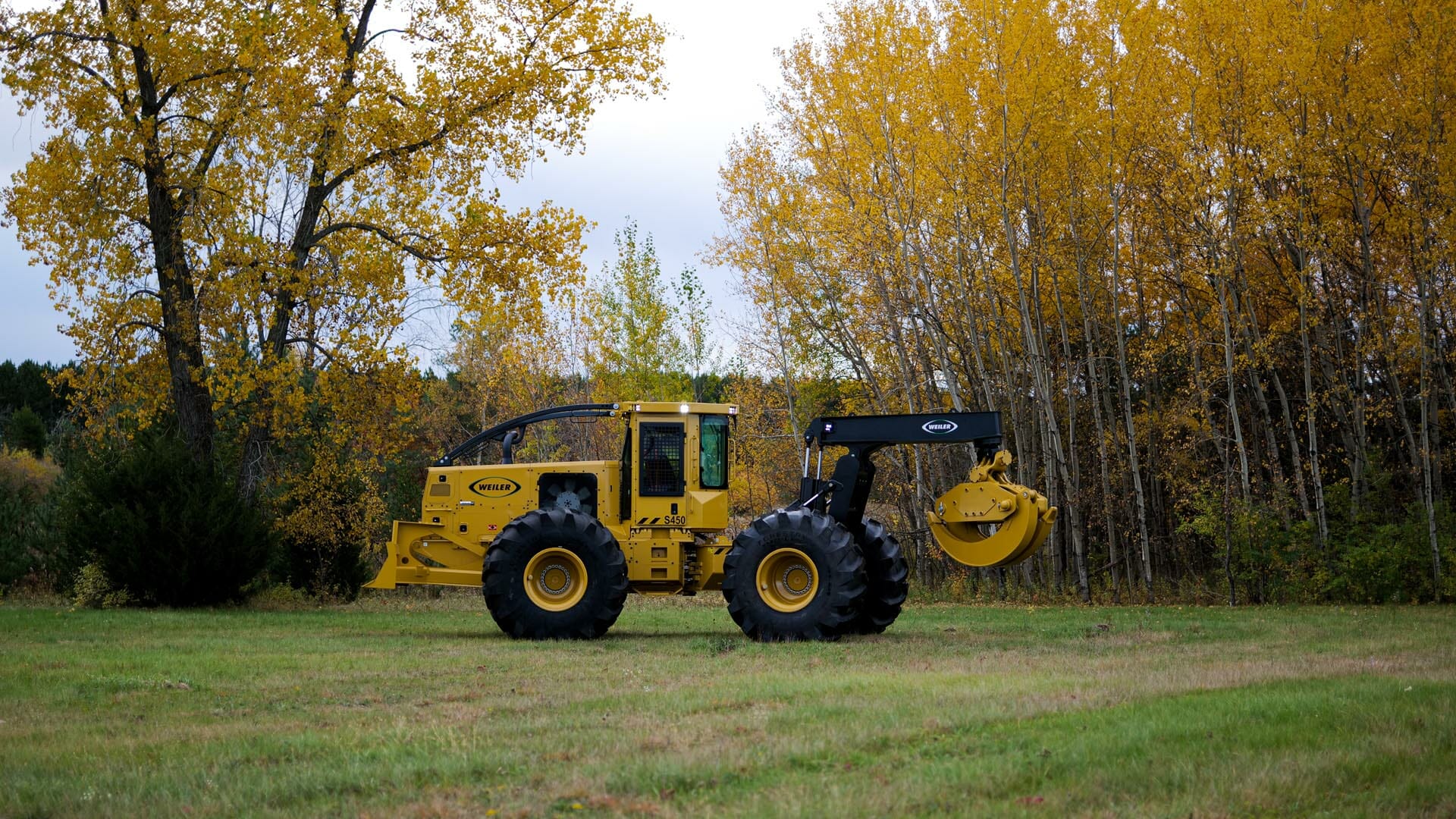

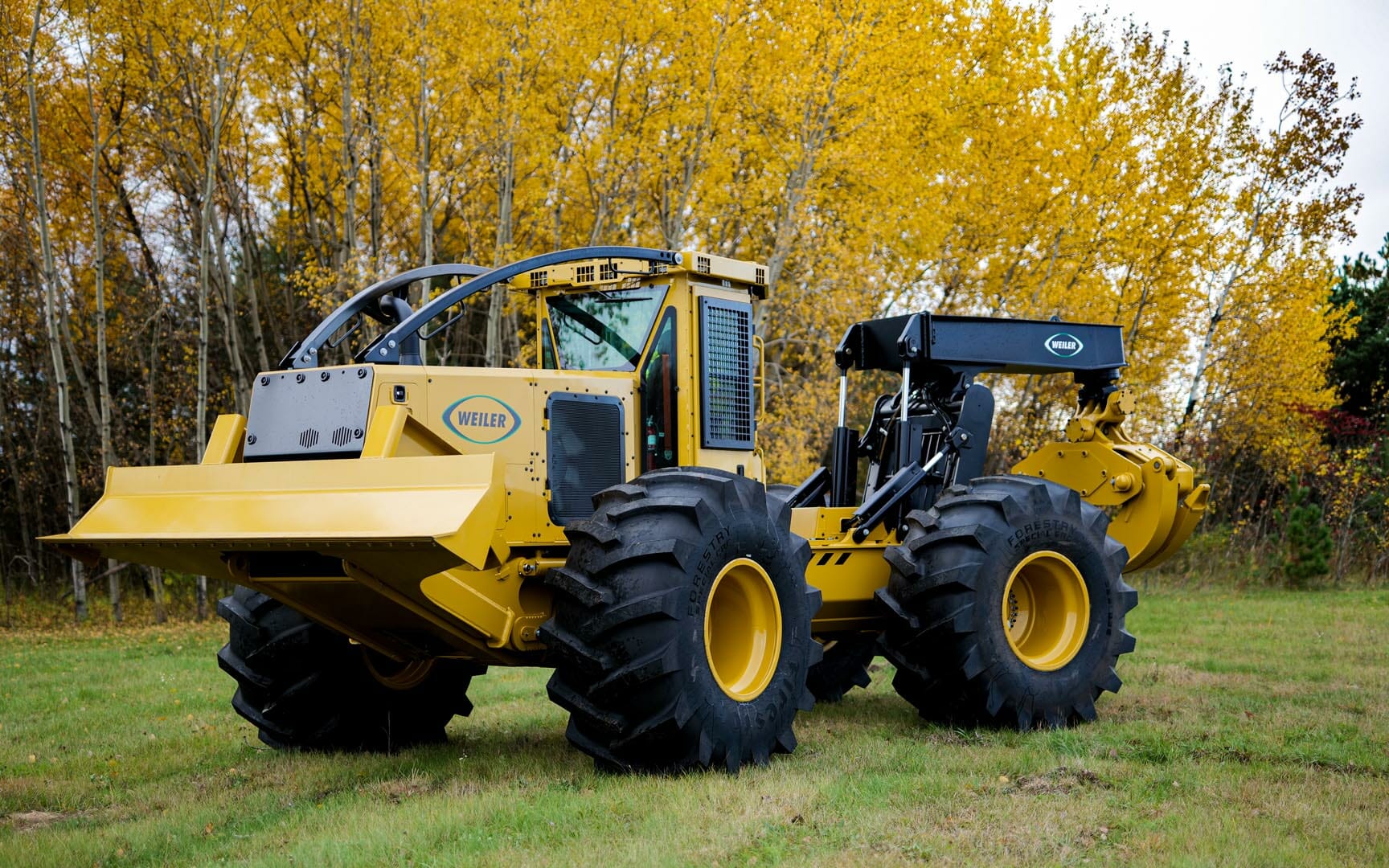

Wheel Skidder

Weiler wheel skidders deliver greater reliability and durability with improved transmission and axles along with a refined electrical system. The lock up torque converter powershift transmission and independent front and rear differential locks deliver powerful pulling while strong multifunctioning hydraulics improve overall performance.

Photos

Specifications

  • S250
    SpecValue
    Engine Model CAT 7.1 Tier 4 Final
    Gross Power 203 hp
    Engine Speed 2200 rpm
    Fuel Capacity 83.2 gal
    DEF Capacity 5.0 gal
    Wheelbase 143.8”
    Weight 45,359 lbs
    Transport Width 10’ 7”
    Transport Height 11’ 1”
    Transport Length 27’ 4”
    Ground Clearance 21.7”
    HD Box Grapple Capacity 14.4 ft2
    HD Box Grapple Opening 126.2
    Biomass Grapple Capcity 15.7 ft2
    Biomass Grapple Opening 136.3”
  • S350
    SpecValue
    Engine Model CAT 7.1 Tier 4 Final
    Gross Power 225 hp
    Engine Speed 2200 rpm
    Fuel Capacity 99.8 gal
    DEF Capacity 5.0 gal
    Wheelbase 149.4”
    Weight 45,888 lbs
    Transport Width 10’ 7”
    Transport Height 11’ 1”
    Transport Length 27’ 10”
    Ground Clearance 21.7”
    HD Box Grapple Capacity 16.6 ft2
    HD Box Grapple Opening 127”
    Biomass Grapple Capcity 18 ft2
    Biomass Grapple Opening 145”
  • S450
    SpecValue
    Engine Model CAT 7.1 Tier 4 Final
    Gross Power 250 hp
    Engine Speed 2200 rpm
    Fuel Capacity 99.8 gal
    DEF Capacity 5.0 gal
    Wheelbase 155.1”
    Weight 48,333 lbs
    Transport Width 12’ 2”
    Transport Height 11’ 4”
    Transport Length 29’
    Ground Clearance 24.1”
    HD Box Grapple Capacity 19 ft2
    HD Box Grapple Opening 135”
    Biomass Grapple Capcity 20.8 ft2
    Biomass Grapple Opening 150”
  • S550
    SpecValue
    Engine Model CAT 7.1 Tier 4 Final
    Gross Power 275 hp
    Engine Speed 2200 rpm
    Fuel Capacity 99.8 gal
    DEF Capacity 5.0 gal
    Wheelbase 160.7”
    Weight 49,336 lbs
    Transport Width 12’ 2”
    Transport Height 11’ 4”
    Transport Length 29’ 7”
    Ground Clearance 24.1”
    HD Box Grapple Capacity 22 ft2
    HD Box Grapple Opening 143.8”
    Biomass Grapple Capcity 23.8 ft2
    Biomass Grapple Opening 155”
