New Equipment

Caterpillar

950 GC Wheel Loader | Front Loader

Net Power - ISO 9249

225 HP

Operating Weight

41554 lb

Bucket Capacities

2.9-4.4 m³ (3.75-5.75 yd³)

Overview

The Cat® 950 GC wheel loader is designed specifically to handle all the jobs on your worksite from material handling and truck loading to general construction and stockpiling. Great machine performance combined with the low owning and operating costs makes the 950 GC the right choice for your business.

Photos

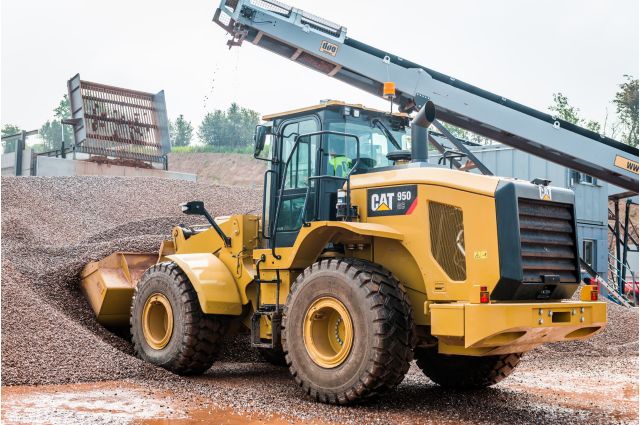

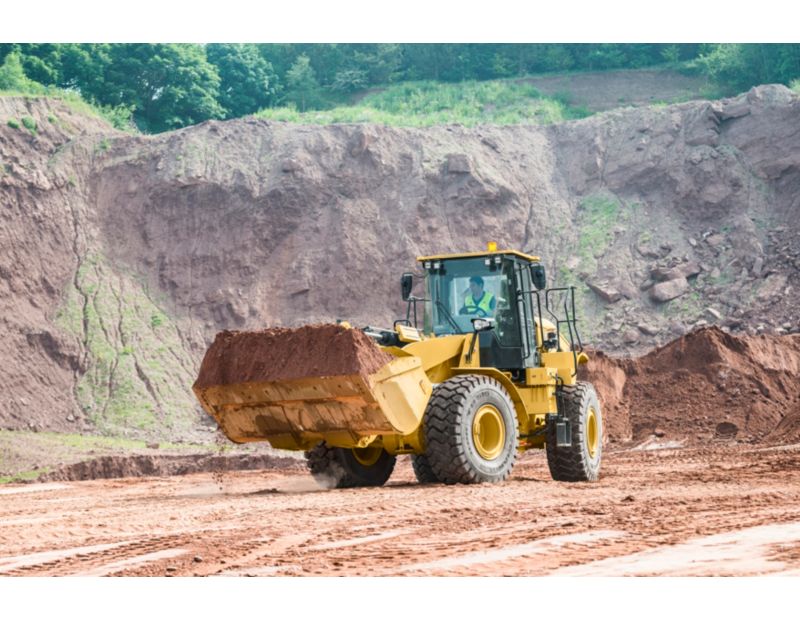

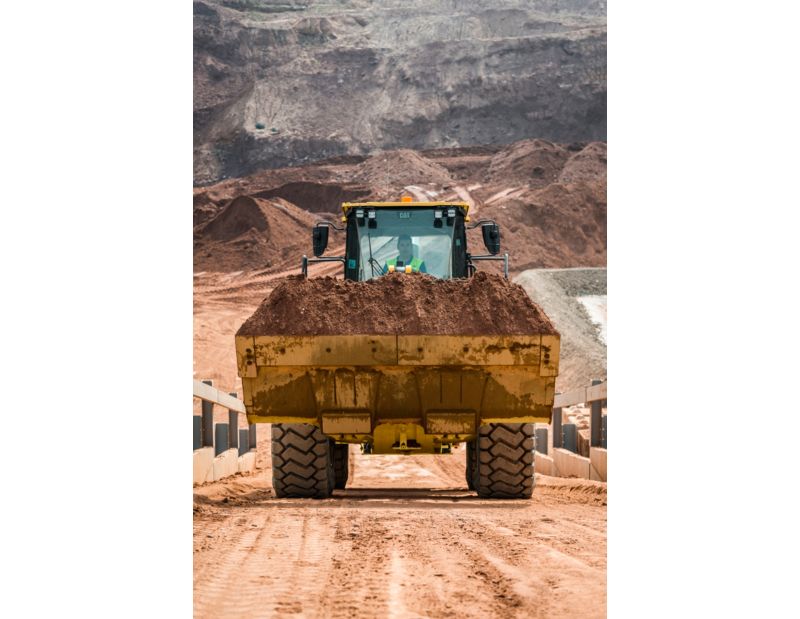

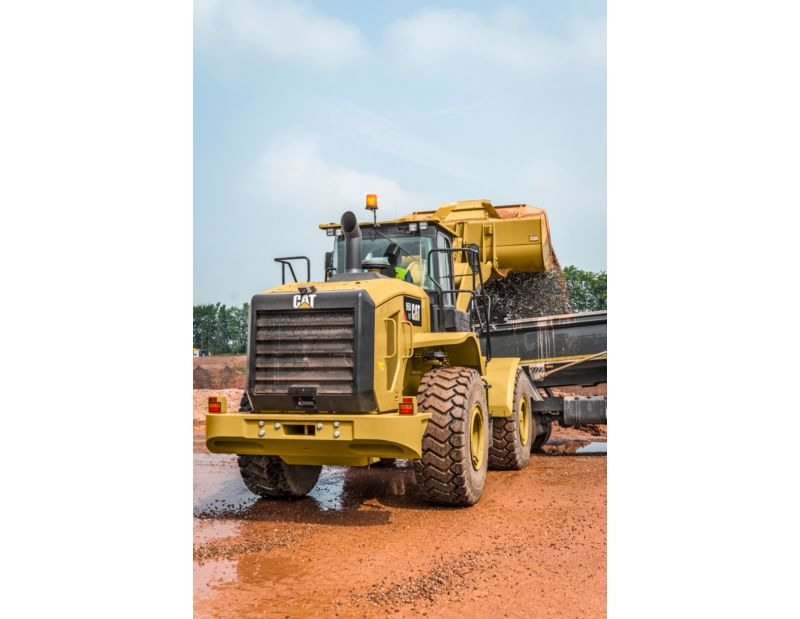

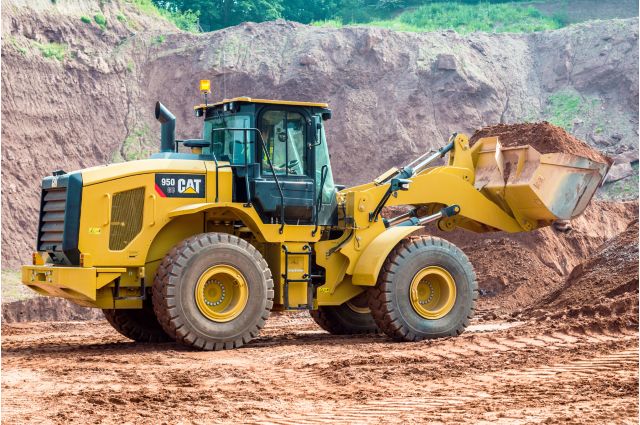

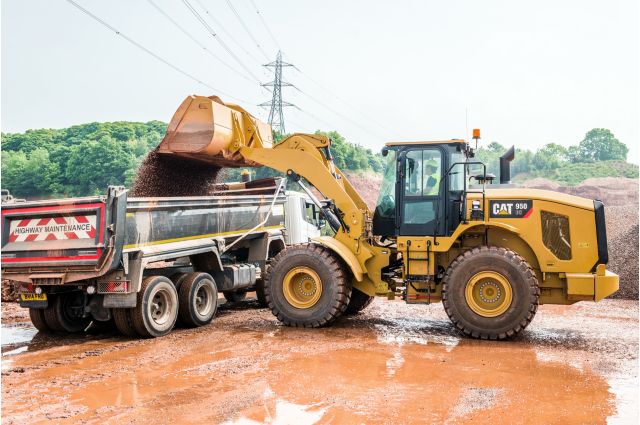

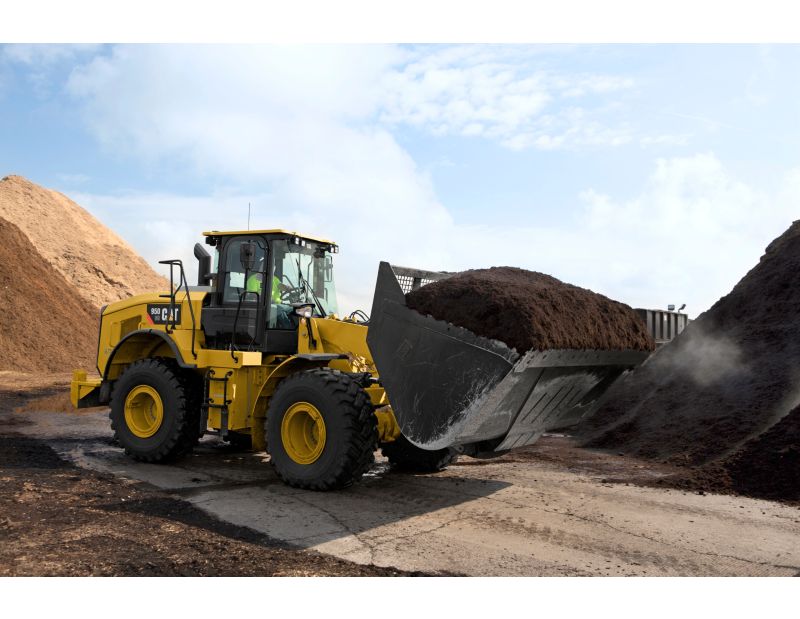

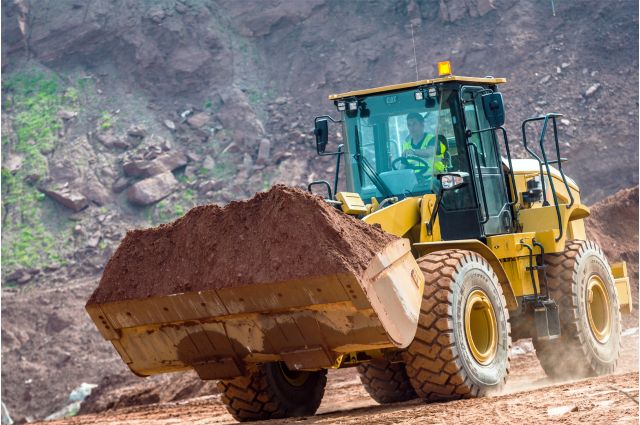

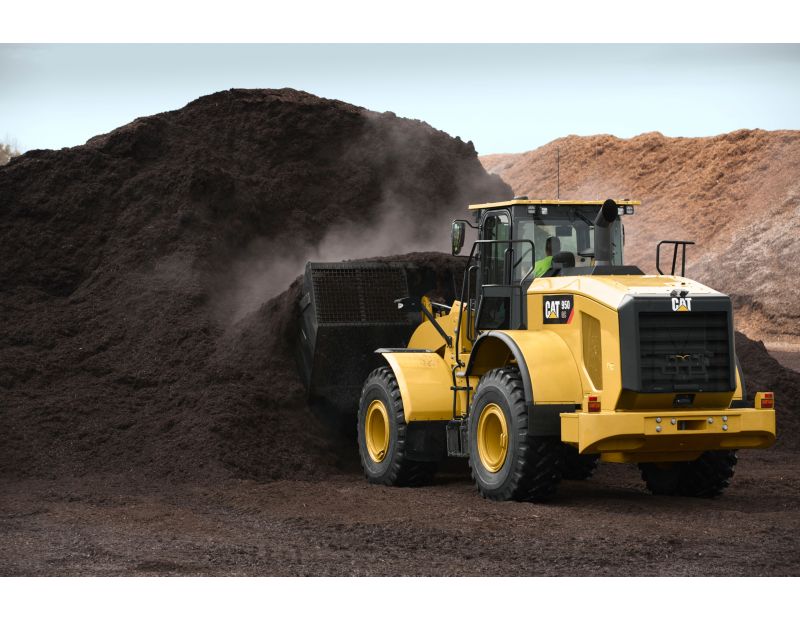

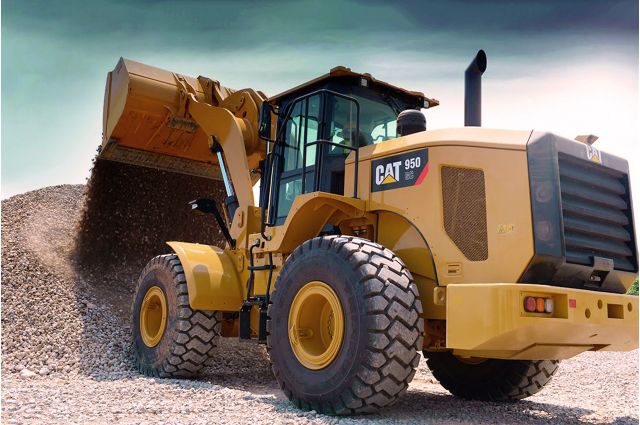

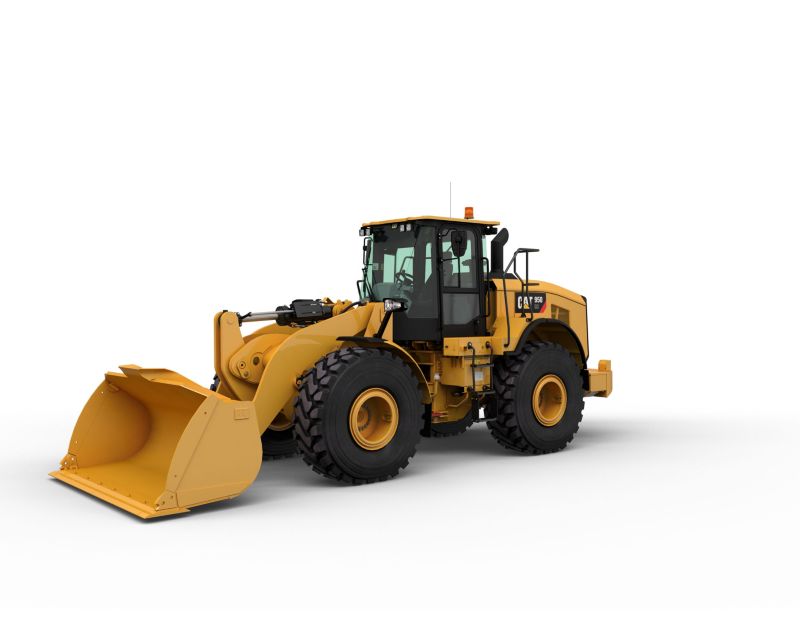

  • 950 GC
    950 GC
  • 950 GC
    950 GC
  • 950 GC
    950 GC
  • 950 GC
    950 GC
  • 950 GC
    950 GC
  • 950 GC
    950 GC
  • 950 GC
    950 GC

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour. Double click on the hotspots to see in on any area of the product.

Documents

Features

RELIABILITY YOU CAN COUNT ON

RELIABILITY YOU CAN COUNT ON

  • Cat® C7.1 engine offers increased power density with a combination of proven electronic, fuel, and air systems.
  • Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
  • Thorough component design and machine validation processes result in unmatched reliability and uptime.

RELIABILITY YOU CAN COUNT ON

  • Cat® C7.1 engine offers increased power density with a combination of proven electronic, fuel, and air systems.
  • Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
  • Thorough component design and machine validation processes result in unmatched reliability and uptime.
ACHIEVE GREATER PRODUCTIVITY

ACHIEVE GREATER PRODUCTIVITY

  • The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearan ce, this results in low fuel consumption and exceptional production capabilities.
  • Cat designed, electronically controlled, automatic powershiftcountershaft transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.

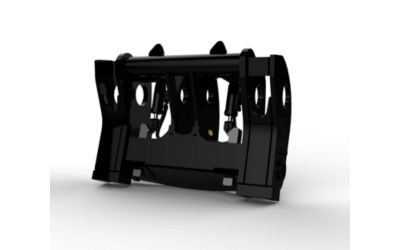

  • Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.

ACHIEVE GREATER PRODUCTIVITY

  • The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearan ce, this results in low fuel consumption and exceptional production capabilities.
  • Cat designed, electronically controlled, automatic powershiftcountershaft transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.
  • Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.
DO MORE WITH LESS FUEL

DO MORE WITH LESS FUEL

  • Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
  • Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
  • Load sensing hydraulics produce flow and pressure for theimplement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.

DO MORE WITH LESS FUEL

  • Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
  • Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
  • Load sensing hydraulics produce flow and pressure for theimplement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.
DESIGNED FOR OPERATORS

DESIGNED FOR OPERATORS

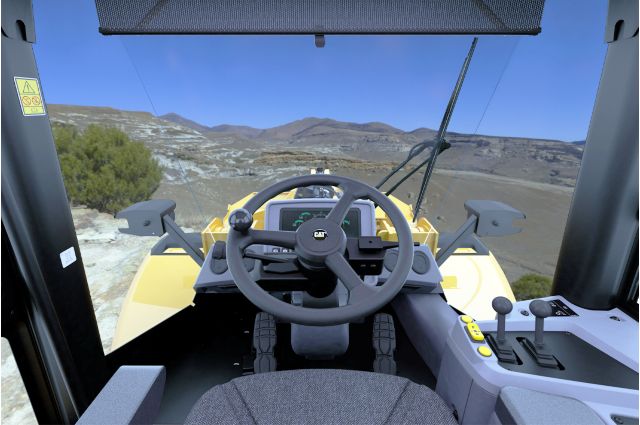

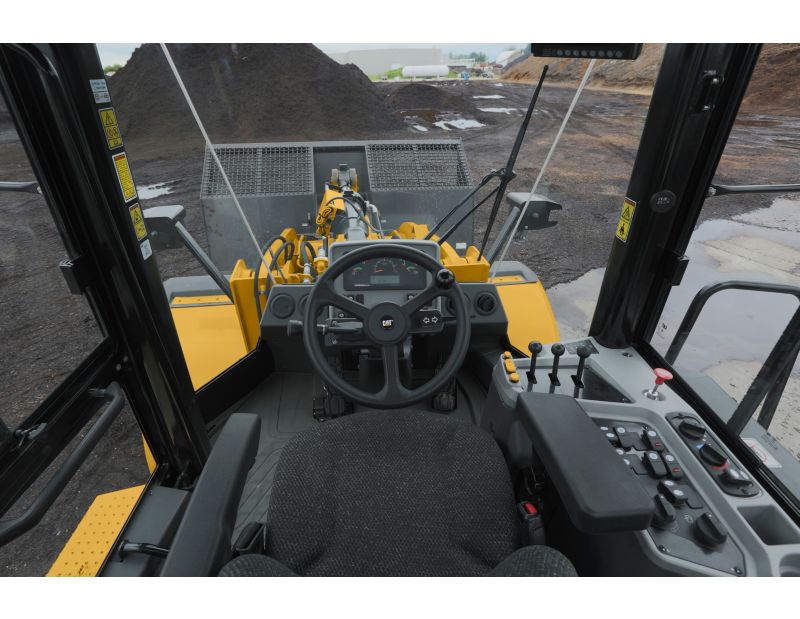

  • The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
  • Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
  • The adjustable steering column includes the F-N-R shifter and turn signal control lever.
  • Unmatched viewing area with a wide, flat, and distortion-free front windshield.
  • The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
  • The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
  • Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.

DESIGNED FOR OPERATORS

  • The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
  • Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
  • The adjustable steering column includes the F-N-R shifter and turn signal control lever.
  • Unmatched viewing area with a wide, flat, and distortion-free front windshield.
  • The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
  • The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
  • Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.
SAFELY HOME EVERY DAY

SAFELY HOME EVERY DAY

  • Ladders are standard on both sides of the machine to easily access the platforms.
  • Platforms are equipped with guard- and handrails for safe access to the cab.
  • The main cab door opens to the front and provides wide access to the operator environment.
  • Front and back wipers ensure that a clear view is maintained.
  • External rearview mirrors with integrated spot mirrors arestandard.
  • A rear vision camera is standard to clearly monitor movement behind the machine.
  • Hinged wheel guards, easy removal/re-install.
  • Optional windshield and power train guards.

SAFELY HOME EVERY DAY

  • Ladders are standard on both sides of the machine to easily access the platforms.
  • Platforms are equipped with guard- and handrails for safe access to the cab.
  • The main cab door opens to the front and provides wide access to the operator environment.
  • Front and back wipers ensure that a clear view is maintained.
  • External rearview mirrors with integrated spot mirrors arestandard.
  • A rear vision camera is standard to clearly monitor movement behind the machine.
  • Hinged wheel guards, easy removal/re-install.
  • Optional windshield and power train guards.
SAVE ON SERVICE AND MAINTENANCE

SAVE ON SERVICE AND MAINTENANCE

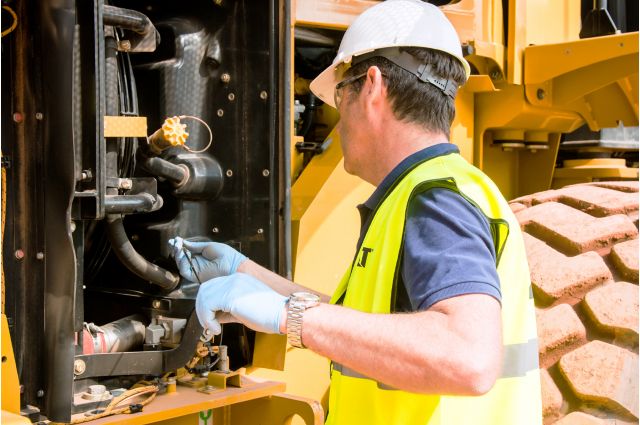

  • Grouped service points and sight gauges allow for easy daily maintenance.
  • Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
  • Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
  • A rear swing-up grill gives easy cleaning access to thecooling cores.
  • Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
  • Caterpillar design and manufacturing techniques assureoutstanding service life.

SAVE ON SERVICE AND MAINTENANCE

  • Grouped service points and sight gauges allow for easy daily maintenance.
  • Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
  • Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
  • A rear swing-up grill gives easy cleaning access to thecooling cores.
  • Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
  • Caterpillar design and manufacturing techniques assureoutstanding service life.
CAT PRODUCTION MEASURMENT KIT

CAT PRODUCTION MEASURMENT KIT

  • This optional kit is simple to install compared to other 3rd party payload systems*.
  • On-the-go weighing** for precise load targets with provenaccuracy, flexible installation, and easy calibration and setup.
  • Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
  • Increases productivity, weighing while lifting with no interruptions in loading cycle.
  • High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
  • Improve efficiency with less rework; save time, labor, fuel,and costs.

    * Not available in all markets
    ** Not legal for trade

CAT PRODUCTION MEASURMENT KIT

  • This optional kit is simple to install compared to other 3rd party payload systems*.
  • On-the-go weighing** for precise load targets with provenaccuracy, flexible installation, and easy calibration and setup.
  • Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
  • Increases productivity, weighing while lifting with no interruptions in loading cycle.
  • High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
  • Improve efficiency with less rework; save time, labor, fuel,and costs.

    * Not available in all markets
    ** Not legal for trade

Specifications

  • Engine
    Spec Value
    Net Power - ISO 9249 225 HP
    Emissions Tier 4/Stage V
    Displacement 428 in³
    Maximum Net Power - 1,700 rpm - ISO 9249 - Metric 228 HP
    Maximum Power - 1,700 rpm - ISO 14396 240 HP
    Maximum Power - 1,700 rpm - ISO 14396 - Metric 243 HP
    Peak Gross Torque - 1,400 rpm - SAE J1995 811 ft·lbf
    Peak Gross Torque - 1,400 rpm - ISO 14396 805 ft·lbf
    Engine Model Cat C7.1
    Maximum Net Power - 1,700 rpm - ISO 9249 225 HP
    Maximum Net Power - 1,700 rpm - SAE J1349 225 HP
    Maximum Power - 1,700 rpm - SAE J1995 241 HP
    Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).
    Bore 4.13 in
    Stroke 5.31 in
  • Weights
    Spec Value
    Operating Weight 41554 lb
  • Buckets
    Spec Value
    Bucket Capacities 2.9-4.4 m³ (3.75-5.75 yd³)
  • Transmission
    Spec Value
    Reverse - 3 14.2 mile/h
    Forward - 3 14.2 mile/h
    Forward - 1 4.5 mile/h
    Forward - 2 8 mile/h
    Forward - 4 22.4 mile/h
    Reverse - 2 8 mile/h
    Reverse - 1 4.5 mile/h
    Note Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.
  • Hydraulic System
    Spec Value
    Hydraulic Cycle Time - Total Cycle Time 9.4 s
    Steering System - Pump Type Piston
    Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min) 4047 psi
    Implement System - Maximum Pump Output at 2,390 rpm 68 gal/min
  • Service Refill Capacities
    Spec Value
    DEF Tank 4.2 gal (US)
    Transmission 11.9 gal (US)
    Fuel Tank Size 76.6 gal (US)
    Cooling System 13.2 gal (US)
    Differential - Final Drives - Rear 10 gal (US)
    Differential - Final Drives - Front 10.6 gal (US)
    Crankcase 4.8 gal (US)
    Hydraulic Tank 29.6 gal (US)
  • Sound
    Spec Value
    With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) 73 dB(A)
    With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) 109 dB(A)
    With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013) 76 dB(A)*
    Note (1) *Distance of 15 m (49.2 ft), moving forward in second gear ratio.
    With Cooling Fan Speed at 70% of Maximum Value: Note (2) European Union Directive "2000/14/EC" as amended by "2005/88/EC."
    With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** 73 dB(A)
    With Cooling Fan Speed at 70% of Maximum Value: Note (1) For machines in European Union countries and in countries that adopt the EU Directives
    With Cooling Fan Speed at Maximum Value - Note Distance of 15 m (49.2 ft), moving forward in second gear ratio.
    With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)** 107 LWA***
    Note (3) ***European Union Directive "2000/14/EC" as amended by "2005/88/EC."
    Note (2) **For machines in European Union countries and in countries that adopt the "EU Directives."
  • Dimensions
    Spec Value
    Rack Back - Ground 40 degrees
    Height - Top of Exhaust Pipe 11.17 ft
    Centerline of Rear Axle to Hitch 5.42 ft
    Lift Arm Clearance 12 ft
    B-Pin Height 13.75 ft
    Centerline of Rear Axle to Edge of Counterweight 6.75 ft
    Ground Clearance 1.5 ft
    Rack Back - Maximum Lift 60 degrees
    Height - Top of Hood 8.75 ft
    Wheel Base 10.83 ft
    Height - Top of ROPS 11.33 ft
    Rack Back - Carry 45 degrees
    Note All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.
  • Weights and Operating Specifications
    Spec Value
    Note (2) *Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
    Tipping Load - Full Turn - Rigid Tires** 25875 lb
    Breakout Force 34638 lbf
    Tipping Load - Full Turn - ISO 14397-1* 24264 lb
    Note (3) **Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
    Operating Weight 41554 lb
    Note (1) For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound suppression.
  • Engine - Tier 4 Final/Stage IV
    Spec Value
    Emissions Tier 4/Stage IV

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

  • Engine - Cat C7.1 meets Tier 4 Final/Stage IV emissions standards
  • Torque converter
  • Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
  • Brakes, full hydraulic enclosed wet-disc
  • EIMS (Engine Idle Management System)
  • EIS (Auto Idle Shutdown)
  • Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
  • Filter, fuel primary-water separator/secondary
  • Radiator, unit core (9.5 fpi) with ATAAC
  • Starting aid, glow plugs
  • Switch, transmission neutralizer lockout

HYDRAULICS

  • Load sensing implement system pilot operated
  • Dedicated load sensing steering pump
  • Dedicated brake and fan gear pump

ELECTRICAL

  • Alarm, back-up/main disconnect switch
  • Alternator (145-amp, brush type)
  • Batteries (2), maintenance free
  • Ignition key; start/stop switch
  • Lighting system, halogen (6 total) - Four (4) halogen work lights; Two (2) halogen road lights
  • Starting and charging system (24-volt)
  • Starter, electric (heavy duty)

OPERATOR ENVIRONMENT

  • Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
  • Bucket/work tool function lockout
  • Cab, pressurized and sound suppressed
  • Hydroformed (ROPS/FOPS) structure
  • 12V power port (10A)
  • Coat hook
  • Radio ready
  • Rear vision camera and display
  • Pilot hydraulic controls, lift and tilt function
  • Computerized monitoring system
  • Gauges - Engine coolant temperatures/fluid level; Hydraulic/transmission oil temperature; Tachometer/DEF level
  • Digital indicators - Gear indicator; Speedometer; Service meter units; Fault codes
  • Warning indicators - Air inlet heater; Electrical malfunction; Engine inlet manifold temperature; Engine oil pressure, fuel level; Fuel pressure high/low; Hydraulic oil level, parking brake; Primary steering oil pressure; Service brake oil pressure; Action light, engine malfunction; Transmission filter bypass
  • Heater and defroster
  • Horn
  • Cup holders and personal tray on right console
  • Storage tray behind seat
  • Mirrors, rearview external
  • Seat, Cat Comfort (clotch) suspension
  • Seat belt
  • Steering column, adjustable angle
  • Wipers/washers (front and rear)
  • Window, sliding (left and right side)

TIRES, RIMS, AND WHEELS

  • Tires are available from Triangle, Maxam and Bridgestone
  • Offerings vary by region. Consult your local Cat dealer for further details

FLUIDS

  • Premixed 50% concentration of extended life coolant with freeze protection to -34° C (-29° F)

OTHER STANDARD EQUIPMENT

  • Lift and bucket return-to-dig kick outs (Electro-Magnetic), mechanical adjustment
  • Couplings, Cat O-ring face seal
  • Doors, service access (locking)
  • Front fender, steel
  • Grill, airborne debris
  • Hitch, drawbar with pin
  • Hood, wing doors
  • Hoses, Cat XT
  • Counterweight
  • Linkage, Z-bar, fabricated crosstube/tilt lever
  • S•O•S oil sampling valves
  • Sight gauges - Engine coolant, hydraulic oil; Transmission oil level
  • Diagnostic pressure taps
  • Product Link Ready

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

  • Cold weather starting (jacket water heater, electric and ether starting aid)
  • Third hydraulic function, additional dedicated single axis level
  • Quick coupler control
  • Limited slip differentials
  • Ride control
  • Air suspended seat
  • Secondary steering, electrical
  • Reversing cooling fan (auto/manual controlled)
  • Toolbox
  • Sun visor, rear
  • High capacity converted 12V/15A
  • Warning beacon
  • Extra working lights (4), Halogen or LED
  • Radio
  • Fender extensions/roading

Related Products
