Caterpillar

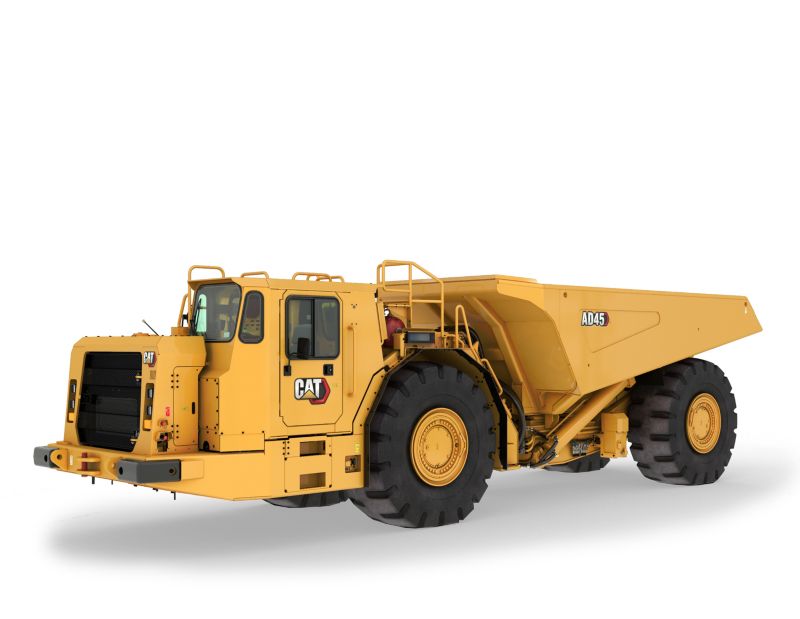

AD45 Underground Articulated Truck

Engine Model

Cat® C18

Engine Power - EU Stage V Engine - ISO 14396:2002

598 HP

Nominal Payload Capacity

99208 lb

Overview

The Cat® AD45 Underground Truck delivers all the power, performance and reliability you expect from the AD45 — but the latest model also offers an an advanced EU Stage V compliant engine and aftertreatment solution that meets the strictest emissions standards, lowers your carbon footprint and improves air quality in your mine. In addition, a retrofit solution is available that allows you to retrofit the previous model, the AD45B, to meet the same strict standards. This ultra-clean diesel machine delivers superior productivity thanks to its ideal match with the next generation Cat R1700 underground loader and is technology-enhanced with features that improve productivity, boost uptime and keep operators and personnel safer on the job.

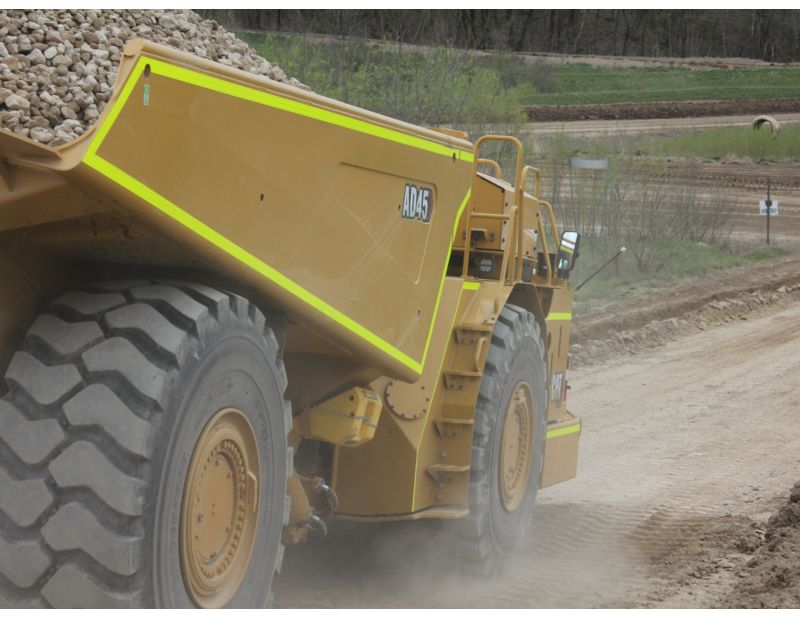

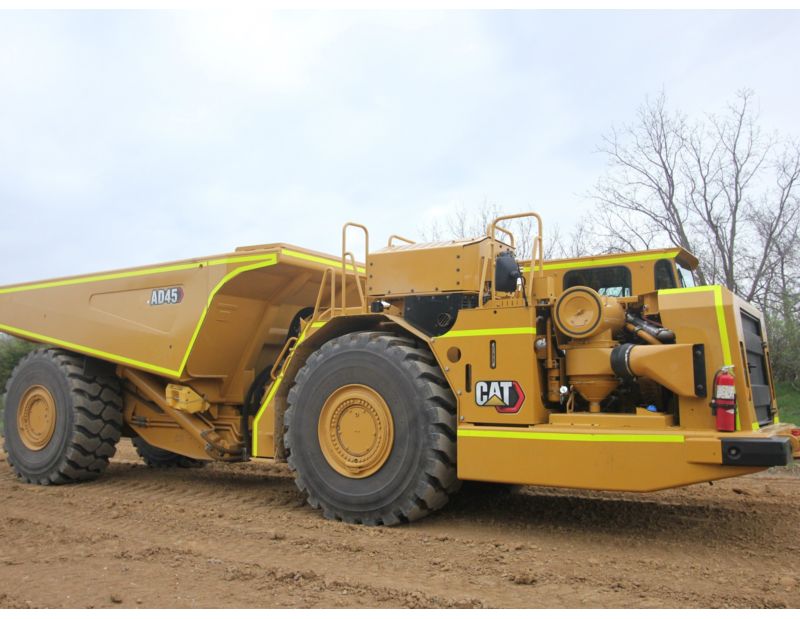

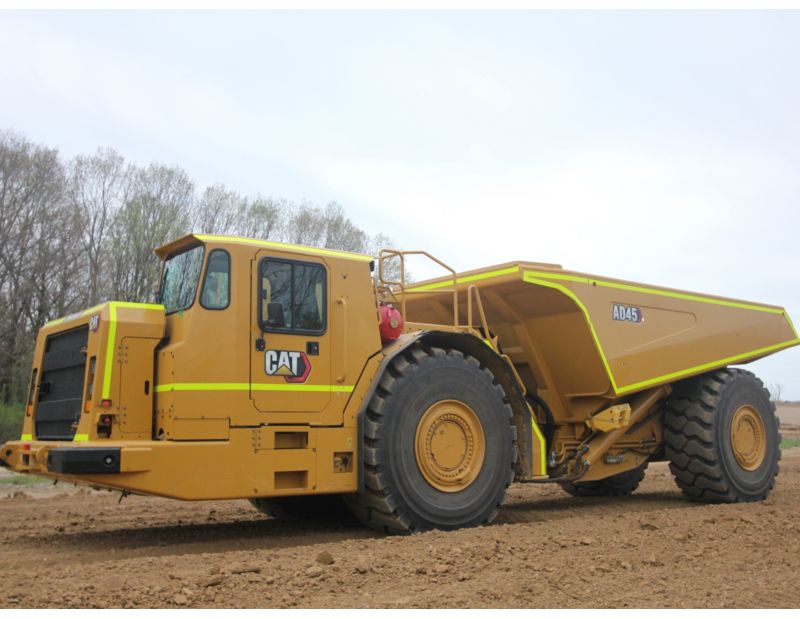

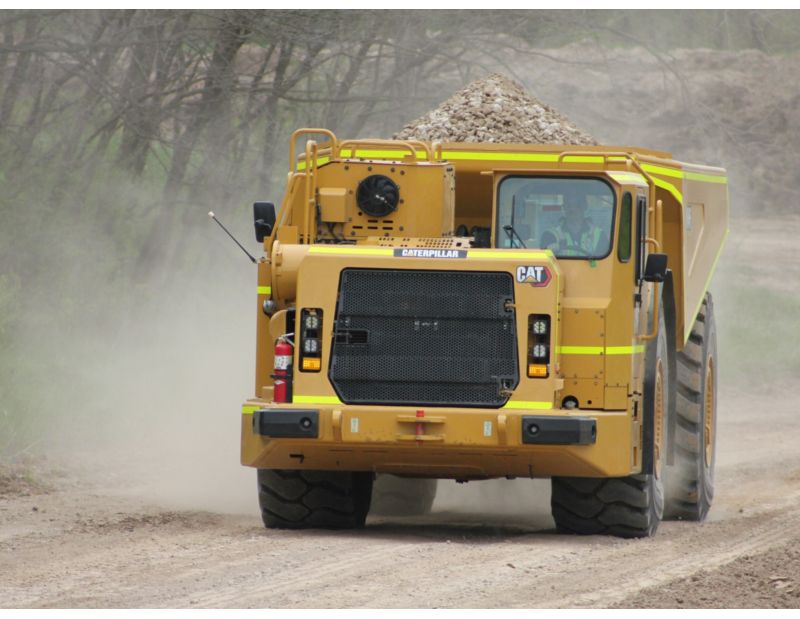

Photos

Videos

360° View

Exterior

AD45 Exterior Spinset

Interior

AD45 Interior Spinset

Showroom

AD45 Virtual Product Tour

Features

Specifications

  • Engine
    Spec Value
    Engine Model Cat® C18
    Engine Power - EU Stage V Engine - ISO 14396:2002 598 HP
    Engine Power - Tier 3 Engine - ISO 14396:2002 581 HP
    Engine Power - VR Engine - ISO 14396:2002 581 HP
    Bore 5.7 in
    Stroke 7.2 in
    Displacement 1104.53 in³
    Note (1) Power ratings apply at a rated speed of 2,000 rpm when tested under the reference conditions for the specified standard.
    Note (2) All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F).
    Note (3) Minimal engine derating* required up to 3048 m (10,000 ft) @ rated speed for Stage V engines, 2700 m (8,858 ft) for Tier 3/Stage IIIA equivalent engines and 3505 m (11,500 ft) for Tier 2/Stage II equivalent VR engines.
    Note (4) Optional Ventilation Reduction Package available.
    Note (5) Optional engine with emissions equivalent to Tier 3 and Stage IIIA is also available.
    Note (6) Optional engine available that meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
    Note (7) *<5 %
  • Operating Specifications
    Spec Value
    Nominal Payload Capacity 99208 lb
    Gross Machine Mass 196765 lb
    Shipping Mass (Stage V Engine Model) 96225 lb
    Shipping Mass (Other Engine Models) 94415 lb
    Body Capacities 18.0-25.1 m³ (23.5-32.8 yd³)
  • Weights (Stage V Engine Model)
    Spec Value
    Operating Mass 91285 lb
    Operating Mass - Front Axle 64565 lb
    Operating Mass - Rear Axle 26720 lb
    Operating Mass + Rated Payload 190495 lb
    Operating Mass + Rated Payload - Front Axle 89235 lb
    Operating Mass + Rated Payload - Rear Axle 101260 lb
  • Weights (Other Engine Models)
    Spec Value
    Operating Mass 88320 lb
    Operating Mass - Front Axle 61225 lb
    Operating Mass - Rear Axle 27095 lb
    Operating Mass + Rated Payload 187530 lb
    Operating Mass + Rated Payload - Front Axle 85355 lb
    Operating Mass + Rated Payload - Rear Axle 102175 lb
  • Weight Distribution (Stage V Engine Model)
    Spec Value
    Empty - Front Axle 70.7%
    Empty - Rear Axle 29.3%
    Loaded - Front Axle 46.8%
    Loaded - Rear Axle 53.2%
  • Weight Distribution (Other Engine Models)
    Spec Value
    Empty - Front Axle 69.3%
    Empty - Rear Axle 30.7%
    Loaded - Front Axle 45.5%
    Loaded - Rear Axle 54.5%
  • Transmission
    Spec Value
    Forward - 1 4.4 mile/h
    Forward - 2 5.9 mile/h
    Forward - 3 8 mile/h
    Forward - 4 10.8 mile/h
    Forward - 5 14.6 mile/h
    Forward - 6 19.7 mile/h
    Forward - 7 26.4 mile/h
    Reverse - 1 4.2 mile/h
    Reverse - 2 5.6 mile/h
    Note Maximum travel speeds with standard 29.5 × R29 tires.
  • Final Drives
    Spec Value
    Differential Ratio 3.46:1
    Final Drive Ratio 5.65:1
    Total Reduction Ratio 19.55:1

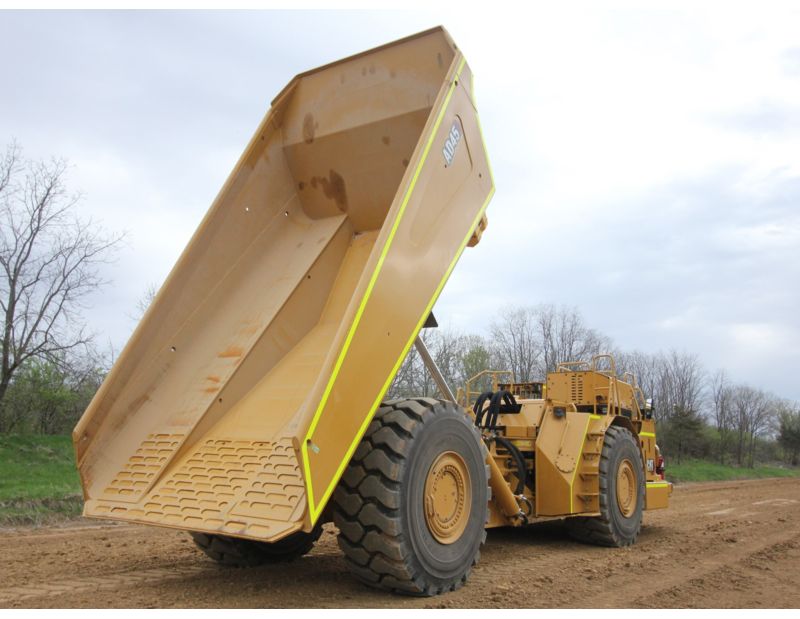

  • Body Hoist (Stage V Engine Model)
    Spec Value
    Raise 15 Seconds
    Lower 21 Seconds
    Total Cycle Time 36 Seconds
  • Body Hoist (Other Engine Models)
    Spec Value
    Raise 14 Seconds
    Lower 21 Seconds
    Total Cycle Time 35 Seconds
  • Body Capacities
    Spec Value
    Dump Body - 1 23.6 yd³
    Dump Body - 2 - Standard 27.9 yd³
    Dump Body - 3 32.8 yd³
    Ejector Body 29.9 yd³
    Note Heaped SAE 2:1.
  • Turning Dimensions
    Spec Value
    Outside Clearance Radius* 371 in
    Inside Clearance Radius* 209 in
    Frame Oscillation 10°
    Articulation Angle 42.5°
    Note *Clearance dimensions are for reference only.
  • Service Refill Capacities
    Spec Value
    Engine Crankcase - With Filter 16.9 gal (US)
    Transmission 15.9 gal (US)
    Hydraulic Tank 70.3 gal (US)
    Cooling System 22.5 gal (US)
    Front Differential and Final Drives 20.3 gal (US)
    Rear Differential and Final Drives 21.9 gal (US)
    Fuel Tank 201.8 gal (US)
  • Tires
    Spec Value
    Tire Size 29.5 × R29
  • Standards
    Spec Value
    Standards ROPS/FOPS Certified Cab

Standard Equipment

ELECTRICAL

  • 12V power supply in cab
  • Alternator, 95-amp
  • Auxiliary start receptacle
  • Battery disconnect switch, ground level
  • Circuit breaker, 80-amp
  • Corrosive protection spray
  • Diagnostic connector
  • Electric starting, 24V
  • Engine shutdown switch, ground level
    – Front left hand side
  • Lighting
    – Headlights with dimmer switch, LED
    – Brake and tail lights
    – Rear work light (cab mounted), LED
    – Reversing lights, LED
  • Low maintenance batteries
  • Reversing alarm
  • Starting and charging system

OPERATOR ENVIRONMENT

  • Cat Electronic Monitoring System (Cat EMS)
  • Electric horns
  • Gauges
    – Engine coolant temperature
    – Transmission coolant temperature
    – Hydraulic oil temperature
    – Fuel level
    – Speedometer
    – Tachometer
  • Indicator lights
    – Alert warning light
    – Body up position warning
    – High beam
    – Residual brake pressure warning
    – Retarder application
    – Turn signal
  • Low hydraulic level warning
  • Open operator station ROPS/FOPS structure
  • Operator presence system (auto park brake)
  • Rearview mirrors
  • Suspension seat Cat Comfort TLV2 with retractable seat belt
  • Trainer/passenger seat and seat belt
  • Tilt/telescopic steering wheel
  • Turn signal indicators

POWER TRAIN

  • Cat C18 ATAAC diesel engine, 6-cylinder
  • Automatic brake retarder control
  • Auto shift transmission 7 speed forward/2 speed reverse
  • Control throttle shifting
  • Engine air intake precleaner
  • Electric fuel priming pump
  • Exhaust, turbo compartment shielding
  • Four wheel drive
  • Long life coolant
  • Programmable ground speed limiting
  • Programmable gear block out with tray up
  • Radiator cap manual release
  • Radiator, cross flow
  • SAFR™ full hydraulic enclosed wet, multiple-disc brakes, oil cooled
  • Torque converter, standard with automatic lockup

OTHER STANDARD EQUIPMENT

  • Body, dump, (21.3 m³, 27.9 yd³)
  • Catalytic exhaust purifier/muffler group
  • Centralized lubrication points
  • Decals, international picto graphics
  • Dual fuel tanks
  • Engine and transmission belly guards
  • Fenders, front, rear flaps
  • Fire wall
  • Fuel system manual shut off tap
  • Front axle suspension
  • Frame lifting lugs
  • Front and rear tow pin
  • Front rubber bumpers
  • Gauges, brake pressure
  • Hand hold (access on/off top deck)
  • Hitch, articulated and oscillated
  • Operation and Maintenance Manual – English and other applicable local languages to select
  • S·O·S port
    – Coolant
    – Engine oil
    – Hydraulic oil
    – Transmission oil
  • Swing out radiator grill
  • Tires and rims: A tire must be selected from the mandatory attachments section of the machine price list. Base machine price includes a standard tubeless rim allowance only.

Optional Equipment

OPTIONAL EQUIPMENT

  • Battery shutdown
    – Ground level isolation, in cab isolation switch
    – Ground level isolation, engine shutdown switch
    – Ground level isolation, in cab isolation, engine shutdown switch
  • Body dump
    – Body (18.0 m³, 23.5 yd³)
    – Body (25.1 m³, 32.8 yd³)
  • Body ejector
    – Ejector (22.9 m³, 30.0 yd³)
  • Body liners, impact and/or wear
    – 10 mm (0.4"), body, dump (18.0 m³, 23.5 yd³)
    – 10 mm (0.4"), body, dump (21.3 m³, 27.9 yd³)
    – 10 mm (0.4"), body, dump (25.1 m³, 32.8 yd³)
    – 10 mm (0.4"), body, ejector (22.9 m³, 30.0 yd³)
  • Body wear plate, external
    – 16 mm (0.62"), body, dump (18.0 m³, 23.5 yd³)
    – 16 mm (0.62"), body, dump (21.3 m³, 27.9 yd³)
    – 16 mm (0.62"), body, dump (25.1 m³, 32.8 yd³)
  • Camera
    – Color rear facing
    – Color loading
  • Cover, anti vandalism for shipping
  • Engine options
    – Engine, Stage V
    – Engine, Ventilation Reduction (VR)
    – Equivalent to Tier 3
    – After-treatment options (for use with VR Engine only)
  • DPF (Flow Through) Filter
  • Fast fill system
    – Coolant
    – Engine oil
    – Fuel (dual tanks)
    – Hydraulic oil
    – Transmission oil
  • Fire suppression system
    – Ansul, wet
  • Fluids
    – Arctic fuel
    – Arctic coolant
  • Handrail Extension
  • Lubrication system
    – Automatic, dump or ejector body
    – Centralized, ejector body
  • Mine transfer
    – Mine transfer ready front frame (tack welded)
    – Mine transfer ready dump body (tack welded)
    – Mine transfer ready ejector body (tack welded)
  • Operators station ROPS/FOPS enclosed
    – Air conditioning
    – Cab pressurizer and filter
    – Dome light
    – Heater
    – Radio ready compartment for radio and speakers
    – Sun visor
    – Window, sliding cab door
  • Park brake switch engagement
    – Push to apply
    – Pull to apply
  • Payload
    – Truck Payload Measurement System (TPMS)
    – Remote display for TPMS
  • Reflective tape
  • Rims
    – Rim identification numbering
    – Spare, tubeless
  • Seat
    – Suspension seat Cat Comfort TLV2, vinyl
    – Suspension seat tee, mechanical
  • Seat cover
    – Tee and Cat Comfort TLV2
    – Seat cover, companion
  • Secondary steering system
  • Service tools
    – Collet jacking bolts, dump or ejector
    – Diagnostics box
    – Hoist cylinder supports (for body removal)
    – Brake wear gauge
    – Reference parts manual for additional tooling available
  • Switches
    – Engine shutdown, fire suppression activation
    – Idle timer
    – Engine shutdown, fire suppression activation/idle timer
  • Technology
    – Product Link Elite (PLE) system
  • Tire arrangements
    – Tire, 29.5 × R29 VSNT Bridgestone
    – Tire, 29.5 × R29 VSDL Bridgestone
  • Torque converter, high altitude, 3000 m (9,842 ft) and up
  • NOTE: Not all features are available in all regions. See your Cat dealer for more information.
