Caterpillar

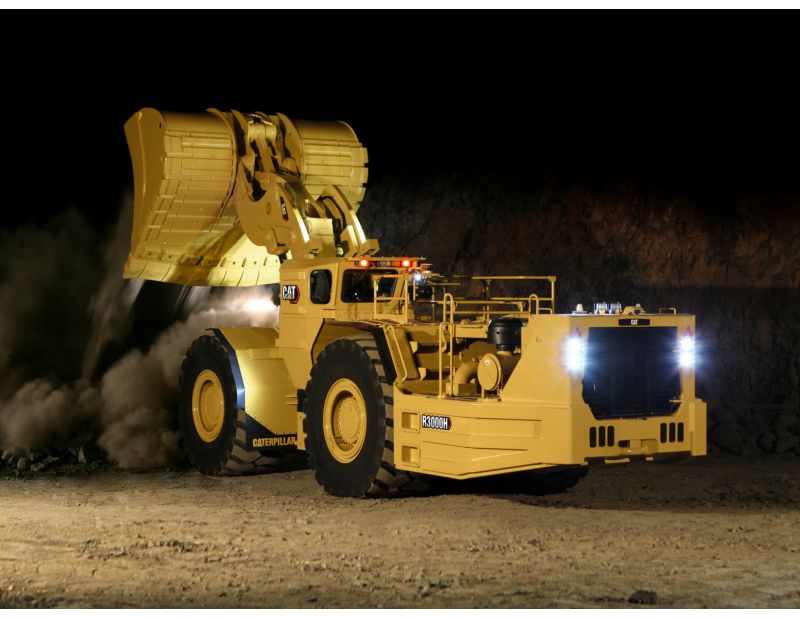

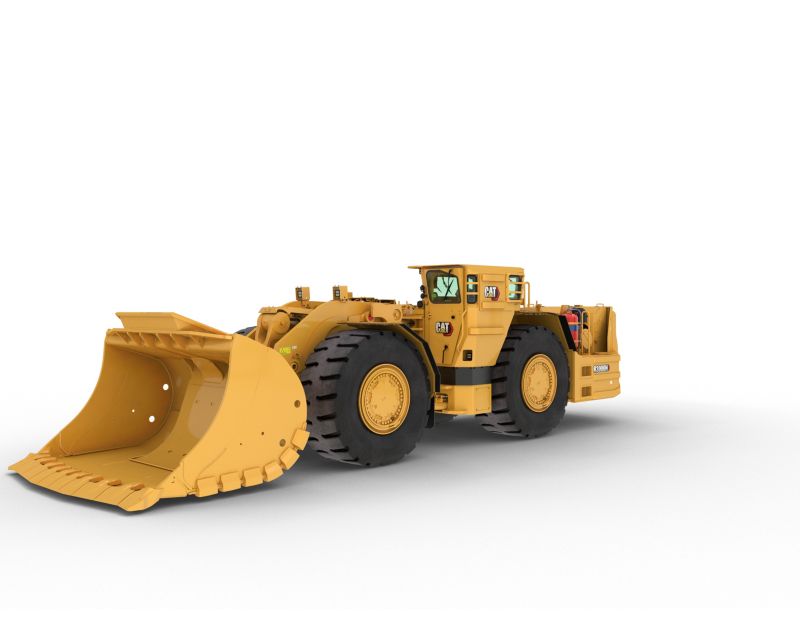

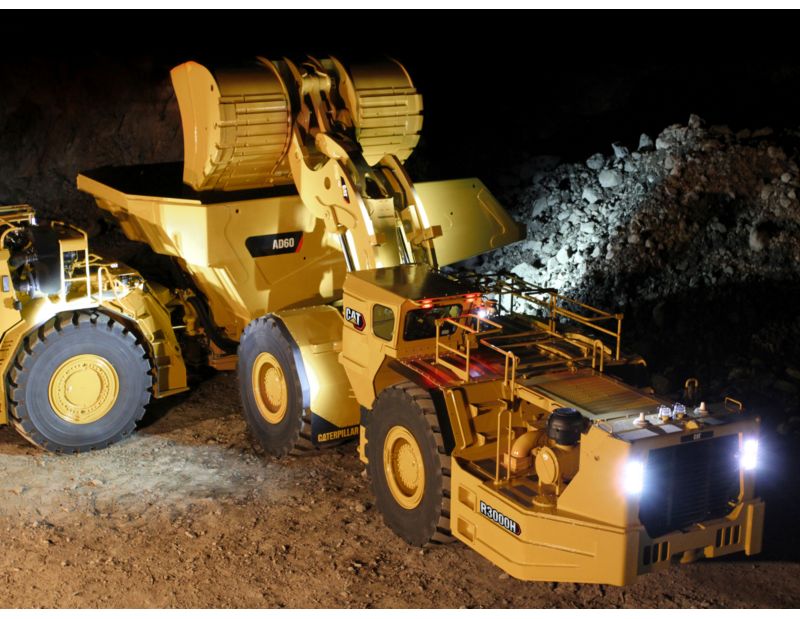

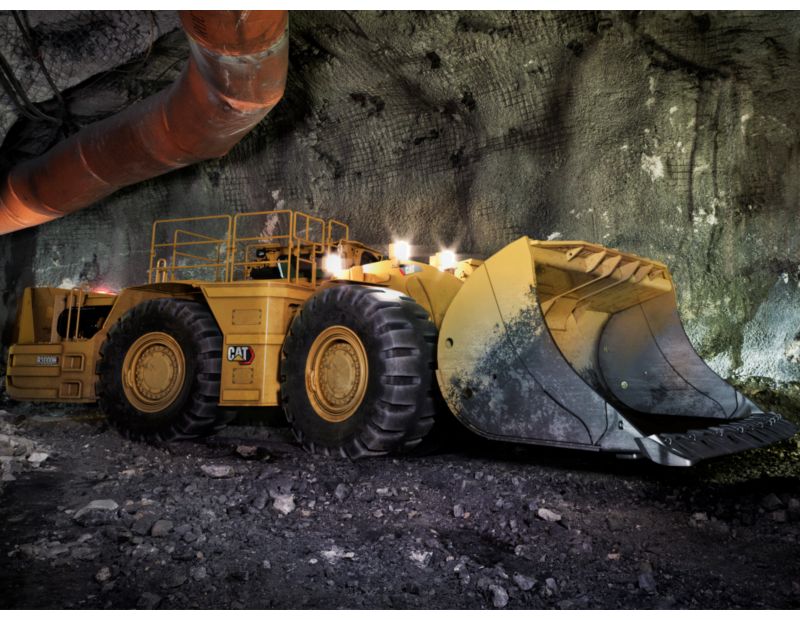

R3000H Underground Mining Loader

Engine Model

Cat® C15

Engine Power - Tier 3 Engine - ISO 14396:2002

401 HP

Nominal Payload Capacity

44092 lb

Overview

Our largest underground loader, the Cat® R3000H is a low-cost specialist. Designed for the largest underground mines, it’s a super-productive, durable machine that delivers high performance and long life to lower cost per ton and overall cost of ownership. Safety comes standard, with most safety features built in — including an Operator Present System that protects the machine and operator from uncontrolled machine movements.
Its 100% Caterpillar designed and manufactured powertrain components deliver top reliability and performance. And its durable frame and components combine with improved serviceability to deliver the high uptime you demand.

Photos

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view

Showroom

R3000H Virtual Product Tour

Features

Specifications

  • Engine
    Spec Value
    Engine Model Cat® C15
    Engine Power - Tier 3 Engine - ISO 14396:2002 401 HP
    Engine Power - VR Engine - ISO 14396:2002 401 HP
    Bore 5.4 in
    Stroke 6.8 in
    Displacement 927.6 in³
    Note (1) Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard.
    Note (2) All rating conditions are based on ISO/TR 14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F).
    Note (3) No engine derating required up to 3050 m (10,006 ft) altitude for equivalent Tier 3 engines, and 3506 m (11,502 ft) for VR engines.
    Note (4) Optional Ventilation Reduction package available.
    Note (5) Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available.
  • Operating Specifications
    Spec Value
    Nominal Payload Capacity 44092 lb
    Gross Machine Mass 180779 lb
    Static Tipping Load - Straight Ahead - Lift Arms Horizontal 104199 lb
    Static Tipping Full Turn Ahead Lift Arms Horizontal 88191 lb
    Breakout Force - SAE 61773 lb
  • Weights
    Spec Value
    Operating Mass* 128448 lb
    Operating Mass* - Front Axle 54558 lb
    Operating Mass* - Rear Axle 73853 lb
    Operating Mass + Rated Payload* 172540 lb
    Operating Mass + Rated Payload* - Front Axle 125187 lb
    Operating Mass + Rated Payload* - Rear Axle 47316 lb
    Note *Calculated weight.
  • Transmission
    Spec Value
    Forward - 1 3 mile/h
    Forward - 2 5.7 mile/h
    Forward - 3 10.2 mile/h
    Forward - 4 17.5 mile/h
    Reverse - 1 4.1 mile/h
    Reverse - 2 7.1 mile/h
    Reverse - 3 12.7 mile/h
    Reverse - 4 19.4 mile/h
  • Hydraulic Cycle Times
    Spec Value
    Raise 8.8 s
    Dump 1.85 s
    Lower, Empty, Float Down 3.54 s
    Total Cycle Time 14.2 s
  • Bucket Capacities
    Spec Value
    Bucket Capacities 8.9-11.6 m³ (11.6-15.2 yd³)
    Dump Bucket - 1 - Standard Bucket 11.6 yd³
    Dump Bucket - 2 12.4 yd³
    Dump Bucket - 3 13.7 yd³
    Light Material Bucket 15.2 yd³
  • Turning Dimensions
    Spec Value
    Outside Clearance Radius** 296.7 in
    Inner Clearance Radius** 127.8 in
    Axle Oscillation 8 °
    Articulation Angle 42.5 °
    Note **Clearance dimensions are for reference only.
  • Tires
    Spec Value
    Tire Size 35/65 R33
  • Service Refill Capacities
    Spec Value
    Engine Crankcase 9 gal (US)
    Transmission 16.4 gal (US)
    Hydraulic Tank 37 gal (US)
    Cooling System 19.8 gal (US)
    Front Differential and Final Drives 31.4 gal (US)
    Front Differential and Final Drives - With Axle Oil Cooling System 42 gal (US)
    Rear Differential and Final Drives - With Axle Oil Cooling System 44.1 gal (US)
    Fuel Tank 406.5 gal (US)
    Rear Differential and Final Drives 33.5 gal (US)
  • Standards
    Spec Value
    Standards Rollover Protective Structure (ROPS)/Falling Object Protective Structure (FOPS) Certified Cab

Standard Equipment

TIRES, RIMS, AND WHEELS

  • Tires Arrangements: Tires Must Be Selected From the Mandatory Attachments Section, Choose Between:
    – Tire, 35/65 R33, VSNT, Bridgestone
    – Tire, 35/65 R33, VSDL, Bridgestone
  • Rims (set of four):
    – Five Piece, Tubeless

ELECTRICAL

  • Alarm, Reversing
  • Alternator, 95 Amp
  • Battery Disconnect Switch, Ground Level
  • Batteries, Low Maintenance
  • Diagnostic Connector
  • Engine Shutdown Switch
  • Lighting:
    – External, Front, Rear, Halogen
    – Stop, Dual, Halogen
  • Receptacle Group, Auxiliary Start
  • Starter, Electric, 24-Volt
  • Starting and Charging System

OPERATOR ENVIRONMENT

  • Automatic Brake Application (ABA)
  • Cab Enclosed:
    – ROPS/FOPS Certified
    – Air Conditioning
    – Cab Pressurizer and Filter
    – Dome Light
    – Heater
    – Radio Ready Compartment for Radio and Speakers
    – Salt Resistant Air Conditioner
  • Caterpillar Electronic Monitoring System (CEMS), (dash instrumental panels)
  • Horns, Electric
  • Instrumentation/Gauges:
    – Speedometer/Tachometer
    – Fuel Level
    – Hydraulic Oil Temperature
    – Engine Coolant Temperature
  • Operator Presence System
  • Light, Warning, Residual Brake
  • Low Hydraulic Level Warning
  • Pilot Hydraulic Implement Controls (single joystick)
  • Seat:
    – Seat, Suspension, Vinyl
  • Seat Belt, Retractable

POWER TRAIN

  • Brakes, Full Hydraulic Enclosed Wet Multiple-Disc Spring Applied, Fluid Released (SAFR™)
  • Engine:
    – Cat C15 6 Cylinder Diesel
    – Air-To-Air Aftercooler (ATAAC)
  • Exhaust:
    – Particulate Filter, Flow Thru
    – Particulate Filter, Wall Flow
  • Filter, Engine, Remote Mounted
  • Fuel Adapters:
    – Standard Fill, Dual, Rubber Coated, Double Steel Braided Fuel Lines
  • Fuel Priming Aid
  • Park Brake Switch Engagement, Choose Between:
    – Push to Apply
    – Pull to Apply
  • Precleaner, Engine Air Intake
  • Torque Converter with Automatic Lock-Up Clutch
  • Transmission, Automatic Planetary Powershift (4F/4R)
  • Transmission Neutralizer

OTHER STANDARD EQUIPMENT

  • Windows:
    – Single Pane
  • Brake Axle Cooling
  • Brake Light
  • Cap, Radiator, Manual Release
  • Catalytic Exhaust Purifier/Muffler
  • Dump Bucket (8.9 m3/11.6 yd3)
  • Bucket Lip:
    – Modular Weld-On
    – Lip Weldings – Full Weld Edge or Tack Weld Edge and Corners
  • Decals, International Picto Graphics
  • Fenders, Front, Rear
  • Firewall
  • Fuel Systems:
    – Dual Fuel Tanks
    – Fuel System Manual Shut Off Taps
  • Guards, Engine and Transmission
  • Handholds (Access On/Off Top Deck)
  • Lift Arm Positioner for Return to Dig
  • Radiator Grill, Swing Out
  • Service Oil Sample
  • Valve, Drain, Transmission Oil Filter
  • Valve, Hydraulic, Standard

Optional Equipment

POWER TRAIN

  • Engine Options:
    – Engine, Ventilation Reduction (VR)
    – VR Engine, Flow Thru Ready
    – Engine, Tier 3
  • Exhaust:
    – Exhaust, Purifier, Muffler
  • Fuel Adapters:
    – Standard Fill, Dual, Stainless Steel Covered, Single Braided Fuel Lines
    – Fast Fill, Dual, Rubber Coated, Double Steel Braided Fuel Lines
    – Fast Fill, Dual, Stainless Steel Covered, Single Braided Fuel Lines
  • Secondary Steering System

ELECTRICAL

  • Battery Disconnect Switch, In Cab
  • Lighting:
    – Cat LED Worklights

OPERATOR ENVIRONMENT

  • Camera, Color Rear Facing
  • Duct, Air, Flow Diverter
  • Idle Timer (enclosed cab)
  • Instrumentation/Gauges:
    – Brake Pressure
  • Seat:
    – Seat, Suspension, Tee, Vinyl
    – Seat, Suspension, Air, Vinyl
    – Seat Cover

TECHNOLOGY PRODUCTS

  • Command for Underground*
  • Vital Information Management System (VIMS) Gen 3
  • Payload System, Loadrite
  • Remote Control Interface (excludes Transmitter and Receiver) – RCT
  • *Please consult with your Regional Commercial or Technology Representative prior to upgrading your machine to Command for Underground.

TIRES, RIMS, AND WHEELS

  • Rim Identification Numbering
  • Spare Rim, Tubeless

OTHER OPTIONAL EQUIPMENT

  • Brake release arrangements:
    – Recovery hook
    – Recovery bar
  • Buckets:
    – Various Sizes, Dump (9.5 m3/12.4 yd3, 10.5 m3/13.7 yd3)
    – Light Materials, Dump (11.6 m3/15.2 yd3)
    – Light Materials, Dump, Uninstalled (11.5 m3/15.0 yd3)*
  • Bucket Lip:
    – Bolt On Lips
    – Durilock
  • Ground Engaging Tools (GET):
    – Cutting Edge, Cat Weld-On
    – Cutting Edge, Bolt-On Half Arrow
    – Cutting Edge, Shrouds, Durilock
    – Mechanically Attached Wear Plate System (MAWPS) – Bucket Lip Protection
    – Heel Shrouds
    – Wear Bars
    – Liners
    – Overflow Guard
  • Faster Fill and Evacuation Systems:
    – Engine, Fast Fill
    – Radiator, Fast Fill
    – Hydraulic, Fast Fill
    – Transmission, Fast Fill
  • Draw Bar Attachment, Bolt-On
  • Fire Suppression System:
    – Ansul, Dry Powder
    – Foam, Water Based
  • Fluids:
    – Arctic Coolant
    – Arctic Fuel
  • Guard, Light and Window
  • Handrails
  • Lubrication System:
    – Automatic
    – Centralized
  • Mine Transfer
  • Reversible Steering
  • Reflective Tape
  • Ride Control System
  • Service Tools:
    – Collet Jacking Bolts
    – Recovery Bar
  • Vandalism Protection
  • Windows:
    – Dual Pane
  • Wear Protection Bars:
    – Cab/ROPS
    – Hydraulic Tank
    – Radiator
